AP AC2454 A 2 esd safe ionizer air nozzle
- Category: Cleaning Equipment Parts >>>
- Supplier: Shanghai Anping Static Technology Co. Ltd.
Share on (60864584804):
Product Overview
Description
Product Descriptio

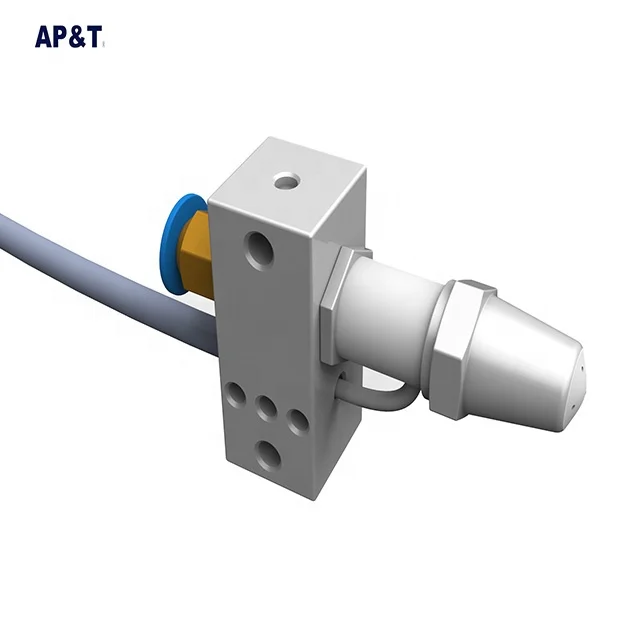

AP-AC2454-A-2 esd safe ionizer air nozzle
Product Description

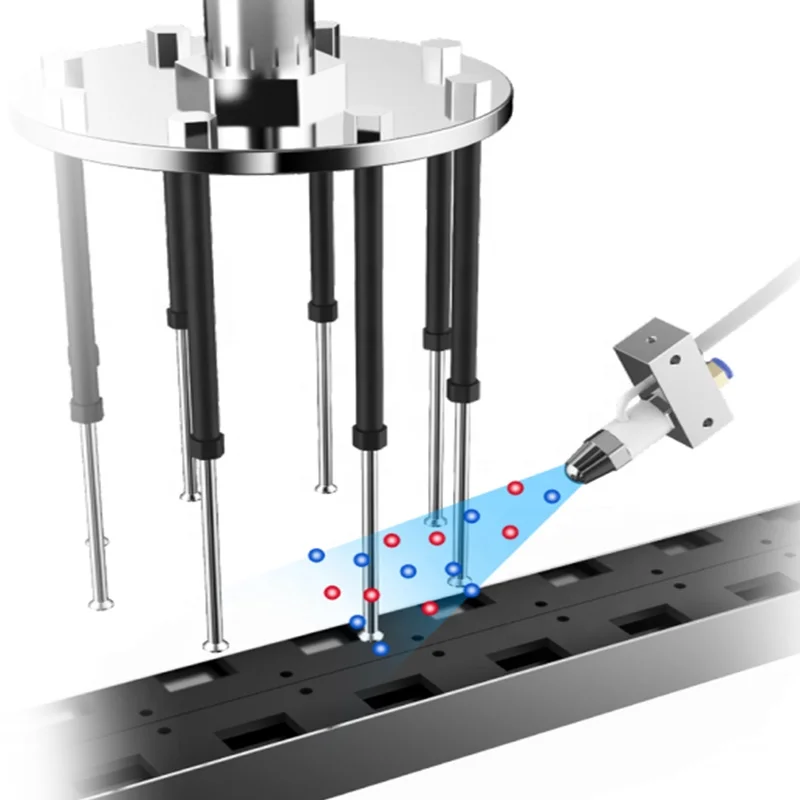

AP-AC2454-A ionizing air nozzle eliminates static electricity on the surface of objects. It is a fast and efficient dust removal device designed to provide electrostatic protection for the surface of the target object.
The AP-AC2454-Aionizing air nozzle uses AC high-voltage electricity and is connected to a dedicated emitter electrode to ionize the air to generate positive and negative ions, which are transported by compressed air to the surface of the static-eliminated object and neutralize the positive and negative electrostatic charges to achieve the purpose of efficient and reliable power consumption.
Industry application:
Can be widely used in electronics, injection molding, printing, film and other industries.
Features:
1) Compact size and easy installation.
2) Excellent electrical performance index and good performance.
3) Eliminate the static electricity and remove the dust on the surface.
4)Safe and reliable to work under the condition of high voltage and micro current.

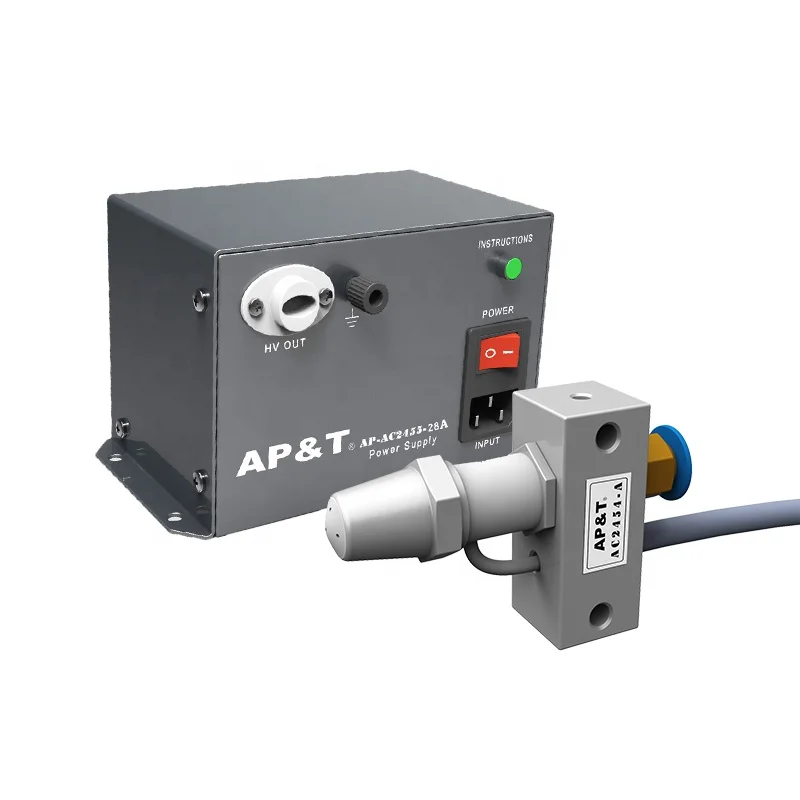

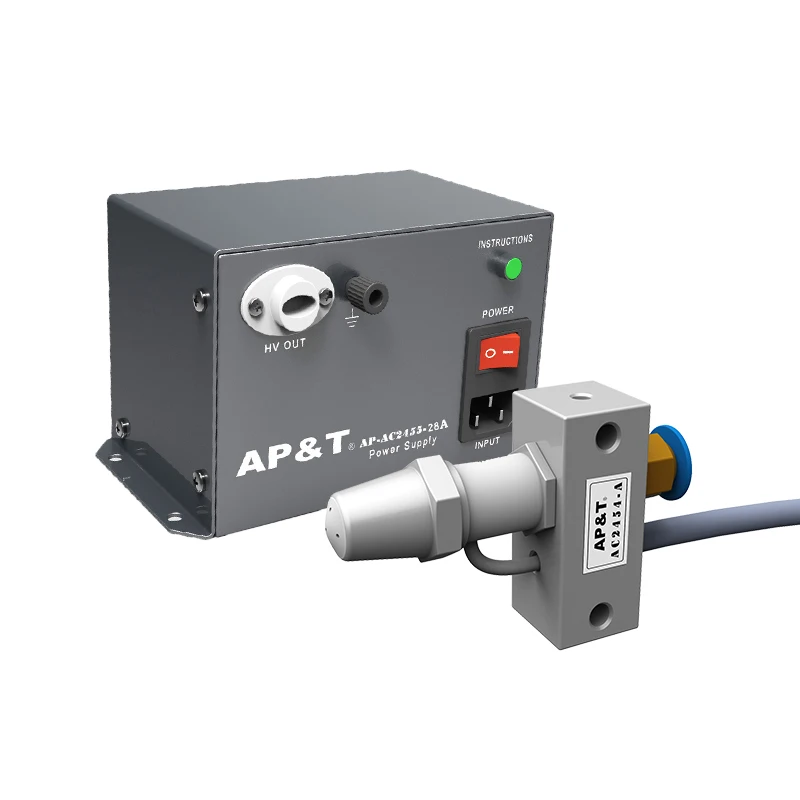

5) Configure AP-AC2455-28 special high-voltage power supply.

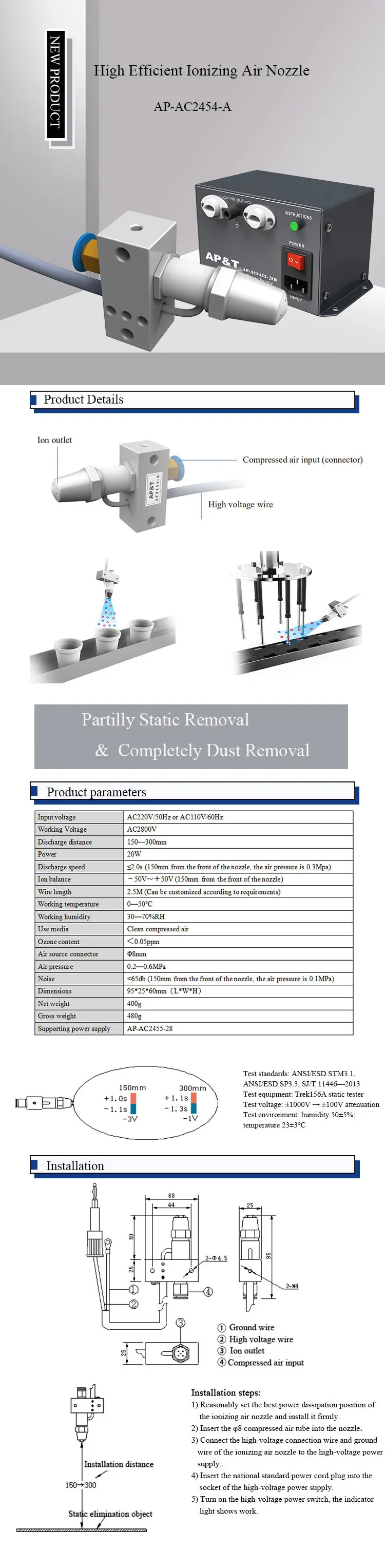

Product Specifications
Input voltage | AC220V/50Hz or AC110V/60Hz |
Working Voltage | AC2800V |
Discharge distance | 150—300mm |
Power | 20W |
Discharge speed | ≤2.0s (150mm from the front of the nozzle, the air pressure is 0.3Mpa) |
Ion balance | -50V~+50V (150mm from the front of the nozzle) |
Wire length | 2.5M (Can be customized according to requirements) |
Working temperature | 0—50℃ |
Working humidity | 30—70%RH |
Use media | Clean compressed air |
Ozone content | <0.05ppm |
Air source connector | Φ8mm |
Air pressure | 0.2—0.6MPa |
Noise | <65db (150mm from the front of the nozzle, the air pressure is 0.1MPa) |
Dimensions | 95*25*60mm(L*W*H) |
Net weight | 400g |
Gross weight | 480g |
Supporting power supply | AP-AC2455-28 |
More Product

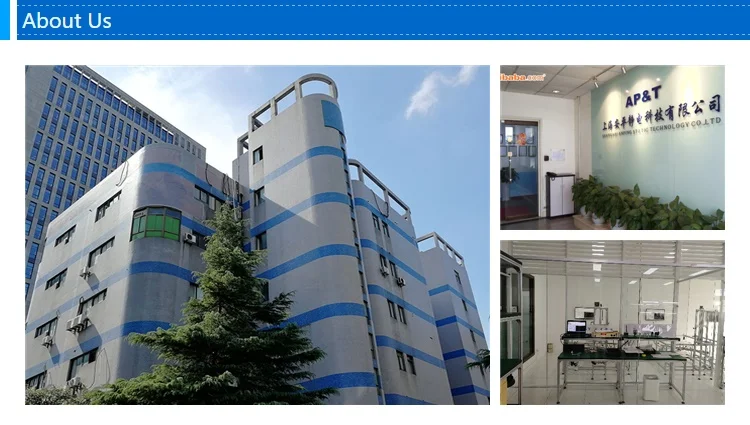

About Us
Shanghai Anping Static Technology Co.,Ltd was established in 1999 which is the first Hi-Tech enterprise researching and manufacturing DC ionizer in China.
AP&T brand series products include ionizing air blower, ionizing air gun, ion bar, ion nozzle with various specifications are wildly used in semi conduct, encapsulation, opto-electrical, electronics, communication, spray finishing, printing, textile, pharmaceutical equipment, construction material, injection molding industries.
As councilman of China Electronics lndustry Association Anti-static Equipment Branch, we devote our efforts in providing comprehensive perfect solution of static control and eliminating and serve our customers with our strong technical strength and rich industry experience. We are ready to supply you over valued products and technology. We'll be your reliable partner in ESD field.
AP&T brand series products include ionizing air blower, ionizing air gun, ion bar, ion nozzle with various specifications are wildly used in semi conduct, encapsulation, opto-electrical, electronics, communication, spray finishing, printing, textile, pharmaceutical equipment, construction material, injection molding industries.
As councilman of China Electronics lndustry Association Anti-static Equipment Branch, we devote our efforts in providing comprehensive perfect solution of static control and eliminating and serve our customers with our strong technical strength and rich industry experience. We are ready to supply you over valued products and technology. We'll be your reliable partner in ESD field.

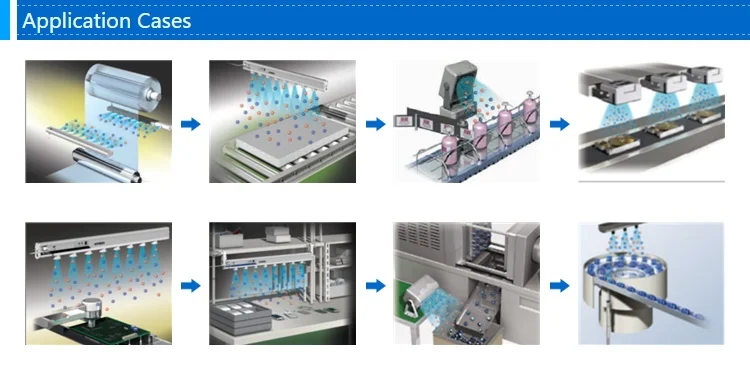

Application Cases
FAQ
Q1: What is your MOQ?
A: MOQ is 1 piece, which varies with different products.
Q2:What industry can be used?
A:Wildly used in semi conduct, encapsulation, opto-electrical, electronics, communication, spray finishing, printing, textile, pharmaceutical equipment, construction material, injection molding industries and so on.
Q3:Are you Manufacturer?
A:Yes,100% manufacturer.Also we have an office in India.
Q4:What services do you have?
A:Professional pre-sale services,saling services and Afer-sale services.Make you worry-free shopping.
Q5:How to find the right products?
A:Recommend the corresponding product according to the actual situation of the customer, and tell the customer the effect that can be achieved after use.
Q6:How to maintain the product later?
A:Regularly clean the electrode needle, gently wipe the electrode needle with a cotton swab, and power off for ten minutes.
