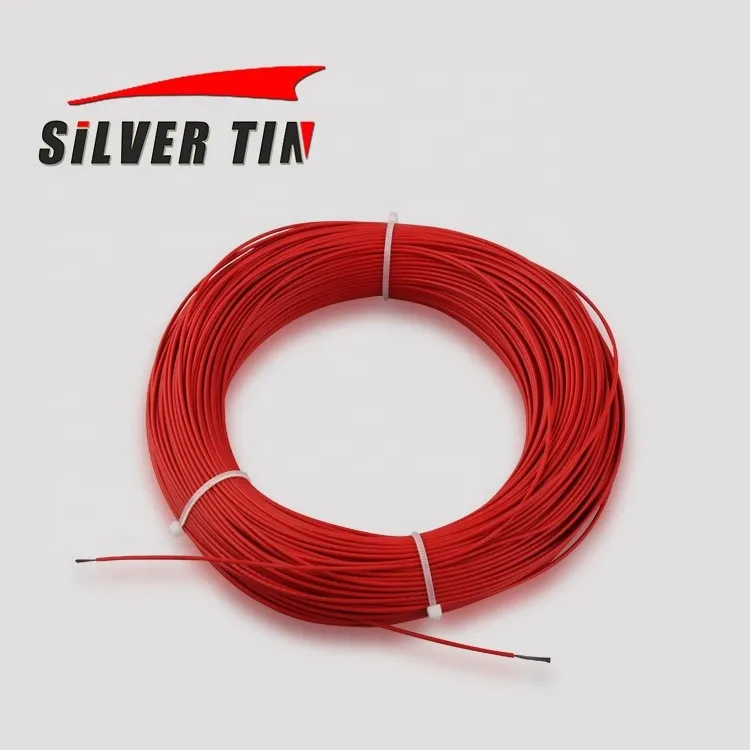

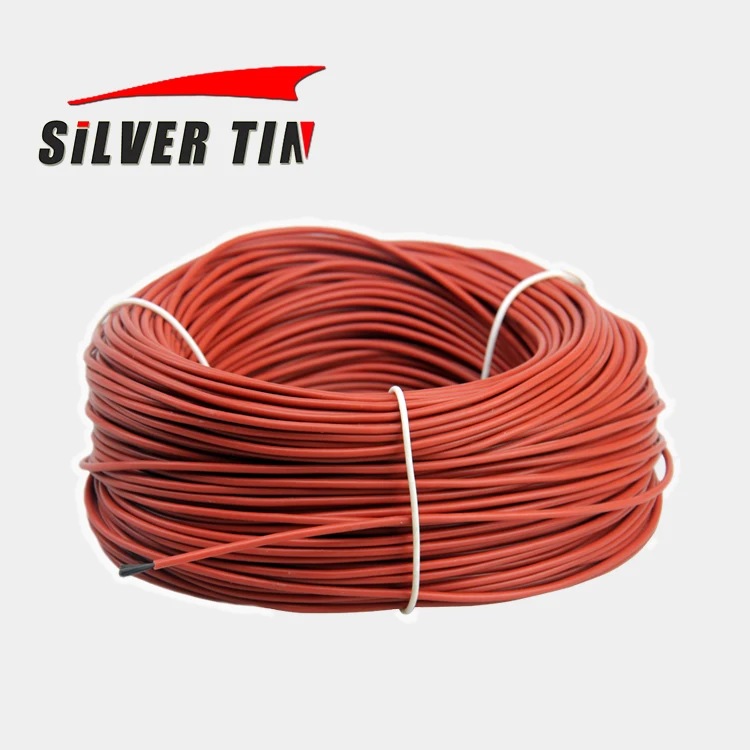

underfloor greenhouse silicone insulated Carbon fibre heating wire
- Category: >>>
- Supplier: Shanghai Silver Tin Temperature Measuring Equipment Co. Ltd.
Share on (60864703270):
Product Overview
Description
Product Description
Production Information
Product Name: Carbon fiber heating wire

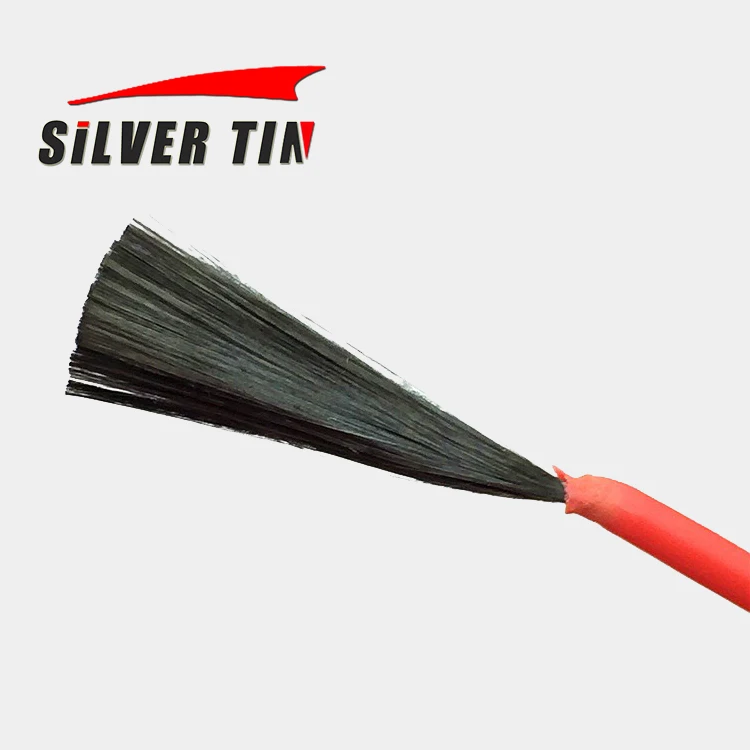

Heating material: Imports of carbon fiber heating wire
Skin material:PTFE/Silica gel
Product outside diameter: PTFE 1.4MM~3MM
Product Name: Carbon fiber heating wire
Heating material: Imports of carbon fiber heating wire
Skin material:PTFE/Silica gel
Product outside diameter: PTFE 1.4MM~3MM
Silica gel 2MM-4MM(Specifications different out diameter).
1.K represents the meaning of thousands? | ||||||
1K is a thousand silk, 24K is 24 thousands silk(24000) composition Different K numbers represent different resistors! | ||||||
2.The difference between silica gel and PTFE | ||||||
PTFE carbon fiber heating wire Advantages:Wear, corrosion resistance, so smell Disadvantages: Relative to the silicone are not soft Silicone carbon fiber heating wire Advantages:Resistant to bending, soft Disadvantages: there is smell | ||||||
3.what is the resistance per meter? | ||||||
1K=400 Ohm/m 2K=220 Ohm/m 3K=133 Ohm/m 6K=74 Ohm/m 9K=43 Ohm/m 12K=33 Ohm/m 15K=24 Ohm/m 18K=21 Ohm/m 24K=17 Ohm/m 36K=12 Ohm/m 48K=9 Ohm/m | ||||||
How to calculate power | ||||||
Product power calculation: (Voltage*Voltage)÷(resistance*length)=Power The longer the length, the smaller the power of the heating line | ||||||
Detailed Images
Model | 36K | 24K | 18K | 15K | 12K | 9K | 6K | 3K |
Resistance Ω/m | 10.5 | 17 | 22.5 | 25 | 33 | 42 | 66 | 133 |
Wire Diameter mm | 3.2 | 3.0 | 2.8 | 2.5 | 2.2 | 2.0 | 1.8 | 1.5 |
