Product Overview

Description


Product Description
Production Information
Product Name: Carbon fiber heating wire
Heating material: Imports of carbon fiber heating wire
Skin material:PTFE/Silica gel
Product outside diameter: PTFE 1.4MM~3MM

Silica gel 2MM-4MM(Specifications different out diameter).

\t
1.K represents the meaning of thousands?
\t
1K is a thousand silk, 24K is 24 thousands silk(24000) composition
Different K numbers represent different resistors!
\t
2.The difference between silica gel and PTFE
\t
PTFE carbon fiber heating wire

Advantages:Wear, corrosion resistance, so smell
Disadvantages: Relative to the silicone are not soft

Silicone carbon fiber heating wire

Advantages:Resistant to bending, soft
Disadvantages: there is smell
\t
3.what is the resistance per meter?
\t
1K=400 Ohm/m 2K=220 Ohm/m 3K=133 Ohm/m
6K=74 Ohm/m 9K=43 Ohm/m 12K=33 Ohm/m
15K=24 Ohm/m 18K=21 Ohm/m 24K=17 Ohm/m
36K=12 Ohm/m 48K=9 Ohm/m
\t
How to calculate power
\t
Product power calculation:
(Voltage*Voltage)÷(resistance*length)=Power
The longer the length, the smaller the power of the heating line

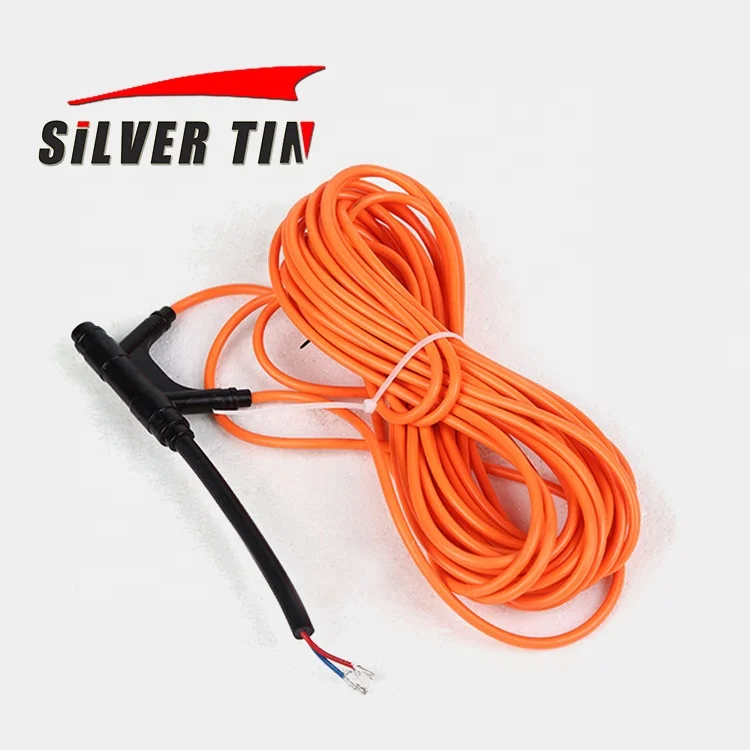

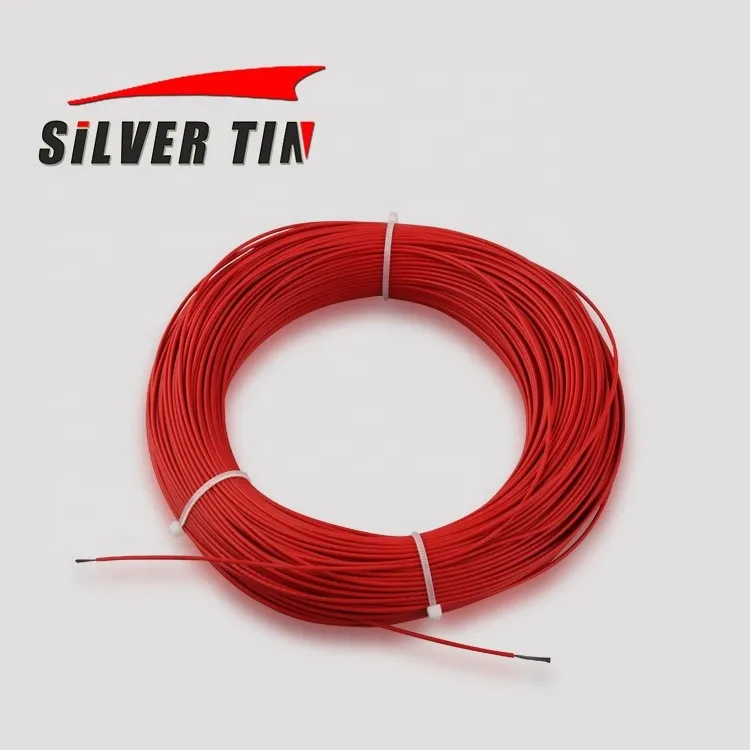

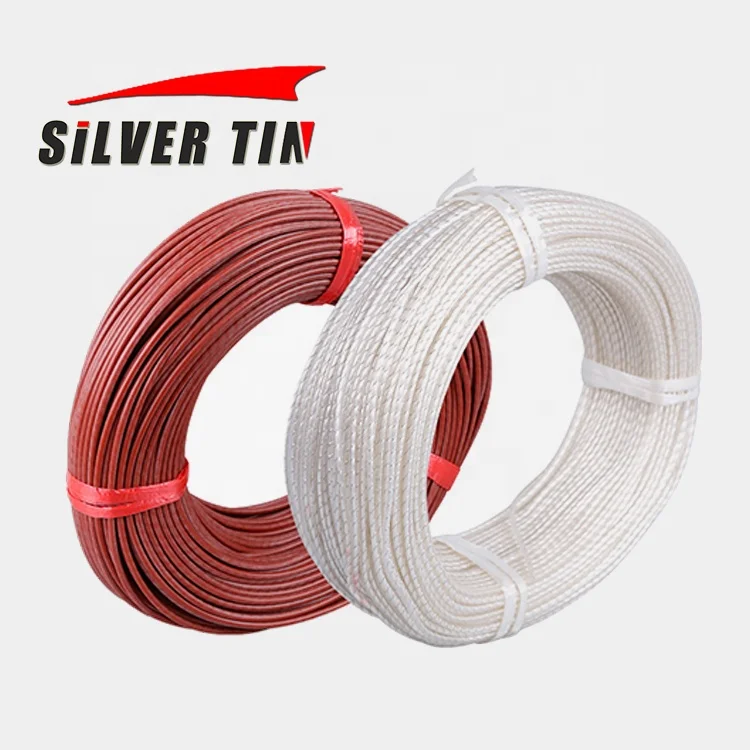

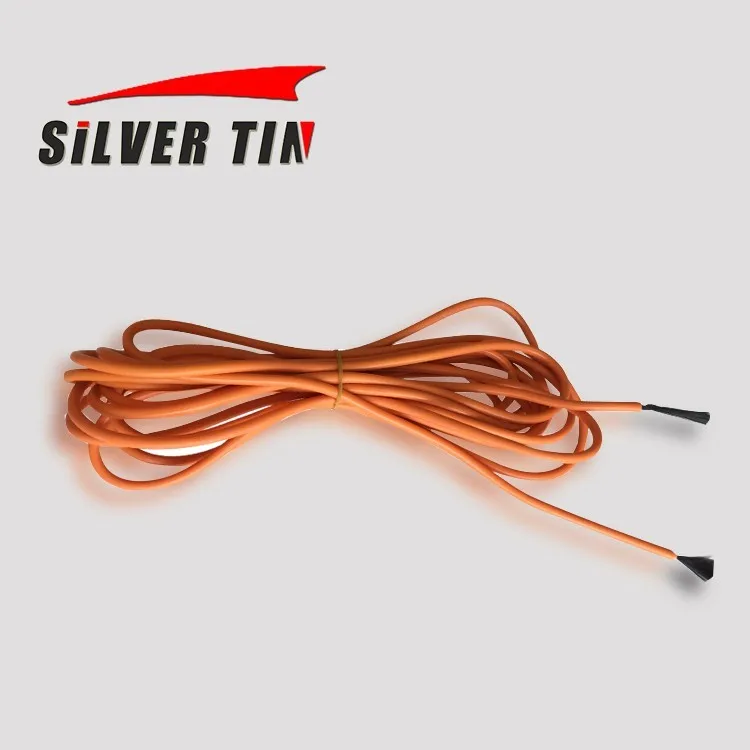

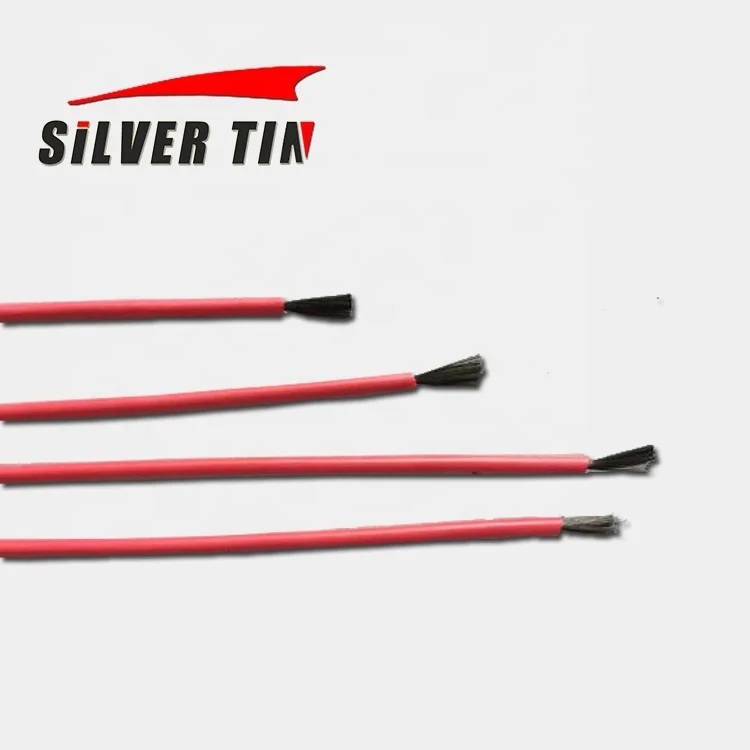

Detailed Images
\t
Model
\t
36K
\t
24K
\t
18K
\t
15K
\t
12K
\t
9K
\t
6K
\t
3K
\t
Resistance Ω/m
\t
10.5
\t
17
\t
22.5
\t
25
\t
33
\t
42
\t
66
\t
133
\t
Wire Diameter mm
\t
3.2
\t
3.0
\t
2.8
\t
2.5
\t
2.2
\t
2.0
\t
1.8
\t
1.5
