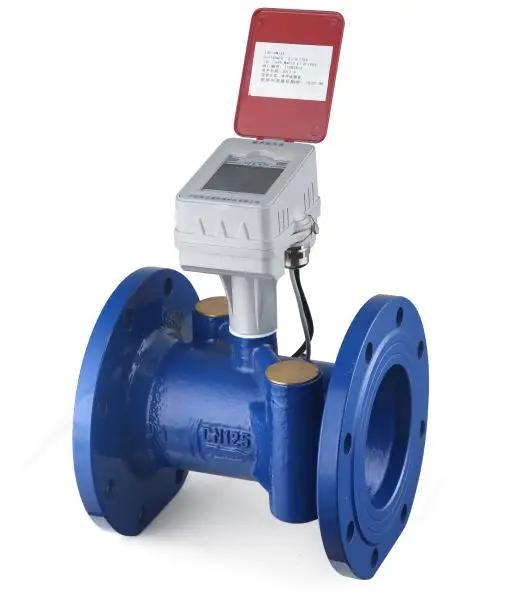

Large diameter ultrasonic water meter

Product Overview

Description



Remote reading meter, low power consumption, small pressure loss, high precision, simultaneous measurement and display of flow rate, velocity, temperature, working time and other data information, automatic fault detection alarm, M-BUS/RS485/4-20mA/NB-IoT /LORA/GPRS and other remote transmission methods.

It can be combined with remote control valve, data collector, concentrator and management software to build "water metering intelligent management system" to realize water metering intelligent management.



Description



Ultrasonic water meter is a kind of new water meter which can detect the time difference caused by the change of velocity when ultrasonic sound beam propagates in the water upstream and downstream, analyze and deal with the water velocity and further calculate the water flow rate



Features



1. Display the cumulative flow (m3), flow rate (m3 / h), temperature (℃), water meter number, total working time, fault information, etc

2. No transmission parts, minimum pressure loss, ultrasonic measurement principle, ensure long - term measurement under various complex conditions

3. Double channel design, measuring accuracy: Class 2

4. The standard communication interface is equipped with m-bus remote transmission interface, which can choose MBUS, RS485, 4-20ma, pulse, wireless 470MHz, wireless GPRS and other interfaces to realize the function of remote meter reading

5. With battery power, flow signal, pipeline leakage, pipeline burst, water flow direction and other self-test alarm function

6. Professional pipeline design to ensure the stability of the water field under test



MAIN TECHNICAL DATA



Meter size Dia DN (mm)	Q3(m³/h)	Q2(m³/h)	Q1(m³/h)	Q4(m³/h)	mm	Pulse equivalent(L)
DN50	25	0.250	0.156	31.25	200	0.01
DN65	40	0.400	0.250	50	200	0.02
DN80	63	0.63	0.394	78.78	225	0.03
DN100	100	1.000	0.625	125	250	0.05
DN125	160	1.600	1.000	200	250	0.1
DN150	250	2.500	1.562	312.5	300	0.1
DN200	400	4.000	2.500	500	350	0.2
DN250	630	6.300	3.938	787.5	450	0.3
DN300	1000	10.000	6.250	1250	500	0.5
DN350	1000	10.000	6.250	1250	500	0.5
DN400	1600	16.000	10.000	2000	500	0.8
DN500	2500	25.000	15.625	3125	500	1.5
Measurement accuracy	At low zone is ±5% from minimum flow rate (q1) to transitional flow rate (q2) exclusive boundary At high zone is ±2% from transitional flow rate (q2) to overload flow rate(q4)
Range ratio	Q3/Q1=160,Q2/Q1=1.6,Q4/Q3=1.25
Installation connection	Flange connections
Pressure loss grade	Δp40
Pressure grade	MAP10
Data storage	The history of the first 18 months of continuous storage
Power-off protection	After power failure, the accumulated flow and corresponding time can be recorded before power failure, and the metering function can be
Remote methods	Standard infrared, m-bus remote transmission (customizable RS485), pulse output
Power supply	Energy type lithium battery /MBUS remote transmission power supply
protection class	IP65(IP68 needs to customize)
Work environment	Temperature:-15°C~+55°C, Environment relative humidity:<90%
Installation site	Horizontal or vertical
Durability	Service cycle≥6years

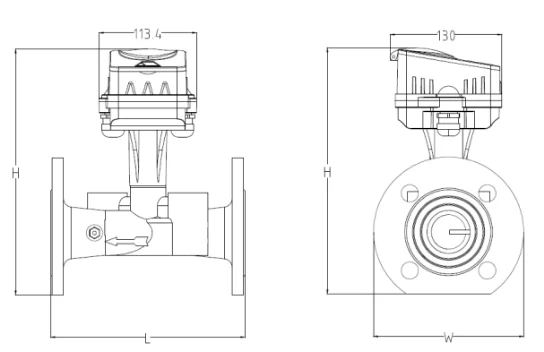

DIMENSIONS AND WEIGHT







Meter size Dia DN  (mm)	length L(mm)	Height  H(mm)	Width  W(mm)	Bolt  specification	Bolt hole  number
DN50	200	220	170	M16	4
DN65	200	240	185	M16	4
DN80	225	255	250	M16	8
DN100	250	275	270	M16	8
DN125	250	305	300	M16	8
DN150	300	335	330	M20	8
DN200	350	395	380	M20	8
DN250	450	455	450	M20	12
DN300	500	505	500	M20	12
DN350	500	565	560	M20	16
DN400	500	620	610	M24	16
DN500	500	620	720	M24	20





If you are interested in our water meter or have any questions, please feel free to contact us!
