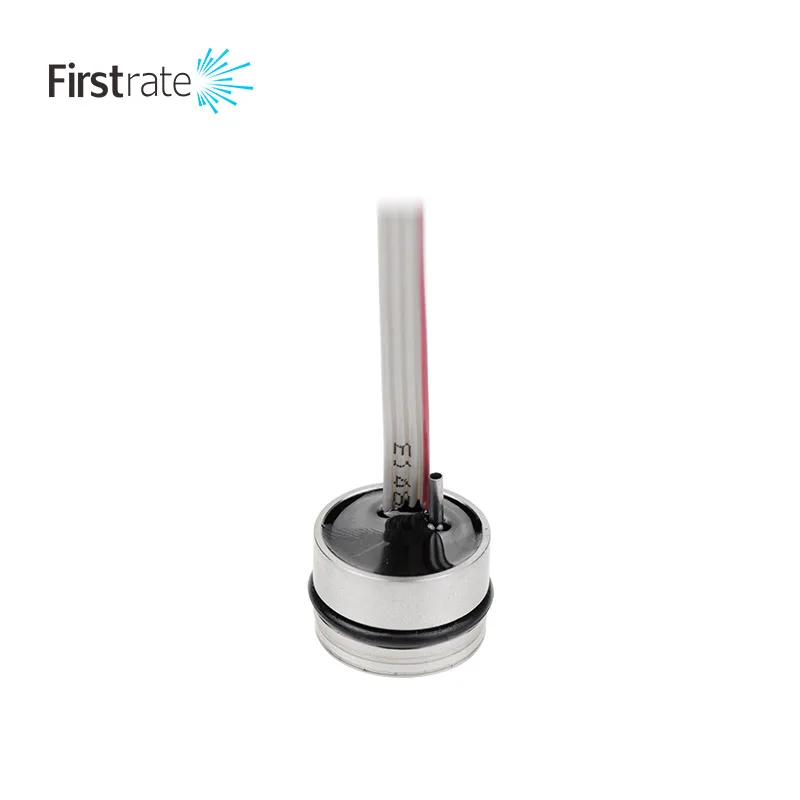

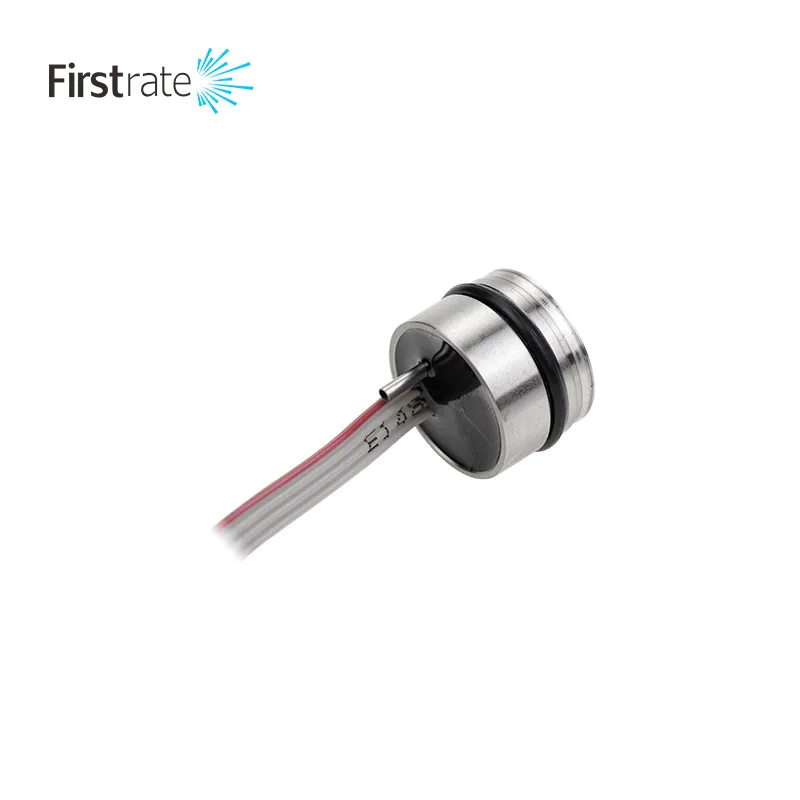

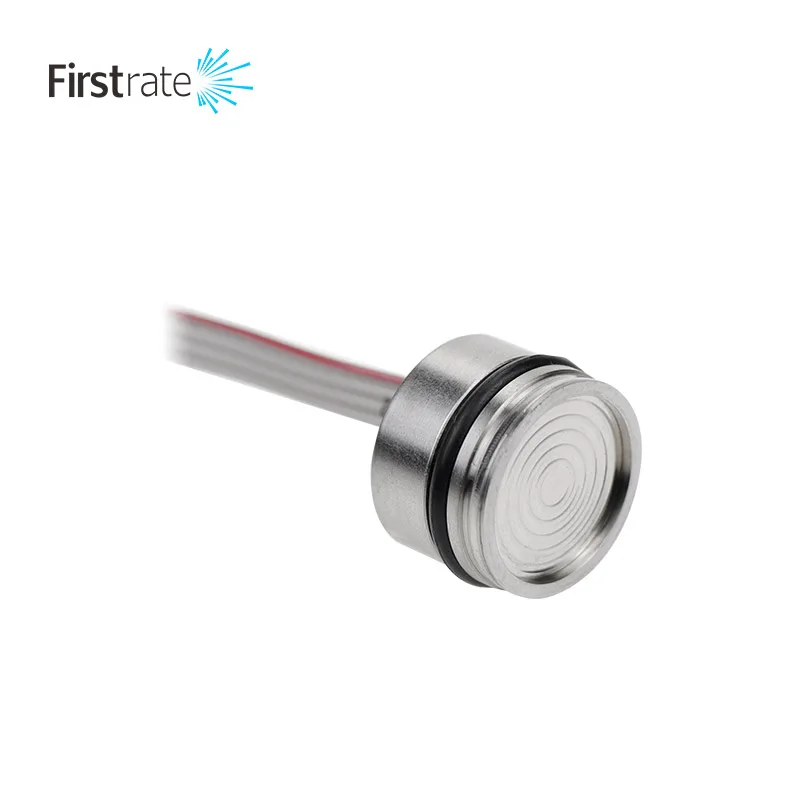

Firstrate FST800 10 Digital I2C 3.3V Water Pressure Sensor Chip for Swimming Pool Robot
- Category: >>>
- Supplier: Hunan Firstrate Sensor Co. Ltd.
Share on (60865823234):
Product Overview
Description
FST800-10 Digital I2C 3.3V Water Pressure Sensor Chip for Swimming Pool Robot
Product Description
| Supply Voltage | 3.3VDC | |||
| Ambient Temperature | 25°C | |||
| Parameters | Min. | Typical | Max | Notes |
| Interface Type | I²C (ADDR 0X28H) | SPI(optional) | ||
| Accurary(%FS) | 40Kpa | ±0.20 | ±0.30 | Combined linearily, hysteresis and repeatability |
| >40Kpa | ±0.10 | ±0.20 | ||
| Total Error Band(%FS) | -1 | 1 | Includes calibartion errors and temperature effects over the compensated range | |
| Output Type | 10% -- 90% (A type) | 5%-95%(B type) Optional | ||
| Resolution-Pressure(%FS) | 0.008 | 14bits | ||
| Temp. Accuracy(°C) | -1.5 | 1.5 | over the compensated temperature range | |
| Resolution-Temp(°C) | 0.1 | 8~11bits | ||
| Operating Temp(°C) | -40 | 125 | ||
| Compensated | 40Kpa | 0 | 50 | |
| Input Voltage(V) | 2.7 | 3.3 | 5.5 | |
| Current | Non-Sleep | 2.7mA | Default | |
| Consumption | Sleep mode | 2μA | optional | |
| Load Resistance(KΩ) | 10 | |||
| Insulation Resistance(MΩ/50V) | 50 | |||
| Response Frequency(HZ) | 2K | Reduce frequency can reduce the current consumption accordingly | ||
| Pressure Range | 0-40Kpa…7Mpa | |||
| Overpressure | 4Mpa | 2x | ||
| 7Mpa | 7Mpa | 1.5x | ||
| Media-pressure | Liquid and gases compatible with 316L Stainless Steel | |||
Application Range
♦ Process Control
♦ Fresh and waste water measurements
♦ Medical Instruments
♦ Pressure Transmitters

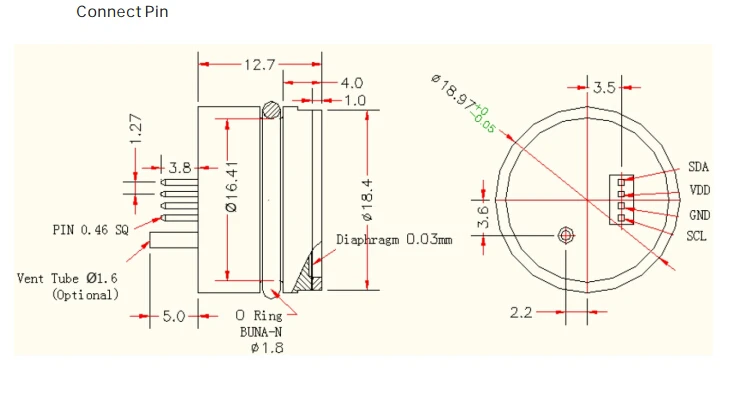

Dimension
More Hot Products
 |  |  |
| Medium and High Pressure Diffusion Silicon Oil-filled Core FST800-12 | Industrial Universal Pressure Transmitter FST800-211A | Low-power Digital Pressure Sensor (RS485) FST100-1002 |
MORE PRODUCTS »»» WELCOME TO CLICK HERE
Application
Company Information
Packaging & Shipping
FAQ
Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
Purchase guide
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~+125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: DIN43650, Packard, Direct lead?
6. Order quantity: ?
Digita Pressure Sensor for Swimming Pool Robot
