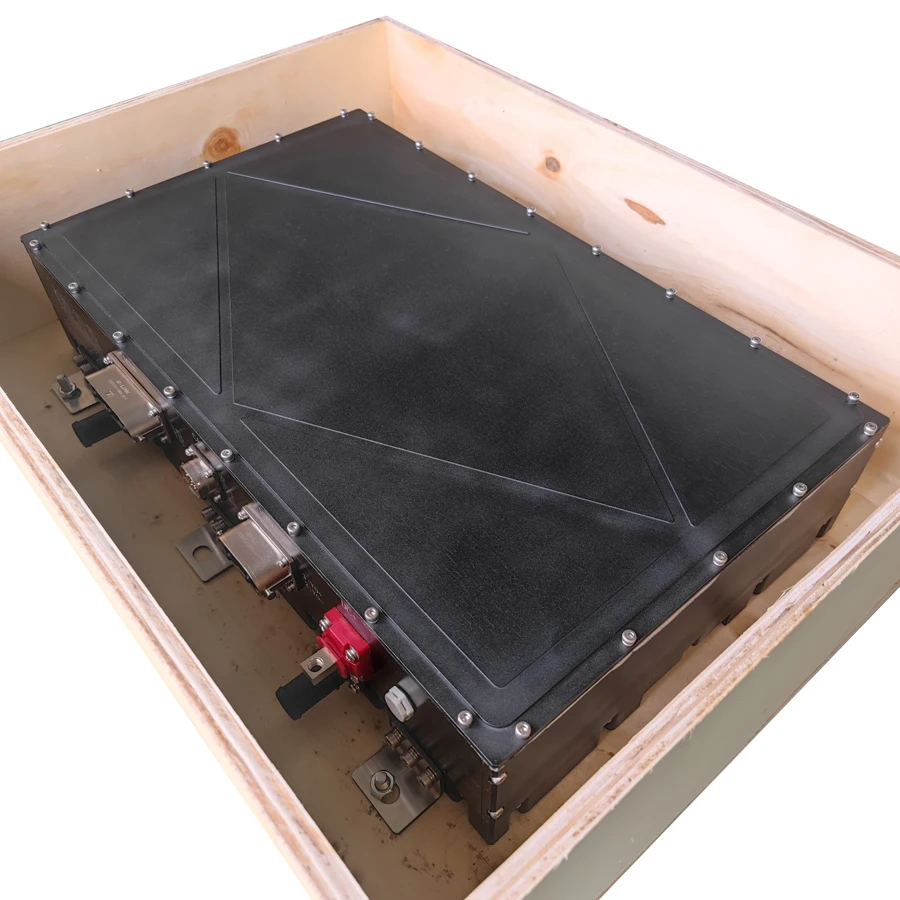

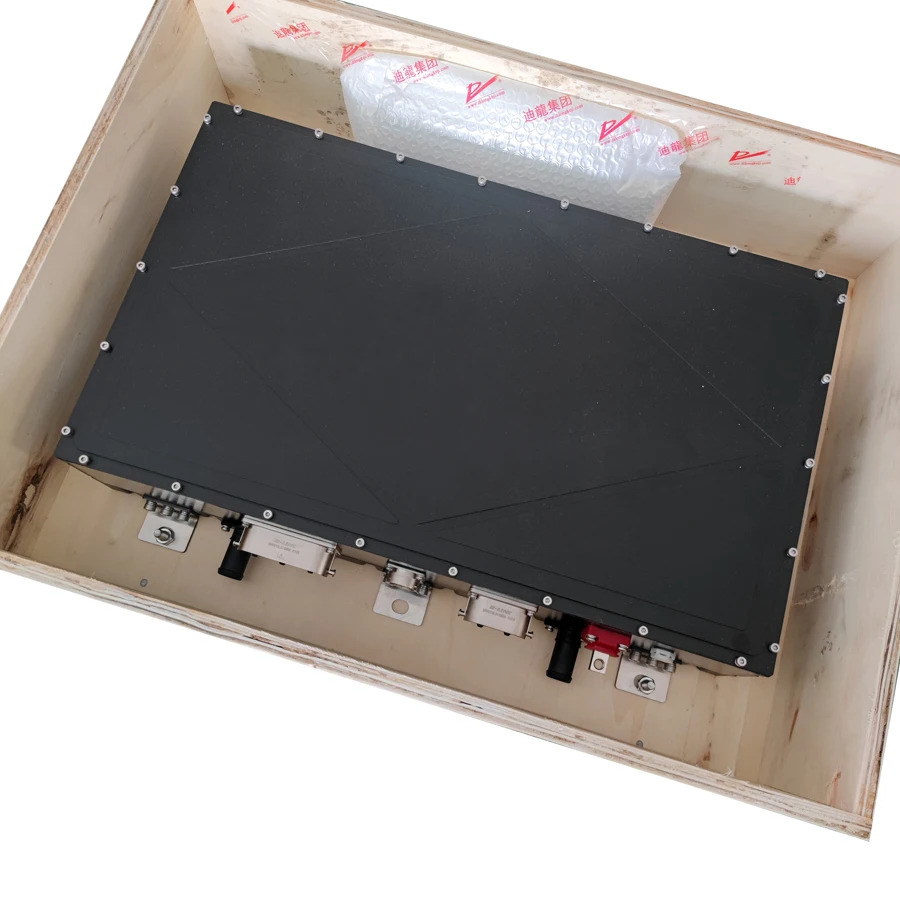

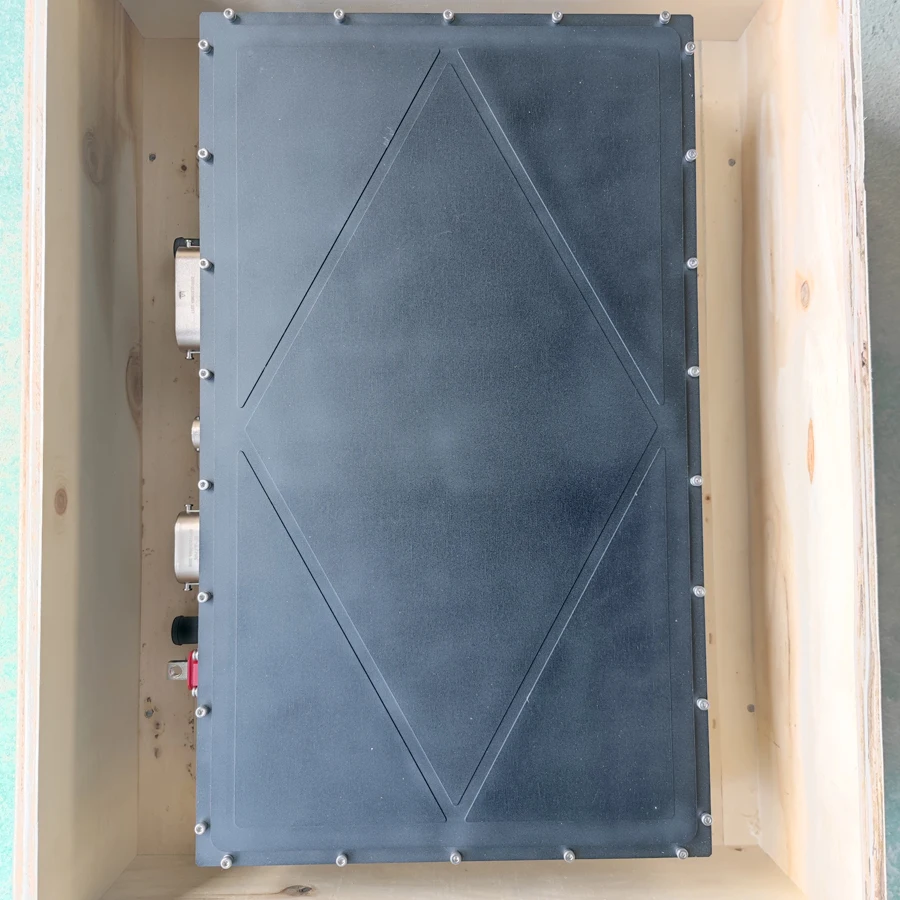

15 кВт 22 кВт ev бортовое зарядное устройство для электрического автобуса и грузовика

Share on (60865926439):


Price:4 615,00 $ - 6 000,00 $

Quantity:


Product Overview

Description


15kw 22kw ev onboard charger for electric bus and truck



more products

















Product DescriptionDilong 15kw 3 phase 380V electric bus/truck onboard battery charger


Brand name:Dilong electrical converter charger


Model Number: DA15KM32-380S600C








Features:


Constant current and constant voltage automatic conversion, effectively save charging time


Active power factor correction0.99


Input over-voltage/under-voltage protection


Output over-voltage/under-voltage protection


Output over-current protection


Output short circuit protection


Output reverse connect protection


Over-temperature protection


CAN communication intelligent fault alarm, protection function


Small volume, high power density


Designed for new energy vehicles





Specification




































































































Technical Specifications



Input Voltage



380Vac (3 phase 4 wire system)



Input Current



≤50A



Output power



15KW



Output Voltage



600Vdc(400-750Vdc)



Output Current



25A@600Vdc



Voltage accuracy



Vo:<±1%



Line Regulation



<±0.2%



Load Regulation



<±0.5%



Ripple and Noise



<±3%Vo



Dynamic response



200us



Efficiency



>93%



Over-voltage protection



yes



Under-voltage protection



yes



Over-current protection



yes



Under-current protection



yes



Over-temperature protection



85±5 ℃ CAN warning protection



Isolation Voltage



 2800Vdc  Input-Output


 2800Vdc  Input-FG


 700VdC   Output-FG



Operating Temperature



-40~+60



Operating Humidity



20%~90%RH



Cooling mode



Forced air cooling



Weight



25kg



Size



371*337*166mm






Installation Guide







Certifications


.jpg


  The company attaches great importance to quality management systems and product construction as well as interpersonal relationships. It has passed ISO9001, ISO / TS16949:2009 system certification, CE EU product certification, ROHS lead-free product certification and more than 20 certificates, and invested In EMC EMC laboratory, environmental laboratory, reliability laboratory and various performance experiments room.





Our customer


   Our products are Beiqi New Energy, Beiqi Futian, Yutong New Energy Bus and other more than 160 automobile companies provide supporting products. At present, the market share is the first, and the technical content has reached the international frontier. The German Bosch brand joint bidding car company also cooperates with the hippocampus. The automobile and Beiqi New Energy signed a strategic cooperation agreement and a strategic core supplier agreement.





Company Information






    We are a professional military power supply and industrial power production enterprise which integrates development, production and sales. The company was set up in 1990. Nowadays, we have established branch company, more than 280 employees in beijing and shenzhen city. The factory has developed a series of power supply, such as 1/16brick 50W, 1/8brick 100w, 1/4brick 100w, half brick 200w, brick 700w, and DLSP module power supply. Technology is already ahead of domestic and international peers.

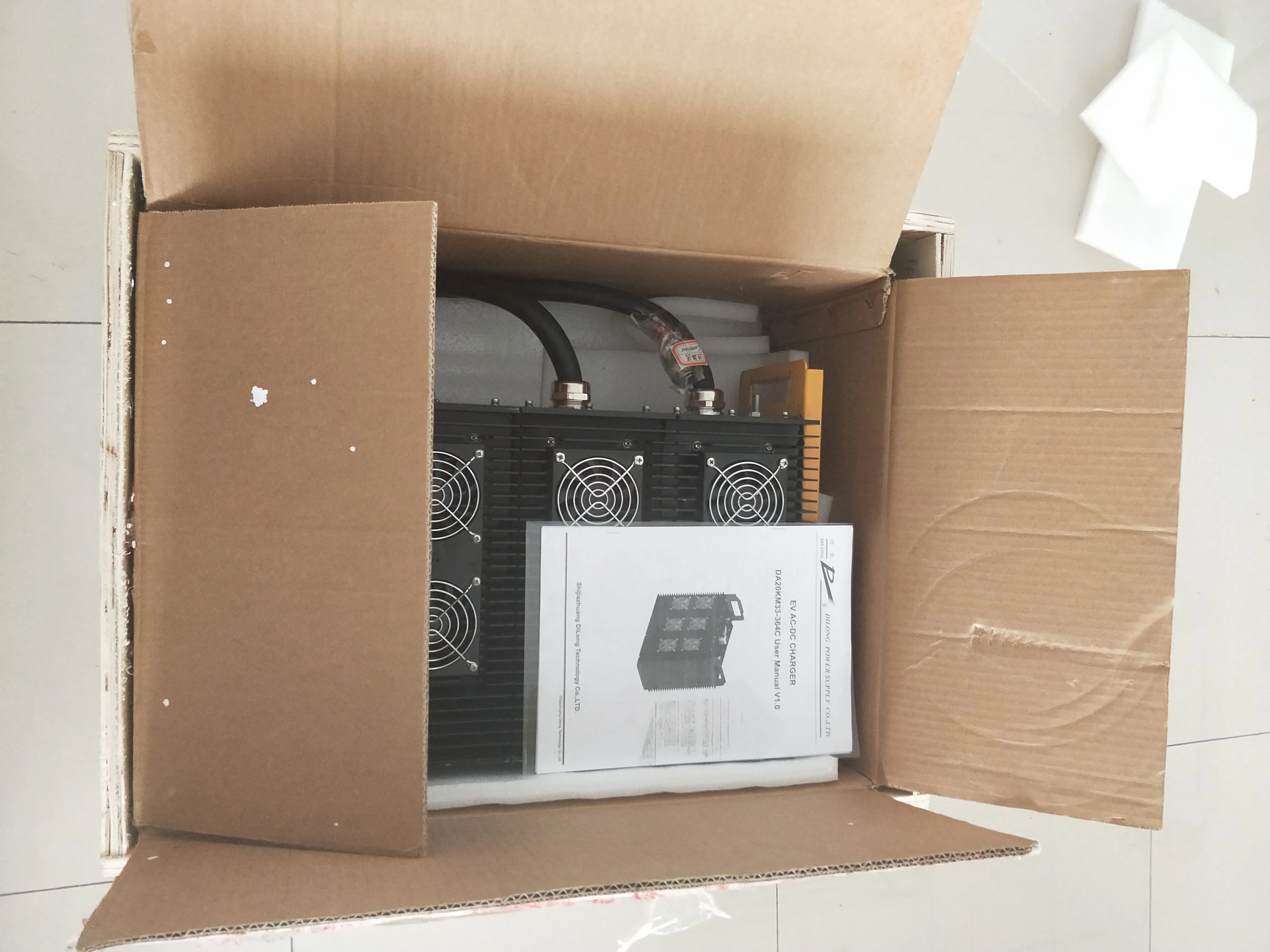

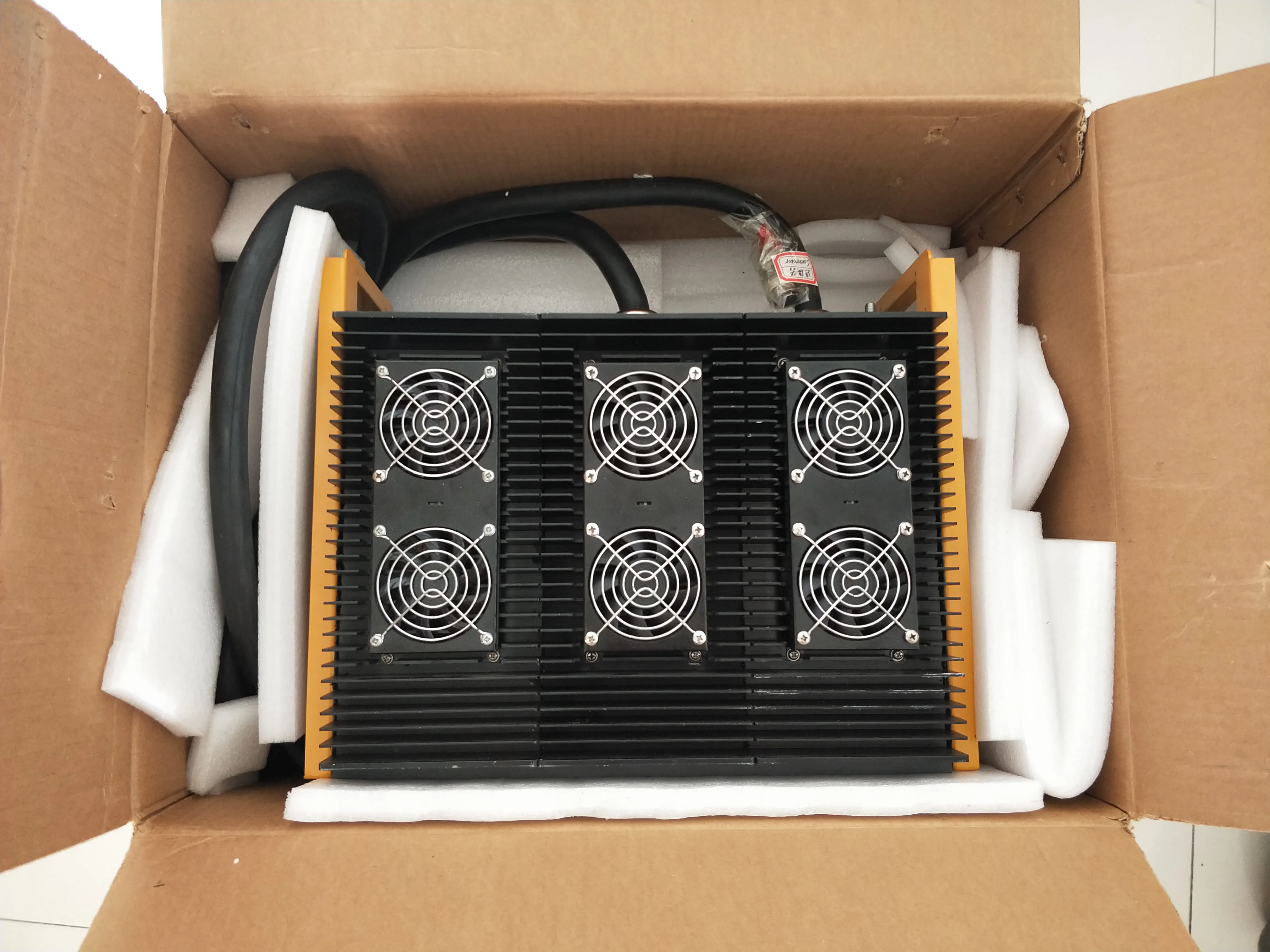

Packaging & Shipping


 01.jpg        02.jpg





FAQ


Q: Are you trading company or manufacturer?


A: We are factory.


Q: What are your main products?


A: We mainly produce electric vehicle power supply, including OBC, dc converter and integrated power supply.


Q: how long is your delivery time?


A: Within 15 days, small sample order 5-7 days.


Q: What is your production capacity?


A: The monthly output of the product is 5,000 to 10000.
