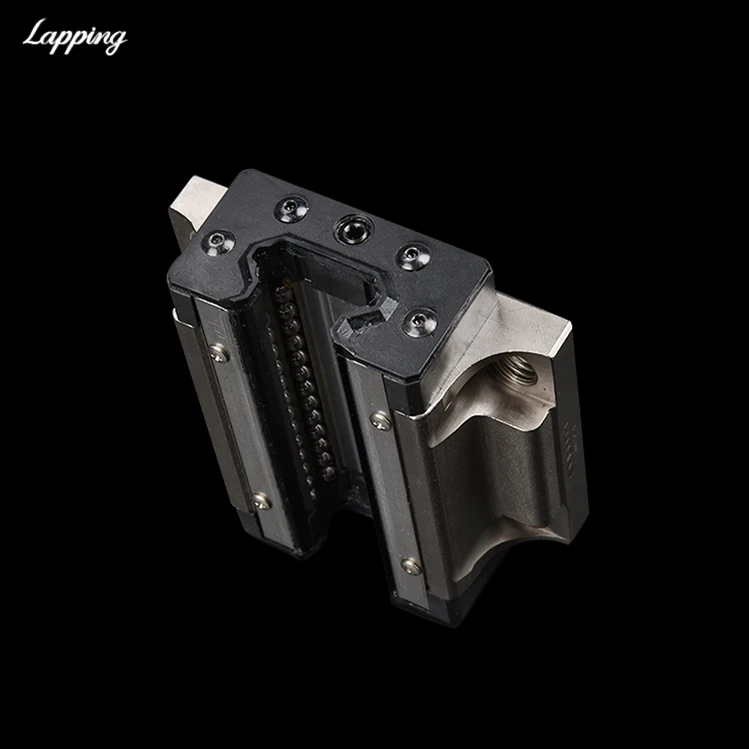

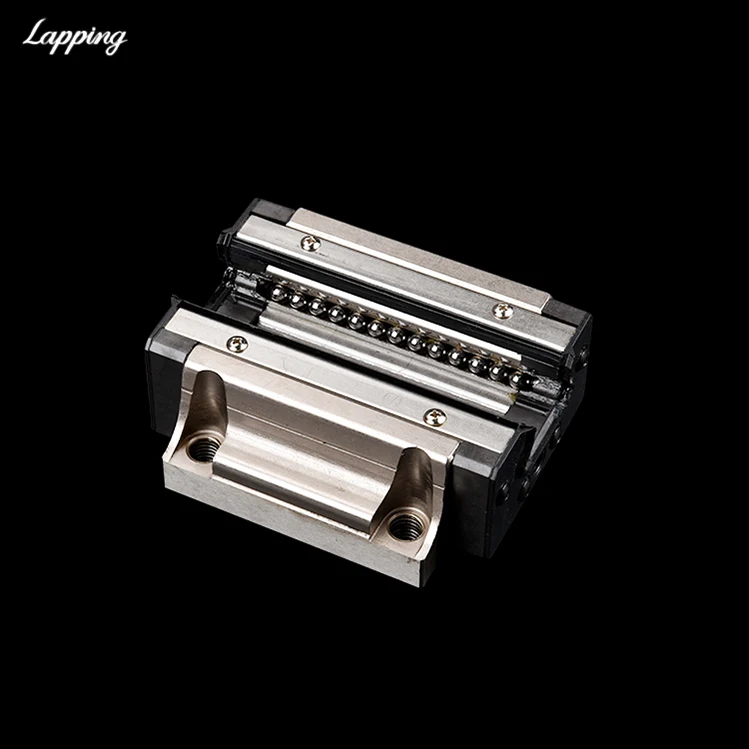

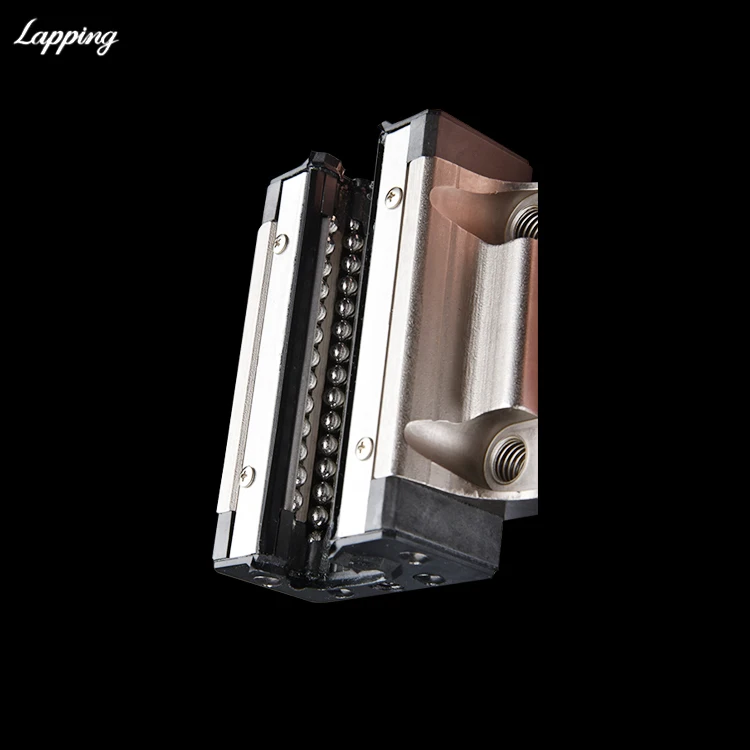

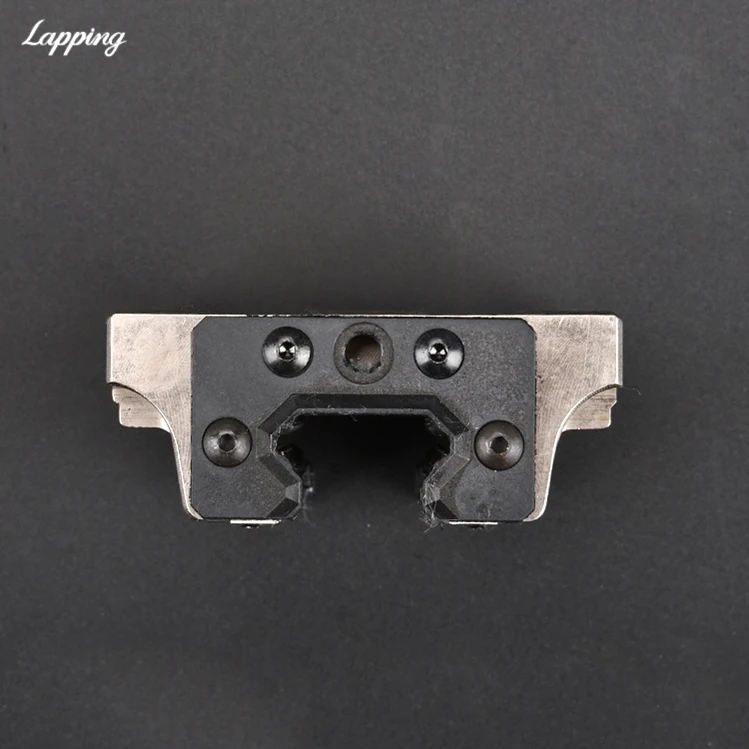

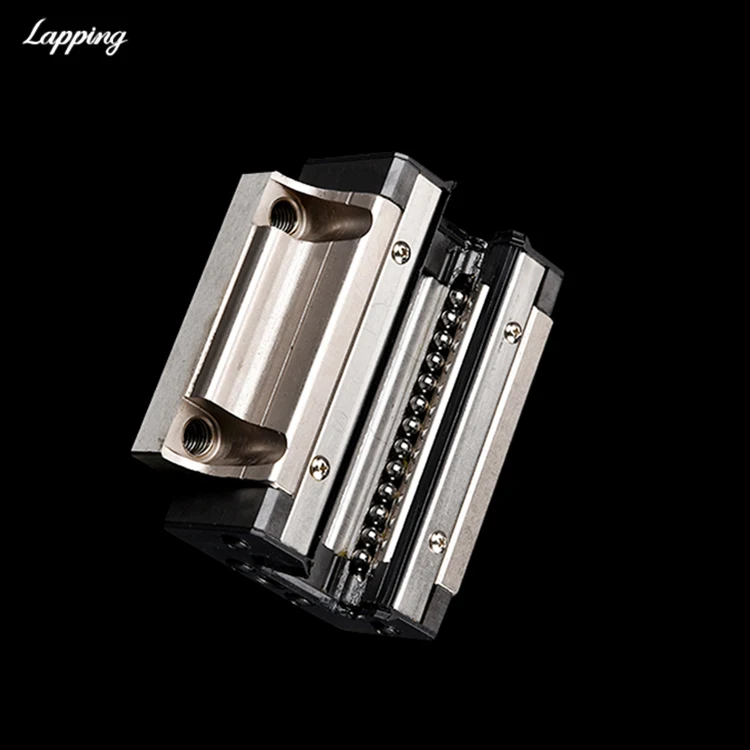

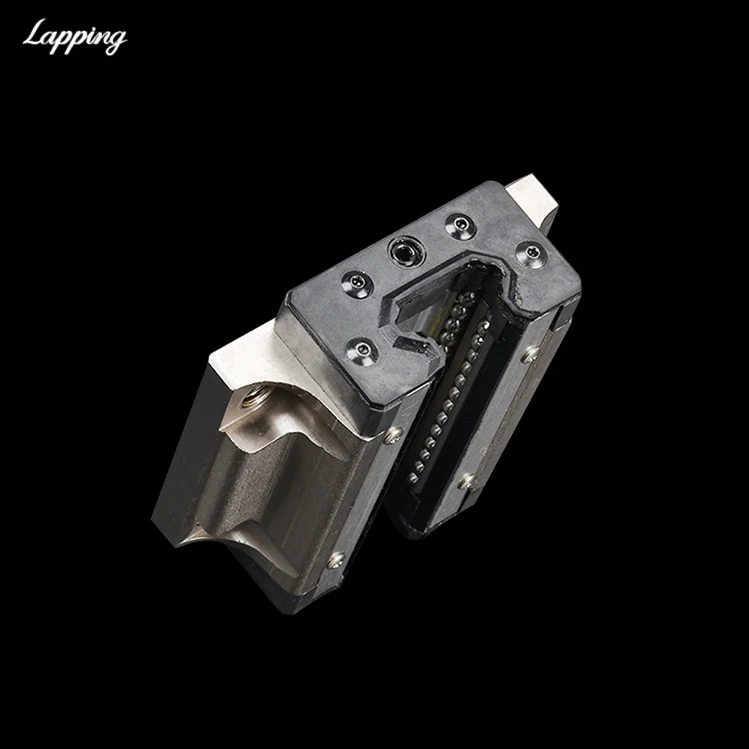

LSB 25 LA Linear Bearing Slide Block For 25mm Linear Guide Rail
Product Description
Name | Slide block |
Type | Automatic equipment high speed transmission device |
Material | Heat treated steel |
Size | Width: fixed, between 15-30mm Length: up to 4 meters long, longer stitching |
Colour | Silver or black |
Shape | Rectangle |
Certification | ISO9001 |
Effect | 1. Parallelism and high precision 2. The slider and the guide rail are interchangeable, saving cost 3. High rigidity in all directions 4. Reduce friction |
Application area | Applied to sliding friction guides |
Sample | No |
Delivery period | 7 days |
Packing | 1. PE bag, shockproof bubble bag, export standard carton, wooden box 2. According to customer's special requirements |
Product Details
Difference between models
1. Type A has a longer threaded hole than Type B; Type B can be assembled not only from the top of the slider, but also from the bottom of the slider;
2. Type B is compared with C type, the hole of type C is a through hole, and the hole of type B is a threaded hole;
3. The R type has a smaller width than the A/B/C type;
4. Compared with A/B/C/R type, the LA/LB/LC/LR type has the same section size, the length of the slider is increased, and the number of load steel balls is increased to improve the overall load capacity.
Related Products
Specifications
LSA-A / LSA-LA Series
Model | Dimensions | Slider size | ||||||||||||||
Height H | Width W | Length L | W2 | H2 | B | C | S*l | L1 | T | T1 | N | G | K | d1 | Nozzle specification | |
LSA 15 A | 24 | 47 | 56.3 | 16 | 4.7 | 38 | 30 | M5*11 | 39.3 | 7 | 11 | 4.3 | 7 | 3.2 | 3.3 | G-M4 |
LSA 20 A LSA 20 LA | 30 | 63 | 72.9 88.8 | 21.5 | 4 | 53 | 40 | M6*10 | 51.3 67.2 | 7 | 10 | 5 | 12 | 5.8 | 3.3 | G-M6 |
LSA 25 A LSA 25 LA | 36 | 70 | 81.6 100.6 | 23.5 | 5.5 | 57 | 45 | M8*16 | 59 78 | 11 | 16 | 6 | 12 | 5.8 | 3.3 | G-M6 |
LSA 30 A LSA 30 LA | 42 | 90 | 97 119.2 | 31 | 7 | 72 | 52 | M10*18 | 71.4 93.6 | 11 | 18 | 7 | 12 | 6.5 | 3.3 | G-M6 |
LSA 35 A LSA 35 LA | 48 | 100 | 111.2 136.6 | 33 | 7.5 | 82 | 62 | M10*21 | 81 106.4 | 13 | 21 | 8 | 11.5 | 8.6 | 3.3 | G-M6 |
LSA 45 A LSA 45 LA | 60 | 120 | 137.7 169.5 | 37.5 | 10 | 100 | 80 | M12*25 | 102.5 134.3 | 13 | 25 | 10 | 13.5 | 10.6 | 3.3 | G-PT1/8 |
Model | Rail size | Basic load rating | Allowable static moment | Weight | ||||||||||
Height H | Width W | Pitch P | E std | D*h*d | Dynamic load C KN | Static load C0 KN | MP KN*m | MY KN*m | MR KN*m | Slider KG | Guide KG/m | |||
Single * | Double* | Single * | Double* | |||||||||||
LSA 15 A | 15 | 15 | 60 | 20 | 7.5*5.3*4.5 | 11.8 | 18.9 | 0.12 | 0.68 | 0.12 | 0.68 | 0.14 | 0.18 | 1.5 |
LSA 20 A LSA 20 LA | 20 | 18 | 60 | 20 | 9.5*8.5*6 | 19.7 23.3 | 29.5 39.3 | 0.23 0.39 | 1.42 2.23 | 0.23 0.39 | 1.42 2.23 | 0.29 0.38 | 0.4 0.52 | 2.4 |
LSA 25 A LSA 25 LA | 23 | 22 | 60 | 20 | 11*9*7 | 28.1 34.4 | 42.4 56.6 | 0.39 0.67 | 2.20 3.52 | 0.39 0.67 | 2.20 3.52 | 0.48 0.63 | 0.62 0.82 | 3.4 |
LSA 30 A LSA 30 LA | 28 | 26 | 80 | 20 | 14*12*9 | 39.2 47.9 | 57.8 77.0 | 0.62 1.07 | 3.67 5.81 | 0.62 1.07 | 3.67 5.81 | 0.79 1.05 | 1.09 1.43 | 4.8 |
LSA 35 A LSA 35 LA | 34 | 29 | 80 | 20 | 14*12*9 | 52.0 63.6 | 75.5 100.6 | 0.93 1.60 | 5.47 8.67 | 0.93 1.60 | 5.47 8.67 | 1.25 1.67 | 1.61 2.11 | 6.6 |
LSA 45 A LSA 45 LA | 45 | 38 | 105 | 22.5 | 20*17*14 | 83.8 102.4 | 117.9 157.3 | 1.81 3.13 | 10.67 16.95 | 1.81 3.13 | 10.67 16.95 | 2.57 3.43 | 2.98 3.9 | 11.5 |
Note: Requirements for specifications 55 and 65, please use LSA-B/LSA-LB model.
Note*: Single: single slider Double: double slide tightly arranged.
Note: The basic rated fatigue life of ball rolling linear guide is C 50km. If the C of the rated fatigue life of 50km is converted to 100km, its C100 can be used in the lower form C=C100*1.26.
Product Features
Advantage
1. Adapt to various work too assembled
2. Designed with L-shaped or extended type
3. Self-aligning ability
4. The slider and the guide rail are interchangeable
5. High rigidity in all directions
6. The product is easy to install, easy to operate and fast to transport.
7. High-precision machining: from material optimization to fully automated equipment
8. Quality Assurance: The most efficient laser quality inspection instrument and self-developed slider simulation operation instrument for accuracy inspection
9. Technological innovation: The product has applied for six invention patents and used 27 patents.
Product Applications
Use caution
1. Prevent rust: Keep your hands dry and coated with high quality mineral oil during use. Pay special attention to rust prevention during the rainy season and summer.
2. The installation tool should be suitable: avoid using items such as cloth or short fibers.
3. Keep the environment clean
4. Installation should be carefully
