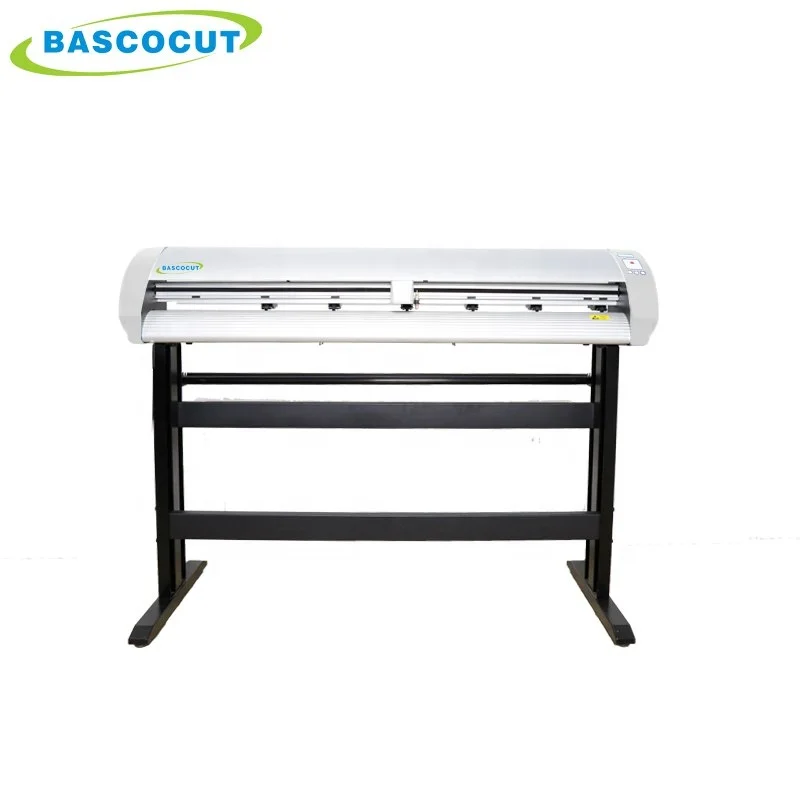

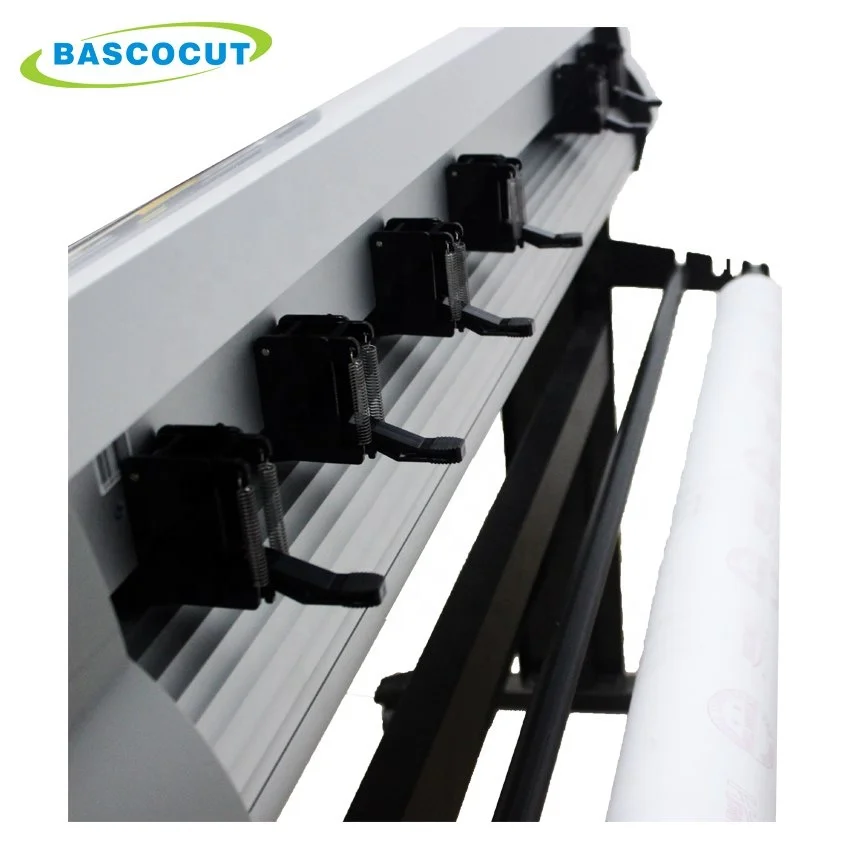

48 inch Vinyl Cutter Plotter/Paper Cutting Machine

Share on (60866029634):


Price:$330.00 - $350.00

Quantity:


Product Overview

Description


Product Description


Features


1. High-precision, ensure 2 mm letters cutting

2. With repeat function:0-500 times

3. Working offline with USB flash

4. Diverse software options: Signmaster /Flexi/AI/ Artcut/CorelDraw and so on

5. High-precision steel axes imported from Germany, ensure 10 meters paper feeding

6. 128 Mb high-speed CACHE memory


7. Adjusting cutting pressure or speed during working time


\t
Technical parameter
\t
Model
\t
C-48LX
\t
Main board
\t
32-bit ARM 7 CPU 168 MHz,128 Mb High-speed CACHE memory
\t

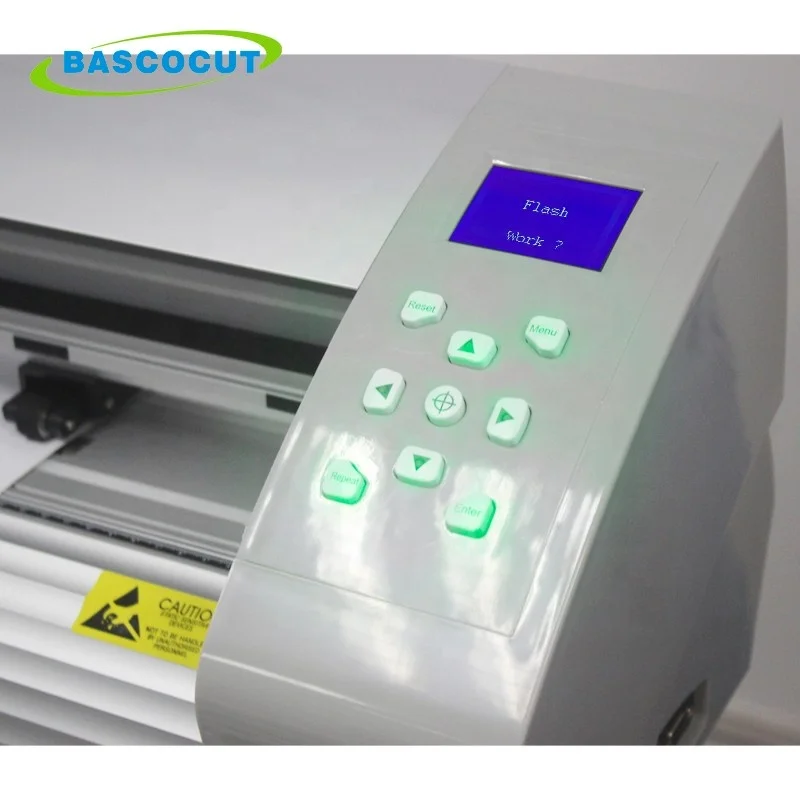

Control panel
\t
9 industrial silicone buttons+128*64 industrial screen
\t
Driver
\t
High speed, big power step motor, micro-step driver
\t
Maximum paper feed width
\t
1410 mm
\t
Maximum cutting width
\t
1300 mm
\t
Maximum cutting speed
\t
600 mm/s
\t
Cutting force
\t
10-1000 g (digital adjustment)
\t
Mechanical precision
\t
0.025 mm
\t
Repeatable precision
\t
< ±0.025 mm
\t
Type of plotter pen
\t
All type diameter 11.4mm plotter pen
\t
Plotter instruction
\t
Compatible DM/PL,HP/GL
\t

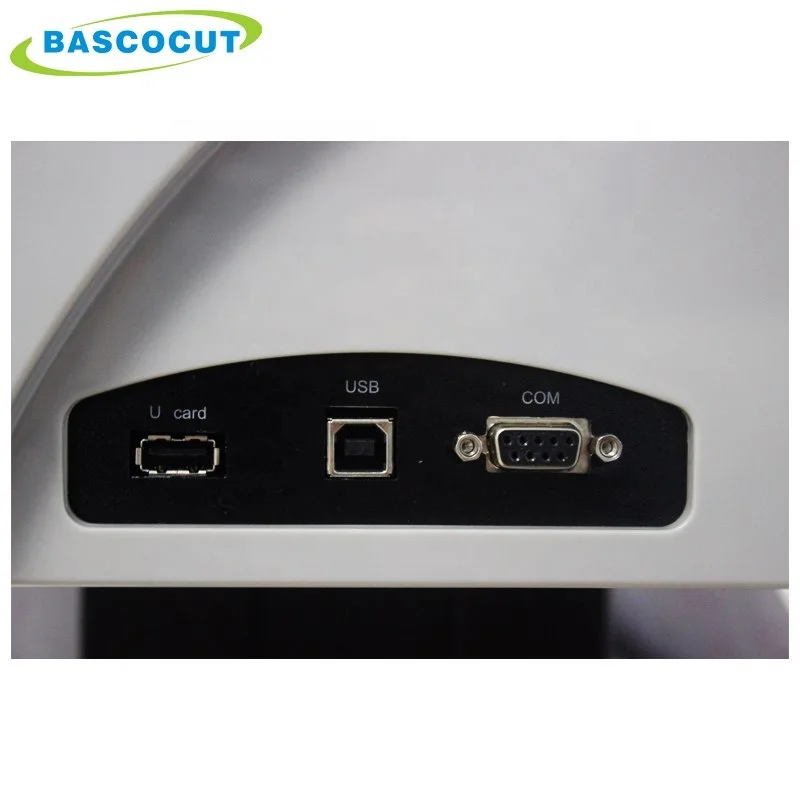

Interface
\t
USB/U disk/Serial Port/WiFi(Optional)
\t
Power supply
\t
AC220V/110V,50Hz
\t
Power consumption
\t
<80W
\t
Knife (Blade)
\t
Imported hardness alloy steel blade
\t
Operating environment
\t
Temperature:5-35℃,Relative Humidity:30%~70%

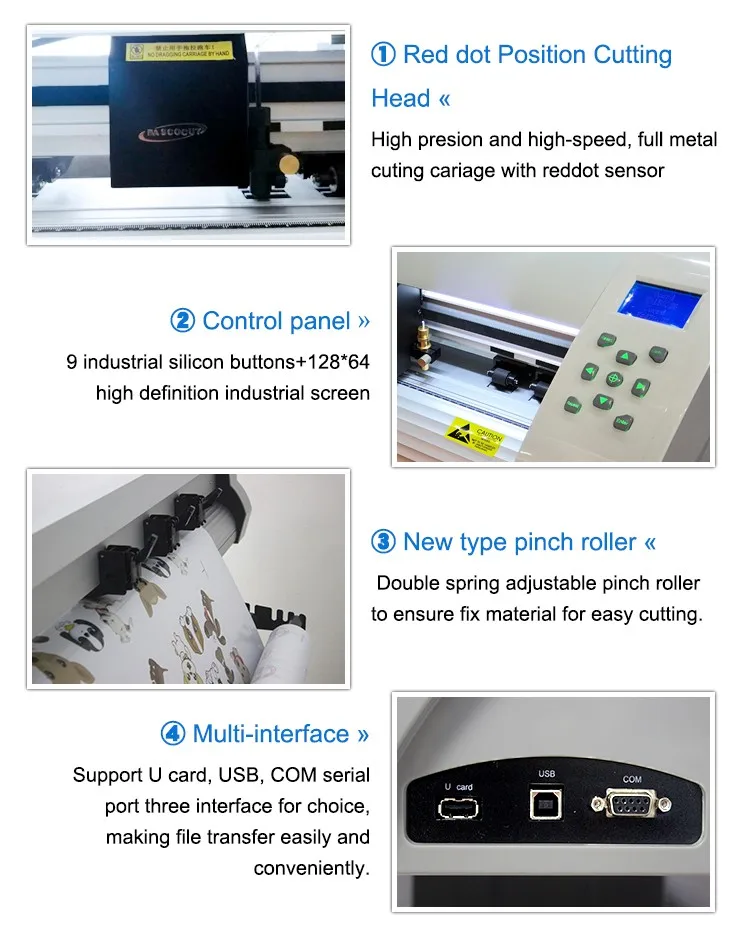

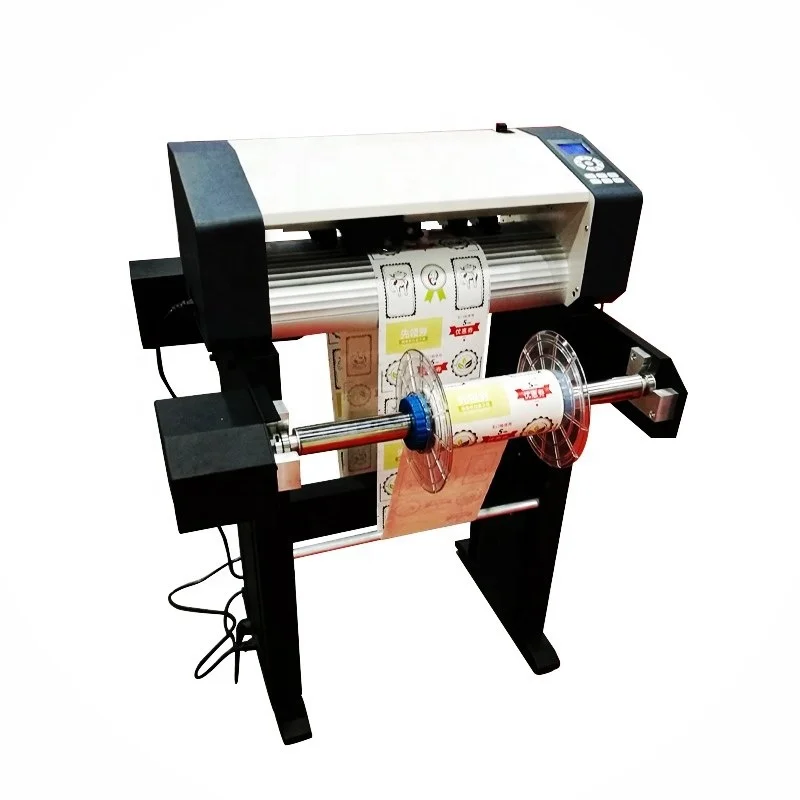

Detailed Images
Our Company

Bascocut cutting plotter showed on exhibition

We often attend the exhibitions in Guangzhou and shanghai during March and September.
Welcome to visit our booth ! We can have a face to face chat to know each other.

the exhibition we had attended before:


DPES Sign & LED Expo China 2018 - Guangzhou
The 26th Shanghai Int'l Ad & Sign Technology & Equipment Exhibition
Sign in China 2018
All in Print China 2018
CSGIA 2018/ Textile Digital Printing (China) Expo 2018

Related Products
Certifications
FAQ

Q1. What payment terms do you accept?\t
We accept PayPal, Western Union or Bank T/T in advance.
After confirming receiving your payment, we'll arrange the shipping or production ASAP. In generally, the shipment will be arranged within 2-8 days after receipt of your full payment.

Q2. How about your after-sales service?
We will provide you with online and offline technical support and services to ensure that you can use our machines with ease and pleasure.
In addition, our machines have a one-year warranty, during this period we provide free repair or replacement services for any failure caused by non-human or unnatural disasters.

Q3. Are you a factory or trading company?
We are professional cutting plotter manufacturer with independent sales department and R&D department.

Q4. What do your machine can be applied for?
Our machines have a wide range of applications, such as Advertising production, Car decoration, Art Grass, Wedding celebration, Die cutting industry, Traffic sign, Clothing heat transfer printing, Wall and car sticker, Phone decoration, Leather DIY and so on.

Q5. What kind of material can your machines cut?
Our machine can cut adhesive vinyl sticker, reflective film, heat transfer film and other thickness no more 1mm materials.

Packing & Delivery

Package:standard exporting package,inside is double layer carton package,outside is thick plastic package to keep dry and clean.
Delivery : by air/by sea(optional)
