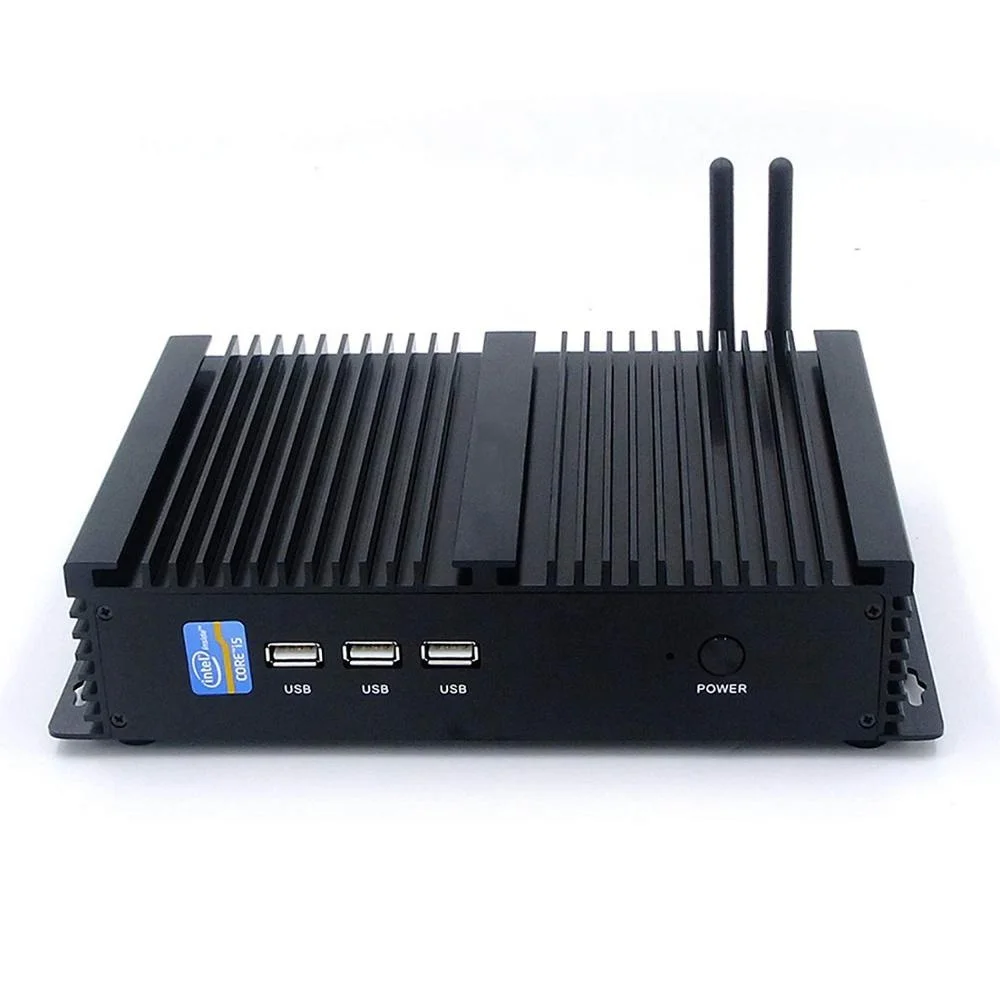

Venoen Fanless Rugged Mini PCs series are designed for unique, industrial applications . So that require compact size, durability, high reliability, and universal performance.
The small size make it can applicate many place like manufacturing, industrial automation, medical, semiconductor, food processing, machine control, and other scenarios.
Feature:
1. Equiped with Core i5-4200U Processor (3M Cache, up to 2.60 GHz);
2. Built-in WiFi module with transmit and receive functions. Architecture WIFI network. Support dual display, 4K display. BT module can be added (Customized purchase).
3. Highest safety power, DC12V 5A; Low environmental protection, Standard load 15 Watts, Maximum 20 Watts.

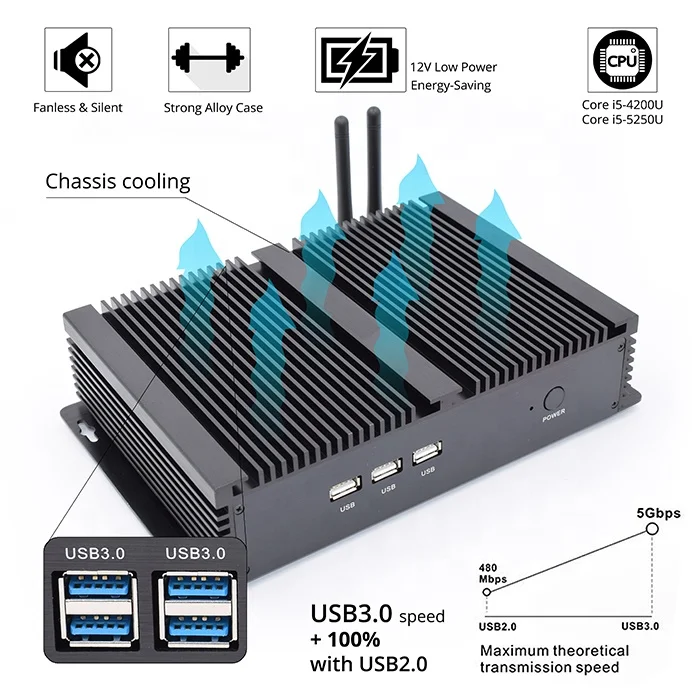

4. Perfect Silent computer, Fanless cooling design ; Excellent Durability and Heat Dissipation; Brushed metal shell, thickness: 29mm; Working Temperature 14 to 122 degrees Fahrenheit (-10 to 50 degrees Celsius).
5. Space-Saving, Portable. 5.5 pounds, 9.06*7.09*1.97 inches. Easy to Install behind the monitor(Stand alone purchase).
Specifiation
Brand
Venoen/ OEM
Processor
2Cores, 4 Threads;
Intel Core i5-4200U Processor (3M Cache, up to 2.60 GHz);
Option CPU: I3 6006, I3 7100, I5 7200, if you want change CPU, pls contact us for quotation. thanks.
Memory
Barebone is no memory;
Support 2G/4G/8G/16G(2*8G) DDR3L-1333/1600MHz and LPDDR3-1333/1600MHz SODIMM Notebook memory;

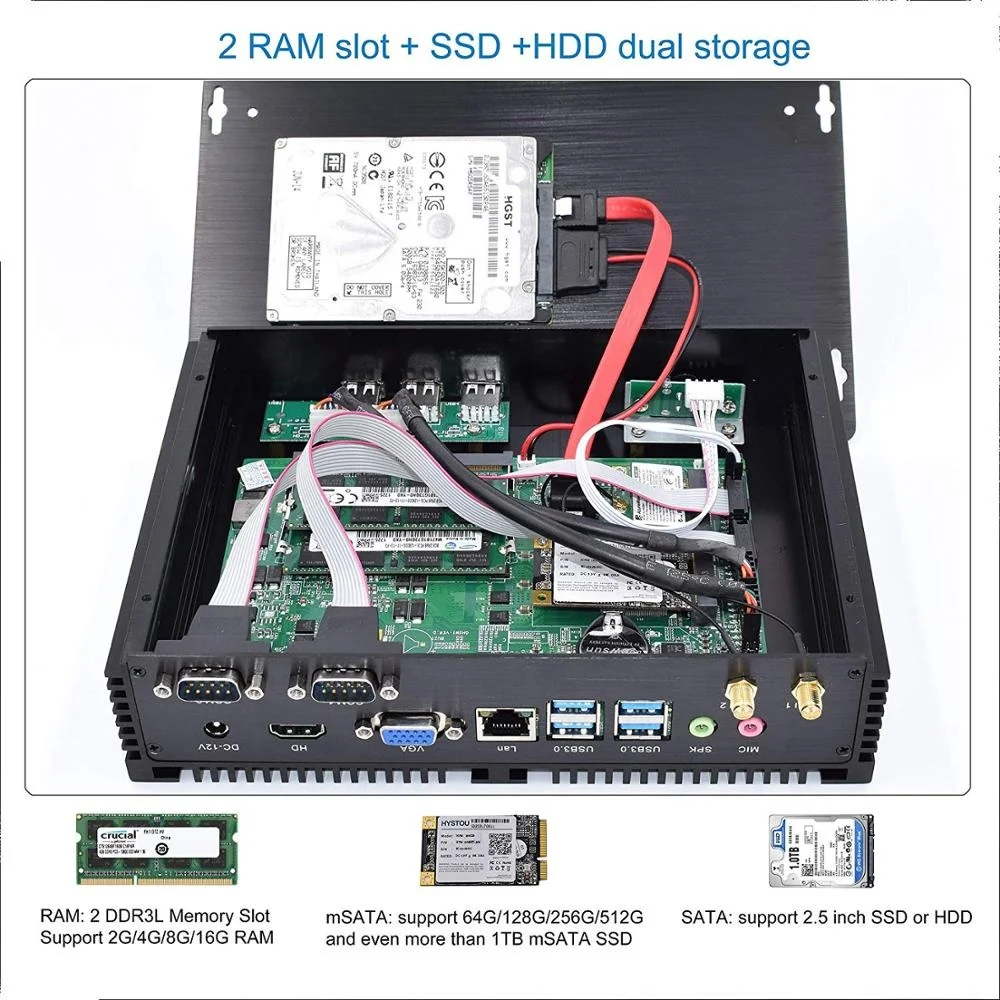

Storage
Barebone is no storage;
Support mSATA and SATA; 2.5 inch laptop HDD;
Can install 2pcs HDD(2.5 inch) and 1pc SSD(mSATA 3.0) together;
GPU

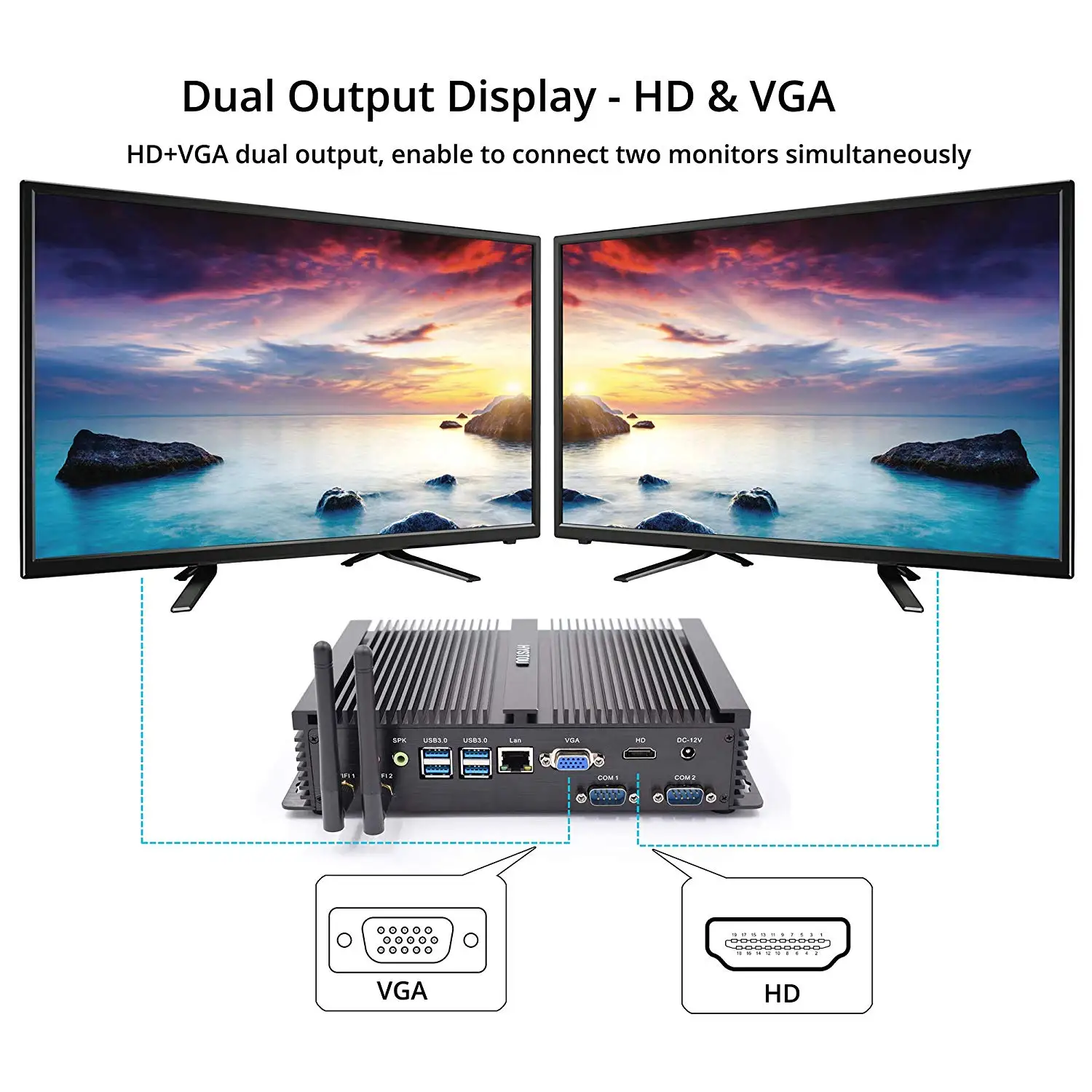

Intel HD Graphics 4400, 1 * VGA + 1* HD portd, support dual play;
LAN
1000Mbps LAN
WIFI
IEEE 802.11a/b/g/n,2.4G+5.8G dual-band

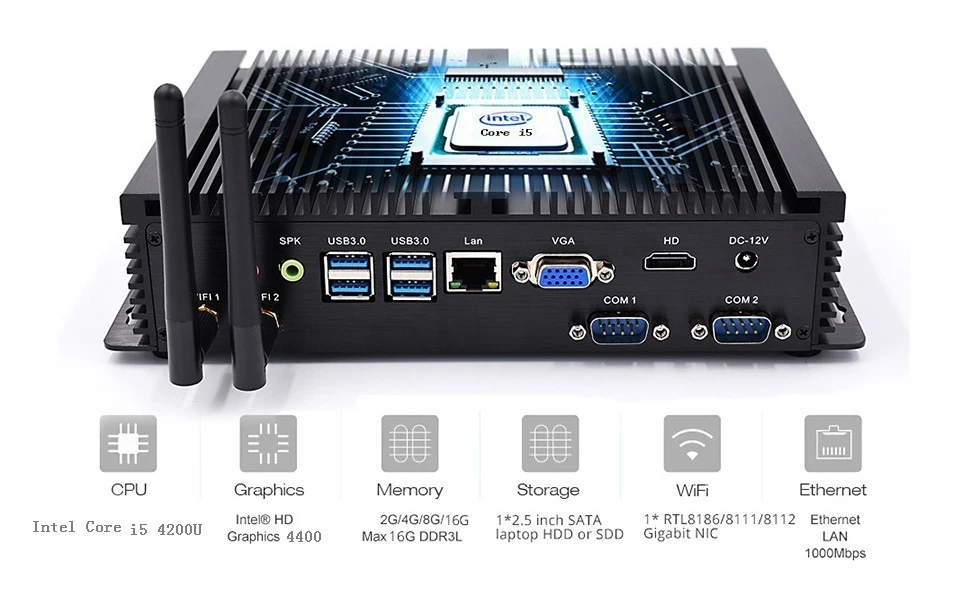

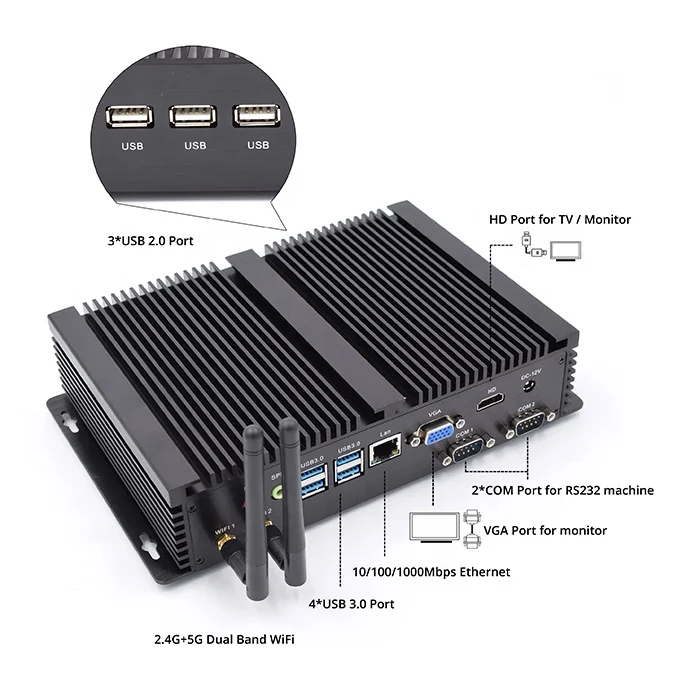

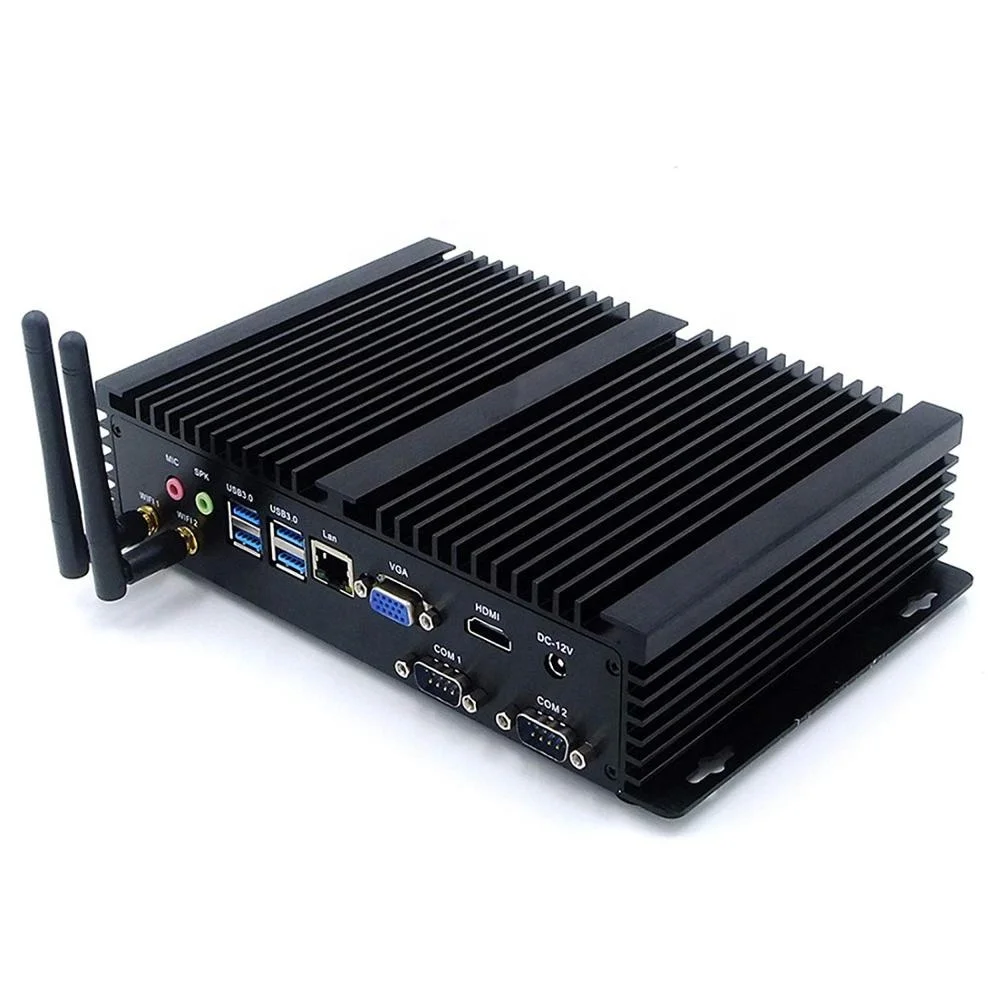

I/O
1 * Mic;
1 * HD;
1 * VGA;
1 * Speaker;
4 * USB 3.0;
3 * USB 2.0;
1 * DC12V In;
2 * Wifi Antennas;
2 * RS232 COM ports,
1 * RJ45 Gigabit LAN Port;
System
Barebone is no system;
Win 7, 8,10 & all kind Linux OS
Weight
1.25kg
Language
Multi Language
Dimensions L x W x H
8.9 x 7.1 x 1.77 inches
Power
TDP 15 W;
Input: DC100-240V AC/50-60HZ;
Output: DC 12V~3A/5A;
Energy-saving: Support Energy-saving technology, Speedstep;
Environment
Operating Temperature: 0/70 Centigrade(32F~140F)
Storage Temperature: -20/+85 Centigrade
Relative Humidity: 0%~90% (non-condensing)

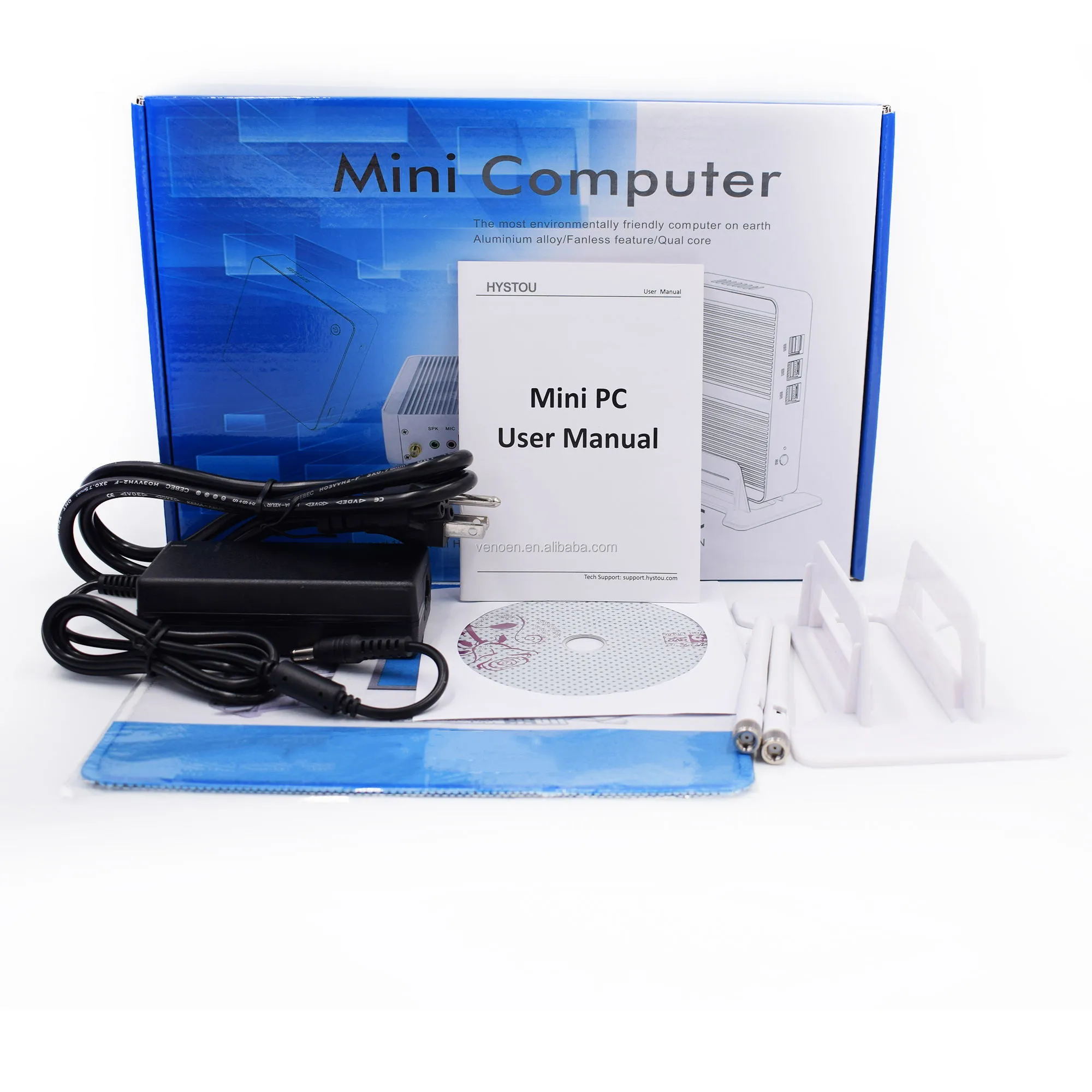

Package Content
-1 * Mini PC -1 * Power adapter -1 * Set of SATA power and data cables(for 2.5'' hard drive installation) -1 * HD cable(as a gift) -1 * DVD for drivers ( barebone not have) -2 * Wifi antennas
Warranty
30 days exchange and return, 3 years free repair
Application
Package& Delivery
1. Package Content:
-1 * Mini PC -1 * Power adapter -1 * Set of SATA power and data cables(for 2.5'' hard drive installation) -1 * HD cable(as a gift) -1 * DVD for drivers (not barebone have) -2 * Wifi antennas
2. Delivery time
Within 2 days, if special, you will receive our information in advance.
FAQ
1. How can I buy it?
If the product support directly place order, pls do it;
If you need customize, pls tell us or leave message;
2. Can I pay by Paypal or other ways?
Yes, you can pay as you like.
3. How long is the delivery time?
Generaly, whihin 2 days, if out stock, we'll cntact you.
4. How long about the shipping time?
Within 15 days, US, UK usually is in 3-7 days.
5. Can you tell me the warranty?
30 days return and exchange good; 3 years free repair.
6. Do you support OEM, ODM?
Yes. You can print own brand, logo, do new OS, software, package.etc.
