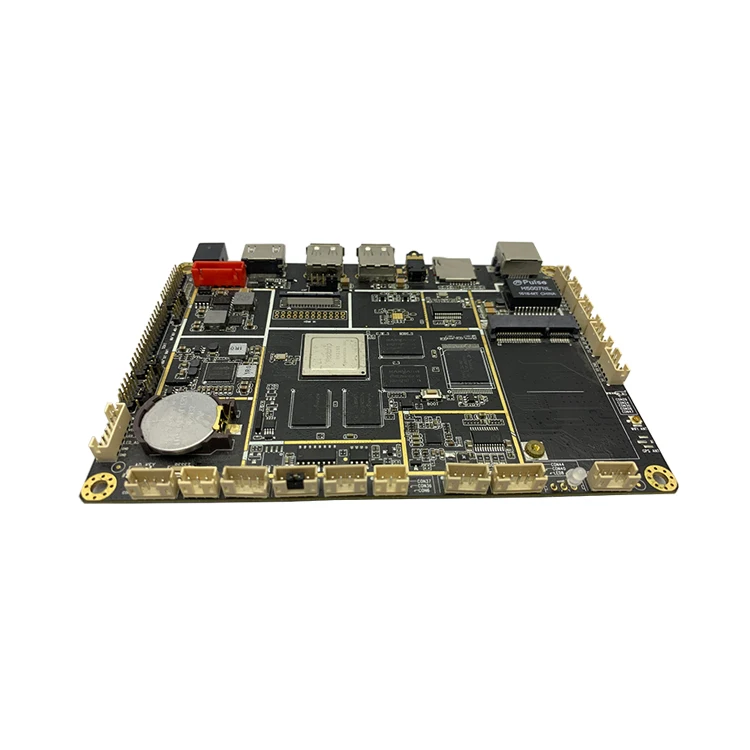

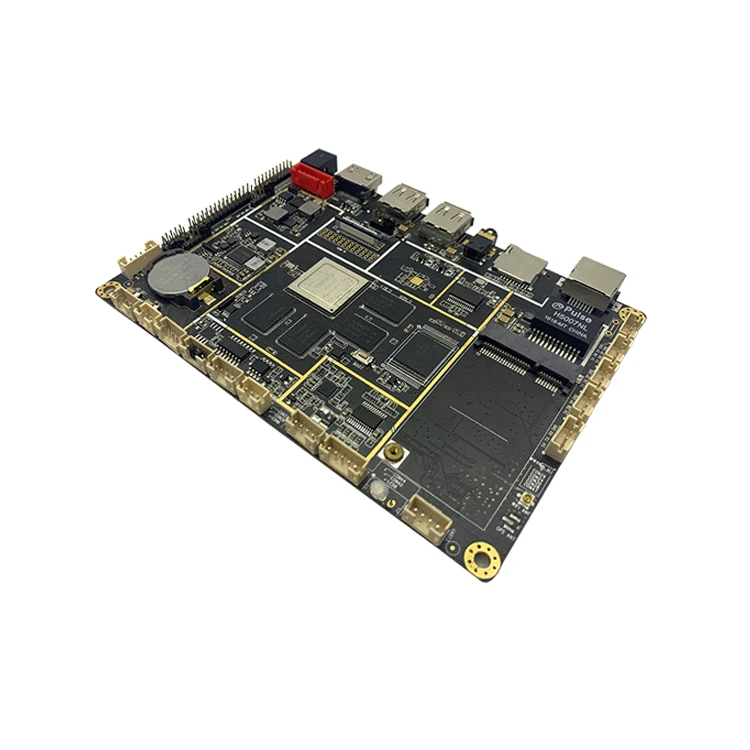

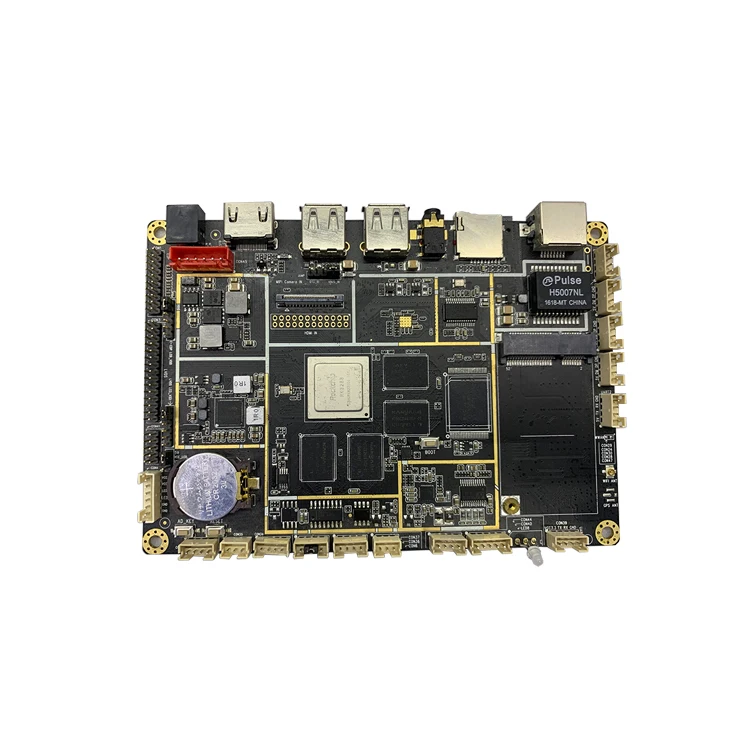

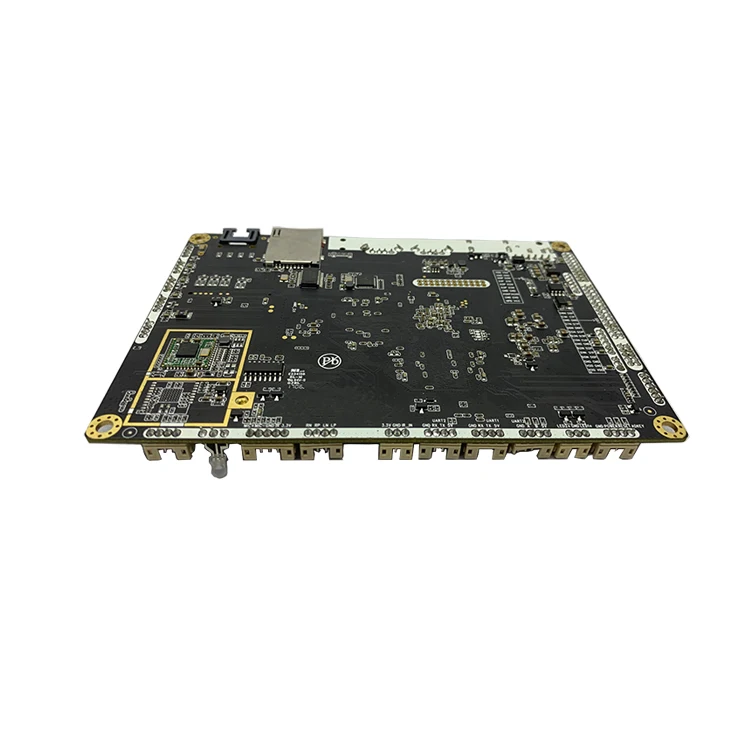

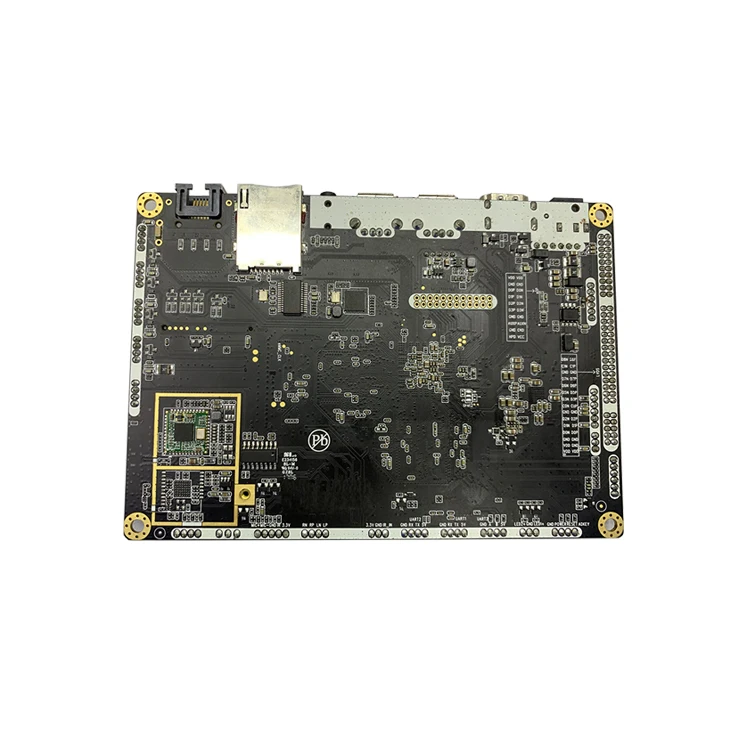

2/4GB DDR 8/16/32/64 GB eMMC function RK3288 mainboard PCB board
- Category: >>>
- Supplier: Shenzhen DYC Electronic Technology Co. Ltd.
Share on (60867451239):
Product Overview
Description
2/4GB DDR 8/16/32/64 GB eMMC function RK3288 mainboard PCB board
Product Description
Main Specification
| SOC | RK3288 Quad-core Cortex-A17 @1.8GHz,Mali-T764 |
| RAM | DDR3 2GB(1G/4GB optional) |
| Emmc | eMMC 8GB(16GB/32GB/64G optional) |
| Display | eDP port,max resolution 4K*2K/30 fps |
| LVDS port(Dual channel 8 bit), maximal support 1920*1080 | |
| HDMI port,maximal support 4K*2K/60Hz, 1080p/120Hz | |
| LVDS*2 HDMI*1 | |
| Communication | RJ45 1Gbps |
| WiFi 2.4G,802.11a/b/g/n (5G,ac optional) BT 4.0 | |
| Mini PCIe 3G/4G outlet | |
| SIM card slot(25mm*15mm standard card) | |
| Audio | 8R6W Speaker |
| 3.5mm Earphone | |
| 4pin Microphone | |
| USB | 6 USB ports(2 Type A,one used to download firmware, 4 4-PIN 2.0 ports) |
| Serial ports | 4 RS 232 serial ports(Or change to 485/TTL) |
| I/O ports | 4 sets of IO detection ports, support human body infrared sensing |
| TF card | TF card,up to128G |
| Location | GPS/BD(optional) |
| HDMI IN | HDMI IN function(External sub-board, optional) |
| MIPI | Support 1300W pixel,MIPI camera(optional) |
| RTC | RTC power |
| WTD | Hardware/software watchdog |
| IR | Support power on/off by IR remote |
| Certification | FCC,CE |
| System upgrade | TFcard,USB download,remote OTA |
Characteristics
Ø Select mature solutions Rockchip RK3288, both stability and security.
Ø Standard industrial 3-inch ultra-thin plate, Up to 7 years supply cycle.
Ø Powerful hardware performance, various interfaces.
Ø Complete software function interface, perfectly support rapid application development.
Ø Ultra high stability, special hardware and software design, support 7*24 unattended operation.
Ø Original android OS.
Click here to get more information
Company Information
2007-2018, 11 years, PCB & PCBA One stop service other pcb & pcba
DYC is a PCB&PCBA contract manufacturing with one-stop service. we have 6 Yamaha YS series high-speed assembly machine, 6 sets of fully automatic printing machines, 6 sets of AOI, 6 sets of SPI, 2 DIP lead-free production lines, 4 end-product assembly lines and a large number of advanced inspection and testing instruments.
| Established time | Aug 2007 |
| Number of employees | 250 |
| Factory area | 15,000 sqm |
| Location: 6,7 floor, Yuxing Second7 floor, Yuxing Second industrial park, xixiang, Bao'an district, Shenzhen. | Near by shenzhen airport, 15 minutes. |
| Near by Hongkong airport, 74 km. | |
| Near by shekou terminal, 22 km. | |
| Fabrication | 80 million spot SMT/month. |
| Certification | ISO9001-2008, CE, RoHS. |
| Sales avenue | 0.3 billion |
Our Equipment
We have kinds of test machine to ensure the higher pass rate of the board when our client receive PCB/PCBA.
Click here to get more information other pcb & pcba
Certifications
Buyer Feedback
FAQ
Q1: What should i provide to get one PCB quotation? other pcb & pcba
A1: Gerber file, PCB technical, quantity.
( Layer, Base material, Finished copper, Finished thickness, Surface finish, Solder mask)
Q2: What file formats of PCB do you support?
A2: Gerber file, PADS_LOGIC, AD, protel, allegro, Orcad.
Q3: Will you check the PCB gerber file before production?
A3: Yes, our engineer will check the coordinate file, layout, silkscreen, packing and full design to avoid the design-error.
Q4: My budget is limited, can you provide solutions to save cost ?
A4: Yes, we can. For example:
a, Replace the DIP components with SMD components, so it can narrow the PCB board size to save cost.
b, Relayout the pcb to reduce the size, it can save cost.
c, we can recommend you suitablet PCB tecnical parameter according to the product character, like board materials, thickness etc.
Q5: Do you have any other special discount ?
A5: Yes, we provide free panel, free test and free packaging.
Any other questions please contact us directly.As a global supplier of PCB /PCBA,we will meet the needs of customers world wide,with professional technology and sincere spirit of service and reasonable price, delivery on time. We look forward to your visit and establish long-term cooperation.
