Motorcycle Tire Tread Cutting Cooling machine
- Category: >>>
- Supplier: Qingdao Suiteque Machinery Co. Ltd.
Share on (60867461636):
Product Overview
Description

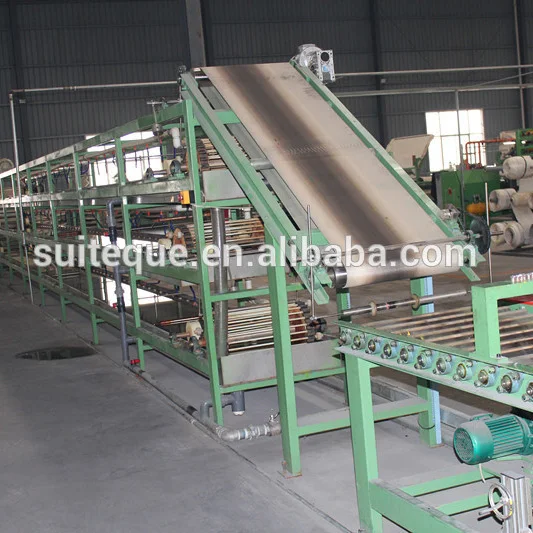

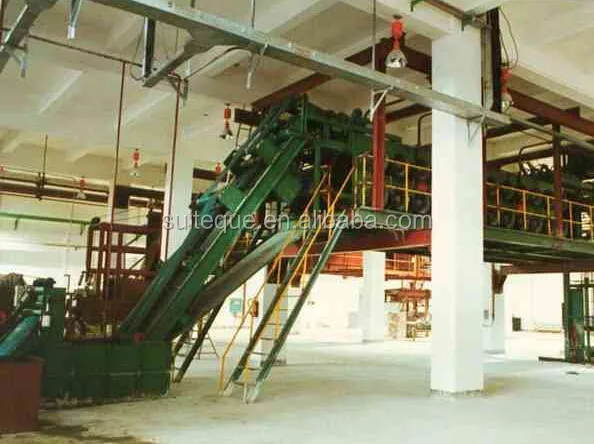

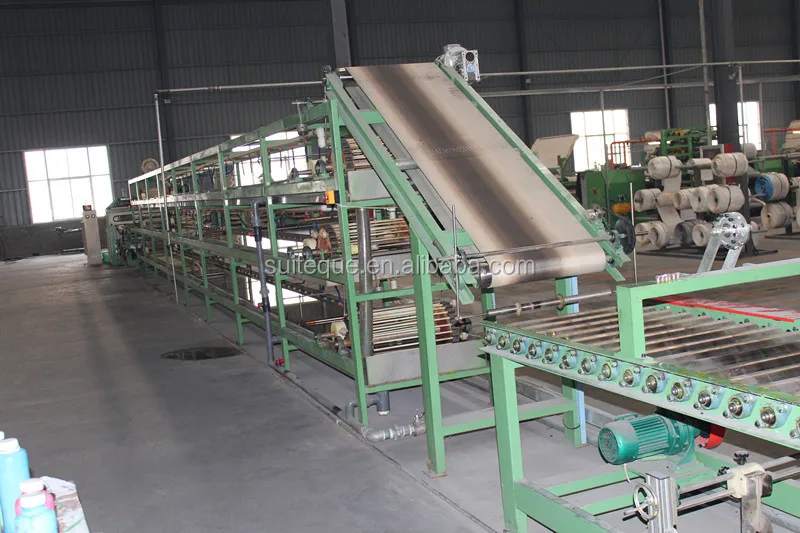

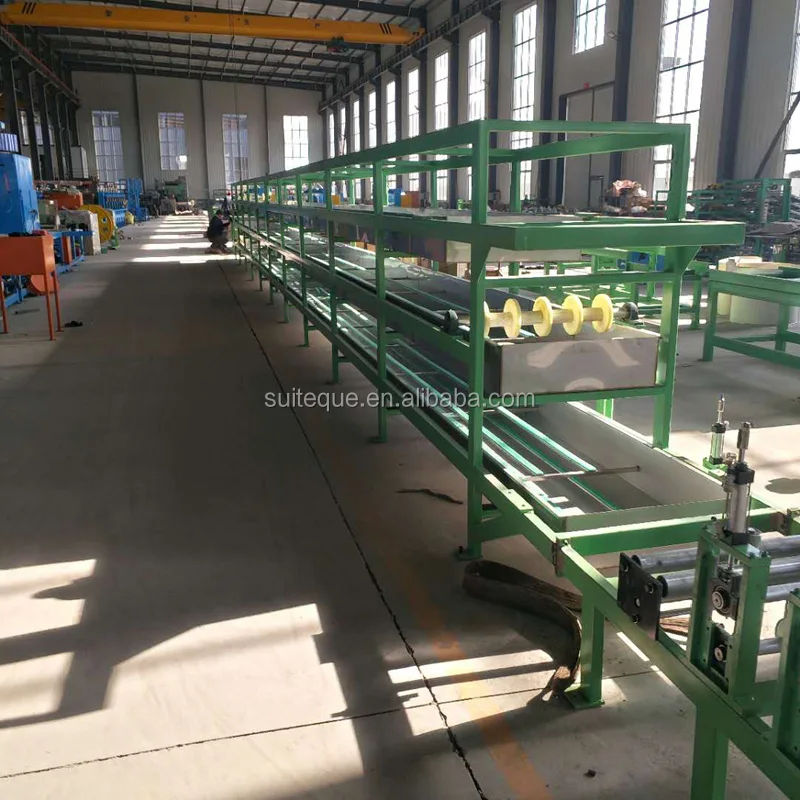

Motorcycle Tire Tread Cutting Cooling machine
Product Description

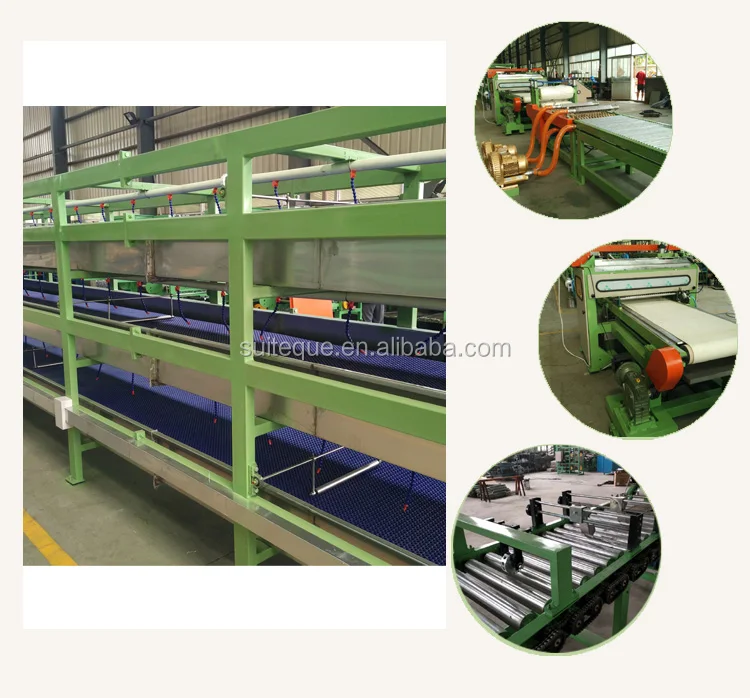

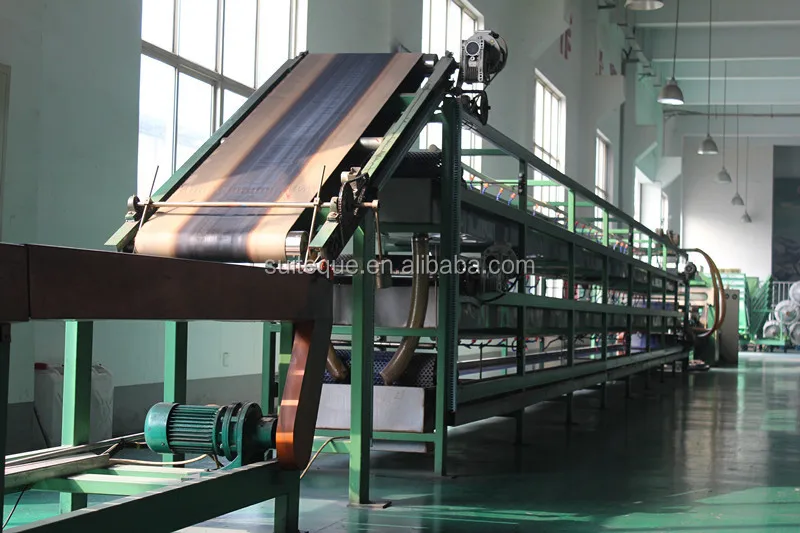

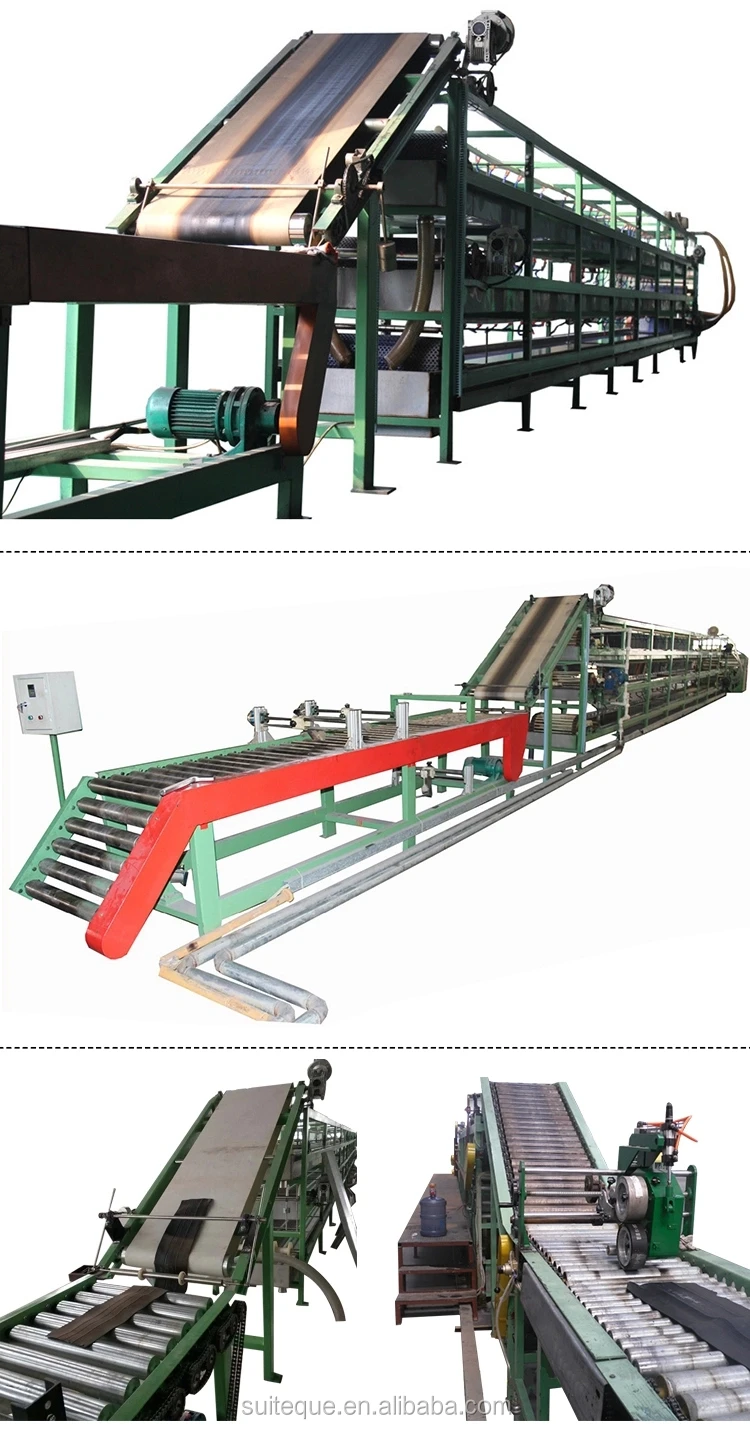

The productin line uses spray and immersion cooling method so as to ensure adequate cooling,fully meet the requirements for motorcycle tire tread production process, improve production efficiency and reduce labor intensity.
Technical Parameter
| Line Speed | 5-25 m/min |
| Production Roll Width/ mm | 650 |
| Extraction Height | 900 |
| Pick-up Temperature/ ℃ | ≤40 |

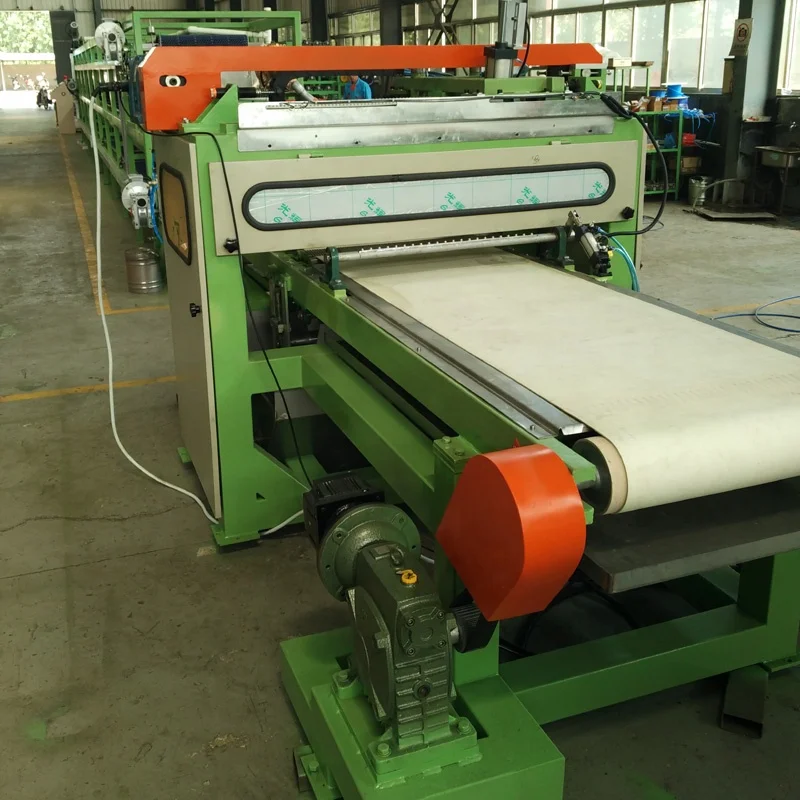

| Cutter | Max thickness of the thread cutting 20mm |
| Max Cutting Width/ mm | 450 |
| Cutting Angle Adjustment Range | 35±5 degree |
| Length Tolerance of the Cutting Component less than/ mm | ±3 |
| Cutting Frequency | 10-15 times/ min |
| Pressure of Compressed Air/ Mpa | 0.6-0.8 |
| Total Motor Power/ kw | 23.3 |
| Cooling Water Consumption | 50-60m³/h |
| Dimension LWH/ mm | 28000*2000*2800 |
| Weight/ kg | 20000 |
Packaging & Shipping
Packing
For FCL goods, machine shall be coated with stretched film before loading to the container and fixed well to avoid collision;
For LCL goods, machines will be coated and packed with polywood boxes, and then be transported to QINGDAO PORT by truck.
Our Service
Services we can offer:
Offer related raw material constantly according to the buyer's requirements.
Adopt fine package suitable for long ocean transport.
Help and Teach you to operate the machine well.
Provide plant design and oversea maintenance service.
Offer professional technical support.
