Product Overview

Description


Product Description



High quality highway noise barrier



acoustic sound barrier



Sound barrier, between the source and receiver inserts a facilities, make the sound waves spread

has a significant additional damping, so as to abate the noise in the receiver in a certain area,

such facilities are called noise barrier. It can be divided into traffic noise barriers, the equipment

noise attenuation of noise barriers, industrial factory boundary noise barriers.



Sound barriers can be divided into the following categories according to material classification: metal sound barriers (metal shutters, metal mesh openings), concrete sound barriers (lightweight concrete, high-strength concrete), PC sound barriers, and FRP sound barriers.



              SOUND BARRIER SPECIFICATION



1> Specification of sound barrier panel:



1.Material: PC Acrylic board,Plastic panle, steel sheet or aluminium sheet

2.Inner material: Glass wool

3.Sheets thickness: 0.8-1mm,but we can also design as our clients request.

4.Panel size: Width-500mm,Length2000mm is  standard size ,the panel can be longer ,but no

more than 4meters.

2> Specification sheet of Sound barrier:



MaterialWidthLengthThickness

Acrylic board :PE  PMMA resin

Frame material : Aluminum Alloy

100mm-1500mm2000-2500mm

8mm-10mm

Frame: 70mm-100mm

Metal sheet :aluminiun steet or galvanized steel sheet

Inner Material:Glass wool

500mm-1000mm2000mm-4000mm 70mm-100mm



3> Sound barrier post bottom load design value:



Wind Pressure Value(KN/m2)Height

Vertical Force N

(KN)

Horizontal Force  Sva

(KN)

Mbending Moment M

(KN*m)

W.≤0.452.01.709.19.4
2.52.6411.414.7
3.03.3013.721.1
3.54.2816.028.6
4.04.9218.337.3
0.45<W.≤0.752.01.8515.215.8
2.52.9019.024.5
3.03.6222.835.1
3.54.3226.747.7
4.05.4030.562.1



Click for more information>>>

                    SOUND BARRIER FEATURE



Light pollution, anti-glare, anti-aging, impact resistance and freeze resistance, sound absorption coefficient of stability, resistance to wet, easy to corrupt, easy to bend processing, easy to transport, disassembling maintenance convenience, price reasonable, and can spray all sorts of color.



acoustic sound barrieracoustic sound barrieracoustic sound barrieracoustic sound barrier

Click here for a quotation>>>

Manufacture Process of metal noise barrier panels :press edges of the sheets panel into needed shape,punch holes,powder coating,filling inner materials,Screw the metal sheets together as thickness panels.
Manufacture Process of metal noise barrier H steel posts:Cut the H steel bar,Welded with steel plates base feet. hot dip galvanized or Powder coating.

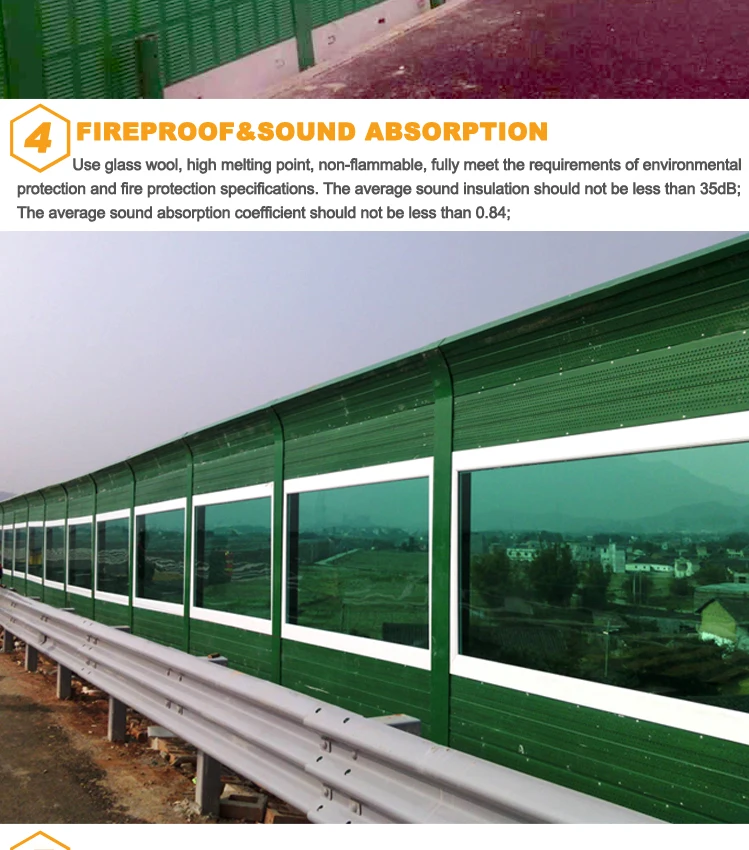

                     SOUND BARRIER APPLICATION



Sound Barrier For Highway is widely used in highways, high speed railways, subways' exit, work places, bridges, cooling tower, etc.



acoustic sound barrier

Inquire us>>>

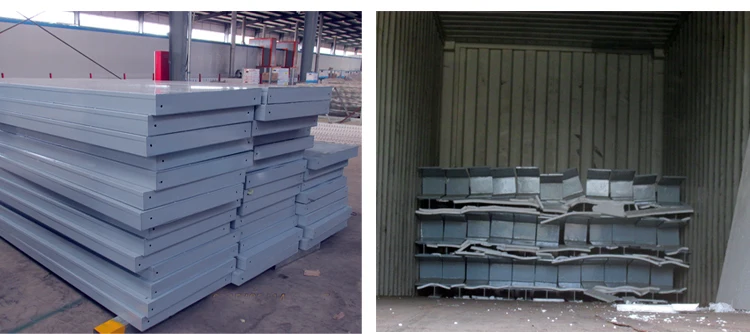

                  SOUND BARRIER PACKAGING



Sound Barrier For Highways and "H" steel posts packed with plastic bags.
Accessories of Sound Barrier For Highway packed with paper boxes and plastic bags.
We can also pack the Sound Barrier For Highway as your requests.

acoustic sound barrier

Inquire us>>>
