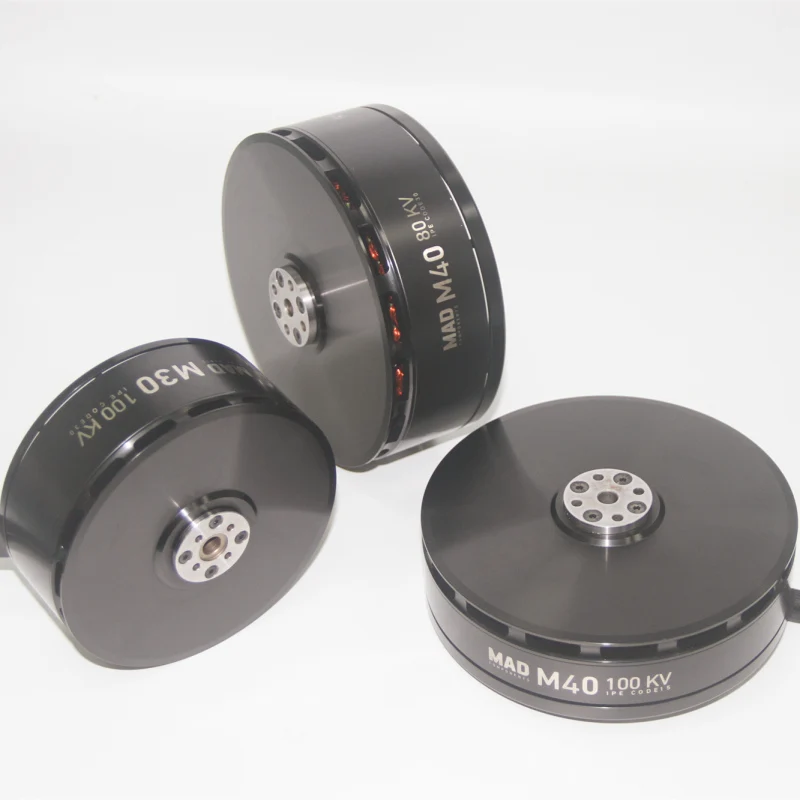

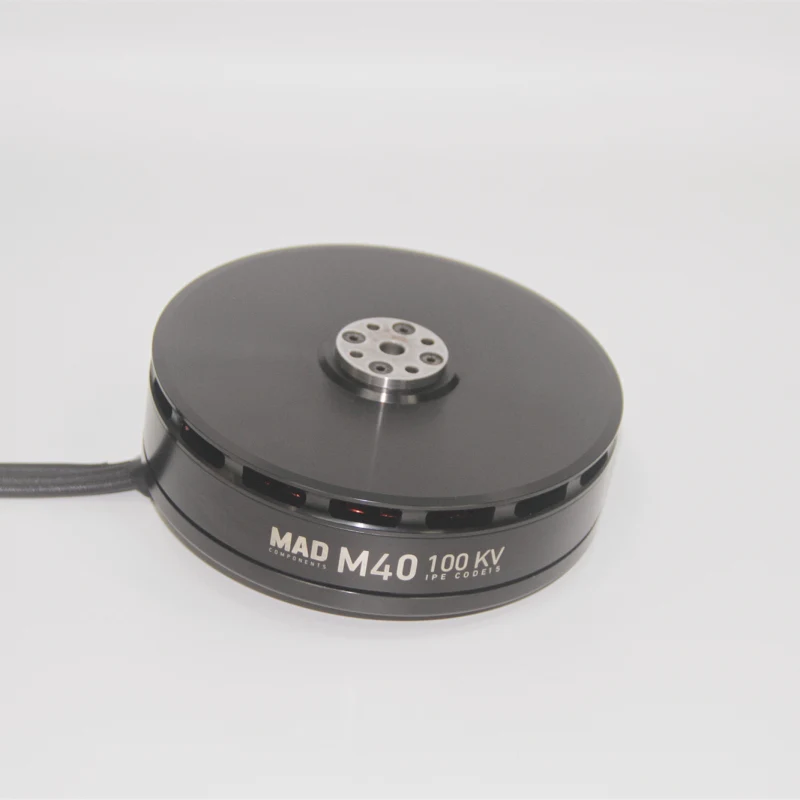

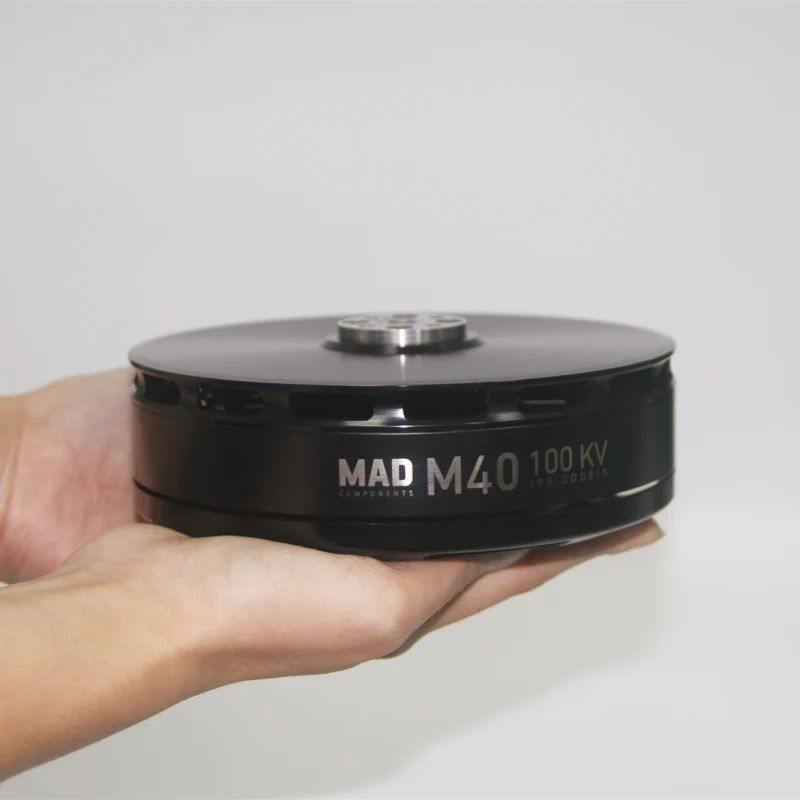

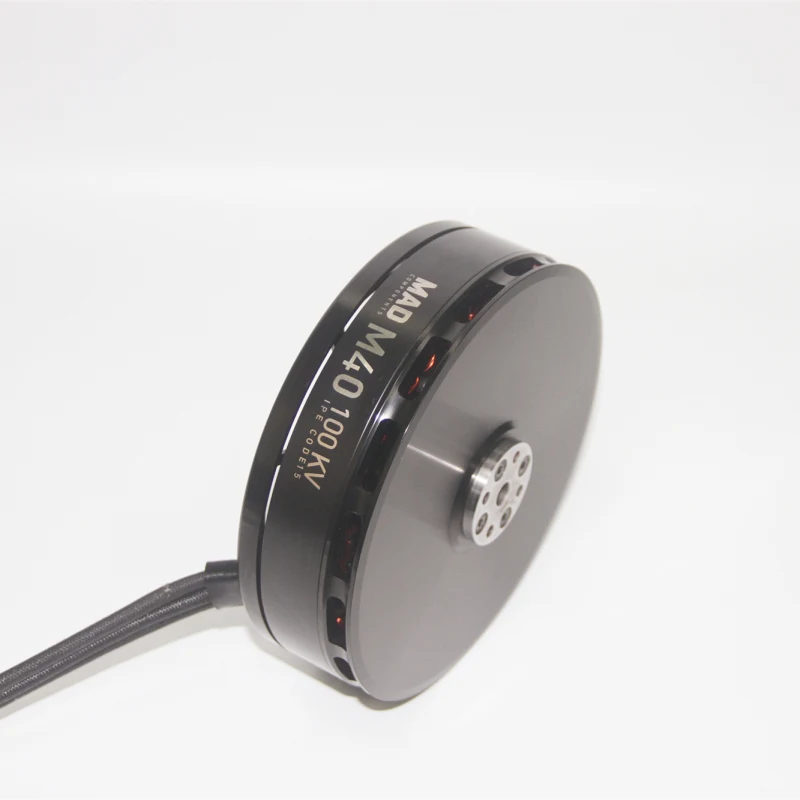

Heavy Duty MAD M40C15 100KV Electric Paramotor Brushless Motor
- Category: >>>
- Supplier: Nanchang HSD Machinery Co. Ltd.
Share on (60868480829):
Product Overview
Description
Heavy Duty MAD M40C15 100KV Electric Paramotor Brushless Motor
Product Description
Key features
l Water and dust proof protection
l EZO bearing
l Closed motor casing
l Propeller installation adapters
l Motor mounting holes standarization
l Repairable
l Maximized performance
l Low power consumption
l Recommended 12S-14S voltage
MAD M40C15 KV100 | IPE |
RPM/V | 100KV |
Configuration | 36N42P |
Shaft Diameter | 15mm |
Bearing | EZO |

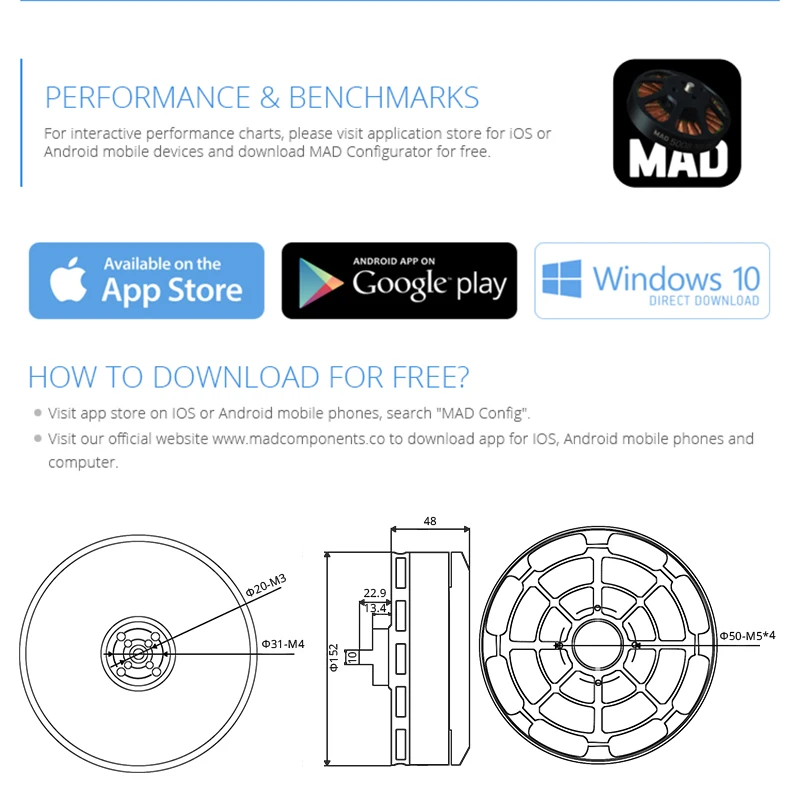

Motor Dimensions | 152*48 mm |
Motor Weight | 1700 g |
Product Boxed Weight | 2000 g |
Propeller Mounting Holes | 4 x M3 Ø20 mm,, 4 X M4 Ø31 mm |
Motor Mounting Holes | 4 x M5 Ø50 mm |
No load current | 3.8 A |
Max current (60 Secs) | 149 A |
Max power (60 Secs) | 8940 W |
Maximum Thrust | 38442 g(16S) |
Internal resistance | 17.5 m Ohm |
Efficiency at 13000 g Thrust | 10.3 g/w |
Heat Dissipation | Centrifugual fan |
Rotor Balanced | Yes |
Heavy Duty Design | Yes |
Protection | IP35 |
Propeller adapter | 1pcs |
Wire | Winding Extended 150mm |
Additional Accessories | 3x Bullet Connector Set,3x Heat Shrink Tubes, 4x M5 14mm screws, 4x M6 14mm screws, 2x Carbon prop cover, 1x MAD sticker, 1x Black cover with hole - Stand for big cup1x Black cover with hole - Stand for big cup |
RECOMMENDATIONS | |
MAD M40C15 | 100KV |
Propeller size | 36" - 40" (14S) |
Payload weight | 20-25 kg/rotor(14S) |

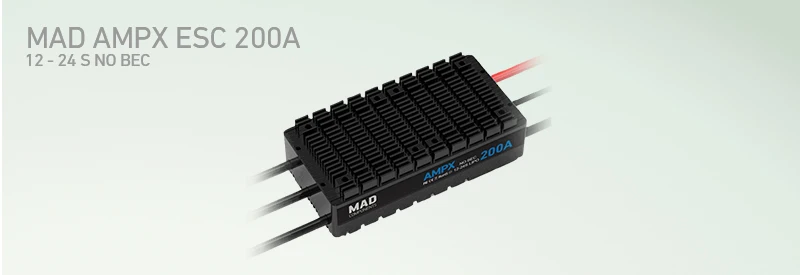

Recommended ESC

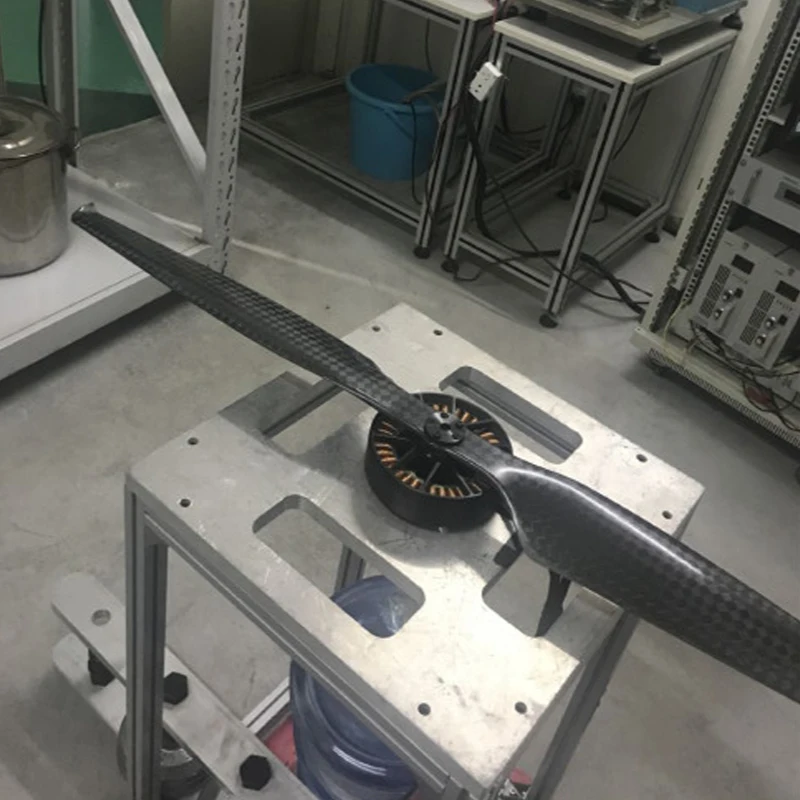

Test parameters
Model | Propeler Size | Voltage(V) | Throttle | Current(A) | RPM | Thrust(g) | Power (W) | Efficiency (g/W) | Temperature (℃) |
MAD M40C15 KV100 | 40×13.1 | 60 | 10% | 21.8 | 1875 | 12816 | 1243 | 10.3 | 103 ℃ |
20% | 36 | 2010 | 17442 | 2052 | 8.5 | ||||
30% | 43 | 2205 | 19853 | 2451 | 8.1 | ||||
40% | 50 | 2560 | 21090 | 2850 | 7.4 | ||||
50% | 57 | 2878 | 23256 | 3420 | 6.8 | ||||
60% | 69 | 3007 | 25171 | 3933 | 6.4 | ||||
70% | 81 | 3165 | 26317 | 4617 | 5.7 | ||||
80% | 102 | 3352 | 29651 | 5814 | 5.1 | ||||
90% | 122 | 3648 | 33380 | 6954 | 4.8 | ||||
100% | 149 | 3876 | 38442 | 8940 | 4.3 |

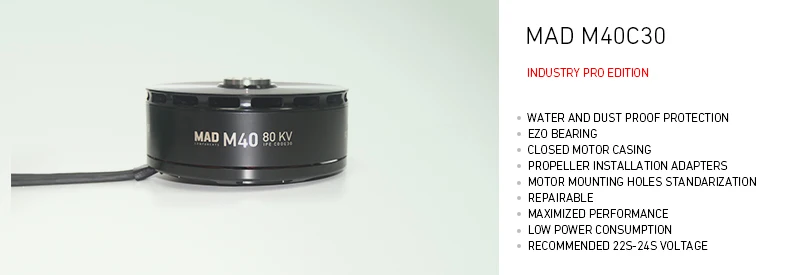

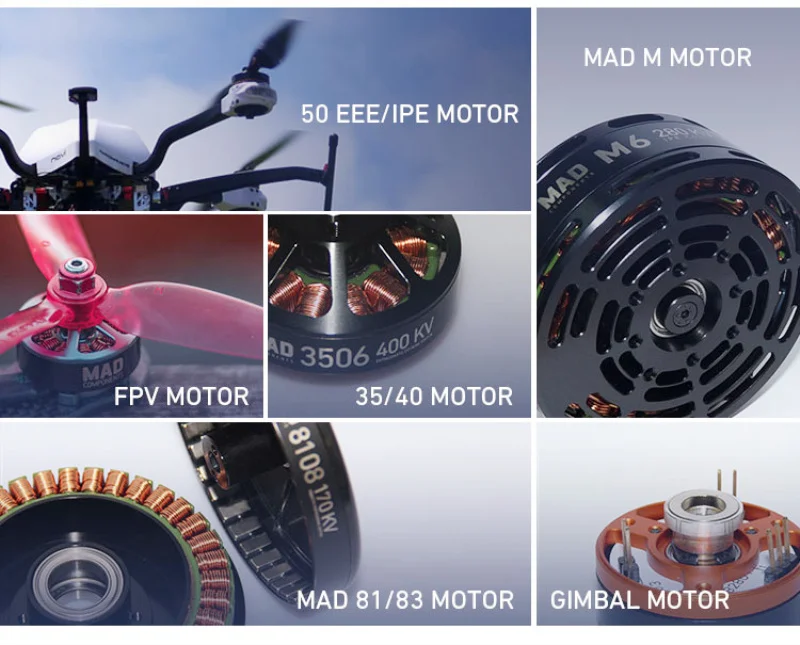

Similar motor
Packaging
No accident shipping term:
DHL: 3-5 working days;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

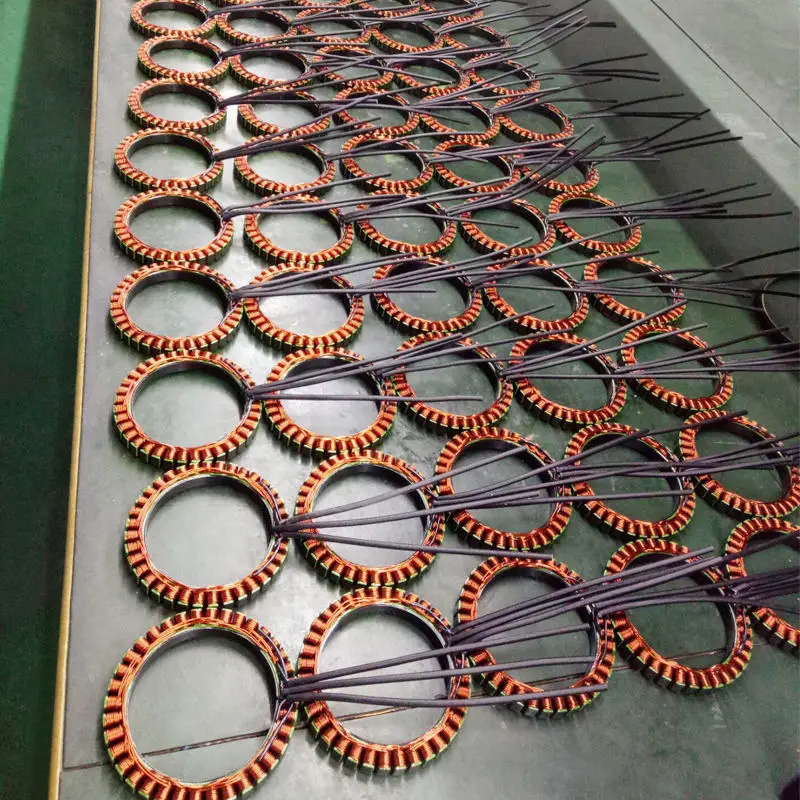

Production Showcase
