Weatherproof EPDM Rubber Sealing Insert Nylon PA66 Cable Gland Connectors Electrical Accessories IP68
- Category: Cable Glands >>>
- Supplier: Zhejiang Mingguan Electric Co. Ltd
Share on (60868673663):
Product Overview
Description

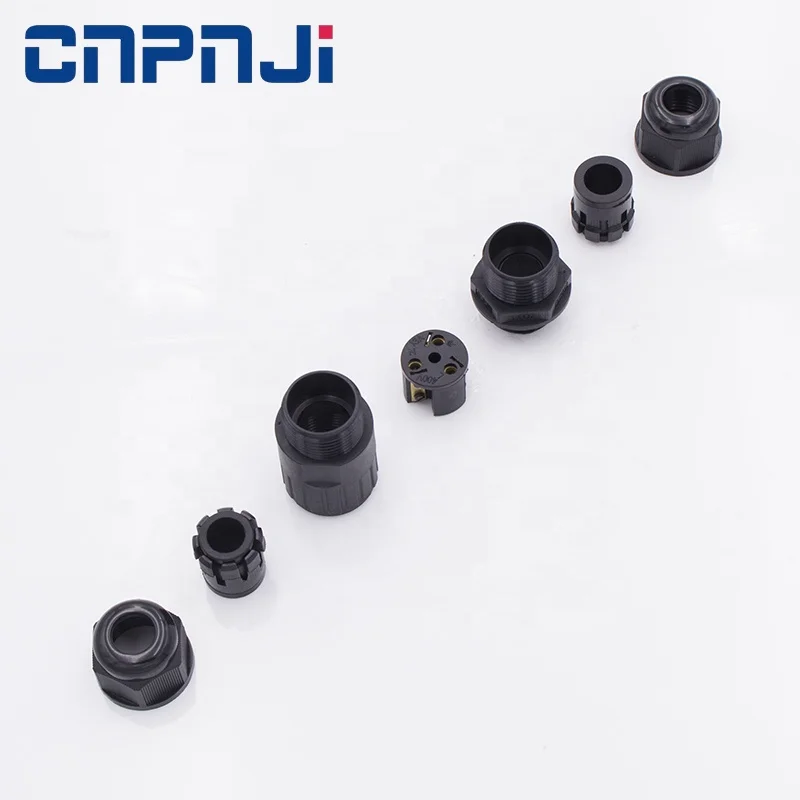

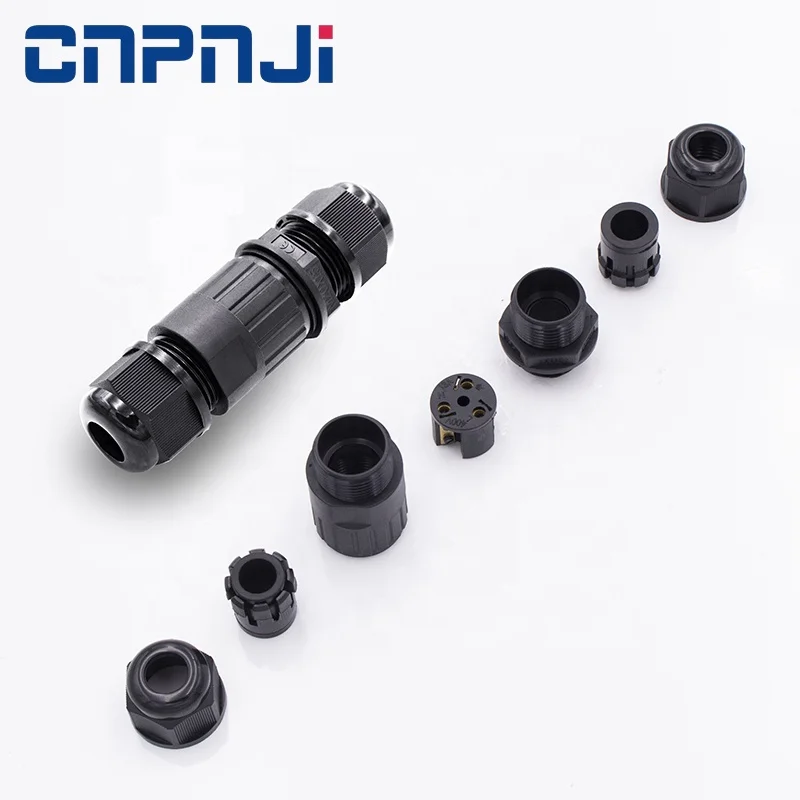

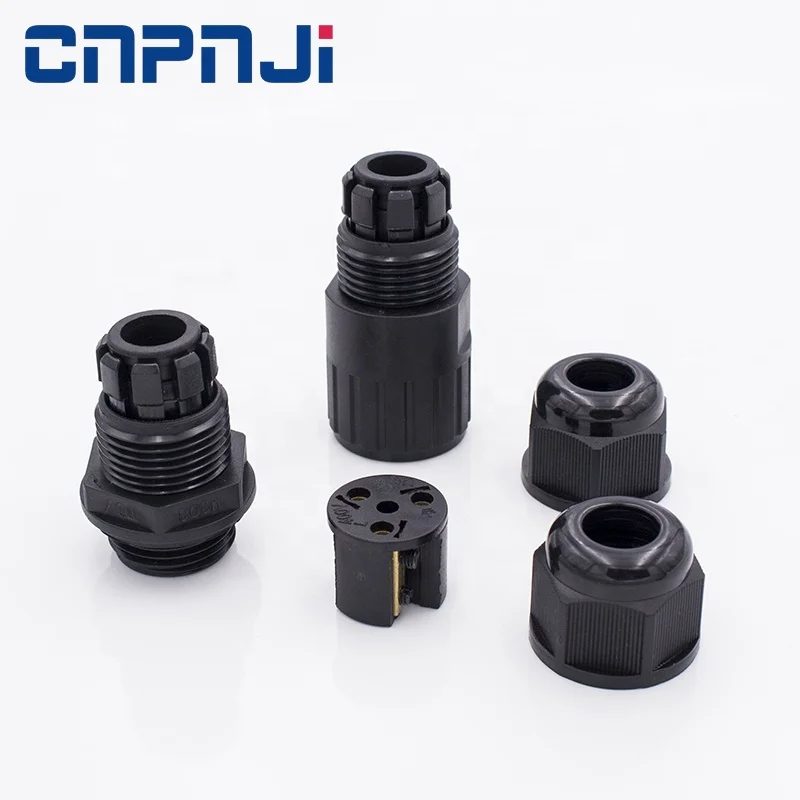

| Product Picture | M20 Nylon Cable Gland Connector | |
 | Thread Type | Metric in compliance with EN60423 |
| Thread Size | M20*1.5 | |
Model number | M20-12 | |
Cable Range (mm) | 6-12 | |
| Thread O.D(mm) | 20 | |
| Spanner Diameter (mm) | 22/27/23 | |
| Color | Black /L.Gray /Customized colors | |
| Material | Nylon PA66( Flammability UL94V-2 ) for main unit, pls contact us if you customize UL94V-0; EPDM rubber for sealing inserts, support for cumstomized cold and heat resistant rubber material. | |
| IP Class | IP68-10 | |
| Working temperature | -40°C~100°C (-40°F~212°F) | |
| Application | This connector is widely used in wiring LED lights. | |
| Certification | CE/RoHS/SGS/IP68/UL(material) certified | |
| MOQ | Small order can be accepted | |
| Payment term | T/T / Cash / WestUnion / Paypal | |
| Delivery Time | 5working days if in stock | |
| Packaging | 15/30/50/100PCS per bag with label,export standard carton | |
| Design ability | We can supply sample, OEM & ODM is welcomed (Design, Engineering, Photographing, Sample, Production) | |
