1 TON FRONT WHEEL LOADER MODEL ZKJF910 WHEEL LOADER

Share on (60868920842):


Price:$4,000.00 - $4,500.00

Quantity:


Product Overview

Description


Product Description

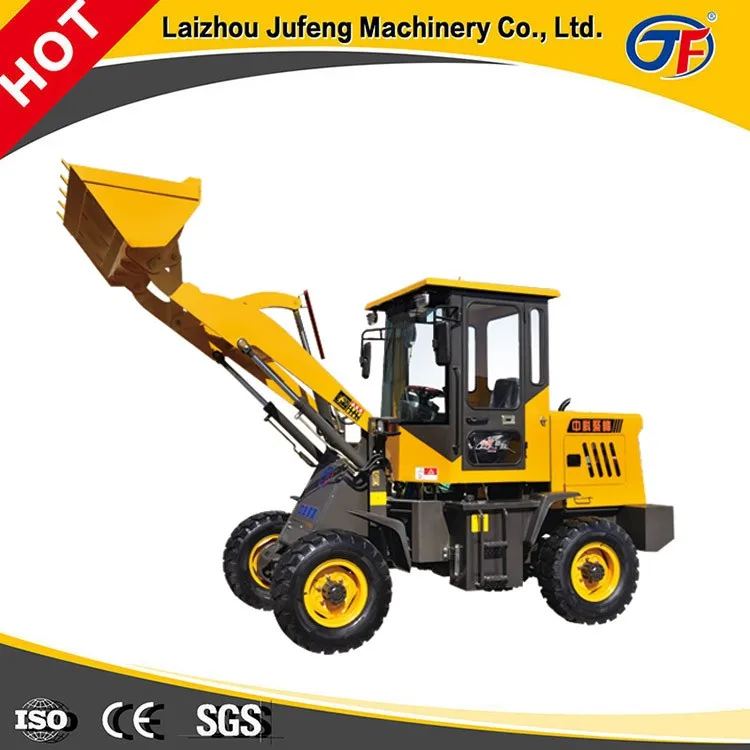

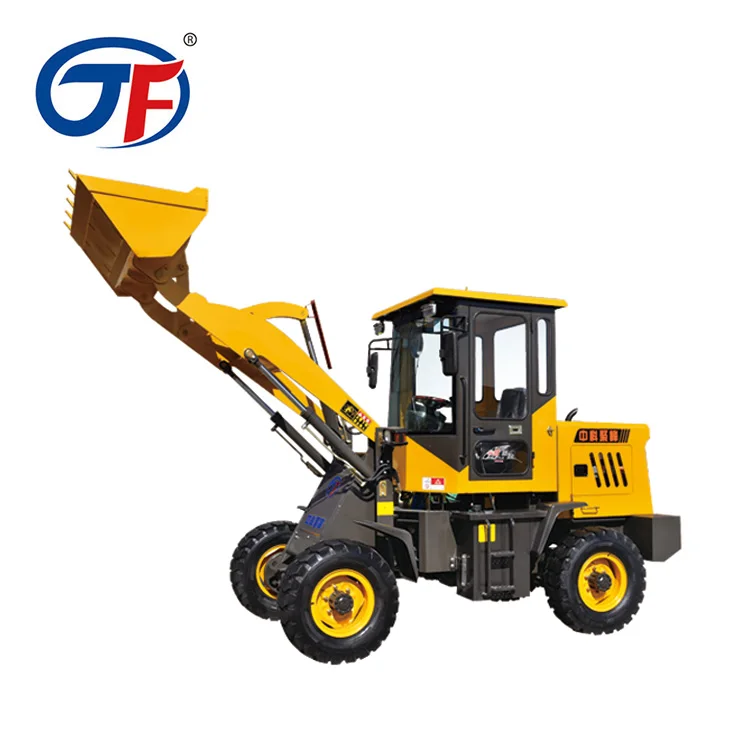

MODEL ZKJF910 WHEEL LOADER (1 TON)

Product Introduction

Model ZKJF910 wheel loader is a kind of unique vehicle with bucket loading capacity of 1.0 ton. The wheel-side reducer driving axle and full hydraulic transmission case make the vehicle move in any kinds of complex off road ways, it adopts articulated chassis and the min. turning radius is 3.5 meters only.

Main Features

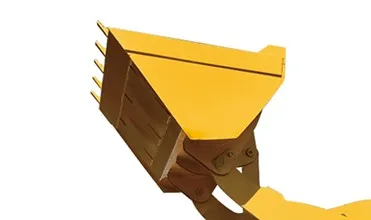

1 Ton Bucket for dumping


1400 mm wide bucket, the rated load of bucket is 1000 Kg. The dumping height of vehicle is 2900 mm and dumping reach is 1000 mm.

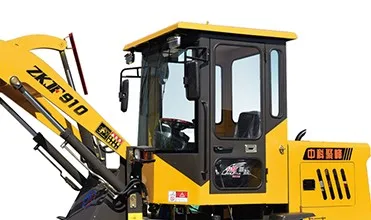

ROPS & FOPS Cabin


ROPS & FOPS cabin is available on this vehicle which helps to increase the safety of driver greatly.

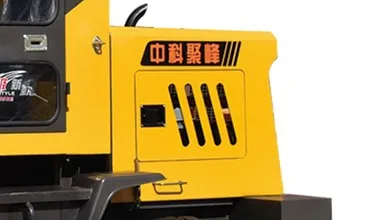

Thickened Steel Plate Engine Casing

The engine casing adopts thickened punch forming steel plate, which increases the stability of whole vehicle greatly.

Bucket
Rated Load
1000 Kg
Bucket Capacity
0.5 M3
Bucket Width
1400 mm
Dumping Height
2900 mm
Dumping Reach
1000 mm
Engine
Model
CHANGCHAI, L28, Naturally Aspirated
Rated power
20 KW / 27 HP
Emission standard
Euro II
Chassis
Structure
Articulated chassis
Articulation angle
35 degree
Transmission gear
Manual, 3F+ 2R shift
Driving & steering
4-Wheel drive (4x4), hydraulic articulated steering
Wheelbase
2050 mm
Tread
1350 mm
Axles
Isuzu reduction driving axle
Torque Converter
Mechanical
Brake
Oil brake
Tyre size
10.00-16
Cabin
Type
ROPS & FOPS type
Air conditioning system
Optional
Vehicle
Min. turning radius
3.5 m
Min. ground clearance
400 mm
Operating weight
2300 Kg
Overall size (L×W×H)
4700 x 1600 x 2500 mm
Optional accessories:
HUICHAI (34KW)
Bucket width 1000mm
Air Conditioner in side cabin
Packing & Delivery
FAQ
Our Company

Company Brief Introduction


Laizhou Jufeng Machinery Co., Ltd. is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.

The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.

We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.

In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.

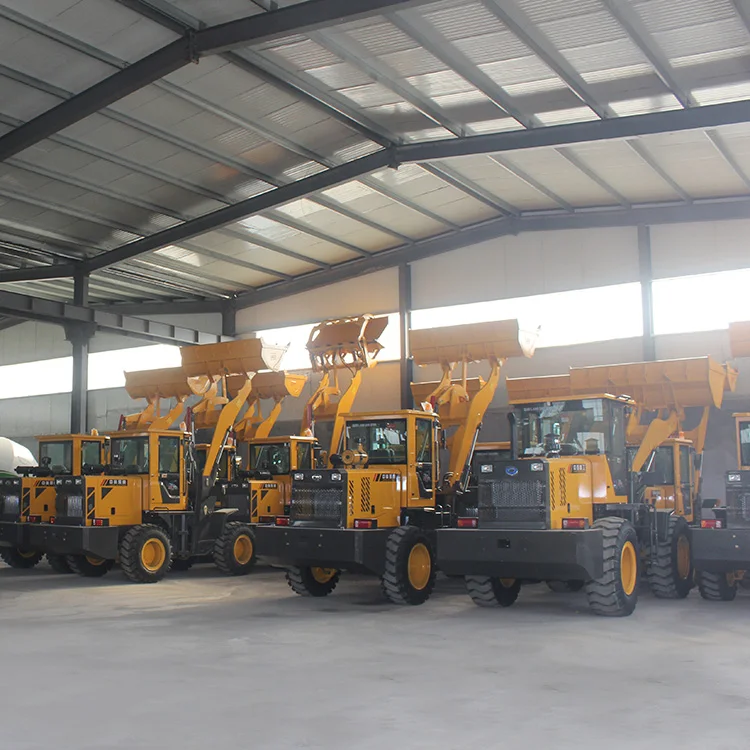

High Production Capacity

Advanced Laser Cutting, Robot Welding, Painting & Other Processing Equipments

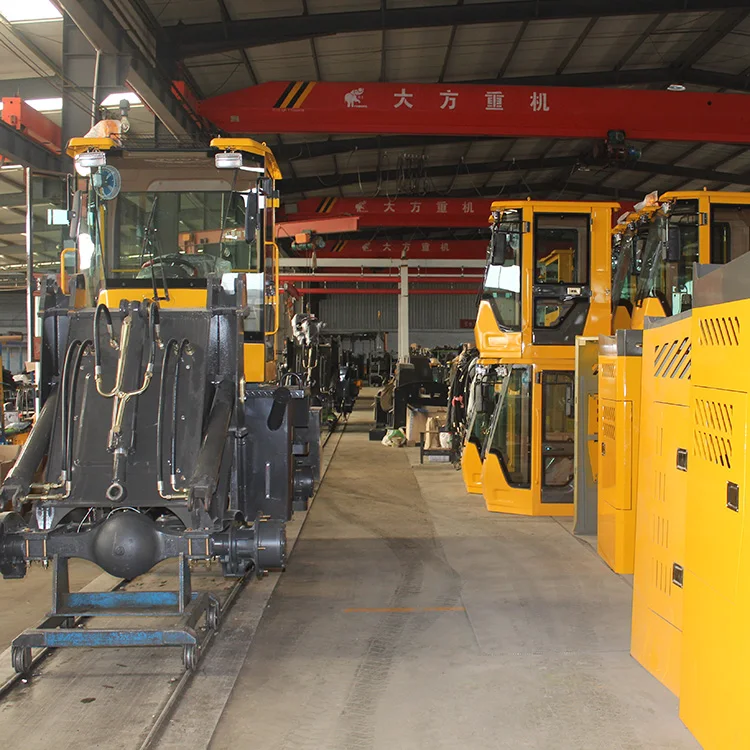

High Level Quality Control & Neat Assembling Workshop

Certifications
