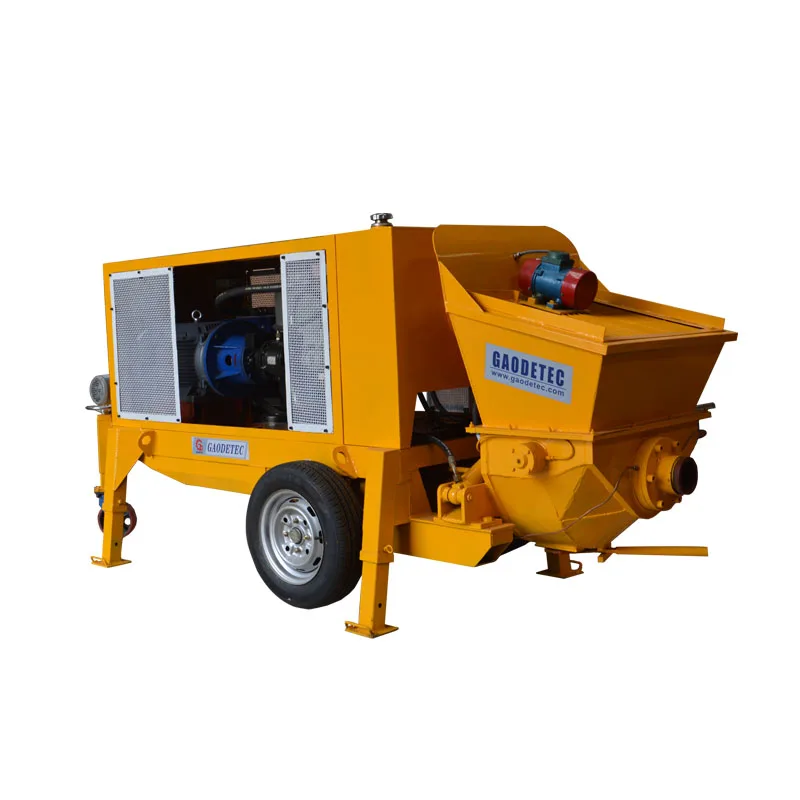

Машина для смешивания плавательных бассейнов от китайских поставщиков оаэ для мокрого бетонного дробления

Product Overview

Description

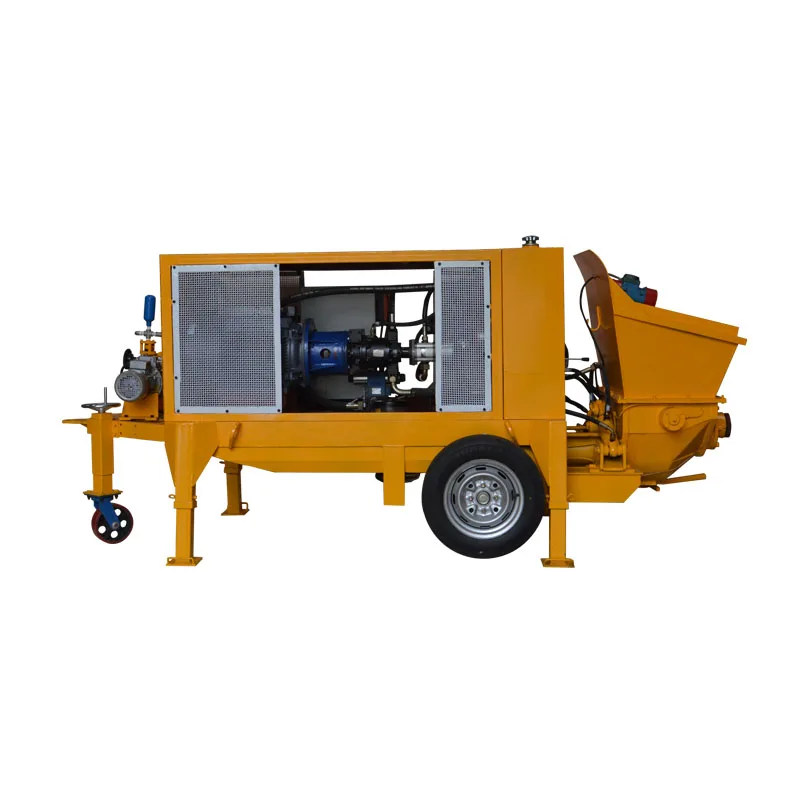

Swimming Pool Mix Shotcrete Machine From Chinese Suppliers Uae Wet Concrete Shotcreting

Swimming Pool Mix Shotcrete Machine From Chinese Suppliers Uae Wet Concrete Shotcreting

Product Description

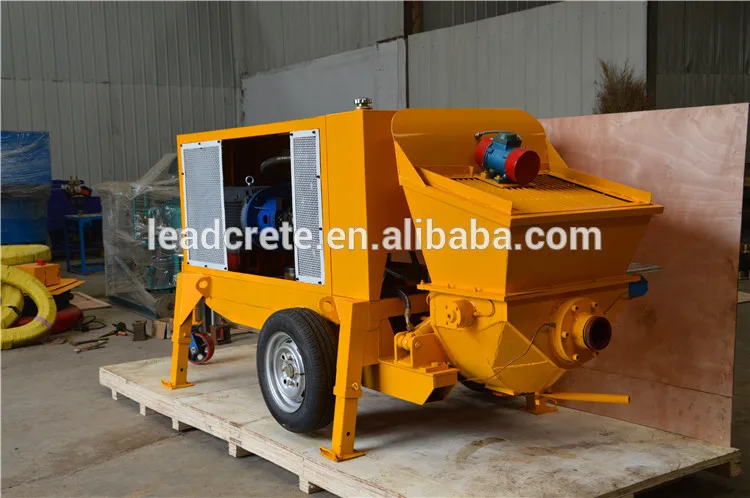

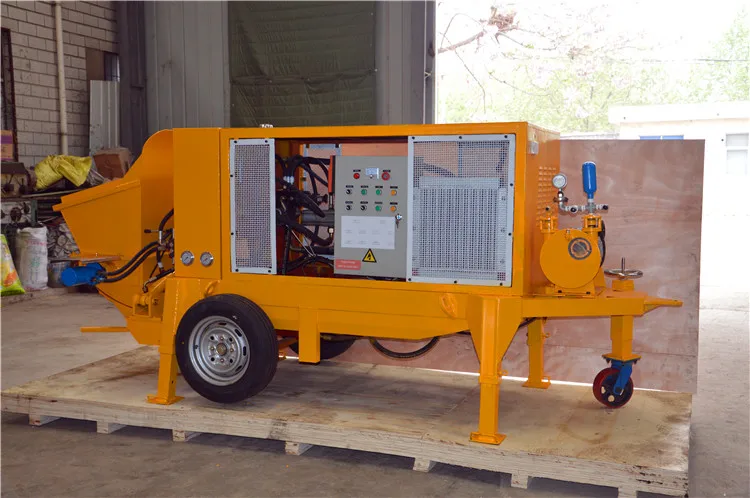

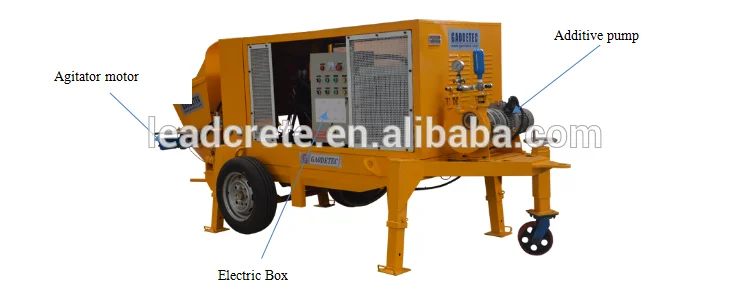

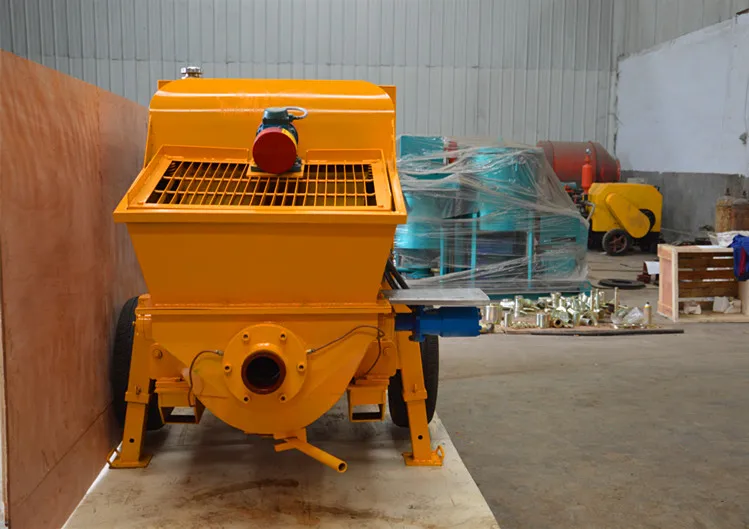

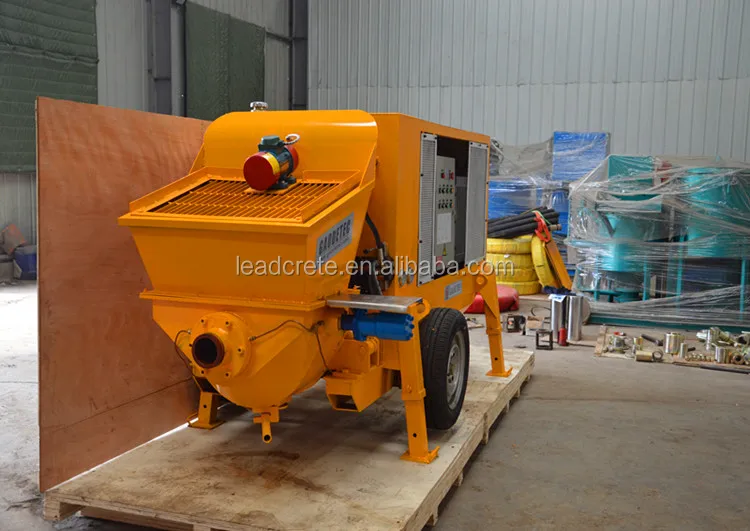

LPS-7A wet mix shotcrete machine use hydraulic pumping S valve structure, two oil cylinders Reciprocationg alternately to pump concrete from conveying pipe to nozzle. Add compress air to wet shotcrete machine outlet and aad a percentage of the accelerator at nozzle, concrete slurry be sprayed to surface directly. LPS-7A output can be adjusted continuously, main oil pump is variable displacement plunger pump, spraying volume could be adjusted freely. Accelerating adding quantity could be adjusted continuously: according to spraying volume adjust step-less. Lead Equipment self-lubrication system for the wet shotcrete machine to automatic lubrication for main sealing parts, thus could lengthen wearing parts working life greatly.

Application:

LPS-7A wet mix shotcrete machine used for wet concrete spraying in mining, tunnel, culvert, metro, hydropower engineering, underground construction, slope protection etc. or for filling, grouting pump concrete mortar etc.

Feature:

1. Use S valve reversing, good sealing performance, longer working life;

2. Equipped floating wearing ring on S valve, could self-compensating wearing;

3. High outlet pressure, could meet the demands of concrete pumping for high building;

4. Hydraulic system adopt air-cooler, easy operate, don’t need water;

5. With reverse function, reduce pipe plugged;

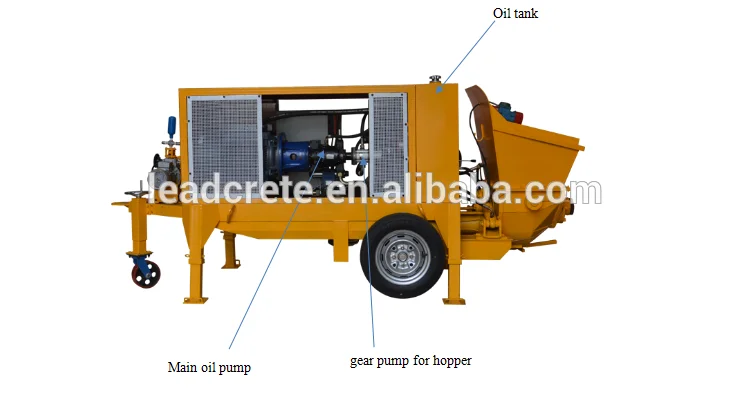

6. Main oil pump is variable displacement plunger pump, spraying volume could be adjusted freely;

7. Equipped self-lubrication system to automatic lubrication for main sealing parts, lengthen wearing parts working life;

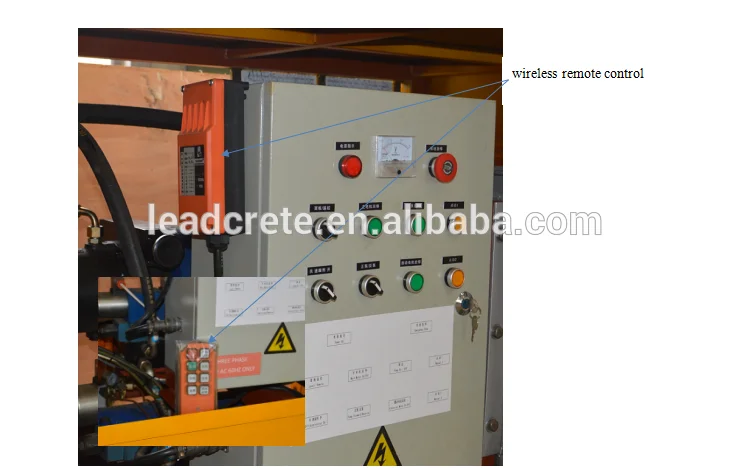

8. PLC control, With wireless remote control, easy to operate;

9. With guide pulley, easy to move, location;

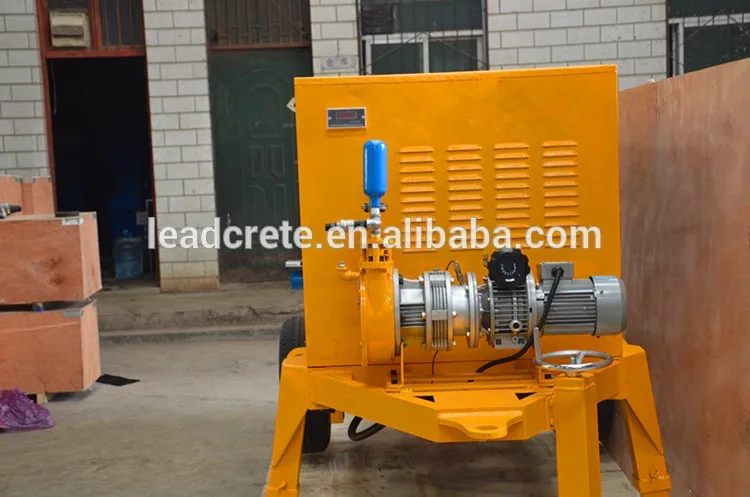

10. Accelerating adding quantity could be adjusted continuously.

Technical Parameter Sheet:

LPS-7A wet shotcrete machine
Item	spec	unit	Remarks
output	5-8	m3/h
Max. pressure	8	MPa
Distribution valve type	S valve		With accumulator
Stroke x cylinder ID	550×120	mm

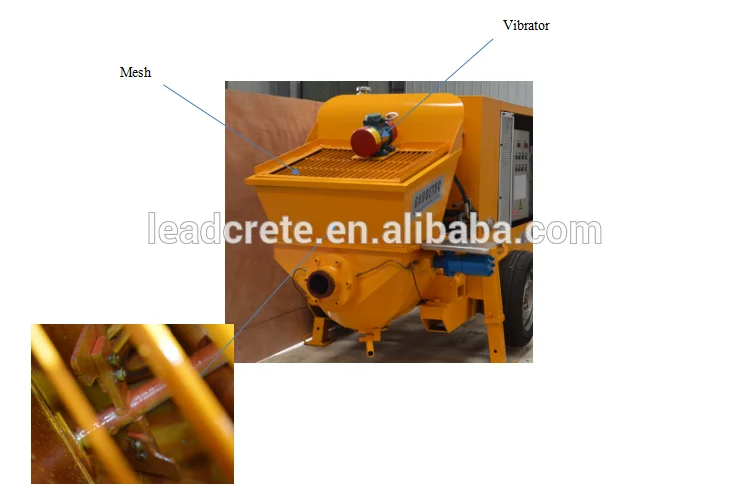

Hopper volume	210	L	With mixer and vibrator
Power	22	Kw
rotation	1450	r/min
Main oil pump	30-50	cc/Rev	constant power control, Manual variable
Hydraulic oil tank volume	160	L
Air pressure	0.7	Mpa	shotcrete
Air consumption	6	m3/min	shotcrete
Acceptable max. aggregate size	20	mm
Suitable concrete slump	8-15	cm
Accelerate flow	70-320	L/min	LH15-200
Dimension	3500x1360x1530	mm
Weight	1515	Kg

Related Products

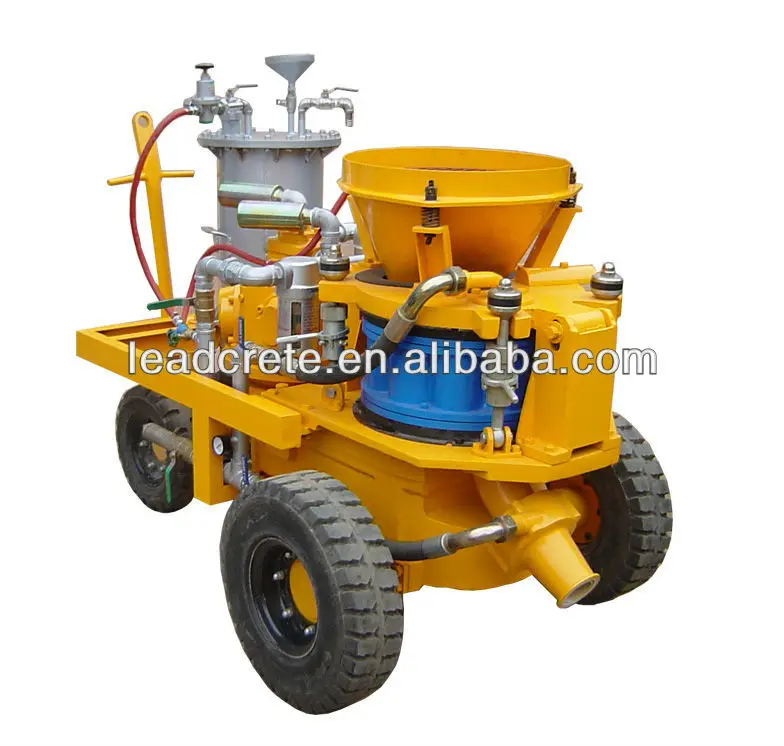

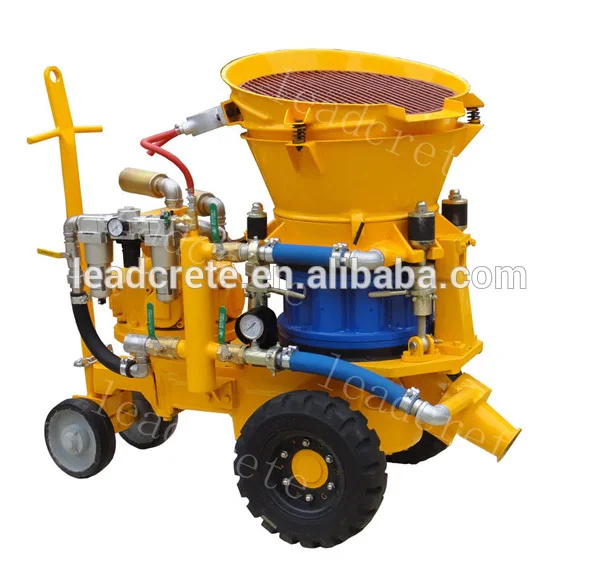

Air motor drive dry mix shotcrete machine:

Air motor drive wet mix shotcrete machine:





Application

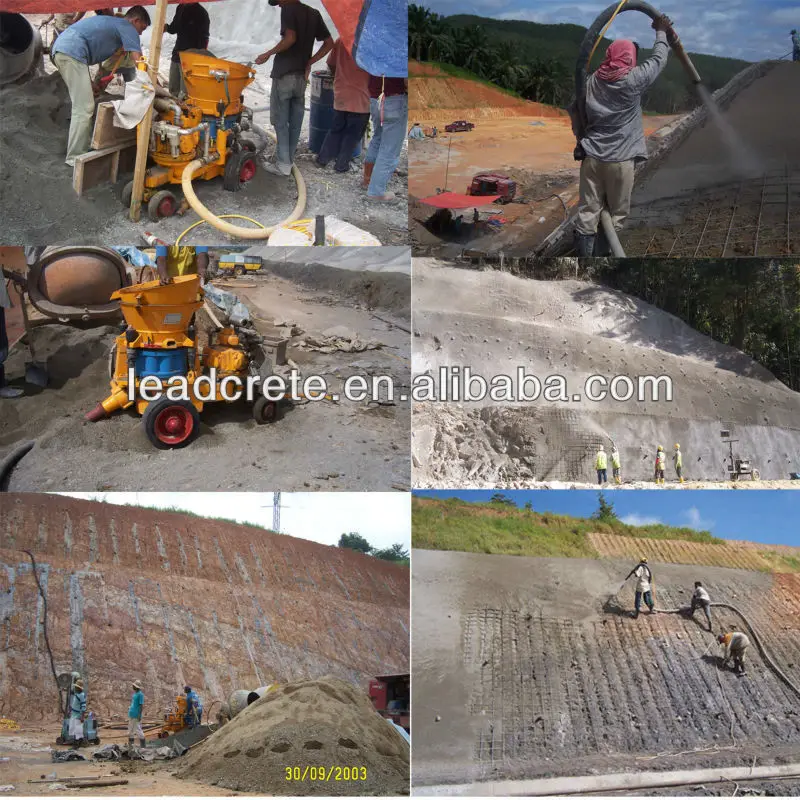

Applications of Shotcrete Machine:
