Fully Automatic Commercial Ice Cream Filling Yogurt Cup Filler and Sealer Machine Supplier
- Category: >>>
- Supplier: Shanghai Boom Packaging Machinery Co. Ltd.
Share on (60869274412):
Product Overview
Description
PRODUCT DESCRIPTION

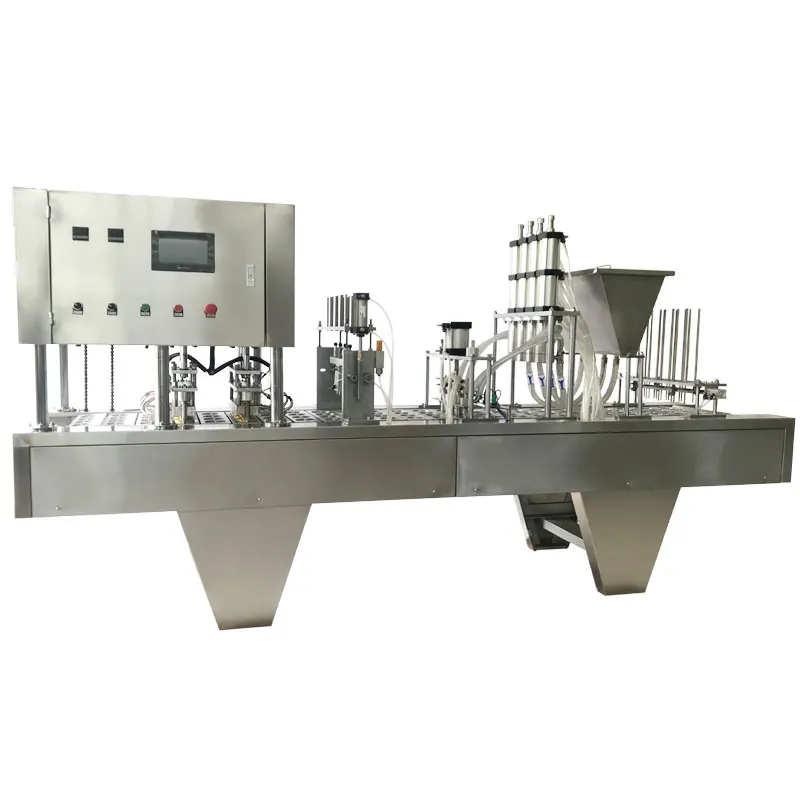

Fully Automatic Commercial Ice Cream Filling Yogurt Cup Filler and Sealer Machine Supplier
Linear Cup Filling Machine is suitable for the production of various kinds of products such as yogurt, water, honey, milk, jelly, ketchup, fruit juice beverage products, etc. Auto falling the empty cups, empty cups detecting, auto quantitative filling product into the cup, auto film placing and sealing, auto discharging the finished product.
Suitable For: Yogurt, Water, Ice Cream, Sauce, Honey, Seasoning, etc.
SPECIFICATIONS
Model | HTC-4 | HTC-6 | HTC-8 | HTC-10 | |||
Output | 3000-4000cups/h | 5000-6000cups/h | 7000-8000cups/h | 9000-10000cups/h | |||
Filling Range | 50 to 300ml | ||||||
Filling Heads | 4 Heads | 6 Heads | 8 Heads | 10 Heads | |||
Voltage | 220V 50Hz | ||||||
Power | 3.5KW | 5KW | 6KW | 7.5KW | |||
Air Consumption | 0.6 m3/min | 0.7 m3/min | 0.8 m3/min | 0.9 m3/min | |||
Dimension (L*W*H) | 3300*710*1700mm | 3800*850*1700mm | 3800*710*1700mm | 4000*800*1700mm | |||
Machine Weight | 700KG | 800KG | 1000KG | 1200KG | |||
FEATURES AT A GLANCE
Working Process:

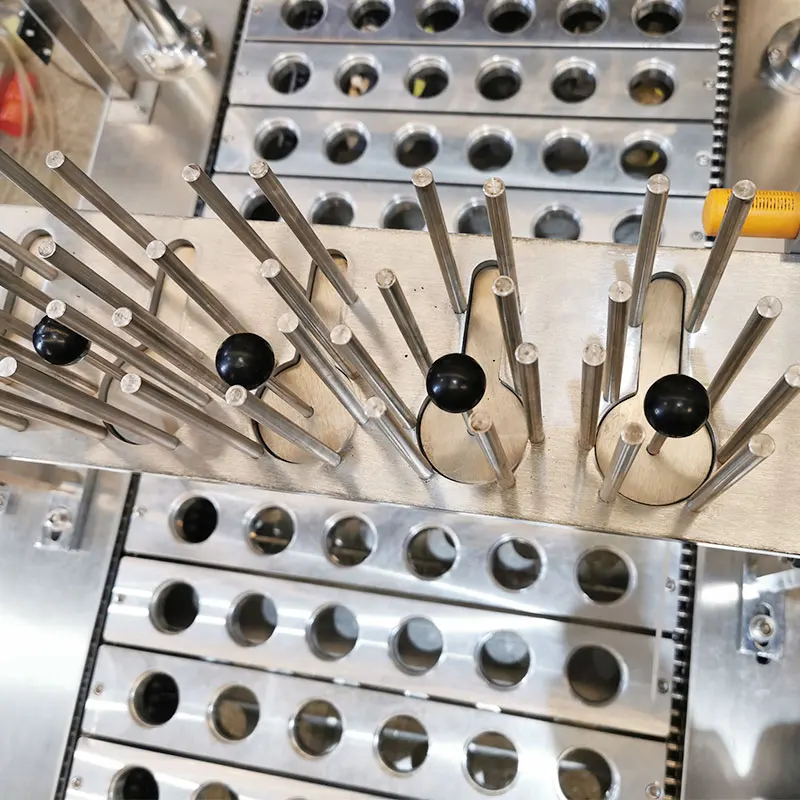

1. Falling Cups: Cups drop down one by one automatically.

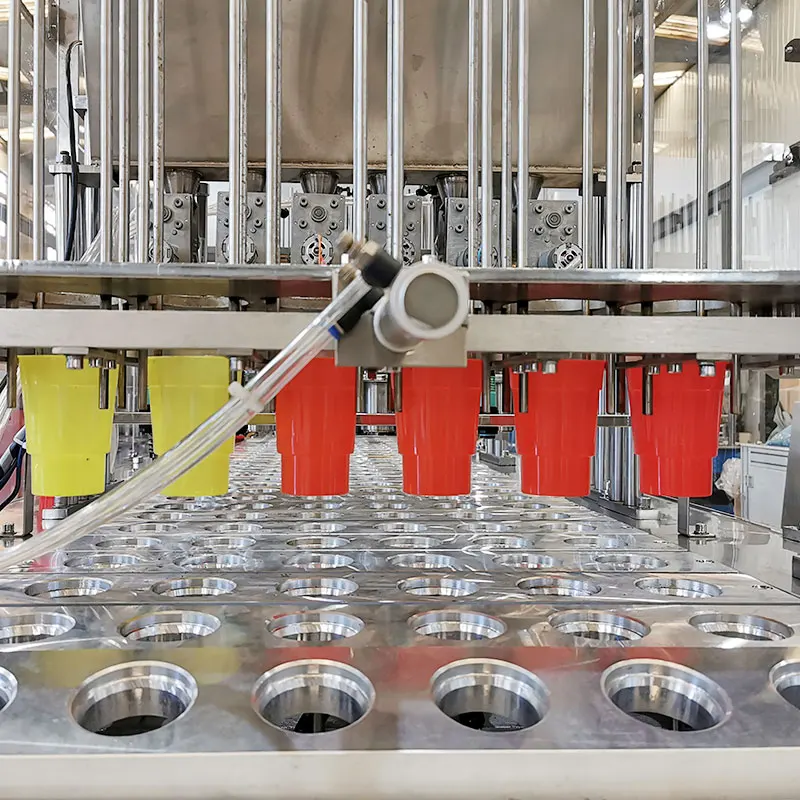

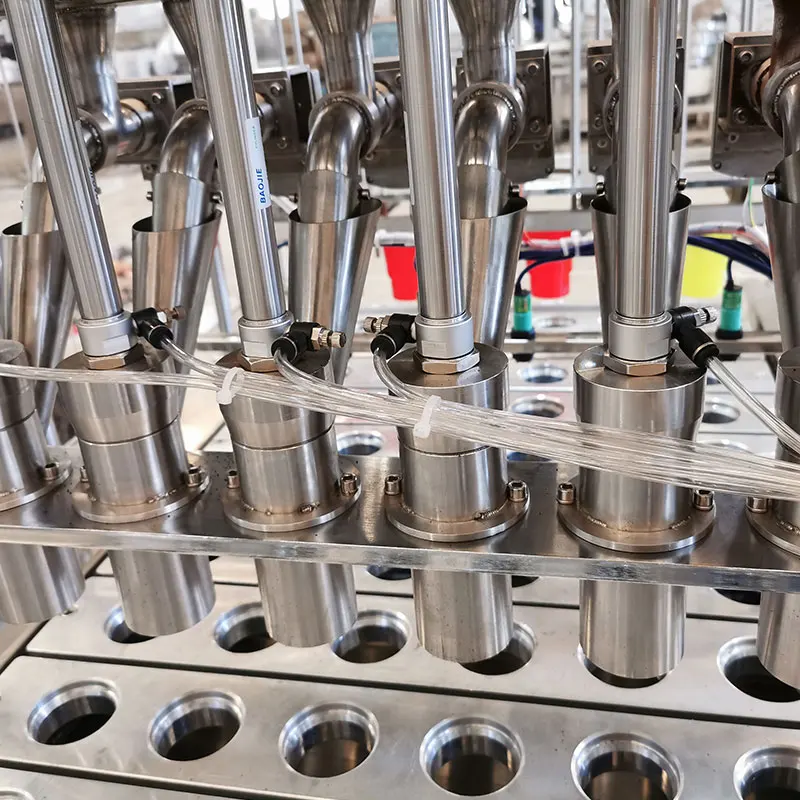

2. Filling Materials: All parts are directly in contact with a product made of SUS-304.
3. Sucking Putting Foils: Vacuum arm suck and put foils.
4. Press Plastic Cover: Press the plastic cover tightly.

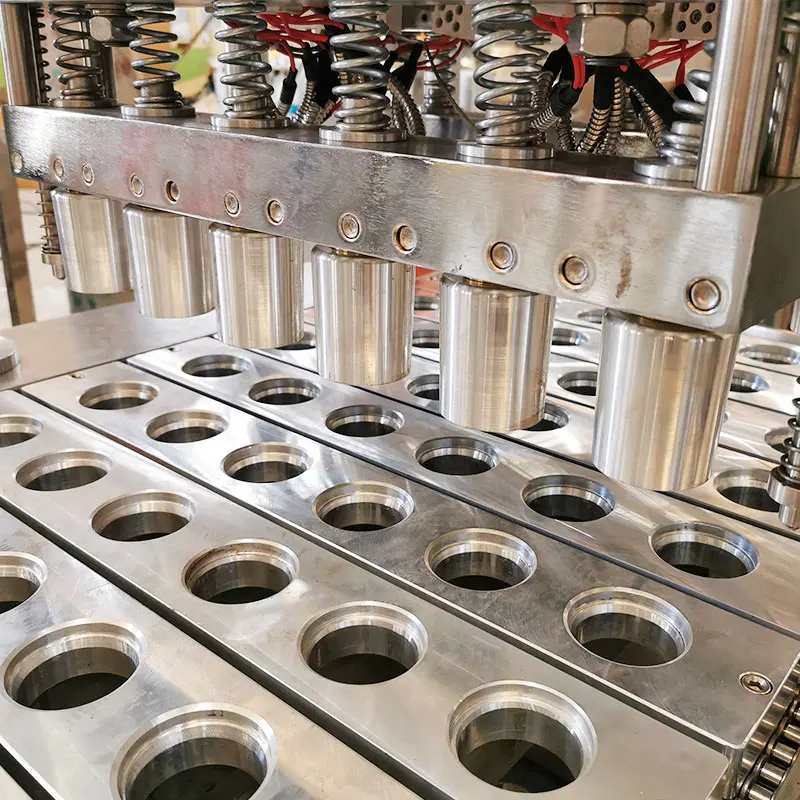

5. First Sealing: 0-300 degrees, can be adjusted.
6. Second Sealing: 0-300 degrees, can be adjusted.
7. Push-Out Finished Cups: Push-out finished cups to a platform.
2. Filling Materials: All parts are directly in contact with a product made of SUS-304.
3. Sucking Putting Foils: Vacuum arm suck and put foils.
4. Press Plastic Cover: Press the plastic cover tightly.
5. First Sealing: 0-300 degrees, can be adjusted.
6. Second Sealing: 0-300 degrees, can be adjusted.
7. Push-Out Finished Cups: Push-out finished cups to a platform.
