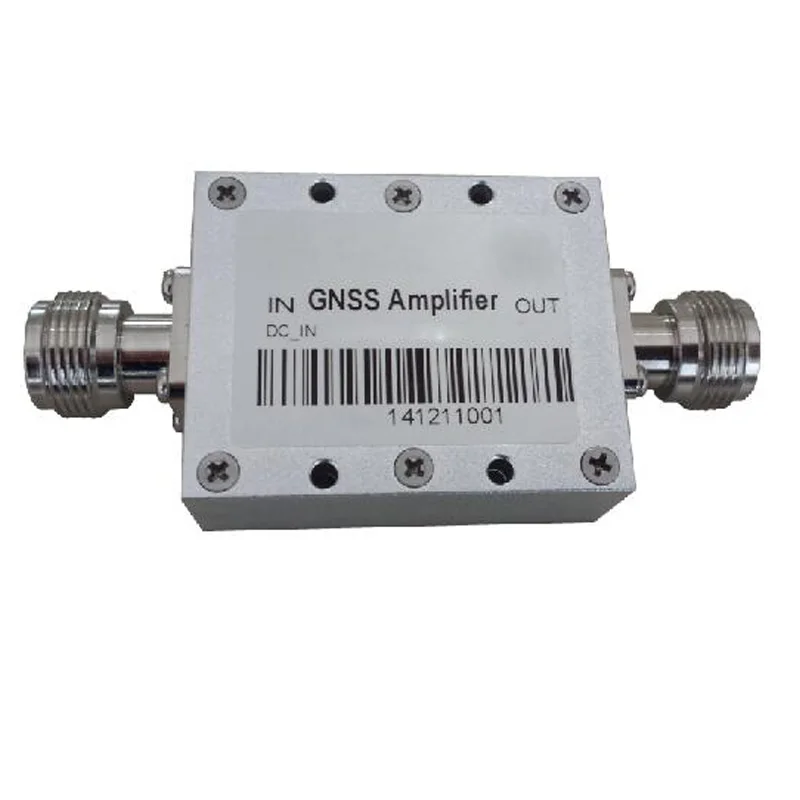

Factory high quality 28dB Gain Glonass Signal Low noise Amplifier or Booster
Factory high quality 28dB Gain Glonass Signal Low noise Amplifier or Booster

Factory high quality 28dB Gain Glonass Signal Low noise Amplifier or Booster

Share on (60869432002):


Price:

Quantity:


Product Overview

Description


Product Description

Glonass Low Noise Signal Amplifier Booster is a single stage gain block in a small form factor that covers the GLONASS frequencies. The device features 30 or 40dB gain and a noise figure less than 1.5dB. Since the product consumes less than 25mA, the device can be placed in line with the receiver antenna and can be powered by the receiver's antenna voltage output.

Economy Manual Shielded Boxes Enclosure rf signal shielding test 800MHz-3.5GHz for telecom and wireless signal testing
\t
Product Name
\t
28dB Gain Glonass Signal Amplifier
\t
Model
\t
SA28
\t
In-Line way
\t
Passive type ; Active Type
\t
Gain
\t
28±1.0
\t
Noise Figure(dB)
\t
≤2.0
\t
Standing-wave Ratio (VSWR)
\t
≤2.0
\t
Impedance(Ω)
\t
50
\t
Voltage(V)
\t
5 V for passive one; 9~ 24 for active one
\t
Working current( ma)
\t
≤70 for both passive and active
\t
Connector Type
\t
SMA-K ; N-K
\t
Storage Temperature
\t
-55~+85
\t
Operating Temperature(℃)
\t
-40~+80
\t
Dimensions(mm)
\t
SMA: 51 x 41 x 16; N: 50 x 41 x 18.5mm
\t
Unit Weight
\t
SMA: 0.10kg ; N : 0.15 kg;
Products Show

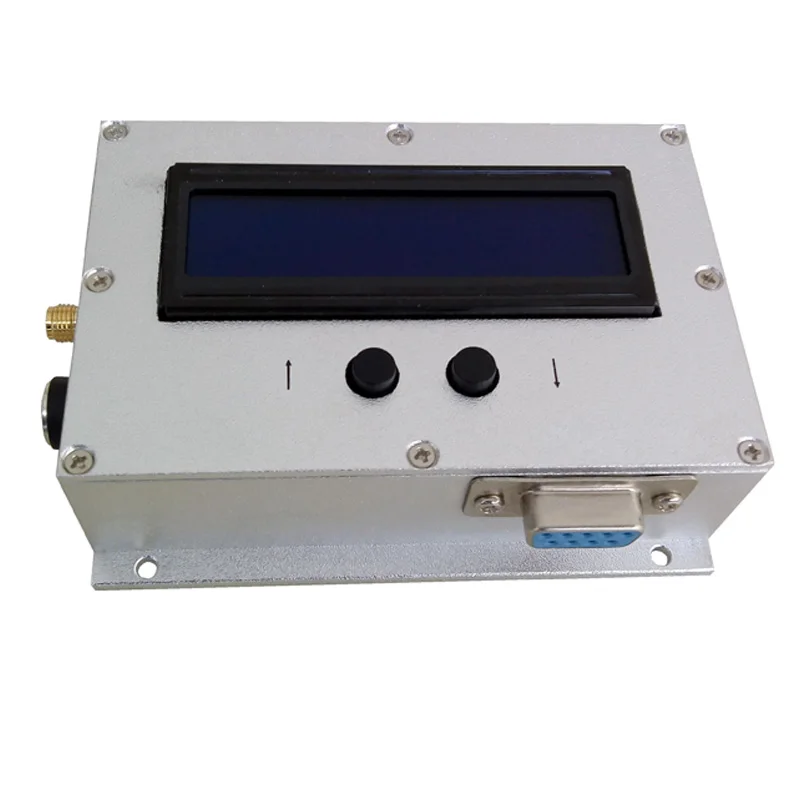

SA-30

GPS Programmable Amplifier

SA-28

28dB Gain Glonass Signal Amplifier
28dB Gain Gps Signal Amplifier

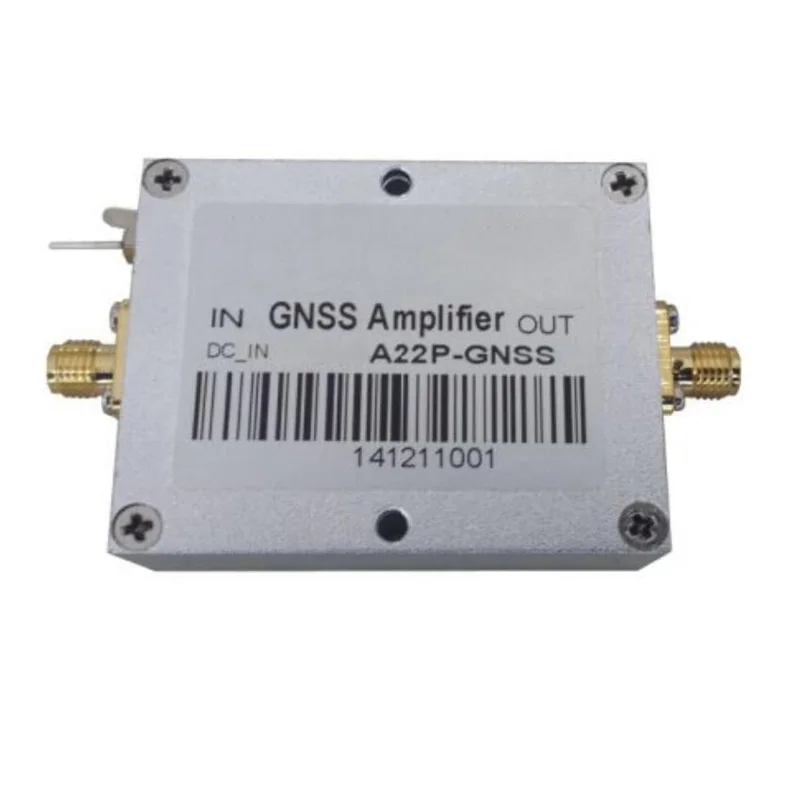

SA-22

22dB Gain Glonass Signal Amplifier

SA-44

44dB Gain Glonass Signal Amplifier

SA-BT

Glonass Bias Tee

SA-BT8

8G Glonass Bias Tee

Shielding Enclosures

- Manual Shielding Box

- Pneumatic Shielding Box

- Soundproof Box

GNSS Products

- Signal Transponder

- Signal Amplifier

Testing Instruments

- Coupler

- Power Divider

- Signal Attenuator

-DC Block
- Dummy Load

Our Service

Customized design

We are able to offer whatever size you need according to your DUT.

Low MOQ

Our OEM/ODM starts at as few as 1-10 pcs of one design to fit your needs.

Fast Delivery

Delivering the products within 3 business days for some models.

Our Company
Application

RF shield box that allows engineers to create an affordable automated end-to-end test environment with each UE shielded individually. It enables the user to perform wireless network tests without undesired RF interference by protecting mobile devices from outside network frequencies.

Applied for below DUT:

2.4GHz and 5 GHz wireless LAN products: signal block or isolating for the wireless modem, wireless router, wireless LAN card, wireless charger, wireless earphone, wireless headset,

GPS products: cellular phones as W-CDMA of 3G, PDC and GSM; the mobile phone with GPS function, RC drone;

Smart products: signal block or isolating for smart led, smartwatch, smart security, smart robot, smart lock, smart ring, smart bracelets), TV BOX(set-top box)

Measure products: water measure, electricity measure, temperature measurements, etc)

More ......

Work with Robot Arm
RC Drone GPS Testing
Mobile Phone Testing
Lot Testing
Technology Testing
More Testing
More products

Perfect Assistant for your work

In order to avoid expensive measurements in EMC chambers, we have developed different shielding boxes. Bigger size for bigger DUT, like RC drone; Smaller size for smaller DUT, like the board. Sound isolation or signal blocking with different body material(metal sheet, aluminum sheet) and inside absorber material or different body size is against client's request. Whatever you need it, we can build it.

Shielding box full box or rf faraday cage without breaking hole design (Filter, SMA holes excluded), the frequency band is 1GHz ~ 6GHz, isolation is more than 80dB. Shielded box opened and closed is controlled by the manual button or through RS232 interface communication command. The rf shielding chamber or enclosures opens way is to take a large angle clamshell to facilitate operation. To prevent the hand grip design avoids industrial safety accident. In accordance with testing requirements can choose to use different filter interface.

Factory View
Over 14 years of experience


Osprey Technology Limited is a Dongguan RF testing products manufacturer covering 6000 square meters with 5 production lines and 19 large equipment for shielding boxes and acoustic anechoic boxes, shielding room, and other RF testing products. Having devoted in RF testing products industry for almost 14 years,

Material Checking

Quality is at the heart of our company. Osprey strictly follow the ISO process, every OSBAY product is made by the hands of over a decade of experience manufacturing team. Osprey provides 1 year's warranty term. We care about our staff's safety and health, there are clear instructions at every stand to show the proper working processes, and work training is held every week. Every Osprey product is in compliance with the ROHS standard.

Our Team

Thanks to the R&D Department. We believe only the most qualified staff can go that extra mile to meet the customer's expectations of perfection. This is why Osbay never stops to employ more experts in the cable industry. Currently, we have more than 36 technical staff, 2 of them are Ph.D., and 5 of them are master graduates. We have developed more than 66 technical patents, 13 of them are invention patent, and 44 of them are utility one.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock. or it is 15-20 days against the quantity if the goods are not in stock.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with charge

Q: What is your warranty?

A: One year
