like diitra Underfloor Heating Mat with cable
- Category: Waterproofing Materials >>>
- Supplier: Weifang Berry Waterproof Material Co. Ltd.
Share on (60869625689):
Product Overview
Description
Product Description
Product instruction:Electric -Underfloor Heating Mat with wire
Product instruction:

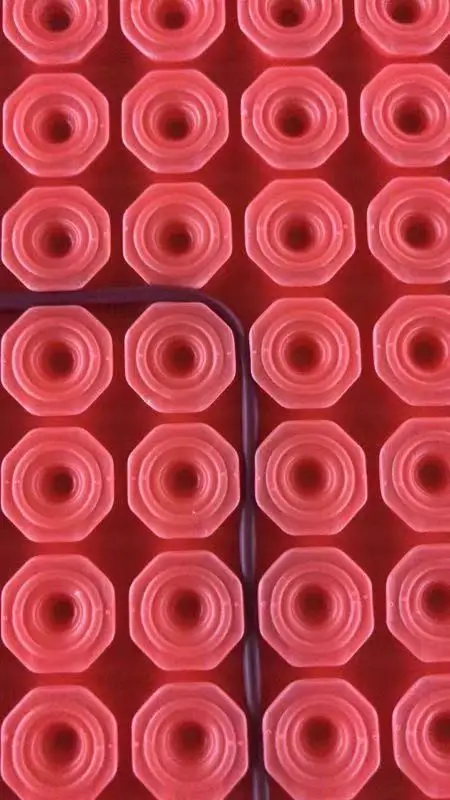

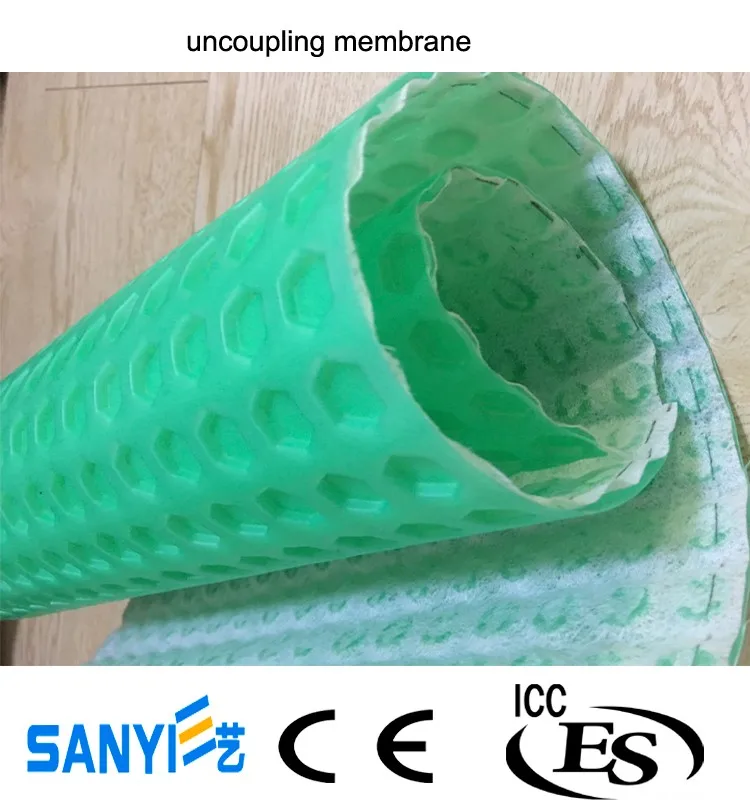

Electric Underfloor Heating Mats are a unique, easy and quick heating solution designed to be installed directly beneath tile, stone, slate or marble etc. The Floor heating mat UFH505 Heat is an uncoupling and waterproofing membrane designed to secure heating cable in place. UFH505-Heat provides uncoupling to neutralize shear stresses between the substrate and the tile covering to prevent cracked tile and grout. The patented stud structure of the UFH505-Heat membrane holds the heating cable in place without the use of clips or fasteners. It also eliminates the need for a self-leveling compound which minimizes the assembly thickness .
Electric Underfloor Heating Mats are a unique, easy and quick heating solution designed to be installed directly beneath tile, stone, slate or marble etc. The Floor heating mat UFH505 Heat is an uncoupling and waterproofing membrane designed to secure heating cable in place. UFH505-Heat provides uncoupling to neutralize shear stresses between the substrate and the tile covering to prevent cracked tile and grout. The patented stud structure of the UFH505-Heat membrane holds the heating cable in place without the use of clips or fasteners. It also eliminates the need for a self-leveling compound which minimizes the assembly thickness .
Features:
Their Underfloor Heating Mats UFH505 Heat are an advanced form of heating and designed to be easily fitted below a tiled floor. The mats will heat your floor evenly at a set temperature that you can control by means of a thermostat. Allowing you to control each room to your preferred taste. The heating mats are primarily designed for use on concrete floors but can also be installed on a wooden sub floor by either using a tile backing board or a thin screed of flexible tile adhesive.
The heating mats can be fitted underneath tiles, stone, marble or slate and used for both primary and comfort heating. It's ideal for remodeling bathrooms and kitchens and offers a luxury option when designing new construction. It is energy efficient as well as inexpensive to operate. Detailed instructions are included so that even do-it-yourself home owners can install it.
Advantages:
1.Install below ceramic or porcelain tile, stone or brick floors or in a self-leveling mortar bed below vinyl floors, floating wood and laminate floor
2.For indoor floor-warming use only
3.Open-weave construction for easy application of thin-set and mortar without compromising the bond of your floor covering to the sub-floor
4.Energy efficient, inexpensive to operate
5.Armored power lead wire straight to the electrical box, no conduit required
6.Single-point power connection to facilitate layout and wiring
7.Mats can be connected in parallel for larger floor surfaces
8.Can be combined with a programmable thermostat control (not included)
Their Underfloor Heating Mats UFH505 Heat are an advanced form of heating and designed to be easily fitted below a tiled floor. The mats will heat your floor evenly at a set temperature that you can control by means of a thermostat. Allowing you to control each room to your preferred taste. The heating mats are primarily designed for use on concrete floors but can also be installed on a wooden sub floor by either using a tile backing board or a thin screed of flexible tile adhesive.
The heating mats can be fitted underneath tiles, stone, marble or slate and used for both primary and comfort heating. It's ideal for remodeling bathrooms and kitchens and offers a luxury option when designing new construction. It is energy efficient as well as inexpensive to operate. Detailed instructions are included so that even do-it-yourself home owners can install it.
Advantages:
1.Install below ceramic or porcelain tile, stone or brick floors or in a self-leveling mortar bed below vinyl floors, floating wood and laminate floor
2.For indoor floor-warming use only
3.Open-weave construction for easy application of thin-set and mortar without compromising the bond of your floor covering to the sub-floor
4.Energy efficient, inexpensive to operate
5.Armored power lead wire straight to the electrical box, no conduit required
6.Single-point power connection to facilitate layout and wiring
7.Mats can be connected in parallel for larger floor surfaces
8.Can be combined with a programmable thermostat control (not included)
Product Specification:
Product Description | Floor Heating membrane |
Material | polyethylene(PE)film; polypropylene (PP) nonwoven (Material:HDPE membrane+pp textile) |
Roll Size | 1mx10m ;1mx5m |
Weight | 1000g/sqm |
Thickness | 5.6mm |
Film thick: | 0.45mm |
Wire cable diameter | 3.8mm ,4.0mm,4.2m,4.5mm |
Packing | wrapped in plastic film |
Color | Red, Green, Orange, blue or others |
Data Sheet: | ||||||
Waterproof Membrane for Thin-set Ceramic Tile and Dimension Stone Installation complying with ANSI108.10 of USA. | ||||||
Property | Test method | Requirement | Performance | |||
Fungus and micro-organism resistance | The membrane shall not support mold growth | Pass | ||||
Seam strength | ASTM D751 | 16 lb/2 in width | 36 lb/2 in width | |||
Breaking strength | ASTM D751 | 170 psi | 1084 psi | |||
Dimensional stability | ASTM D1204 | 0.7% maximum length change | Pass | |||
Waterproofness | ASTM D4068 | No moisture penetration | Pass | |||
7-day shear strength | ASTM C482 | 50 psi | 87 psi | |||
7-day water immersion shear strength | ASTM C482 | 50 psi | 77 psi | |||
4-week shear strength | ASTM C482 | 50 psi | 96 psi | |||
12-week shear strength | ASTM C482 | 50 psi | 90 psi | |||
100-day water immersion shear strength | ASTM C482 | 50 psi | 120 psi | |||
Water vapor permeance | ASTM E96 | 0.75 perms | ||||
Detailed Images
Packing & Delivery
Installation
Heat Base Waterproofing Membrane suitable for Electric Underfloor Heating.
Heat Base is a Polypropylene uncoupling, crack isolation, waterproofing membrane made for use with Electric Underfloor Heating. Heat Base uncoupling membrane has rounded square shaped reliefs which allows the Elektra DM10 Heating Cable to easy fit into the pre-groved channels.
Heat Base is very flexible and easy to use and cut into shape for the requirements of any shapped room, allowing you to get the maximum coverage for the Elektra DM10 Undertile Heating Cable.
Heat Base Membranes unique design allows for:
• Flexible heating zone selection
• Cost and time saving installation
• Waterproofing
• Uncoupling crack isolation
• Vapor management
• Support load distribution
