5m3/h Foam Concrete Spraying Diesel Cement Grouting Injection Hand Squeeze For Pumping Bentonite Oil Industry Hose Pump
- Category: >>>
- Supplier: Zhengzhou Xuda Machinery Co. Ltd.
Share on (60869644816):
Product Overview
Description
Product Description

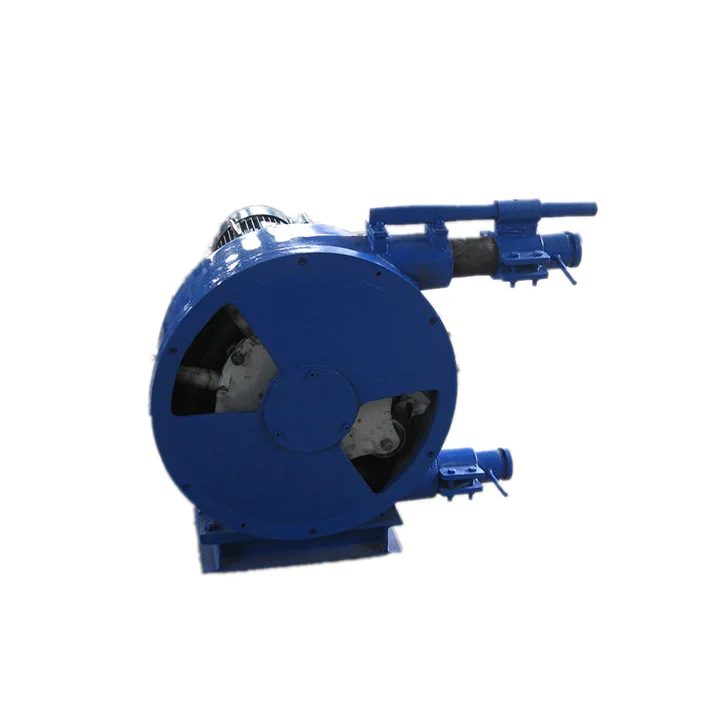

XD-51 Foam Concrete Squeeze Hose Pump
XD series heavy-duty hose pump is a kind of peristaltic pump, which is suitable for transfering foam concrete,handling aggressive, high viscosity, high density products, such as abrasive slurries, corrosive acids, gaseous liquids, sand/cement mortar ,liquid accelerator,etc. And also is used for dosing pump with 1% repeat precision.
Features
1. No valve, wide flow path. Can adapt to thick and granule slurry pump
2. Constant volume pumping, no backflow, steady flow
3. Easy to realize flow regulation, choose suitable external parts, can be used as metering pump
4. Pump slurry only contact with extrusion hose, choose suitable hose material, can adapt to all kinds of slurry
5.The inlet and outlet can be freely converted, when there is foreign matter blocking, reversing can discharge the plug
6. High vacuum, strong self-priming ability
7. Convenient cleaning, do not need to remove, that is to clean the pipeline
8. Easy maintenance, few wearing parts (only one extrusion hose)
2. Constant volume pumping, no backflow, steady flow
3. Easy to realize flow regulation, choose suitable external parts, can be used as metering pump
4. Pump slurry only contact with extrusion hose, choose suitable hose material, can adapt to all kinds of slurry
5.The inlet and outlet can be freely converted, when there is foreign matter blocking, reversing can discharge the plug
6. High vacuum, strong self-priming ability
7. Convenient cleaning, do not need to remove, that is to clean the pipeline
8. Easy maintenance, few wearing parts (only one extrusion hose)
Details Images

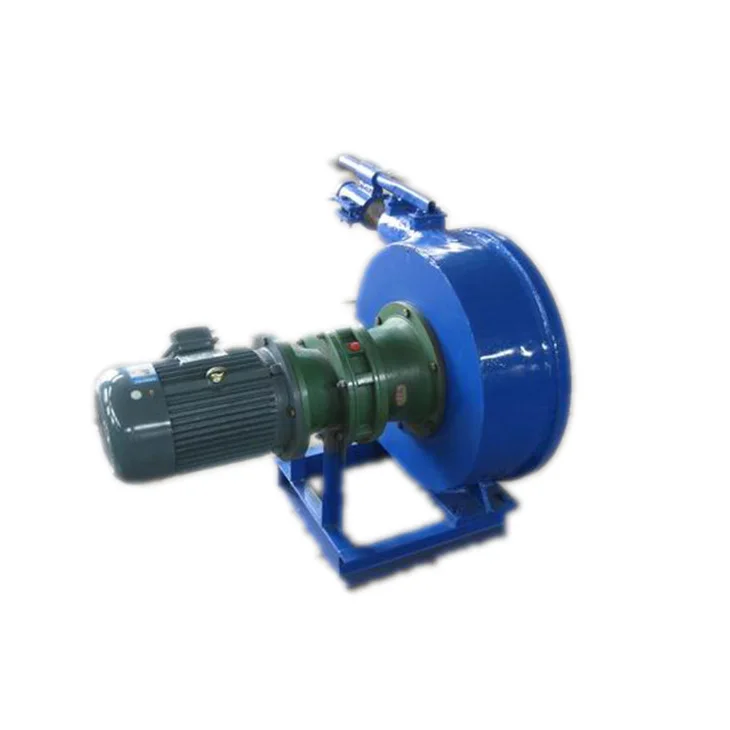

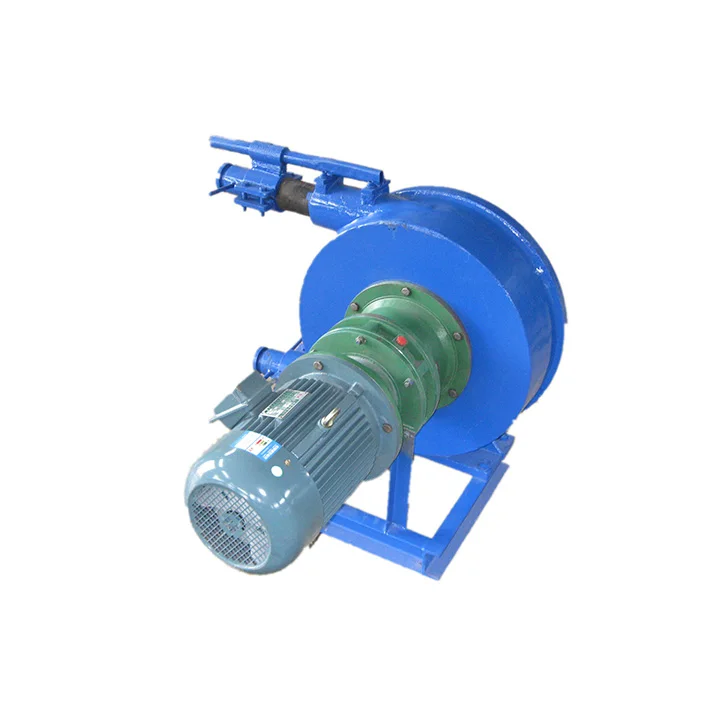

Pump Head With Motor
$1800
The Standard Configuration
$2200

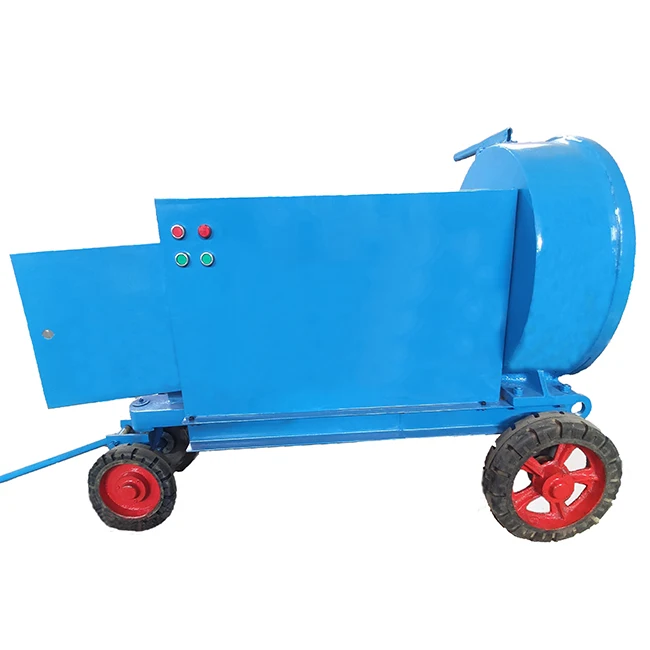

Diesel Driven + Mixer
$3500
Product Paramenters
Model | XD-51 |
Output | 5m3/h |
Work Pressure | 2Mpa |
Hose Inner Diameter | 51mm |
Pump rotation | 35 r/min |
Max Aggregate Size | 6mm |
Hose Out Size | 84mm |
Power | 5.5kw |
Weight | 450kg |
Transfer Height | 100m |
Transfer length | 200m |
Product packaging
Company Profile
ZHENGZHOU XUDA MACHINERY CO.,LTD
Zhengzhou Xuda Machinery Co., Ltd is a comprehensive manufacturing factory with 20 years experience in Zhengzhou city of China.Our main product are Dry-mix and Wet-mix shotcrete machine,Mortar plastering machine, Hydraulic concrete pump,Mortar/Cement grouting pump,Hydroseeder,Mixer,Drilling rig ,etc. With a shotcrete machine manufacturing factory which cover about 1000 square meters,we employ 5 high quality talents and 20 specialized workers.Lots of them have 10-20 years experiences.
Customer Photos
Recommend Products
FAQ
Q: Does this machine have mixer?
A: We can install a mixer on this pump.Just send inquiry to us and we will customized based on your request.
Q:How long is the warranty on the machine?
A:One year. If the machine has any non-human fault, we will free express replacement parts.
Q:What if I don't know how to operate the machine?
A:We have English instructions and we will send detailed operation video. If you have any questions, we'll answer them by online
video.
Q:I am afraid of being cheated for the first time, what are the safeguards?
A:You can trade through Alibaba Credit Insurance Order, which protects the buyer's rights and can apply for a refund if there is a
problem with the machine.
Q:Do you have any other output pump?
A: Of course,we have many types pump for you choose.Please send message to us and we will at your service anytime.
Q:Are you a trade company?
A:No,we are a professional manufacture factory with more than 20 years.Located in Zhengzhou city of China.
A: We can install a mixer on this pump.Just send inquiry to us and we will customized based on your request.
Q:How long is the warranty on the machine?
A:One year. If the machine has any non-human fault, we will free express replacement parts.
Q:What if I don't know how to operate the machine?
A:We have English instructions and we will send detailed operation video. If you have any questions, we'll answer them by online
video.
Q:I am afraid of being cheated for the first time, what are the safeguards?
A:You can trade through Alibaba Credit Insurance Order, which protects the buyer's rights and can apply for a refund if there is a
problem with the machine.
Q:Do you have any other output pump?
A: Of course,we have many types pump for you choose.Please send message to us and we will at your service anytime.
Q:Are you a trade company?
A:No,we are a professional manufacture factory with more than 20 years.Located in Zhengzhou city of China.
