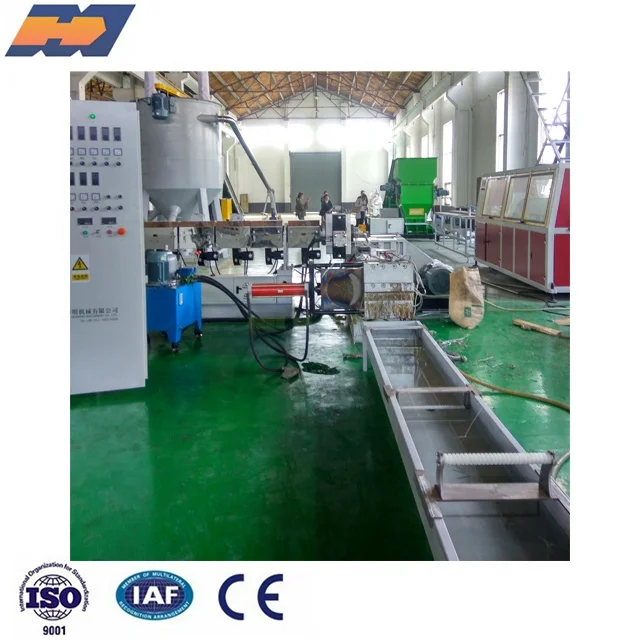

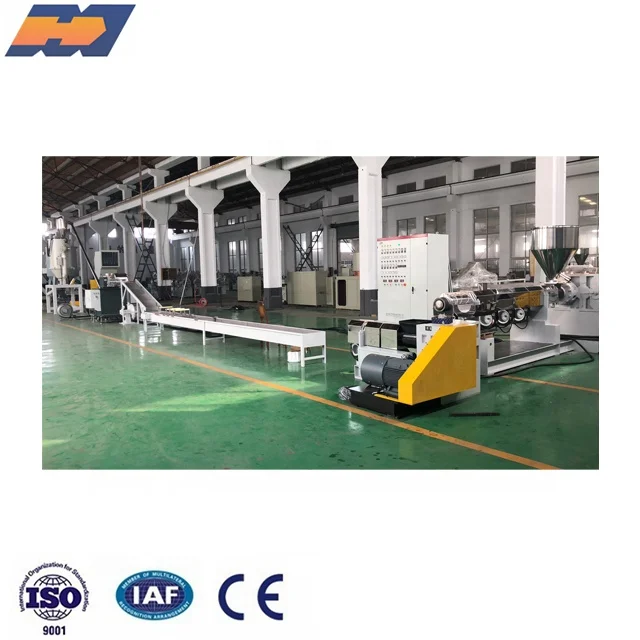

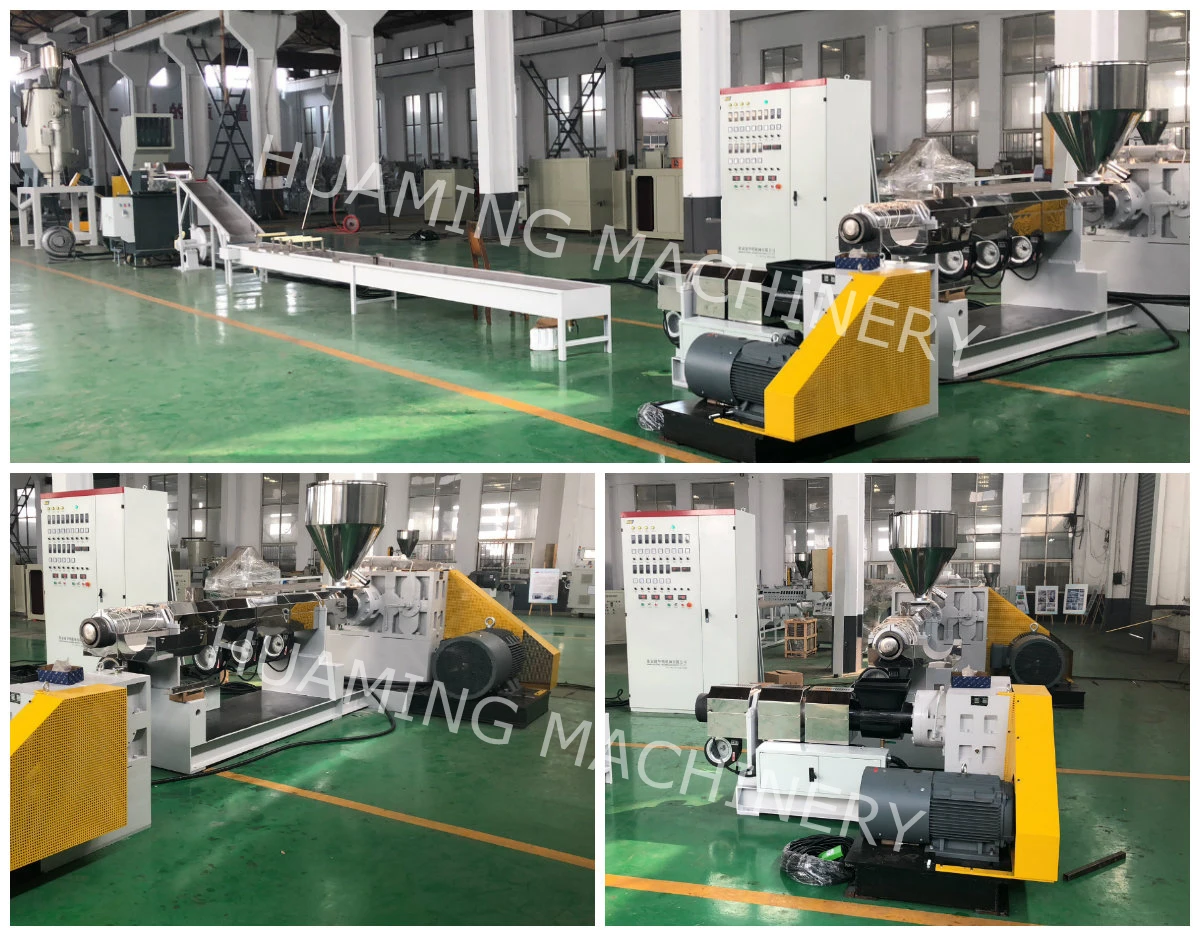

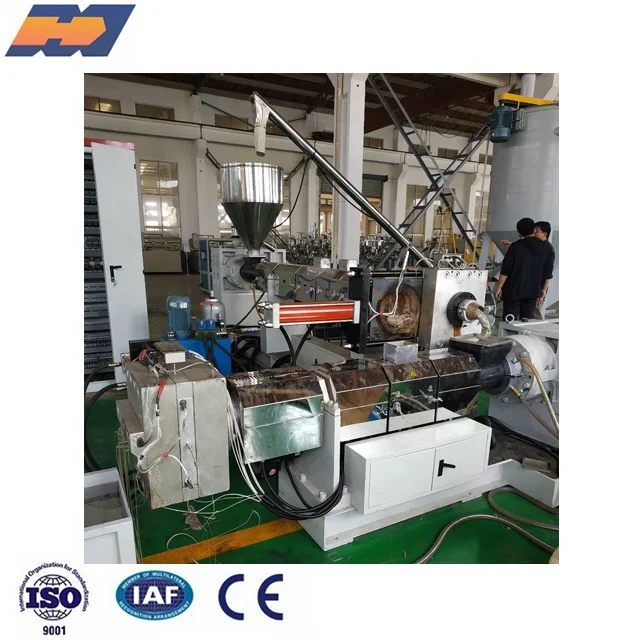

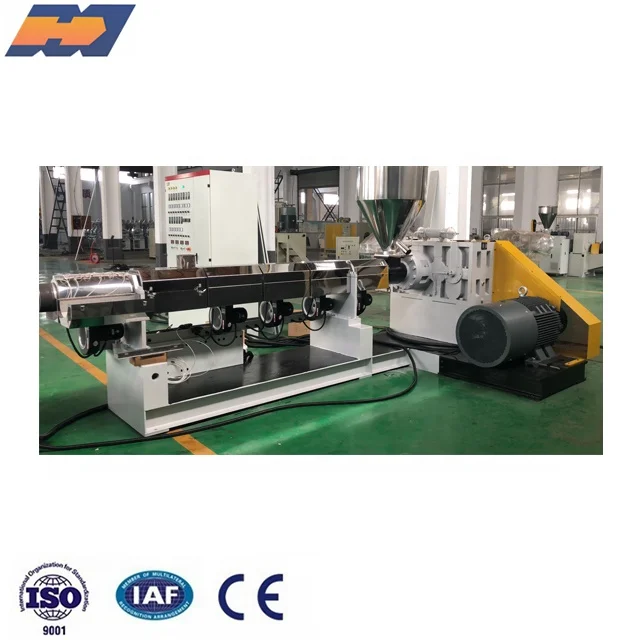

PS PP PE granulationline
PS PP PE granulating line could be single-stage strand pelletizing, single-stage water-ring pelletizing, double- stage strand pelletizing, double-stage water-ring pelletizing. It can be applied to PP PE film, PS PP PE lumps with different purity. The screw of the extruder has exhaust system, venting the moisture; The die head is equipped hydraulic screen exchanger to filter the impurity easily.This kind of pelletizing line is especially suitable for recycling dirty waste and production of repelletizing.
Advantages:
1. Increasing the operation variables and realizing the process because of two-stage machine.
2. High effective and production capacity.
3. Good at process heat-sensitive material and devolatilization operation, Such as PVC, XLPE.
Model | SJ65 | SJ90 | SJ120 | SJ150 | SJ180 |
Power | 36kw | 60kw | 90kw | 120kw | 200kw |
Max. Production capacity | 80kg/h | 120kg/h | 200kg/h | 300kg/h | 500kg/h |
Grain diameter | 3mm | 3mm | 3mm | 3mm | 3mm |
Total Length of Production Line | 10m | 13m | 15m | 18m | 20m |
