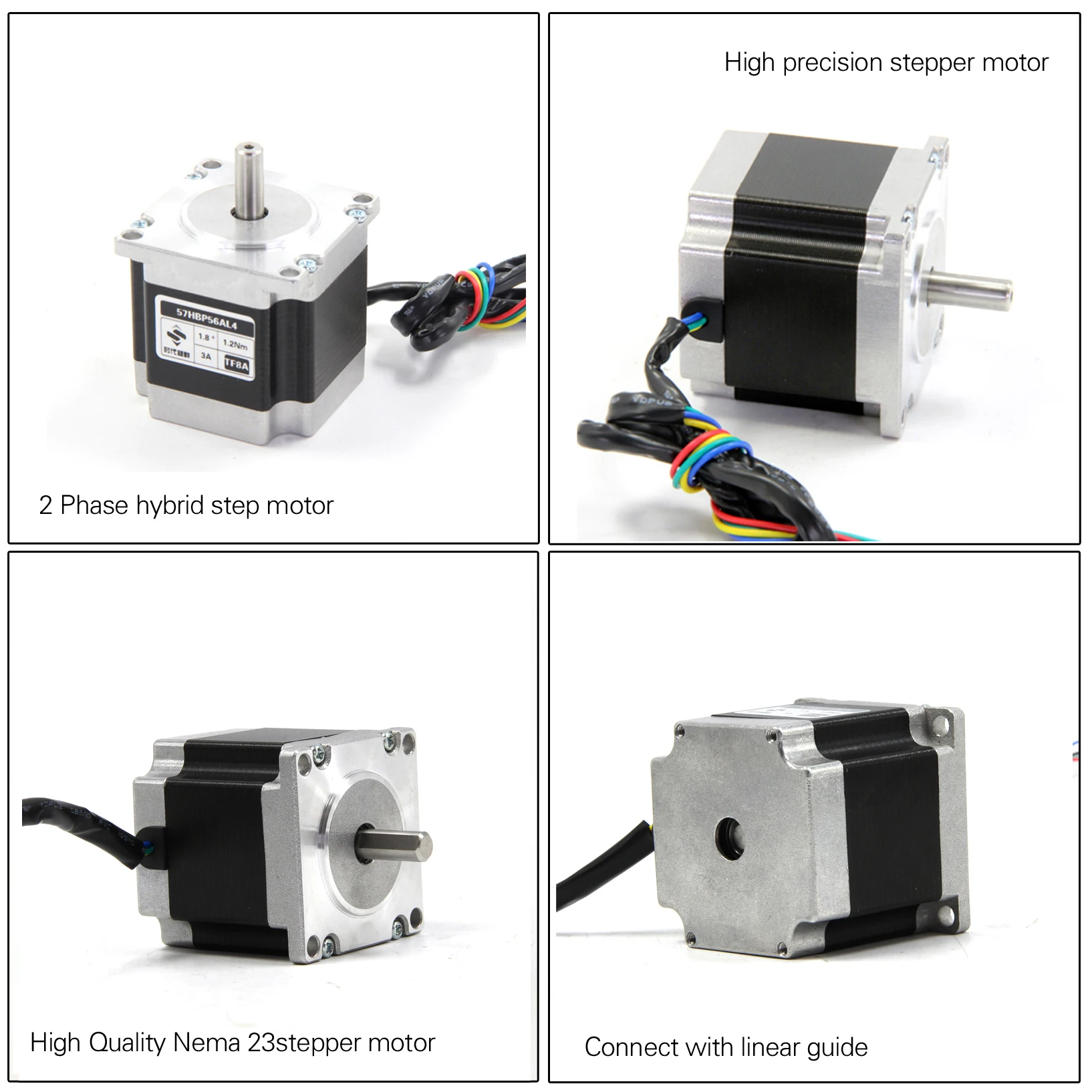

2phase Hybride stepper motor nema 23 cnc motor kit for Machine torque1.2Nm and current 3A
- Category: >>>
- Supplier: Beijing SDSW Technology Co. Ltd.
Share on (60869926401):
Product Overview
Description

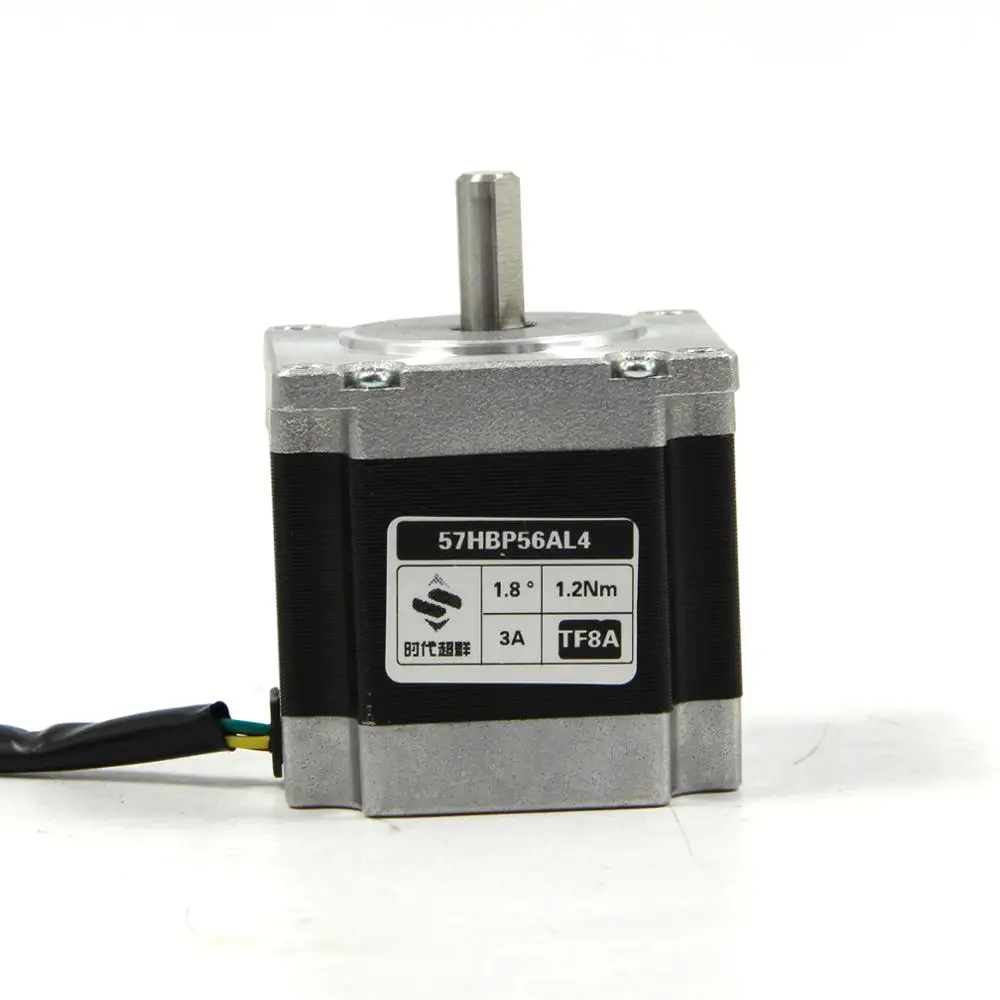

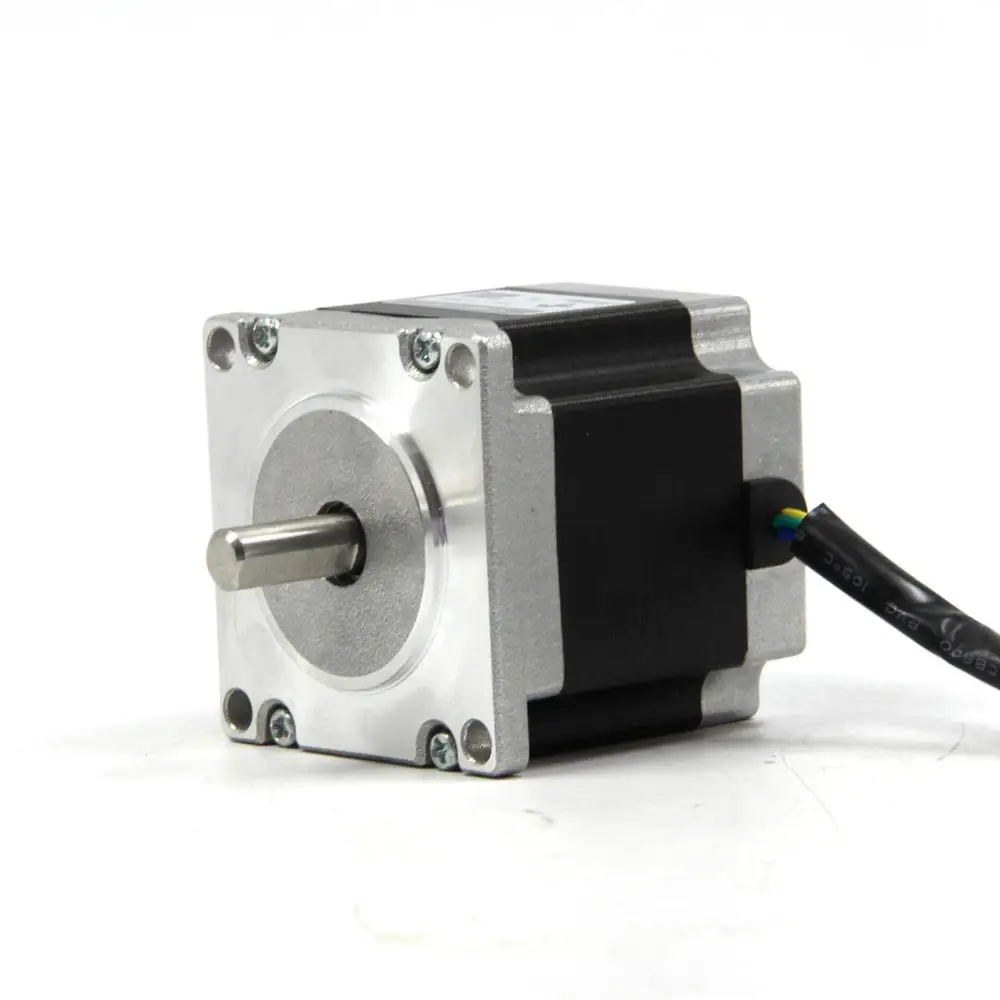

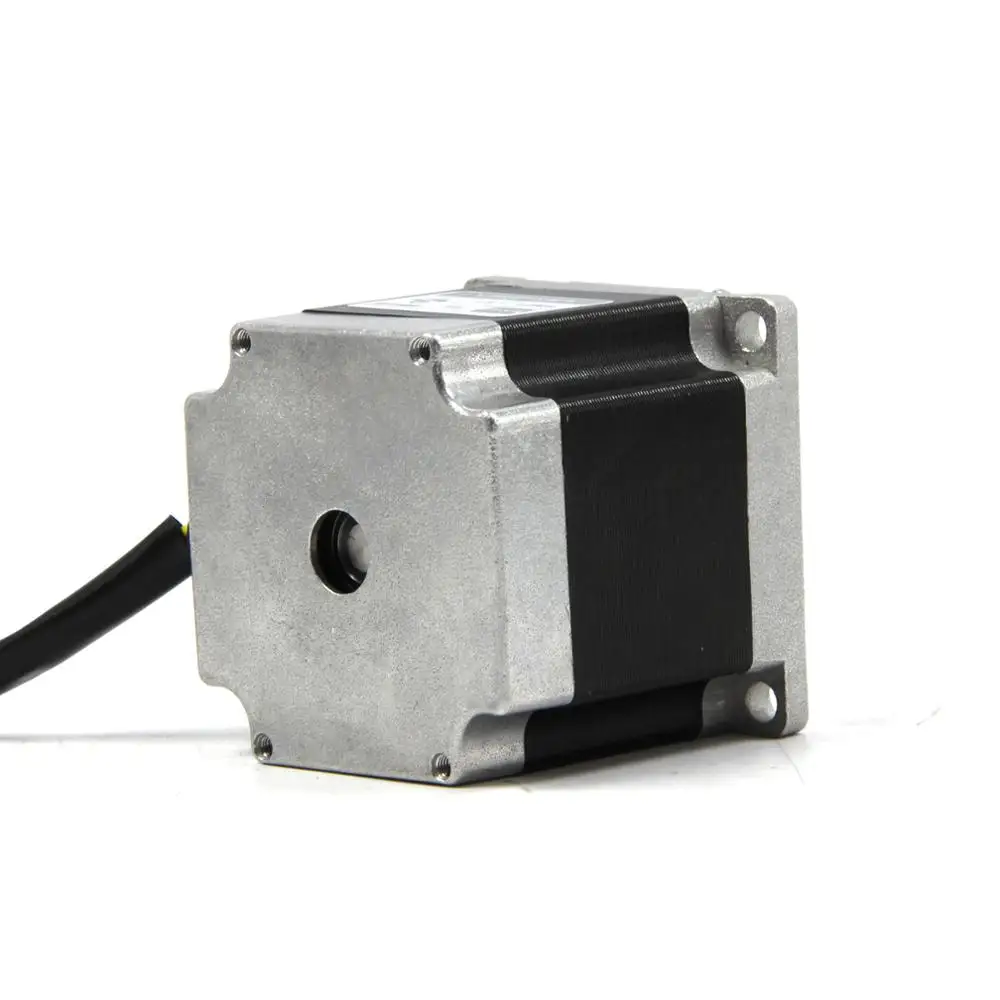

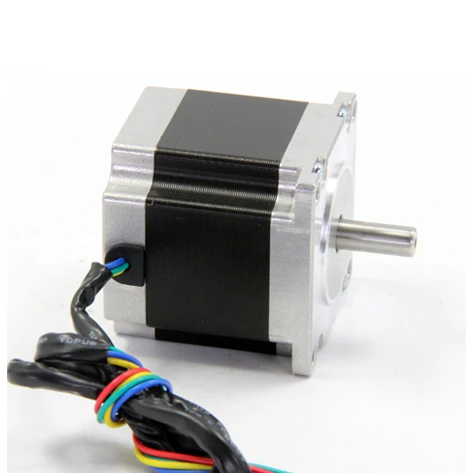

2phase Hybride stepper motor nema 23 cnc motor kit for Machine torque1.2Nm and current 3A
Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it
| Basic Parameters | |
| Type | Mixed Stepper |
| Motor Model | 57HBP56AL4-TF8A |
| Phase | 2 |
| The Temperature Rise | 80K Max |
| Environment Temperature | -40 ℃ + 55 ℃ |
| Insulation Grade | B Class |
| Insulation Resistance | 100MΩ |
| Insulation Strength | 1000VAC 50Hz 1mA/Min |
| Electrical Parameters | |
| Step Angle | 1.8° |
| Torque | 1.2Nm |
| Current | 3.0A |
| Power Supply Voltage | 3.3V |
| Resistance | 2.2Ω |
| Inductance | 3.8mH |
| Adapter Driver | ZD-2HD330 |
| Defects Liability Period | 2 years |

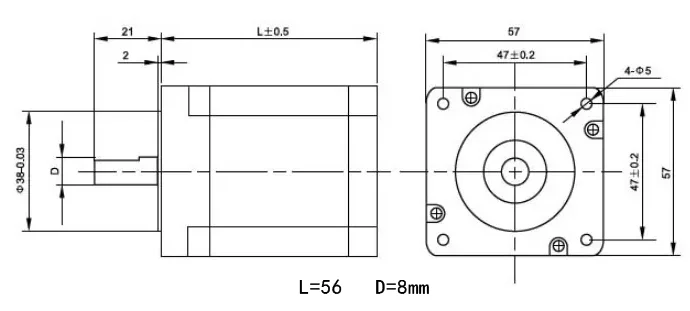

| Mechanical Parameters | |
| Length | mm |
| Spigot | 10mm |
| Hole Dist | 30mm |
| Shaft L | 21mm |
| Shaft D | 8mm |
| Shaft | D-shaft |
| Load Wire | connectors |
| Wire No. | 4 |
| Weight | 0.6Kg |
