Flexible Flat Cable DS18B20 Temperature Sensor With 3.5mm Jacket
- Category: >>>
- Supplier: Senstech Ltd.
Share on (60870320060):
Product Overview
Description
Product Description
RSB113 is a pre-wired and waterproofed version of the DS18B20 sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in Silicone, so we suggest keeping it under 125C. Because they are digital, you don't get any signal degradation even over long distances! These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems.
IP68 Waterproof Probes Digital DS 18B20 Temperature Sensors
Cable specs of ds 18b20 sensor:
•\tStainless steel tube 6mm diameter by 30mm long
•\tCable is 36" long / 91cm, 4mm diameter
•\tContains DS18B20 temperature sensor
•\tIf your sensor has four wires - Red connects to 3-5V, Yellow connects to ground and White is data. The copper wire is soldered to the wire shielding

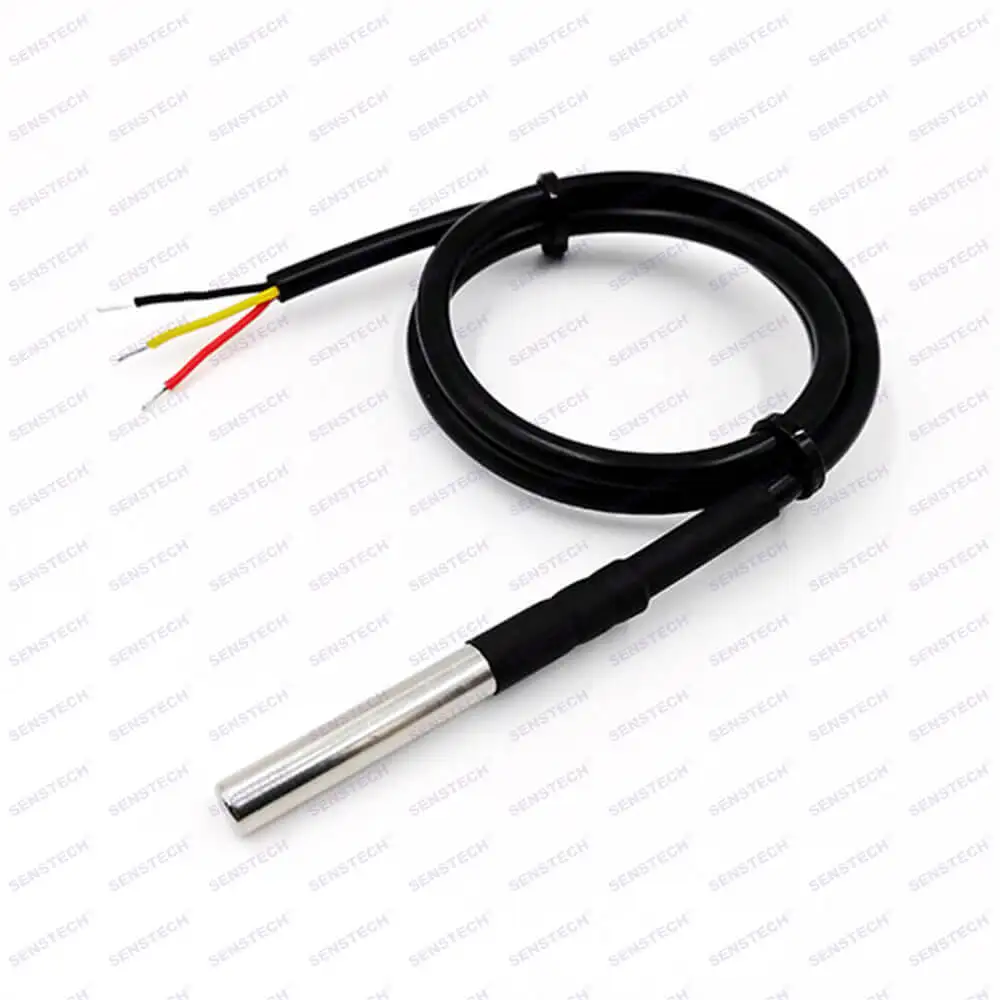

•\tIf your sensor has three wires - Red connects to 3-5V, Blue/Black connects to ground and Yellow/White is data
•\tStainless steel tube 6mm diameter by 30mm long
•\tCable is 36" long / 91cm, 4mm diameter
•\tContains DS18B20 temperature sensor
•\tIf your sensor has four wires - Red connects to 3-5V, Yellow connects to ground and White is data. The copper wire is soldered to the wire shielding
•\tIf your sensor has three wires - Red connects to 3-5V, Blue/Black connects to ground and Yellow/White is data
DS 18B20 Sensor Technical specs:
•\tUsable temperature range: -55 to 125°C (-67°F to +257°F)
•\t9 to 12 bit selectable resolution
•\tUses 1-Wire interface- requires only one digital pin for communication
•\tUnique 64 bit ID burned into chip
•\tMultiple sensors can share one pin
•\t±0.5°C Accuracy from -10°C to +85°C
•\tTemperature-limit alarm system
•\tQuery time is less than 750ms
•\tUsable with 3.0V to 5.5V power/data
•\tUsable temperature range: -55 to 125°C (-67°F to +257°F)
•\t9 to 12 bit selectable resolution
•\tUses 1-Wire interface- requires only one digital pin for communication
•\tUnique 64 bit ID burned into chip
•\tMultiple sensors can share one pin
•\t±0.5°C Accuracy from -10°C to +85°C
•\tTemperature-limit alarm system
•\tQuery time is less than 750ms
•\tUsable with 3.0V to 5.5V power/data
Please CLICK HERE to contact us for more information !!!
Ds 18b20 temperature sensor specifications :
Ds 18b20 temperature sensor specifications :
Element | DS 18B20 |
Probe size | OD6mm, length=50mm,45mm, 30mm, 25mm or customized |
Insulation material | PVC, Silicone rubber, TPE or customized |
Jacket material | PVC , Teflon, Silicone rubber , TPE, XL-PE |
Housing material | Stainless steel Nickel-plated copper Brass Plastic, etc |
Wire length | 1m, 2m, 3m, 5m, 10m, 15m, 18m, etc |
Connector | Stripped & tinned, audio jack/plug, AUX connector , RJ11, RJ12, RJ45, RJ50, etc |
Special requirement | Waterproof, Antiacid, Anticorrosion, Anti-dust, etc |
Free Samples | Possible |
Tell us your detail Requirement
. Working environment :
.Operating temperature range:
.Any requirement about probe dimension or material:
.Cable length:
.Application:
.Connector model (if necessary):
Related Products
Our Service
Pre-Sales Service
* Efficient quotation response
* Quickest feedback
* Punctual delivery
After-Sales Service
* Quality consistency
* Satisfied after-sale service
* Professional defection analysis
Packing & Delivery
Packaging | ||
Type | Paper Carton | |
Size 1 | 270 (L) * 270 (W) * 180 (D) | |
Size 2 | 480(L) * 310 (W) * 180 (D) | |
Size 3 | 550(L) * 310 (W) * 260 (D) | |
Others | To be advised | |
Shipping | ||
Courier | ||
Air | ||
Boat | ||
Others | ||
Why choose Senstech
We believe in establishing a strong partnership with our customers through:
✓ Fast and cost efficient delivery of high quality applications.
✓ Access to highly skilled resources who are quality and delivery driven.
✓ Policy for a business and client focused operation.
✓ Responsive and strong support team for ongoing improvement and changes.
✓ Passion for continued alliance with our clients to help them shape and achieve their future visions and strategies.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer of temperature sensors, and we have 17 years production experience.
Q: How long is your lead time?
A: Generally it is 2-3 weeks for ordinary products. For custom-made types, it might be 3 to 4 weeks for initial order.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free if we have in stock, but we do not cover shipping cost.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% T/T in advance. Payment>3000USD, 30% deposit in advance ,balance before shippment.If you have any other question, pls feel free to contact us.
