Yangtze rechargeable lithium battery for solar lights
- Category: >>>
- Supplier: Hefei Yangtze Solar Power Co. Ltd.
Share on (60870691252):
Product Overview
Description
Product Description
5 years warranty 12v lifepo4 lithium battery 100ah
Key Features :
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes
Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Energy | 1280Wh | |
| Internal Resistance(AC) | ≤20mΩ | |
| Cycle Life | >2000 cycles @ 1C 100% DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100% @0.5C | |
| Efficiency of Discharge | 96~99% @1C | |
| Standard Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C(CC/CV) | |
| Charge Current | 50A | |
| Max. Charge Current | 100A | |
| Charge Cut-off Voltage | 15.6±0.2V | |
| Standard Discharge | Continuous Current | 100A |
| Max.Pulse Current | 120A(<3s) | |
| Discharge Cut-off Voltage | 8V | |
| Envitonmental | Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity | |
| IP Class | IP65 | |
| Mechanical | Plastic Case | ABS |
| Approx.Dimensions | 342mm*173mm*220mm (13.47in.*6.81in.*8.66in.) | |
| Approx.Weight | 13.60kg (29.98lbs) | |
| Terminal | M8 |
Battery Certificates
Company Information

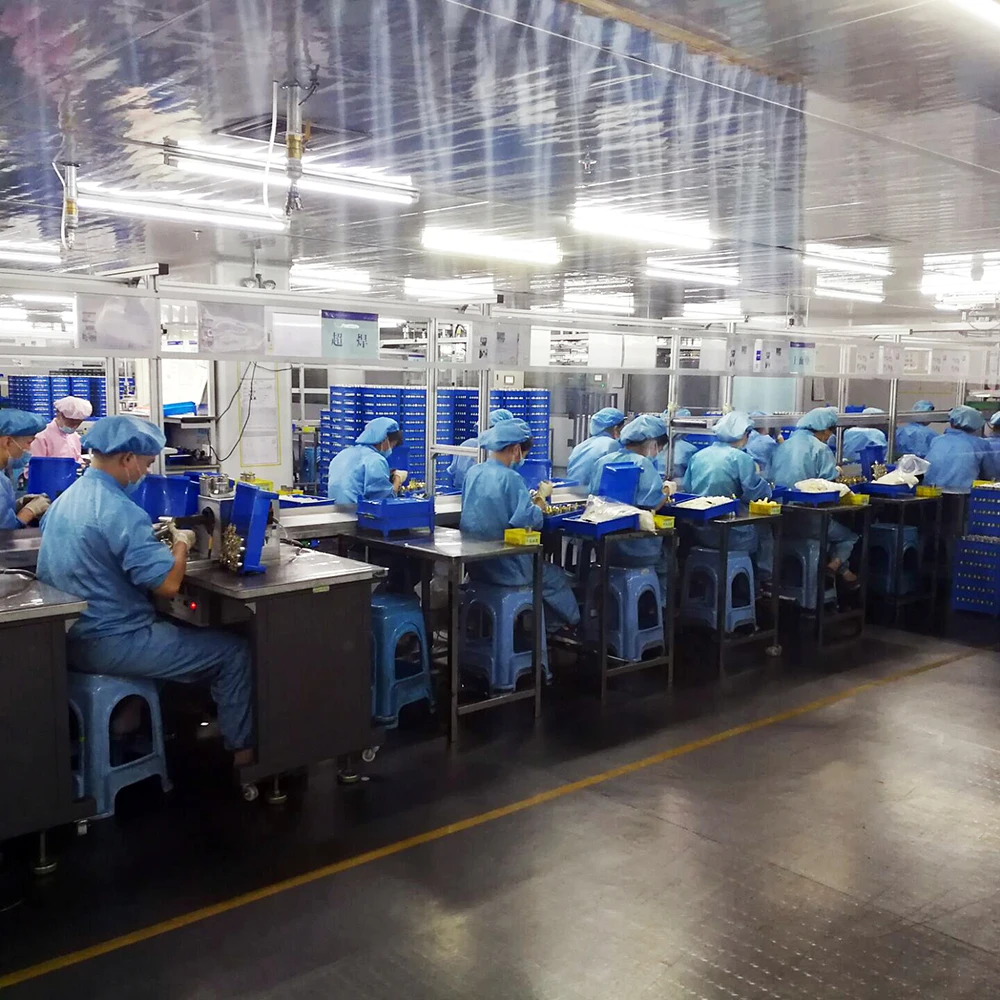

♦ Battery factory Founded in 1996 , 2 million batteries annual production capacity
♦ Products including Lithium battery , valve regulated lead acid battery , Gel battery , deep cycle battery , OPzV and OPzS battery
♦ Products are exported to more than 150 countries
♦ Products are certified by CE , Rohs
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah
