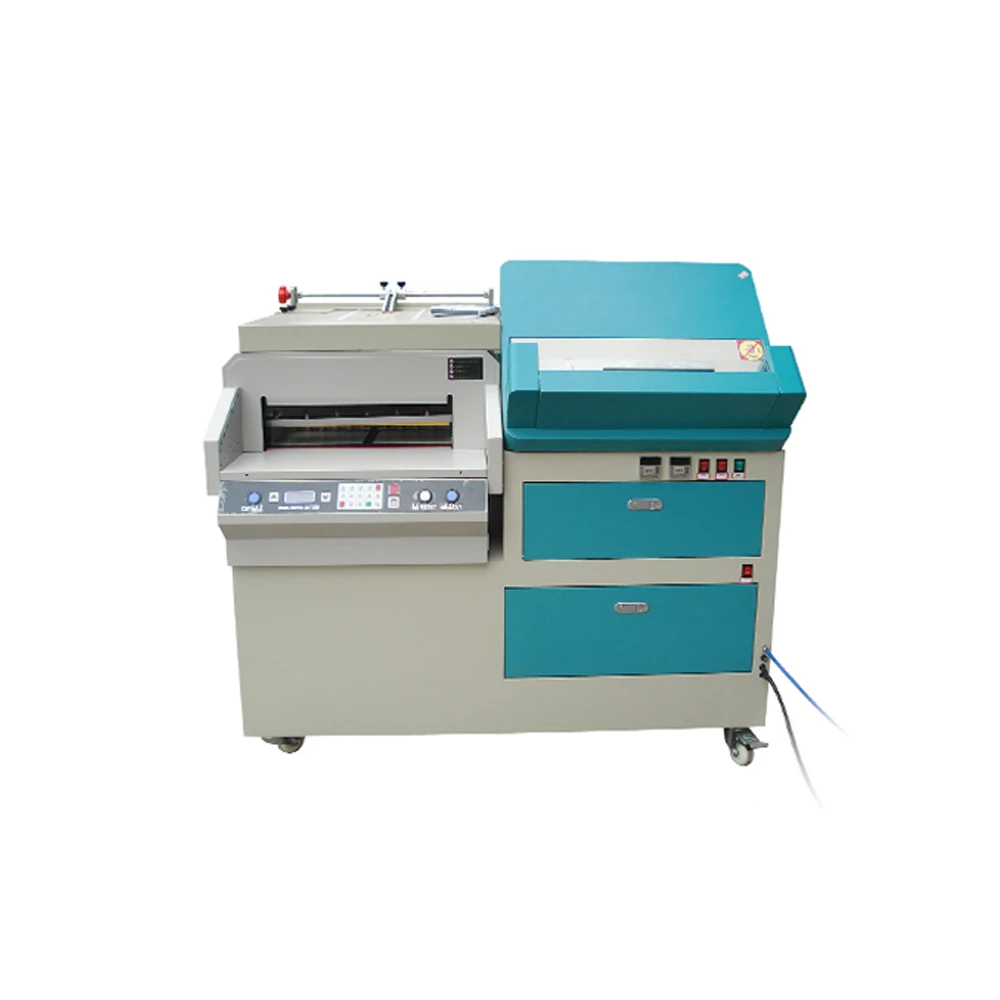

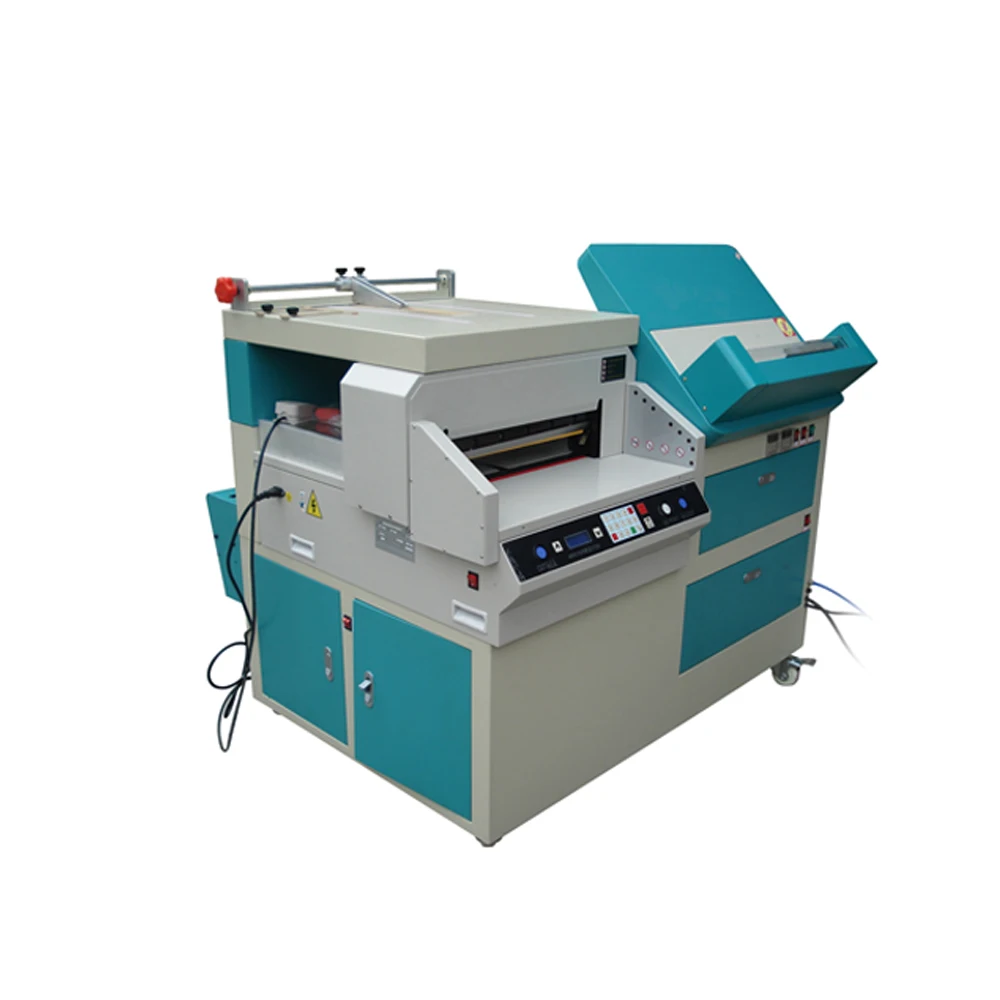

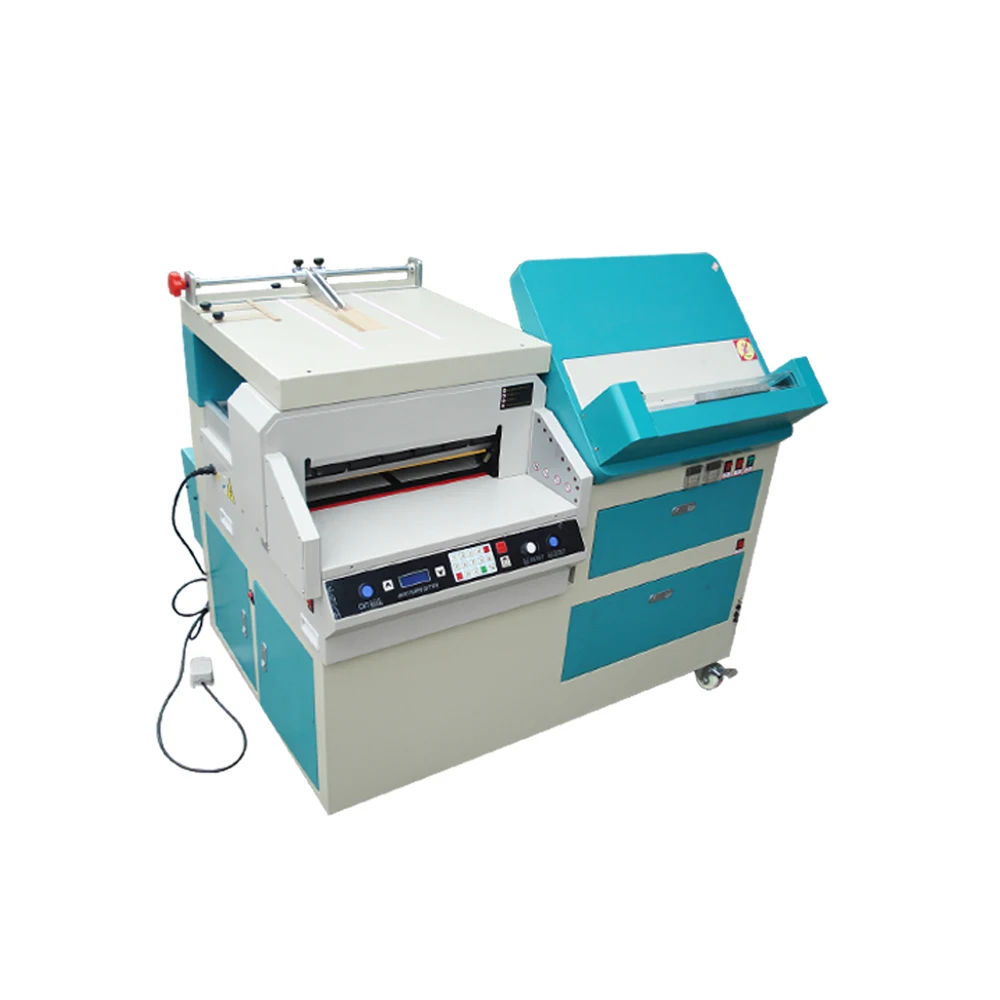

Creasing, hot pressing, cold pressing, CNC cutting, round corner cutting, papers managing and hot binding, hard cover making,cover corner cutting, cover edge folding, cover grooving and a pump
Application:
This Wedding Album Maker all in one suitable for making photo book, PVC sheet, album & calendar, bible magazine, menu, etc.
Features:
1.12 functions are combined in one machine with small size, it takes less space and shipping cost to export city, and several functions can be working together by 3-4 workers.
2.Fully automated operation. The combination of electric & pneumatic principle can make technology standard, making sure exactness of making album, simple operation and speed up working.
3.Innovative corner cutting mode completely solve the uneven problems.
4.CNC cutter with infrared ray control make the very precisely fine product.
5.Aluminum alloy blade creases exquisite lines and will not damage the surface of pictures.
6.With design of both cold and hot pressing, grooving heating and adjustable creasing width.
Parameters

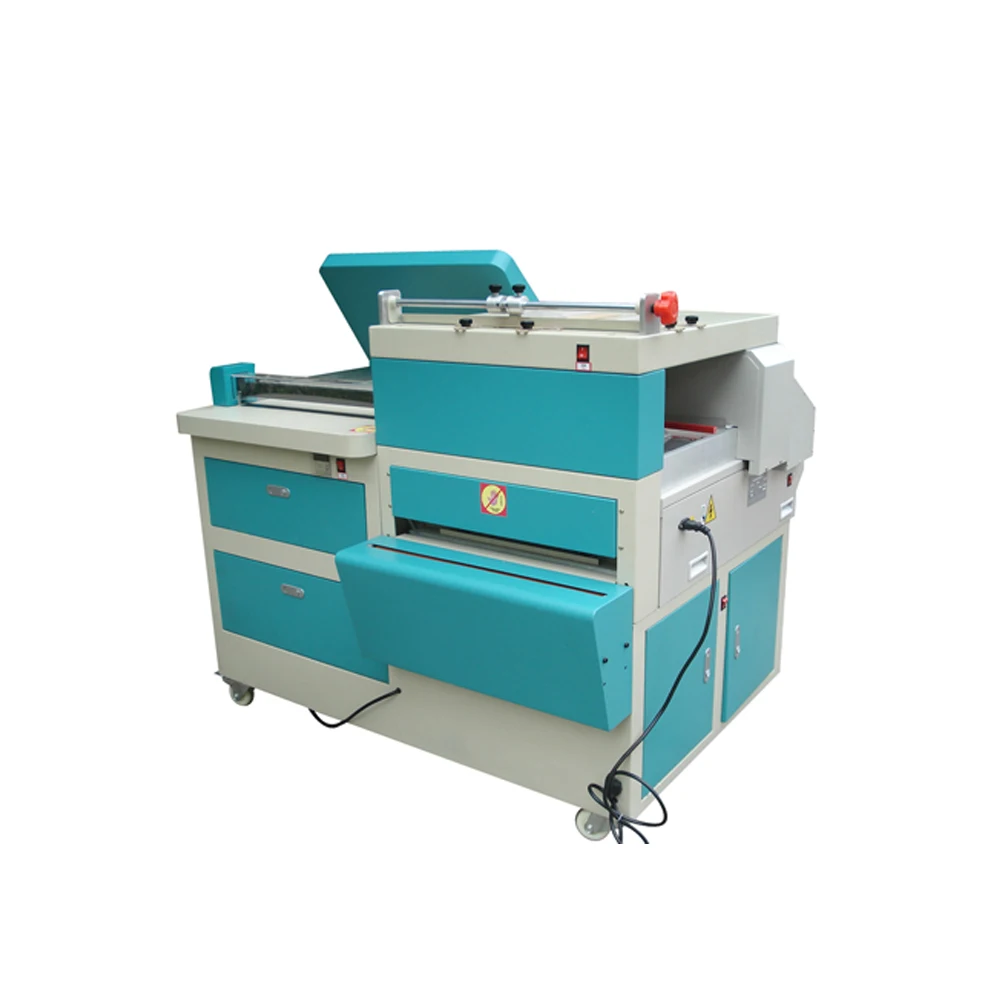

12 in1 album making machine
Operation principle :electric and penumati
Weight:
G.W:480kg
Voltage :220V/50Hz
N.W:280kg
Machine Size : 1440*1140*1390mm
Max size of album :18'' * 24''(open)
Creasinh blade material : 45#
max size of creasing: *480cm
Creasing blade width : 1.2mm/1.7mm(Adjustable)
Binding material : Alminum
Max size od binding: 480cm
Max height of binding : 45mm
Corner cutting :R3-R10(to choice)
Max size of cover making :18'' * 24''(open )
Pressing : cold/hot(to choice)
Pressing temperature : 60-80°C
Pressing size :550*390mm
Pressing height :200mm
Air compressor model : LJ-1509
Pump effciency : 45L/min
Paper cutter model : 460 CNC
Proctection of paper cutter : infrared
Cutting size : 460*460mm
Cutting height : 50mm
Pressing paper : independent motor
Working pressure: 0.7MPa
Grooving size of cover :450*(0.1-40)mm to chioce
Grooving blade width :2mm
Packging :plywood case
Metal material: igh temperature painting surface

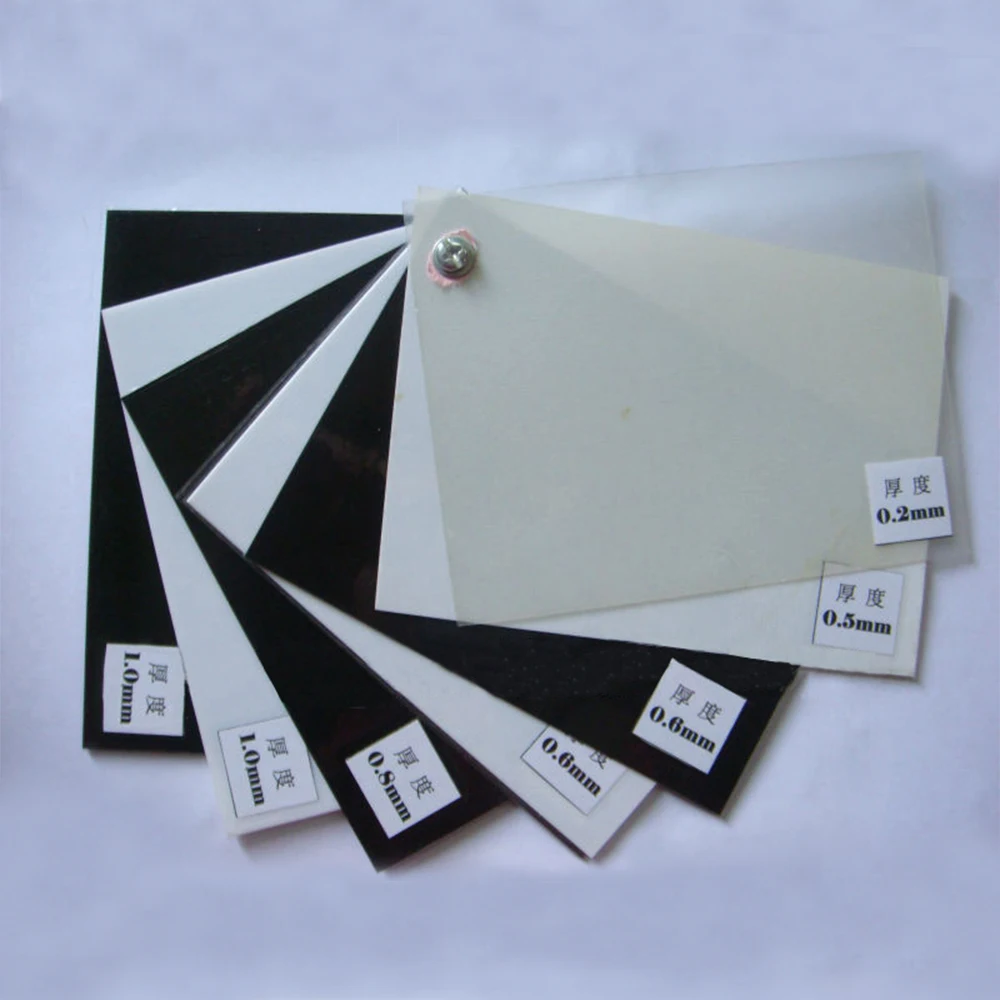

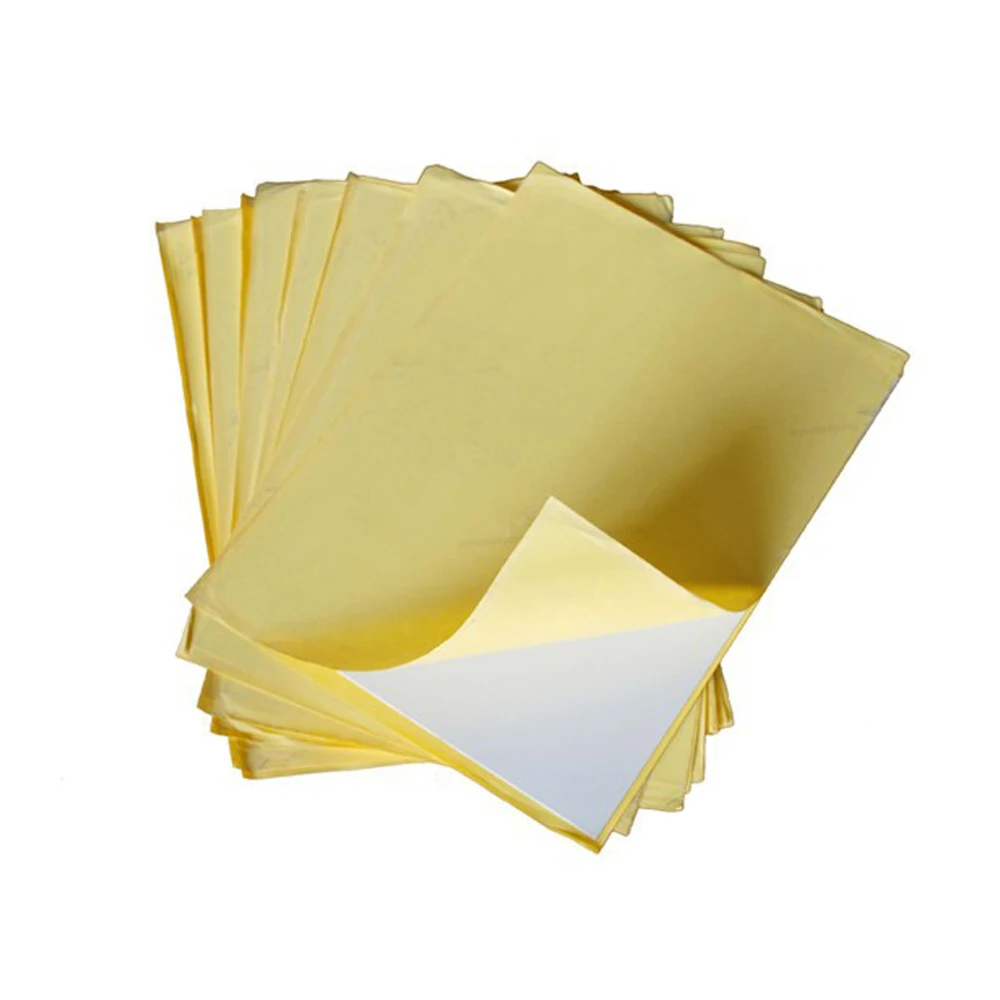

consumables: pvc sheet for inner.
it has white and black.it is with best quality and popular in many countries

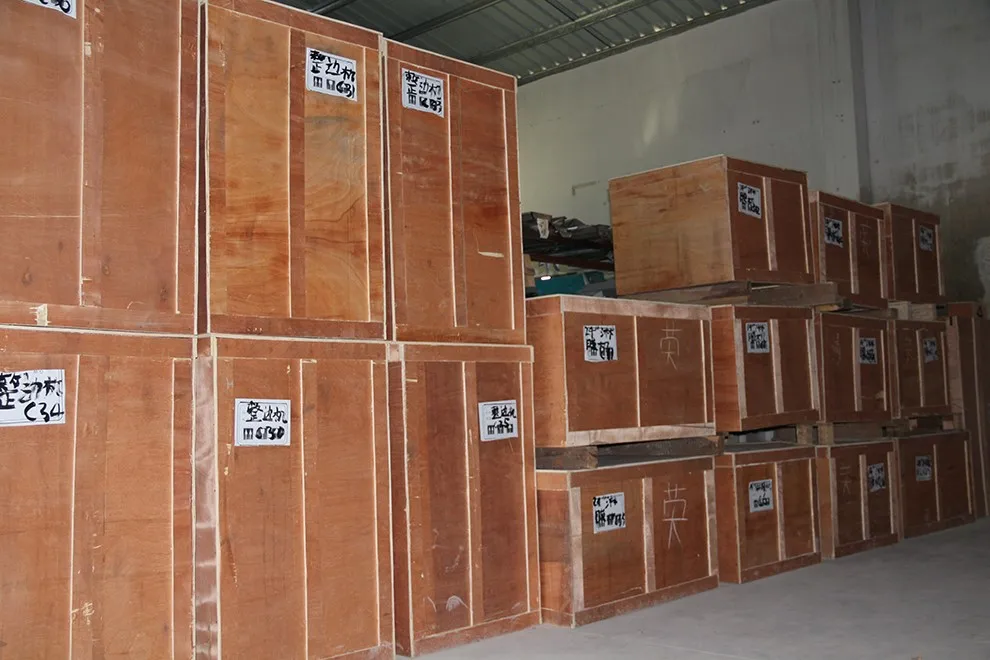

We would pack the machine in the strong export wooden case which can withstand the rough handling during the long distant ocean transportation
Shipment
We usually accept payment terms : T/T, WESTERN UNION,L/C. and trade terms: EXW. FOB. CFR. CIF. FCA.CIP. CPT. and so on.
Advantages
Air, sea and express transportation all are available, we have good cooperation with them, this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export, we can accept the factory price(EXW.) or FCA,
We arrange the local shipment, which’s easy for you to control the transportation cost.
We would pack the machine in the strong export wooden case which can withstand the rough handling during the long distant ocean transportation
Basic services
1.technical support
2.loading inform
3.video for debugging
4.customers' request is welcome
Warranty
- 1 year warranty for the machines. for the sales service of our product, it can provide free technical support of equipment lift long.
- Any warranty shipping cost to us is responsible by buyer
Production Flow
Company info
Honorary Cooperation
Certifications
Packaging & Shipping
Contact us
FAQ
FAQ
Q1: Can your company accept customize? A: Welcome OEM & ODM.
Q2: : How do you solve after sale service? A: This please ask us for technical support if you have workers know how to repair.
Q3: Can I print our logo /barcode /unique QR code ries number on? A: Yes, you can. Either on the products or on the package depending on different items. We have a team of professional designers and are able to design as requested. Of course, we always confirm the design before producing. So you will surely get what you want for actual use.
Q4: Can I order some samples for our testing? A: Sure, we can arrange the sample to you by freight collect.
Q5: What' s your MOQ ( Minimum Order Quantity ) ? A: Our MOQ for each type of product is one set and also depends on different situations. Please contact us for more details.
Q6: Can you send us a sample for develop? A: Yes, we can. Sample can be sent out once you ask for it, but we will ask for the sample fee. Sample fee will be returned back in future orders.
Q7: How can you make sure we will receive the product with high quality? A: Our QC team will inspect each shipment before loading.
