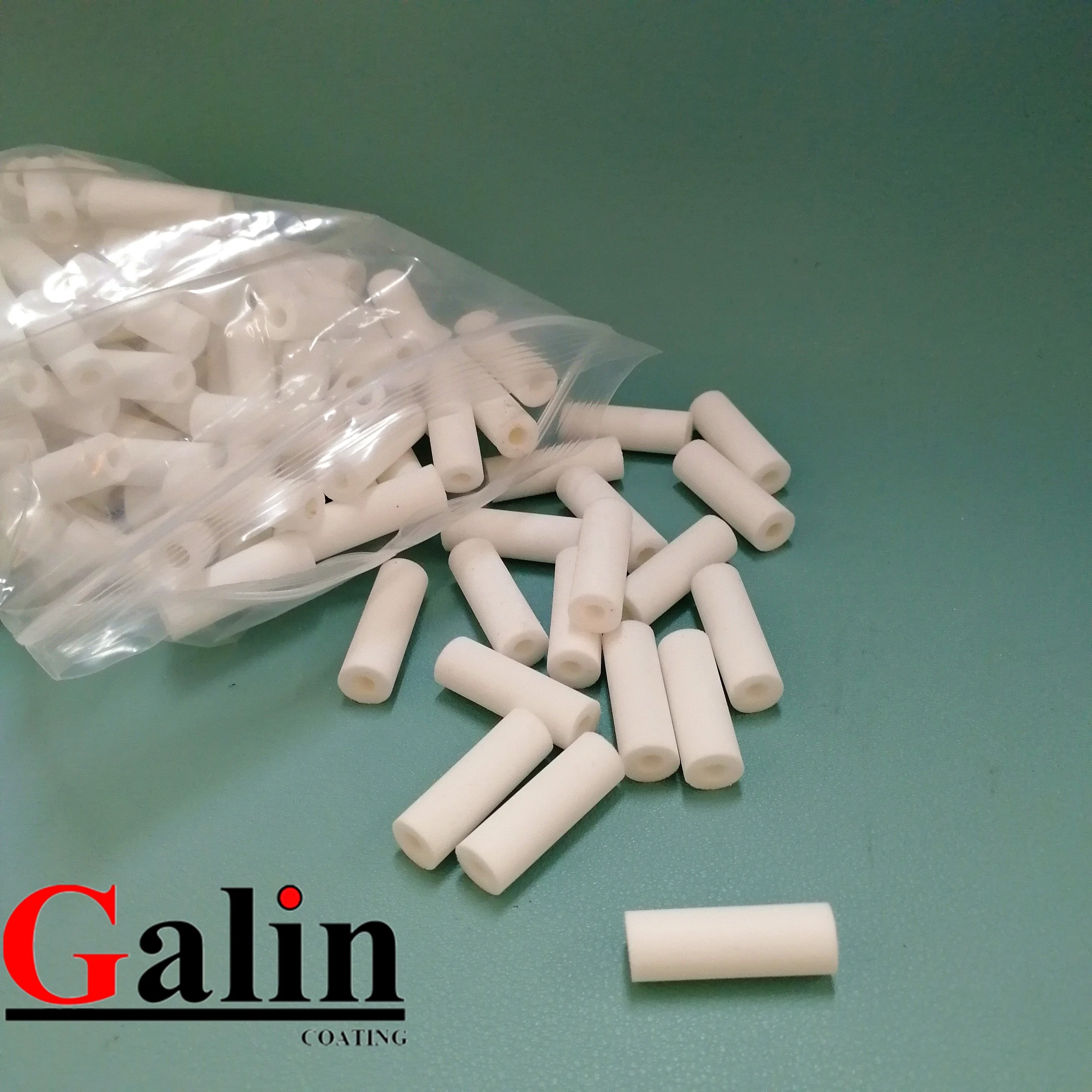

OptiFlow filter element 1003 698 for IG06 powder injector and Optiflex 2 powder coating machine (9/4x27 mm)

OptiFlow filter element 1003 698  for IG06 powder injector  and Optiflex 2 powder coating machine (9/4x27 mm)

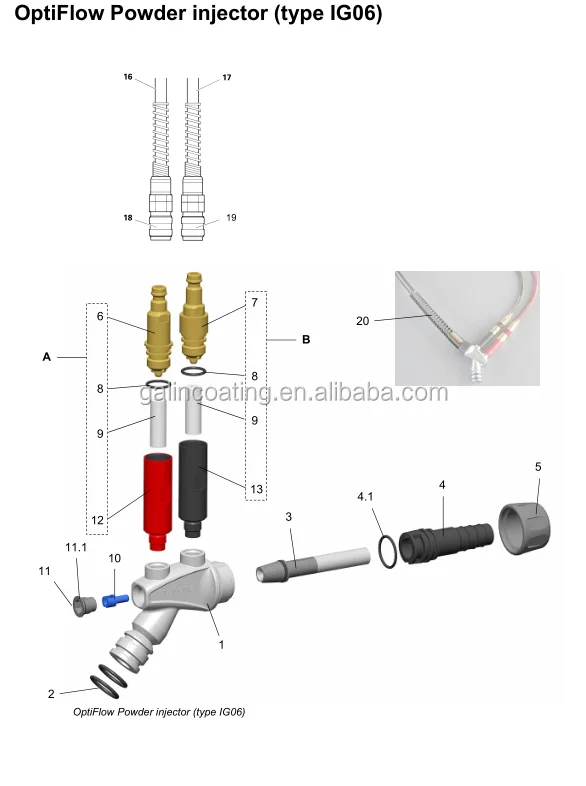

A Conveying air check valve unit (red marking) – complete (incl. pos. 6, 8, 9 and 12)  :           1005 589
B Supplementary air check valve unit (black marking) – complete (incl. pos. 7, 8, 9 and 13): 1005 590
C Injector body – complete (incl. pos. 1, 2, 10 and 11) :                                                                 1006 530
1 Injector body (without pos. 2):                                                                                                         1006 484
2 O-ring – Ø 16x2 mm :                                                                                                                         1007 794#
3 Insert sleeve – PTFE, complete :                                                                                                       1006 485#
4 Hose connection – Ø 10-12 mm, complete (incl. pos 4.1) :                                                         1006 531
4.1 O-ring – Ø 16x1.5 mm :                                                                                                                   205 141#
5 Threaded sleeve :                                                                                                                                1006 483
6 Connector (conveying air) – NW 5.5:                                                                                               1004 366
7 Connector (supplementary air) – NW 5.5 :                                                                                     1004 367
8 O-ring – Ø 11x1.5 mm :                                                                                                                      1000 532#
9 Filter element – Ø 9/4x27 mm :                                                                                                        1003 698
10 Nozzle :                                                                                                                                                1006 488
11 Nozzle fixation – complete (incl. pos. 11.1) :                                                                                1007 792
11.1 O-ring – Ø 8x1 mm :                                                                                                                      1007 793#
12 Body (red) :                                                                                                                                        1004 369
13 Body (black) :                                                                                                                                     1004 370
16 Conveying air hose – Ø 8/6 mm (red) :                                                                                          103 500*
17 Supplementary air hose – Ø 8/6 mm (black) :                                                                              1008 038*
18 Quick release coupling for conveying air hose – NW5-Ø 8 mm :                                               261 645
19 Quick release coupling for supplementary air hose – NW5-Ø 8 mm :                                      261 637
Powder hose – 66 type, POE, Ø 16/11 mm, with conductive strip (standard) :                           105 139*#
Powder hose – 74 type, POE, Ø 15/10 mm, with conductive strip :                                               1001 673*#
Powder hose – 75 type, POE, Ø 18/12 mm, with conductive strip :                                               1001 674*#
20 Kink protection :                                                                                                                                 1008 844

Packing:Carton

Shipping: 4-10 days of payment

Q1:How long your delivery time?

Generally 4-10  workdays after payment

Q2:What is your term of payment?

Multiple ,We can discuss each other .Such as paypal, T/T, L/C etc.

Q3:What is your pre-sales service?

*Enquiry and cousulting support.

*Technology solution and quotation

*Customer visit our company  and check our production .

Q4:Where is your company? Can  visit?

Yes.of course .We are located in  Huixiandasha,Jiankang,Street  Gaoxin District .Weifang City ,Shangdong Province China

Q5:Could you provide the design for me?

Absolutely .We would like to provide the design for my customer. Just let me know product information and your requirements like produci size ,picture  materia and output  field etc. We will make a layout according your  requirements.

WeiFang Galin Powder Coating Equipment CO.,LTD specialized in electrostatic powder coating equipment .

We can supply the best quality and sevice .
Technoligy consult Service
One year warranty Service
After market and exhibtion  Service
OEM Service

  Weifang Galin Powder Coating Equipment CO.,LTD which located in Shandong district,specializes in manufacturing the coating equipment .We are a typical Chinese supplier and specialized in the research, development and production of the powder coating system and liquid painting system. Our products includes booth, hopper,powder coating machine/unit,electrostatic spray gun ,panel controller,HV module,PCB board, injector/pump ,powder hose,filter and other parts and so on.In addition,we can make all kinds of high voltage module,like Gema,Wagner,Nordson etc.

     We not only supply the high-quality coating equipment,but also the best service.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
