57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00
Reduction ratio 10:1 nema 17 stepper gear motor
- Category: Stepper Motor >>>
- Supplier: Changzhou,Dewo,Motor,Co.,Ltd.,[Jiangsu,China]Changzhou
Share on:
Product Overview
Description
Product Description
Technique Parameter
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full step,no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80°CMax.(rated current,2 phase on) |
Ambient Temperature | -10°C-+50°C |
Insulation Resistance | 100MΩMin. 500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.06Max.(450 g-load) |
Shaft Axial Play | 0.08Max.(450 g-load) |

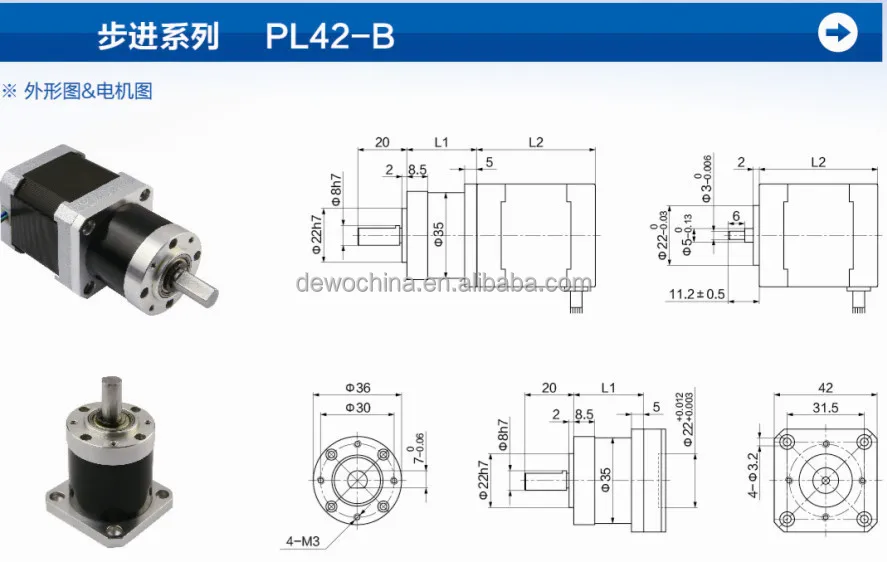

| gearbox for nema 17 stepper motor | |||
| TYPE | gear ratio first grade | gear ratio second grade | gear ratio third grade |
| PL42 | 4;5;7;9;10 | 16;20;25;28;35;36;40;45;49;50;63;70;81;90;100 | |
| PL42-B | 3.17;5.18 | 14;19;27 | 51;71;100;139 |
DW42HS Motor Name List(High Torque)
Model No | Current Phase | Resistance Phase | Inductance Phase | Holding Torque | #Of Leads | Rotor Inertia | Detent Torque | Weight | Length | ||
A | Ω | mH | Oz-in | Kg-cm | g-cm2 | (kg.cm) | Kg | mm | mm | ||
DW42HS34-0334 | 0.33 | 36 | 46 | 33 | 2.4 | 4 | 35 | 200 | 0.24 | 34 | Φ5*24 |
DW42HS34-0404 | 0.40 | 30 | 35 | 36 | 3.2 | 4 | 35 | 200 | 0.24 | 34 | Φ5*24 |
DW42HS34-1004 | 1 | 2.6 | 3.2 | 24 | 1.8 | 4 | 35 | 200 | 0.24 | 34 | Φ5*24 |
DW42HS34-1334 | 1.33 | 2.1 | 3 | 30 | 2.2 | 4 | 35 | 200 | 0.24 | 34 | Φ5*24 |
DW42HS34-1504 | 1.5 | 1.9 | 2.5 | 35 | 2.5 | 4 | 35 | 200 | 0.24 | 34 | Φ5*24 |
DW42HS34-0586 | 0.58 | 13.6 | 7.8 | 28 | 2 | 6 | 35 | 200 | 0.24 | 34 | Φ5*24 |
DW42HS34-0406 | 0.40 | 30 | 21 | 35 | 2.5 | 6 | 35 | 200 | 0.24 | 34 | Φ5*24 |
DW42HS40-0404 | 0.4 | 30 | 60 | 55 | 4 | 4 | 54 | 220 | 0.27 | 40 | Φ5*24 |
DW42HS40-1204 | 1.2 | 5.5 | 11 | 72 | 5.2 | 4 | 54 | 220 | 0.27 | 40 | Φ5*24 |
DW42HS40-1504 | 1.5 | 2.5 | 5 | 62 | 4.5 | 4 | 54 | 220 | 0.27 | 40 | Φ5*24 |
DW42HS40-1704 | 1.70 | 2 | 3 | 47 | 4.2 | 4 | 54 | 220 | 0.27 | 40 | Φ5*24 |
DW42HS48-0406 | 0.40 | 30 | 28 | 44 | 3.5 | 6 | 76 | 280 | 0.34 | 48 | Φ5*24 |
DW42HS48-0806 | 0.80 | 7.5 | 6.3 | 44 | 3.17 | 6 | 76 | 280 | 0.34 | 48 | Φ5*24 |
DW42HS48-1204 | 1.20 | 3.2 | 4.2 | 62 | 4.2 | 4 | 76 | 280 | 0.34 | 48 | Φ5*24 |
DW42HS48-1684 | 1.68 | 1.8 | 2.8 | 61 | 4.8 | 4 | 76 | 280 | 0.34 | 48 | Φ5*24 |
DW42HS48-1504 | 1.5 | 2.8 | 4.8 | 83 | 5.5 | 4 | 76 | 280 | 0.34 | 48 | Φ5*24 |
DW42HS48-1804 | 1.8 | 1.5 | 2.6 | 72 | 5.2 | 4 | 76 | 280 | 0.34 | 48 | Φ5*24 |
DW42HS48-2004 | 2 | 1.5 | 3 | 60 | 4.3 | 4 | 76 | 280 | 0.34 | 48 | Φ5*24 |
DW42HS48-2504 | 2.50 | 1.2 | 1.8 | 67 | 5.5 | 4 | 76 | 280 | 0.34 | 48 | Φ5*24 |
DW42HS60-1004 | 1 | 24 | 65 | 83 | 6 | 4 | 102 | 350 | 0.5 | 60 | Φ5*24 |
DW42HS60-1206 | 1.20 | 6 | 7 | 90 | 6.5 | 6 | 102 | 350 | 0.5 | 60 | Φ5*24 |
DW42HS60-1504 | 1.50 | 2.5 | 6 | 90 | 7 | 4 | 102 | 350 | 0.5 | 60 | Φ5*24 |

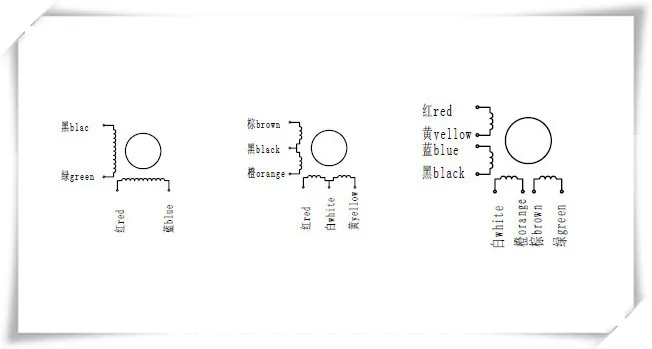

Wiring:
Tips: the shaft and motor details can be customerized.

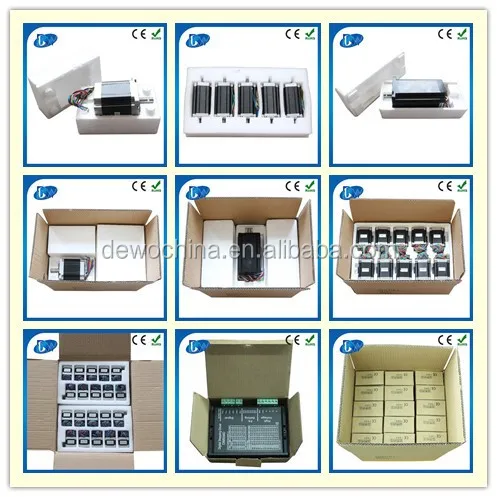

Packaging & Shipping
We provide standard packing for products.
Plastic foam will be put in carton boxes.
We deliver our goods by sea, air and courier service.
You may contact us to check the shipping status of your order.
Shipping time, after confirmed the details, usually one week is enough for us to make stepper motor sample. Bulk order delivery time depends on the quantity that you need.
