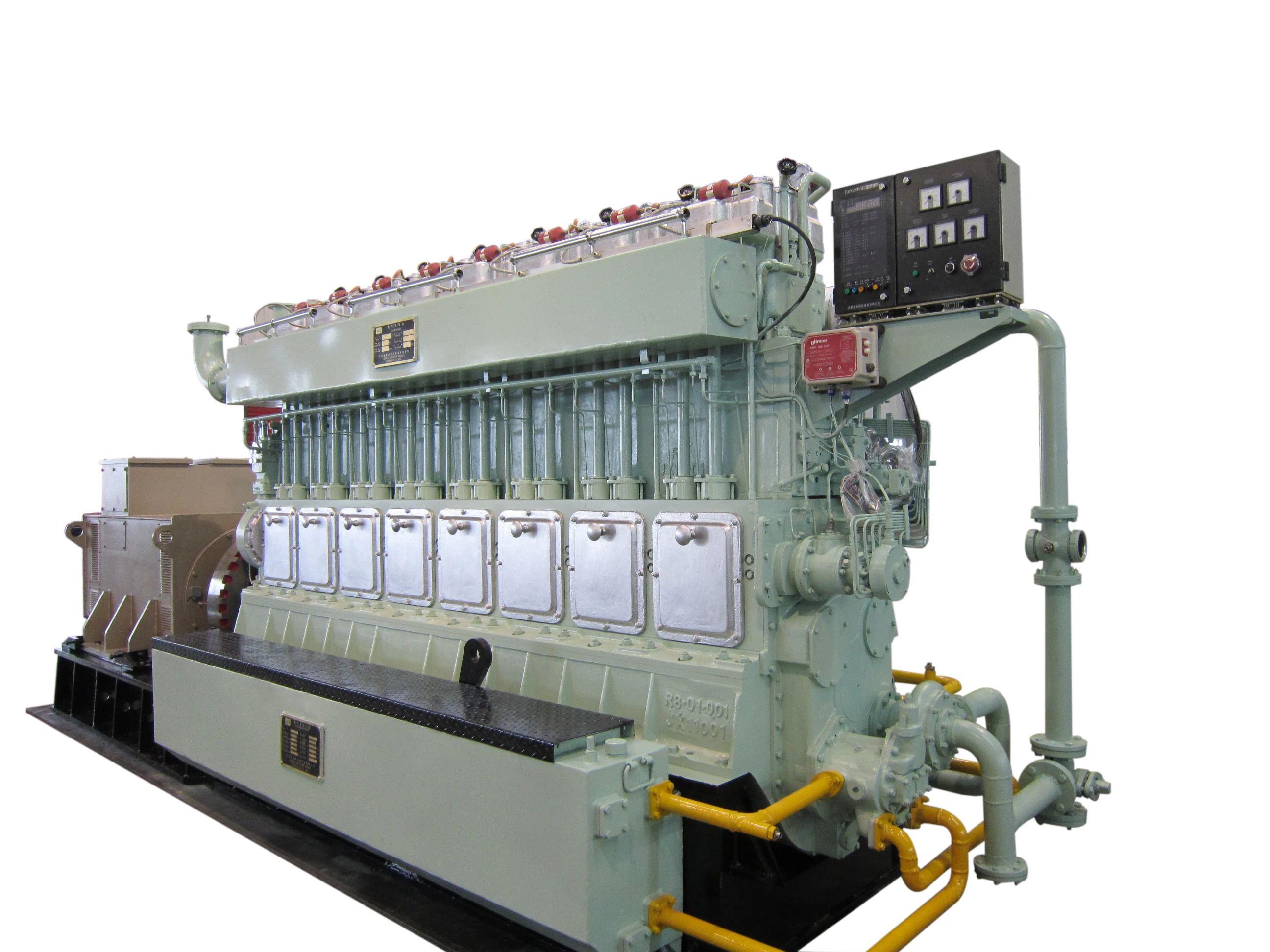

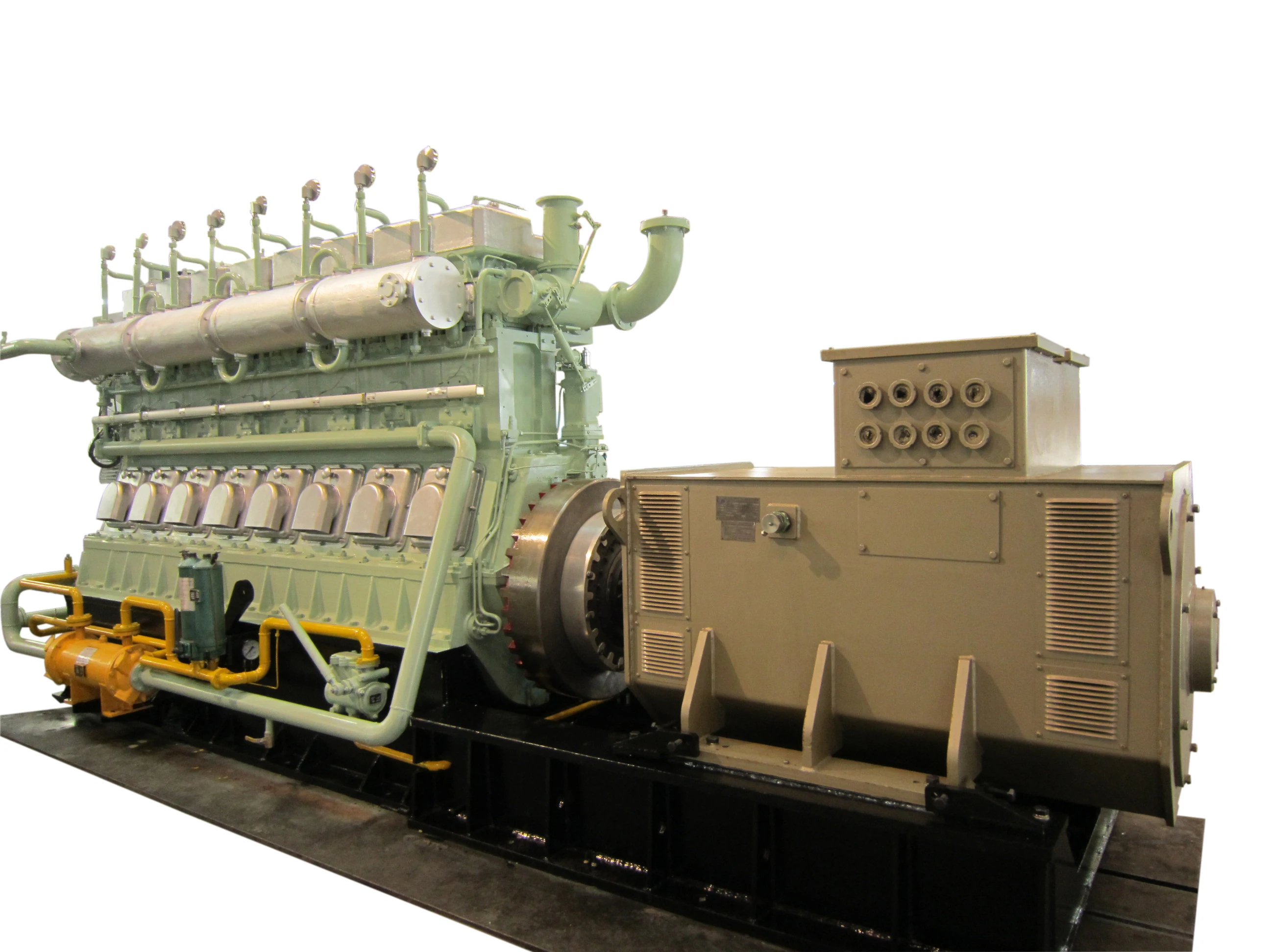

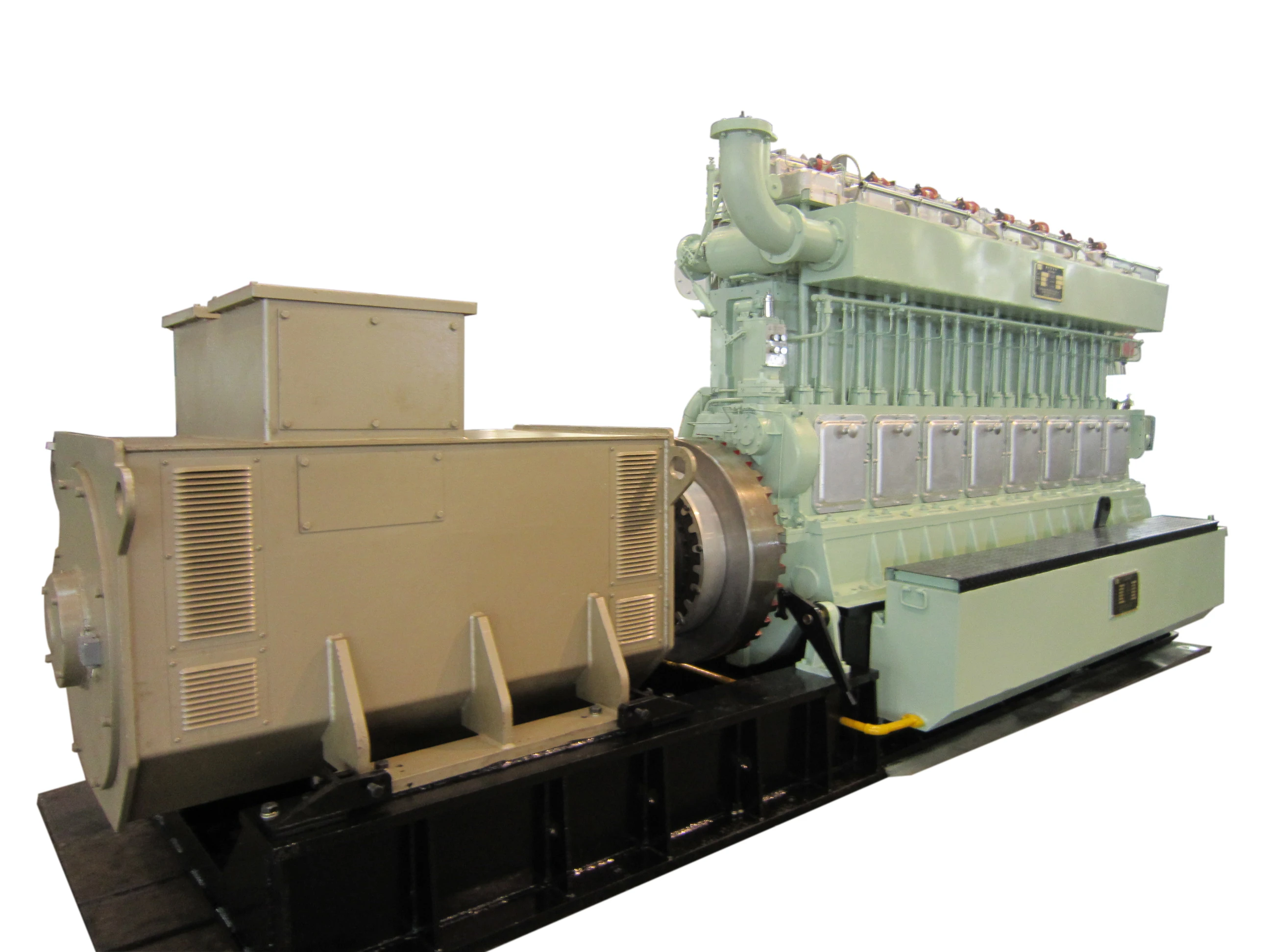

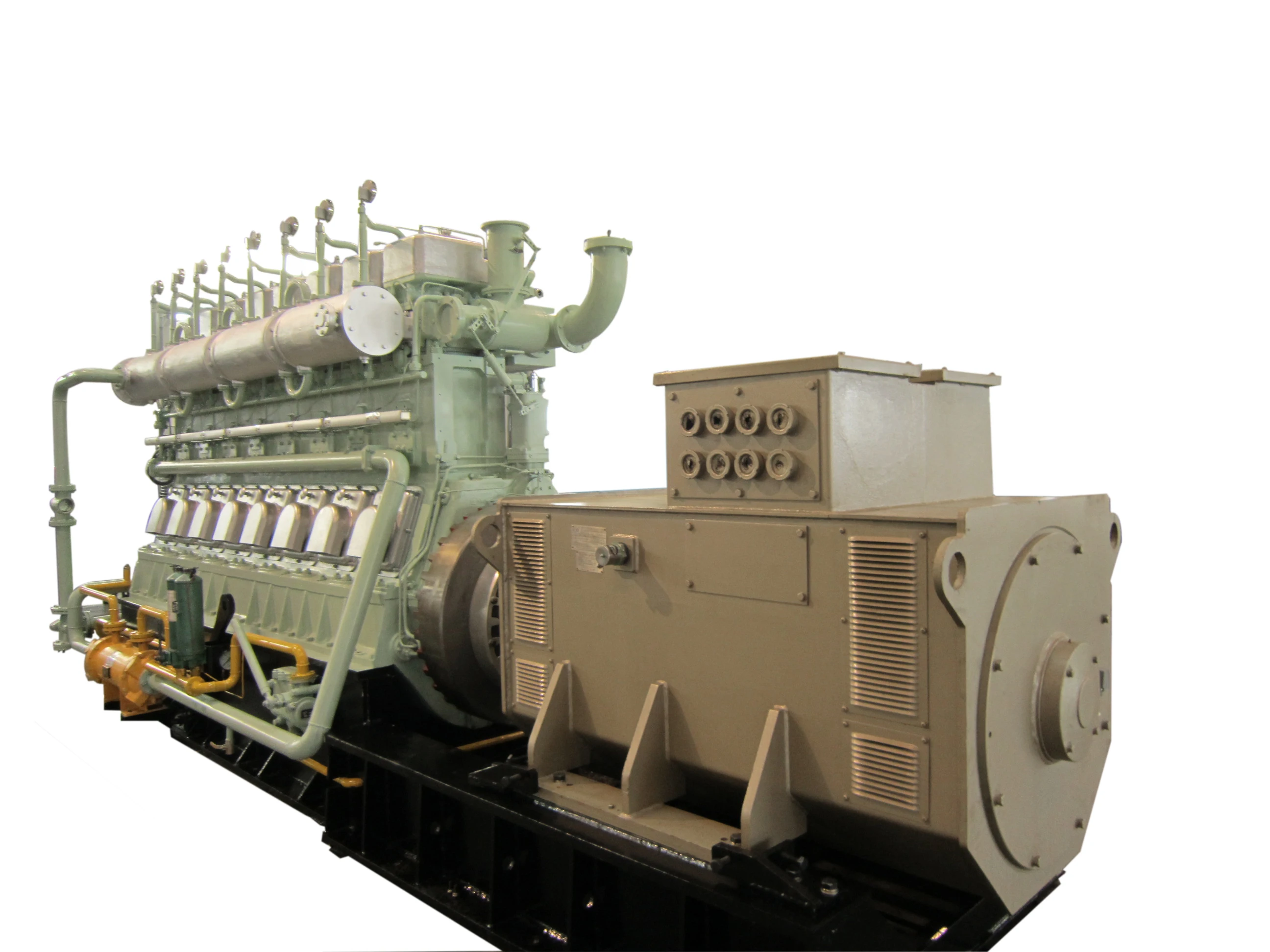

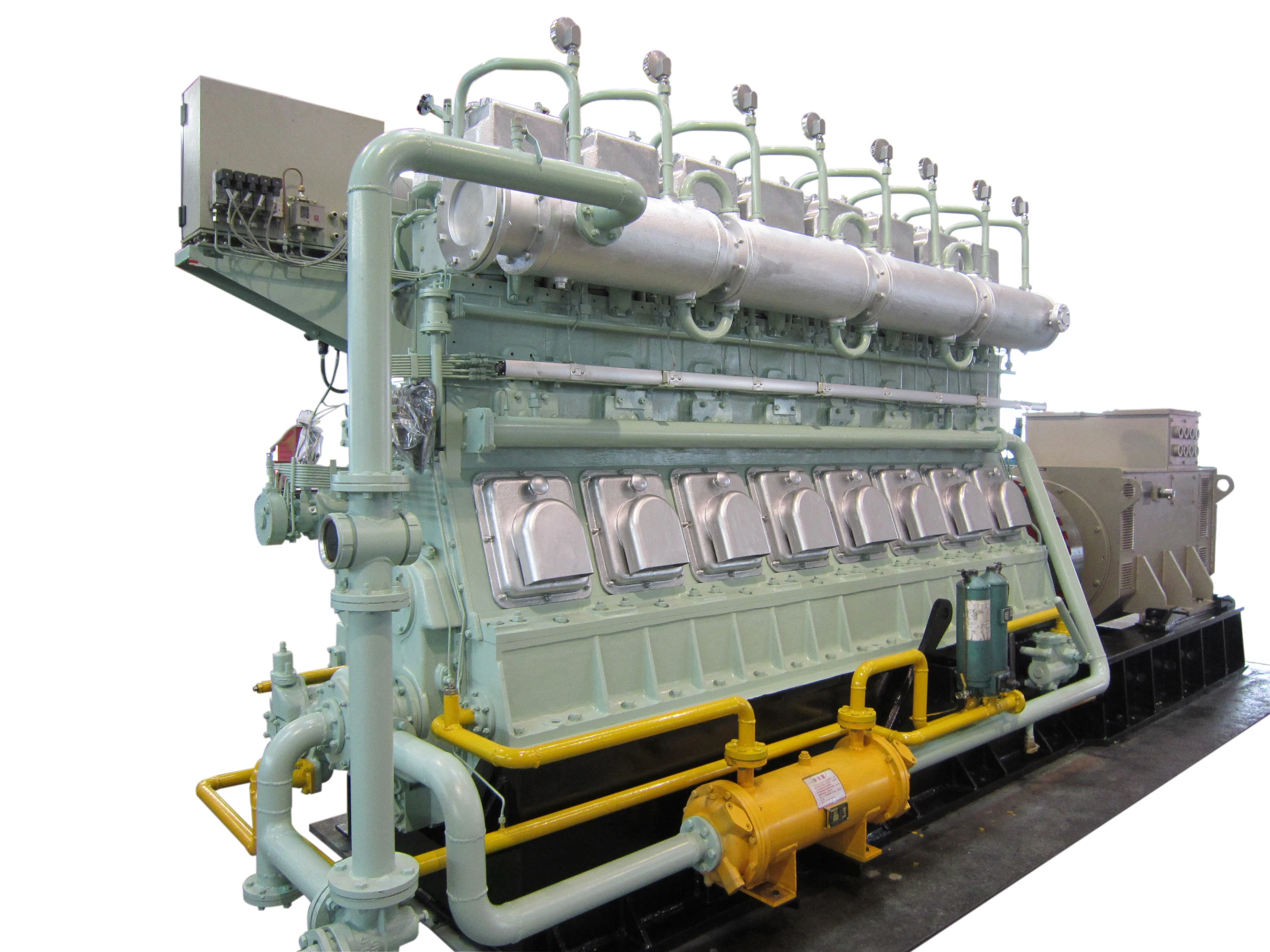

CE ISO Authorized 300 series 500kW Low Speed Producer Gas Generator Set
- Category: >>>
- Supplier: Wuxi Teneng Power Machinery Co. Ltd.
Share on (60871020802):
Product Overview
Description
CE ISO Authorized 300 series
500kW Low Speed Producer Gas Generator Set
Product Description
Technical specifications:
| Item | Technical specifications | ||
generator set | Model of the Set | 500GFLS | |
| Rated Power (KW) | 500 | ||
| Rated Voltage (KV) | 0.4 | 0.44 | |
| Rated Current(A) | 902 | 820 | |
| Rated Frequency(HZ) | 50 | 60 | |
| Power Factor COS | 0.8 Lagging | ||
| Mode of Excitation | Brushless | ||
| Phase & Connection | 3 Phases 4 Wires | ||
| Generator Model | 1FC6 SIEMENS | ||
| Overall Dimensions(mm) | 6500X1830X3100 | ||
| Net Weight(kg) | 22000 | ||
| engine | Model of Engine | TNJD-8300Q2 | |
| Mode | Water cooling, four stroke, spark plug ignition, open combustion chamber | ||
| Non Pressurization | |||
| Arrangement of Cylinder | 8 cylinders, In Line Engine | ||
| Cyclinder Diameter(mm) | 300 | ||
| Stroke(mm) | 380 | ||
| Rated Power(kW) | 550 | ||
| Speed(r/min) | 600 | ||
Direction of rotation (from the end of the flywheel) | Counter ClockWise | ||
| Start-up Mode | Compressed Air | ||
Exhaust temperature of each cylinder (℃) | ≤580 | ||
Gas inlet temperature (℃) | ≤40 | ||
| Gas Pressure(kPa) | ≥2.5 | ||
| Oil Consumption(g/kWh) | ≤1.0 | ||

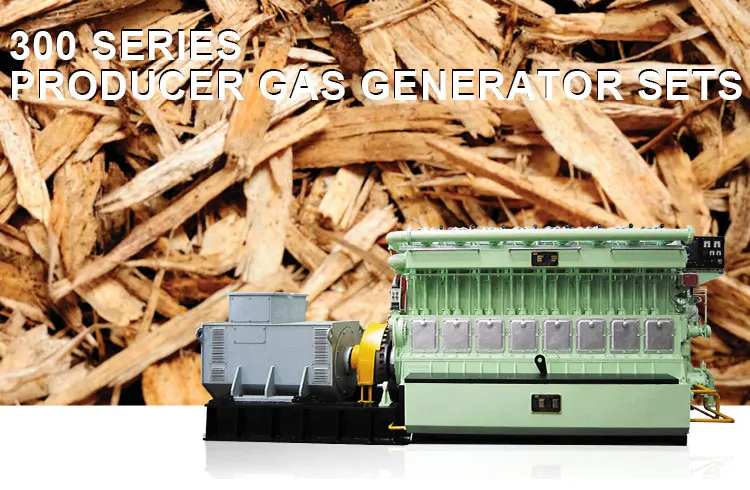

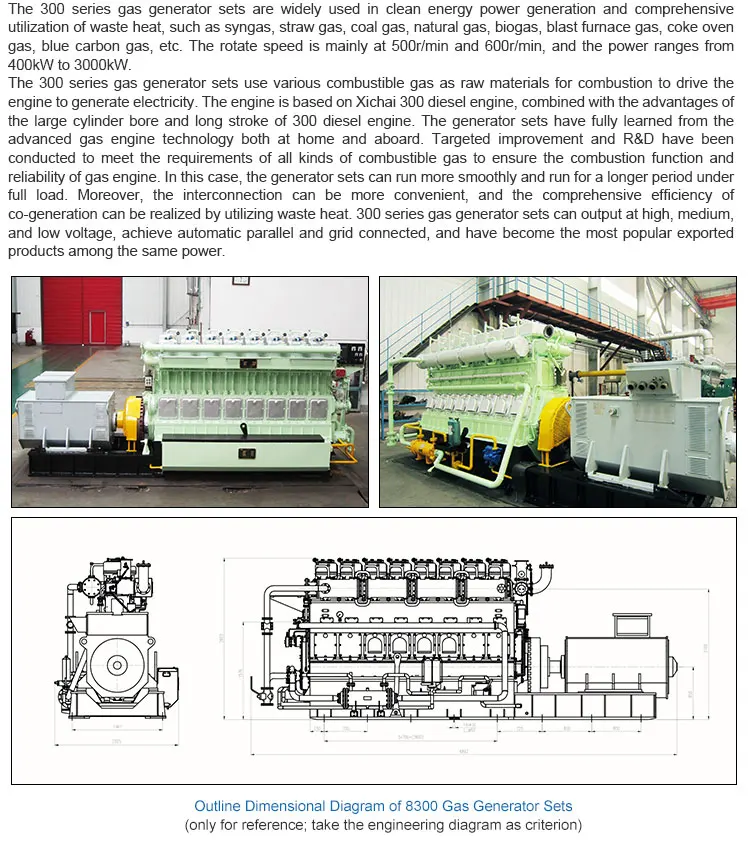

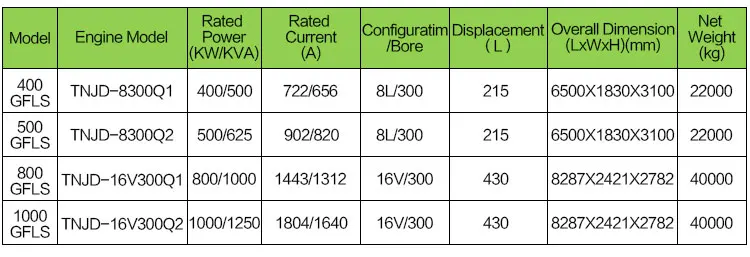

Series 300 generator sets:

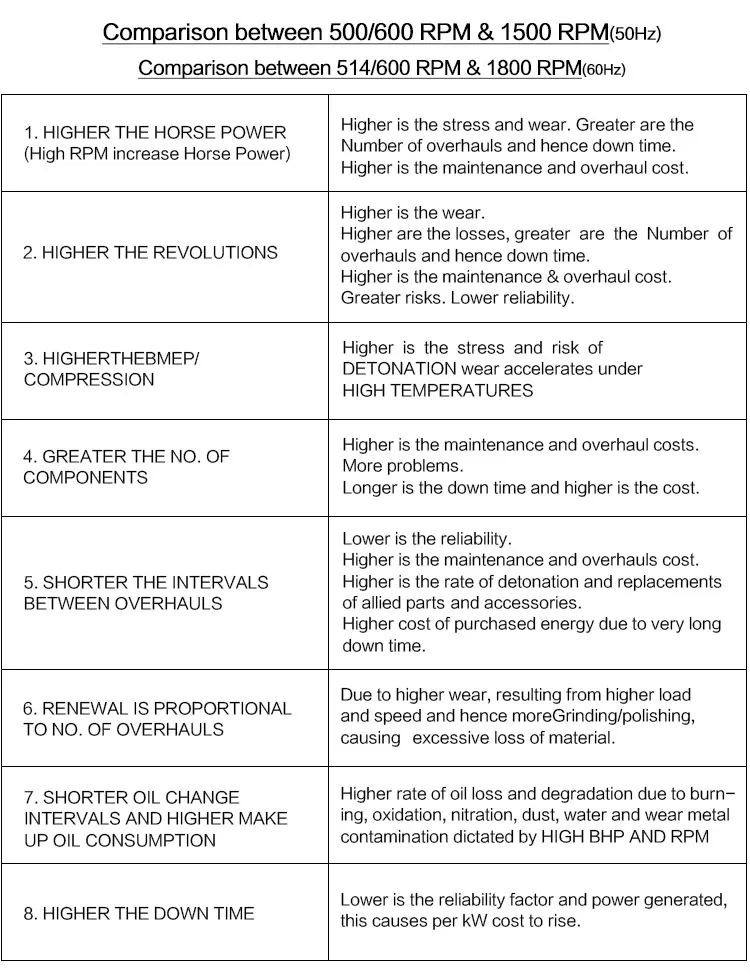

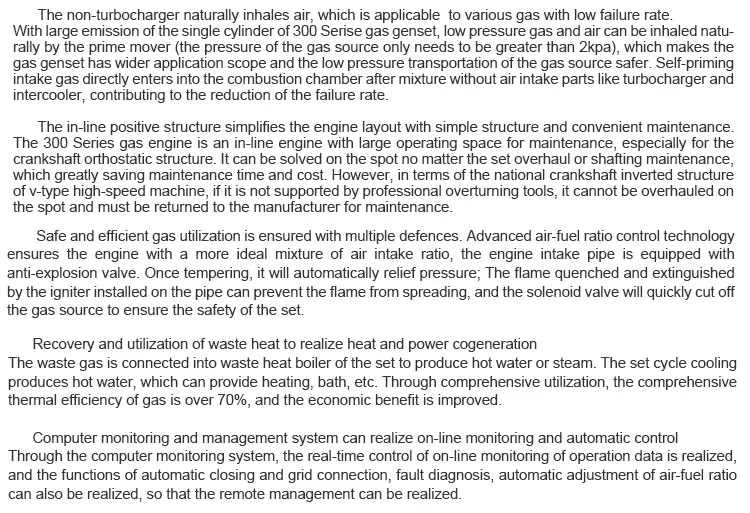

The difference between low speed and high speed:

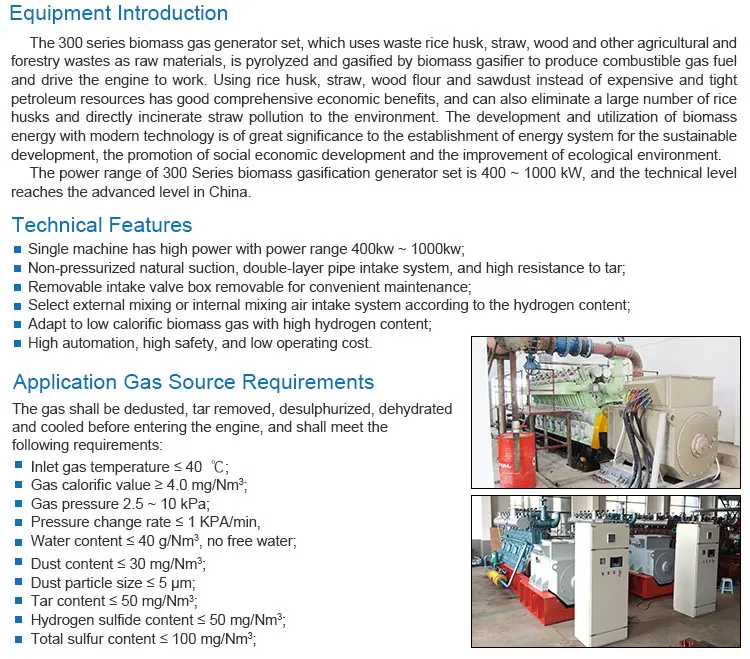

Introduction

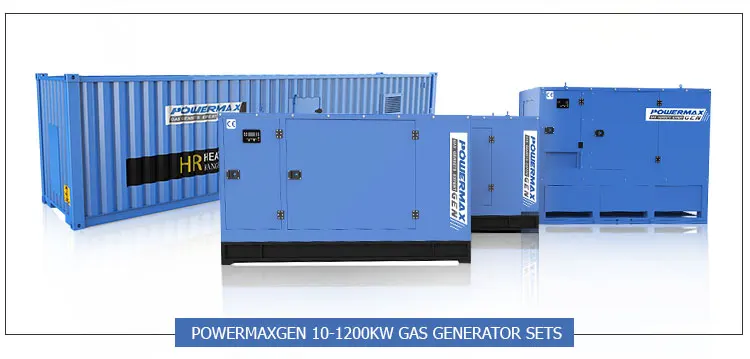

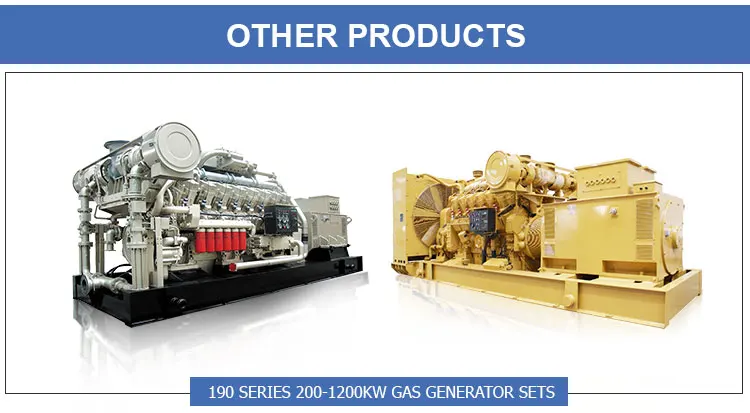

Other Product

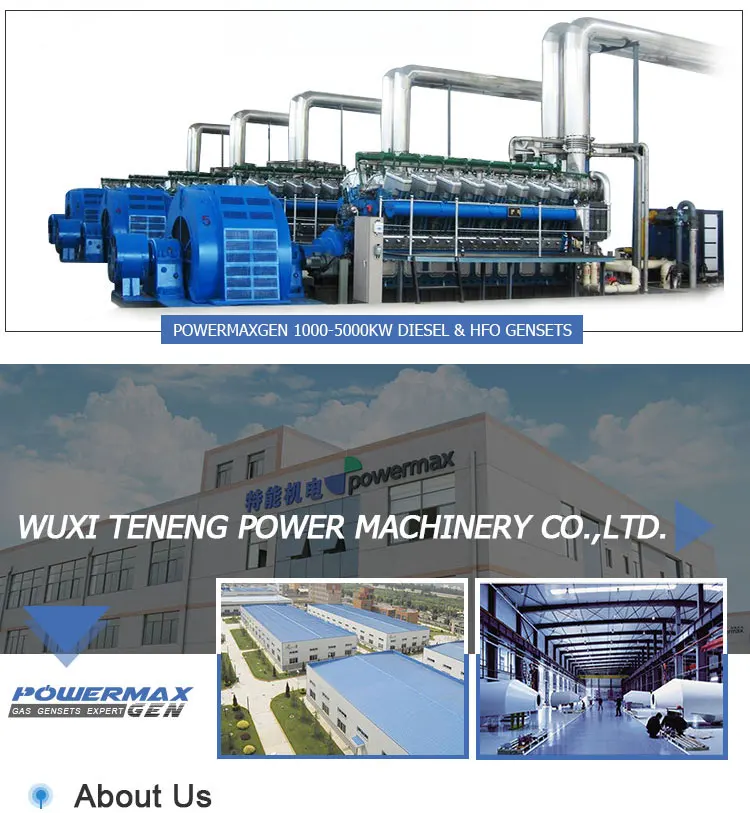

About Us
Wuxi Teneng Power Machinery Co., Ltd. is located in Wuxi, a beautiful and advanced city near the Lake Taihu in Jiangsu.
Our company was founded in 2003, which has a strong technical design, developing capabilities and professional processing capacity. It is a group company which manufactures biomass gasification equipment, coal gasification equipment, gasification of garbage and sludge and gas generator sets.
The business covers: product design, R&D, manufacture, sales, project contracting, installation and debugging, project delivery, staff training, maintenance and technical advice.
The company’s main products include: biomass gasification power generation systems, coal gasification power generation systems, biomass gasic fier(fluidized bed gasifier, updraft fixed bed gasifier, downdraft fixed bed gasifier and twin-fire fixed bed gasifier), biomass boiler(biomass gasification boiler, biomass fired boiler), coal gasifier(single stage coal gasifier, two stage coal gasifier, twin-fire coal gasifier and fluidized bed gasifier), garbage RDF gasification power generation system, garbage RDF gasifier, sludge gasification power generation system, sludge gasifier, gas purification equipment and all kinds of gas generator sets. For example: biomass gas generator sets, straw gas generator sets, producer gas generator sets, coke oven gas generator sets, coking gas generator sets, blue carbon gas generator sets, biogas generator sets, natural gas generator
sets and methane gas generator sets, etc.
The company covers a total area of 10,000 square meters (including 2,000 square meters of office and 6,000 square meters of workshop) with more than 80 employees. The company has paid special attention to research and development, and independent technology innovation. Since establishment, the company has developed rapidly. It has owned a number of patents and other intellectual property rights, and registered many independent brand trademarks at present.
