EFP Ethernet converter to camera for OB van include SDI signal/control data/audio/Intercom/genlock
EFP Ethernet converter to camera for OB van include SDI signal/control data/audio/Intercom/genlock
EFP Ethernet converter to camera for OB van include SDI signal/control data/audio/Intercom/genlock
EFP Ethernet converter to camera for OB van include SDI signal/control data/audio/Intercom/genlock
EFP Ethernet converter to camera for OB van include SDI signal/control data/audio/Intercom/genlock
EFP Ethernet converter to camera for OB van include SDI signal/control data/audio/Intercom/genlock
EFP Ethernet converter to camera for OB van include SDI signal/control data/audio/Intercom/genlock

EFP Ethernet converter to camera for OB van include SDI signal/control data/audio/Intercom/genlock

Share on (60871707296):


Price:$2,500.00 - $3,200.00

Quantity:


Product Overview

Description


Hairwer Introduction



As Factory, We are able to do any necessary modification to our product to meet your special requirement to suit your need. Plz feel free to contact us if you have any question regarding to modification or the product.


We have provided variety Broadcasting equipment including OB-VAN, EFP CAMERA SYSTEM, WIRELESS-INTERCOM SYSTEM AND SMPTE 311 3K.93C CABLE  for different Local TV station since 2009. Our main advantage is R&D ability which helped countless customers to achieve what their business need in last decade. We always value our customer need and pls feel free to contact us if you have any questions.


Our advantages:

1,  We have very stable logistics company as our partner who can help us ship out product to your appointed address by any express company including DHL, Fedexpress, TNT and UPS.


2. You are always welcome come to visit us either in Changsha or our office in Shenzhen, let us know your need and we can develop and manufacture the product for you.


3. OEM its always an option,if you have any broadcasting equipment need factory to become your partner , feel free to let us know.


4. Customer satisfaction its our ultimate business goal, compared to  get an order, we always believe that growing up with our customer together in this industry its much better solution.

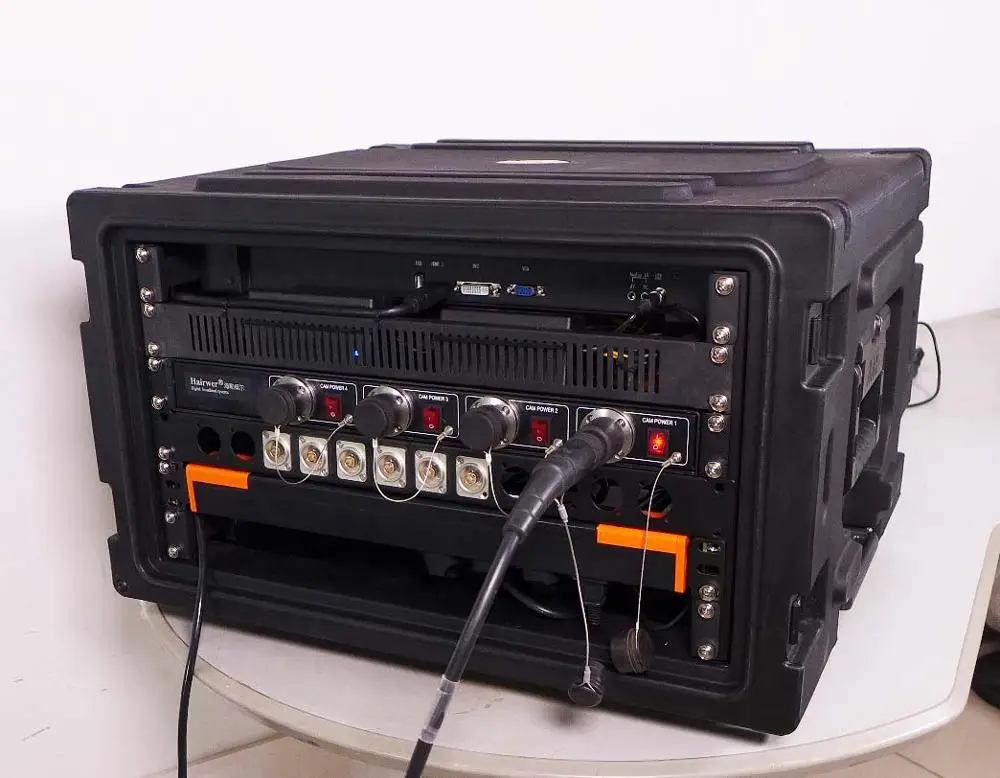

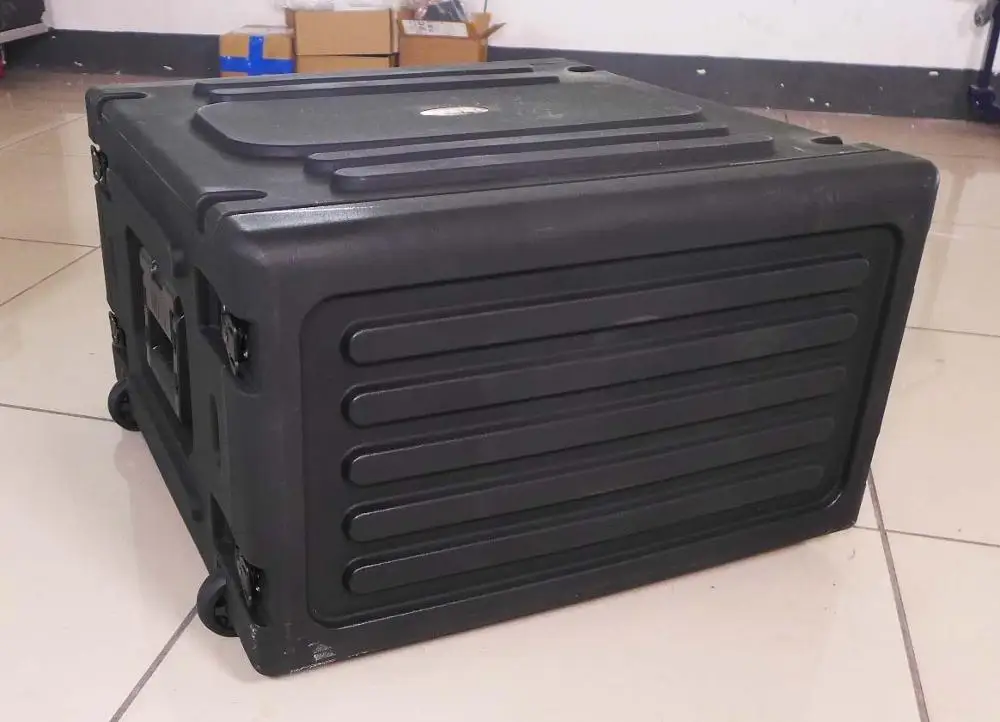

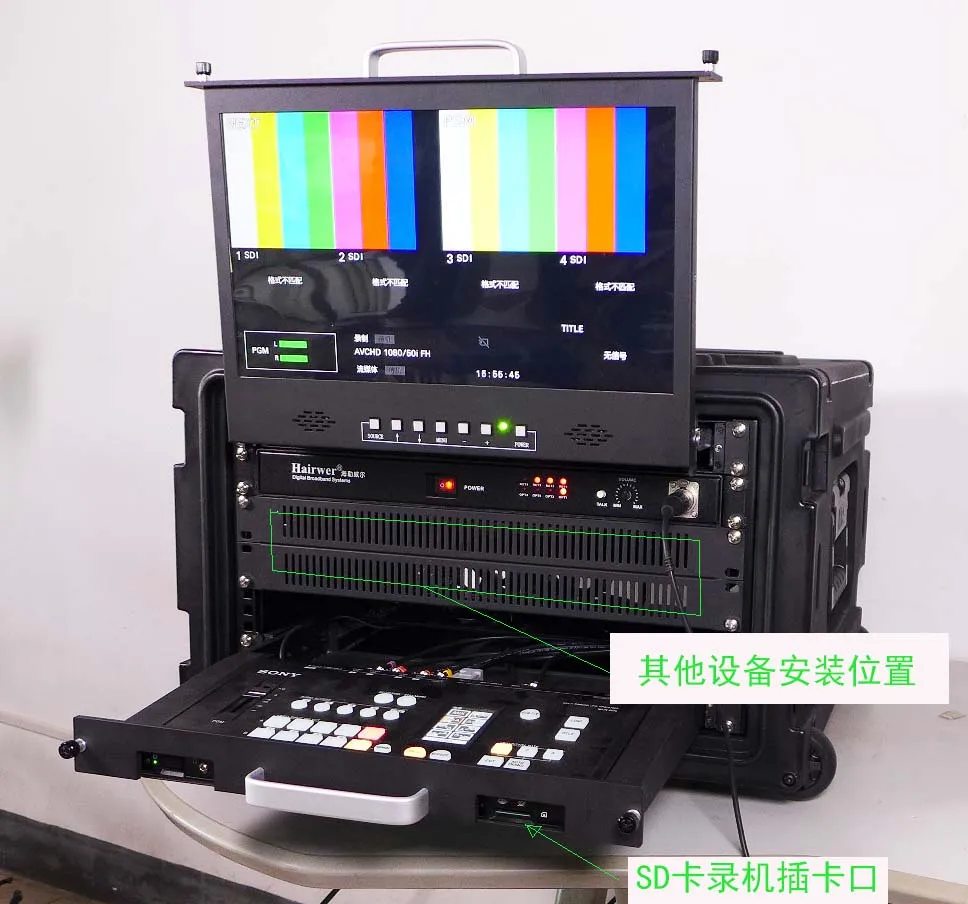

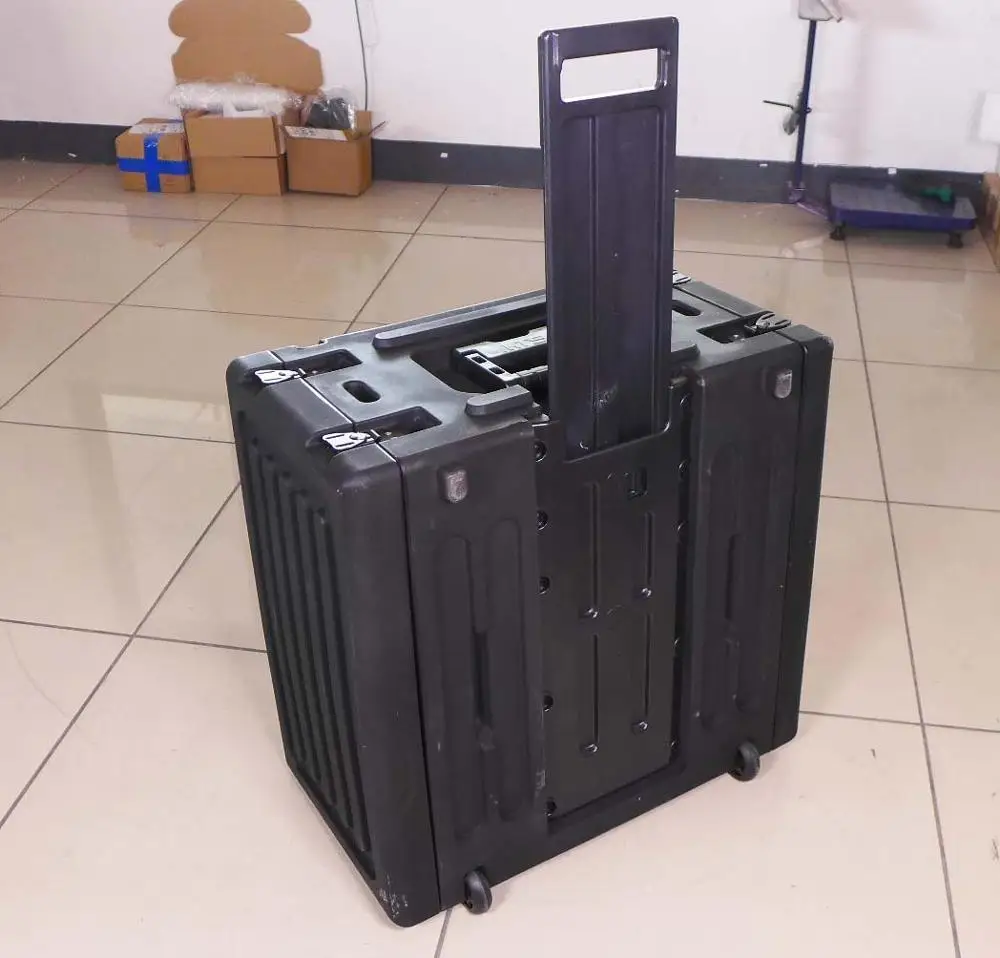

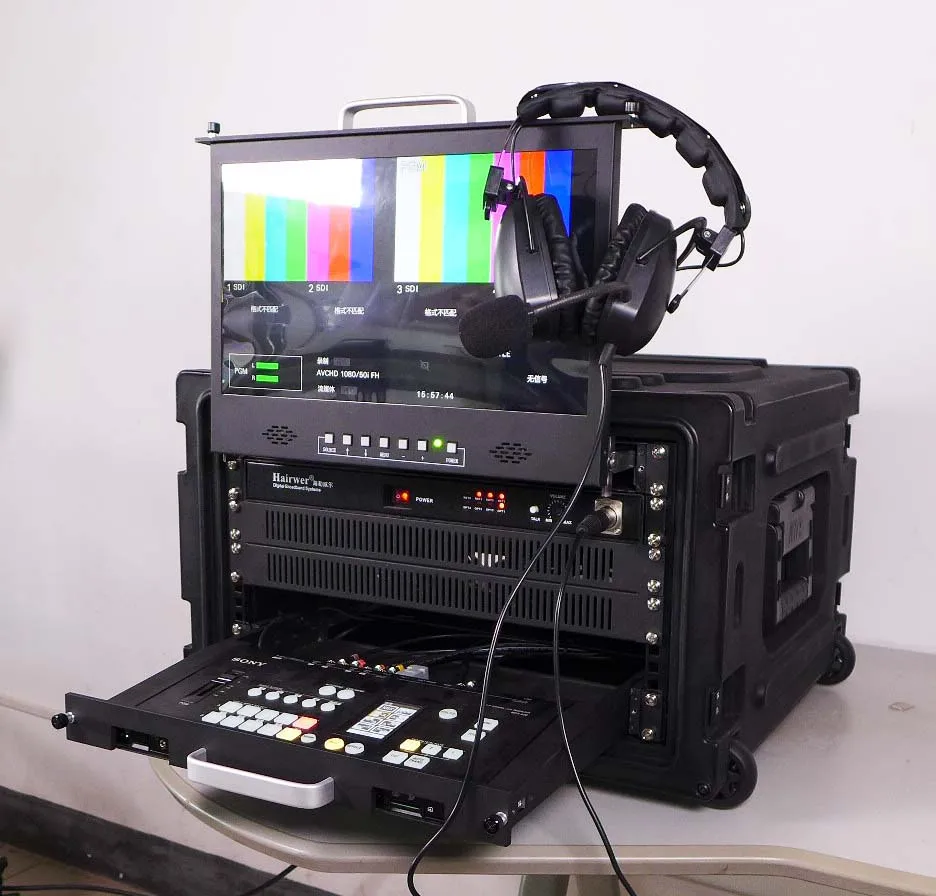

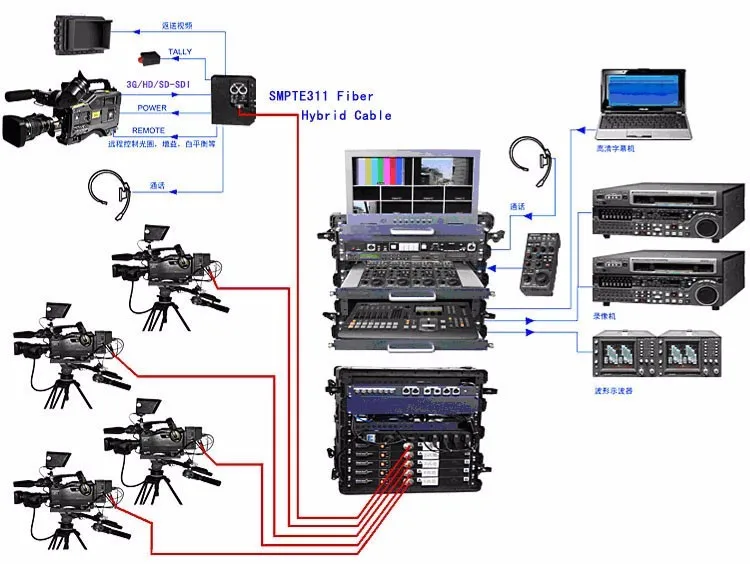

TDetailed Images
Product Description
\t
Work Temp
\t
-25°C to 55°C
\t
Storage Temp
\t
-40° to 85 °C
\t
Humidity
\t
0 ~ 95%(non-condensing)

Camera Optical Adaptor:

\t
Input Power
\t
DC 11 ~ 19
\t
Power Consumption
\t
< 8W
\t
Net Weight
\t
0.8KG
\t
Apperance Size
\t
190mm*110m*40mm(without V-mount)
\t
Power Supply
\t
No

Optical Base Station:

\t
Input Power
\t
AC 90 ~ 240V
\t
Power Consumption
\t
<20W
\t
Net Weight
\t
3KG
\t
Appearance Size
\t
19" 1U standard rack mount

Optical:

\t
Wavelength
\t
1310nm/1550nm/CWDM
\t
Output Power
\t
-6~1dBm
\t
Rx sensitivity
\t
<-18dBm
\t
Transmission Distance
\t
SM fiber 10+km MM Fiber 300m
\t
Optical Connector
\t
Dul LC/FC/ST/SC/Lemo /Neutrick(optional)

SDI input/output:

\t
Singal Format
\t
SMPTE 424M, SMPTE 292M, SMPTE 259M
\t
Data Rate
\t
270Mbit/s - 1.48Gbit/s -3Gbit/s
\t
Cable Equalization
\t
300m@ 270Mbit/s, 160m @1.5Gbit/s,100M @ 3Gbit/s
Automatic cable EQ(Belden 1694A cable)
\t
SDI interface
\t
BNC 75 Ohm

Intercom:

\t
Camera Optical Adaptor
\t
Interface
\t
3.5mm headset jack, Datavideo Headset
\t
Microphone
\t
Mic inputs with mute and pre-amps
\t
Headphone
\t
With amplifier and volume up or down
\t
Optical Base Station
\t
Interface
\t
5pin XLR Male, be connected Datavideo Talkback System

Tally:

\t
Camera Optica Adaptor
\t
Interface
\t
3.5mm headset jack, be connected Datavideo ext tally lamp
\t


Output

\t
Green/Red 2 colors
\t
On: LED on
\t
Off: LED off
\t
Optic Base Station
\t
Interface
\t
5 pin XLR male
\t
Input
\t
Be Connected Datavideo Talkback System

Remote

\t
Work mode
\t
Full Duplex/half duplex
\t
Data Rate
\t
10/100Mbps(AUTO)
\t
Connection terminal
\t
RJ45
Why Choose Us

HAIRWER

HAIRWER (CHANGSHA) Tech Pty Ltd. The company is motivated by the development of studio equipment in China. With its strong R&D capability and high-precision and low-cost manufacturing technology, it has produced a series of broadcast-level professional equipment for mobile studios and TV broadcast vehicles.





The company has a core advantage in fiber-optic hybrid transmission technology for multi-format broadcast-quality image and sound signals. Its multi-channel SDI/ASI (TS stream) signal technology has been patented and approved in May 2004. . The current high-end products can deliver 128 channels of multi-program TS streams (approximately 750 digital TV programs) in a single fiber, and the technology is leading the industry in the world.


About us

The company professional to do 3k.93c broadcasting connection and EFP system

Equipment & technology

The company is committed to the broadcast and television industry for years and has excellent R&D department

Service

The company can satisfied OEM and custom special order requirements. Customer always first.

Dear customer ,
This is Henry from Hairwer , Hairwer (Changsha) Electronic Technology Ltd is a professional manufacturer and exporter , which is concerned with R&D , and production of Broadcasting equipment ,and we also do OEM , all of our products have the best price and high quality , our main products is Camera ENG system , SMPTE Camera fiber optical and telecom communication equipment .

Hairwer (Changsha) Electronic Technology Ltd established in 2003.
Our R&D department is located in Shenzhen and factory have move to Changsha.


Our products were been used in many live broadcasting event. We have been corporate with many Stated owned television station for more than 10 years. It has proved that our products is most cost –effective with high quality in this industry.

We are happy to do OEM and develop any related products as customer design. If you have any other questions , juts feel free let me know , thanks for reading !
