Electric vehicle battery management system car training equipment

Product Overview

Description



Pure electric vehicle battery management system training platform

Basic Parameter
1.Size: 1200mm x 600mm x 800mm (length x width x height)
2.Operating power supply: 48V DC   220v
3.Fuel No.: Engine mode
4.Fuel tank size: 15L
5.Operating temperature: -40ºC to +50ºC

Size	1200mm x 600mm x 800mm
Operating power supply	48V DC
Fuel No	Engine mode
Fuel tank size	15L
Operating temperature	-40ºC to +50ºC



case

Functional features

1. After the lap joint is completed, the real running pure electric motor drive system fully demonstrates the composition structure and working process of the pure electric motor drive system.

2. Switch on the power, operate various electrical switches and buttons on the equipment, and truly demonstrate the working process of pure electric vehicle motor drive system.

3. The device panel adopts open design, and real devices can be freely overlapped.

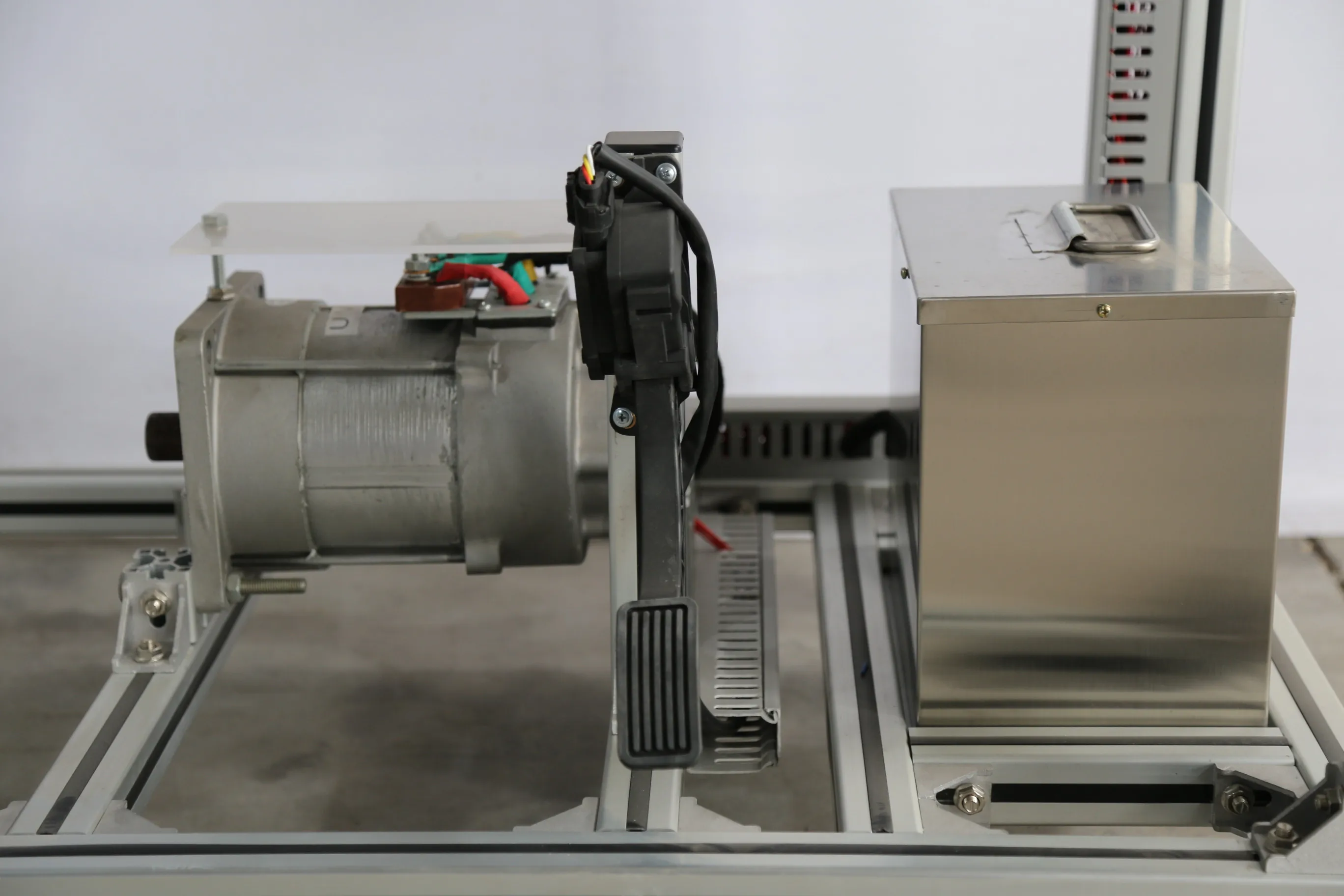

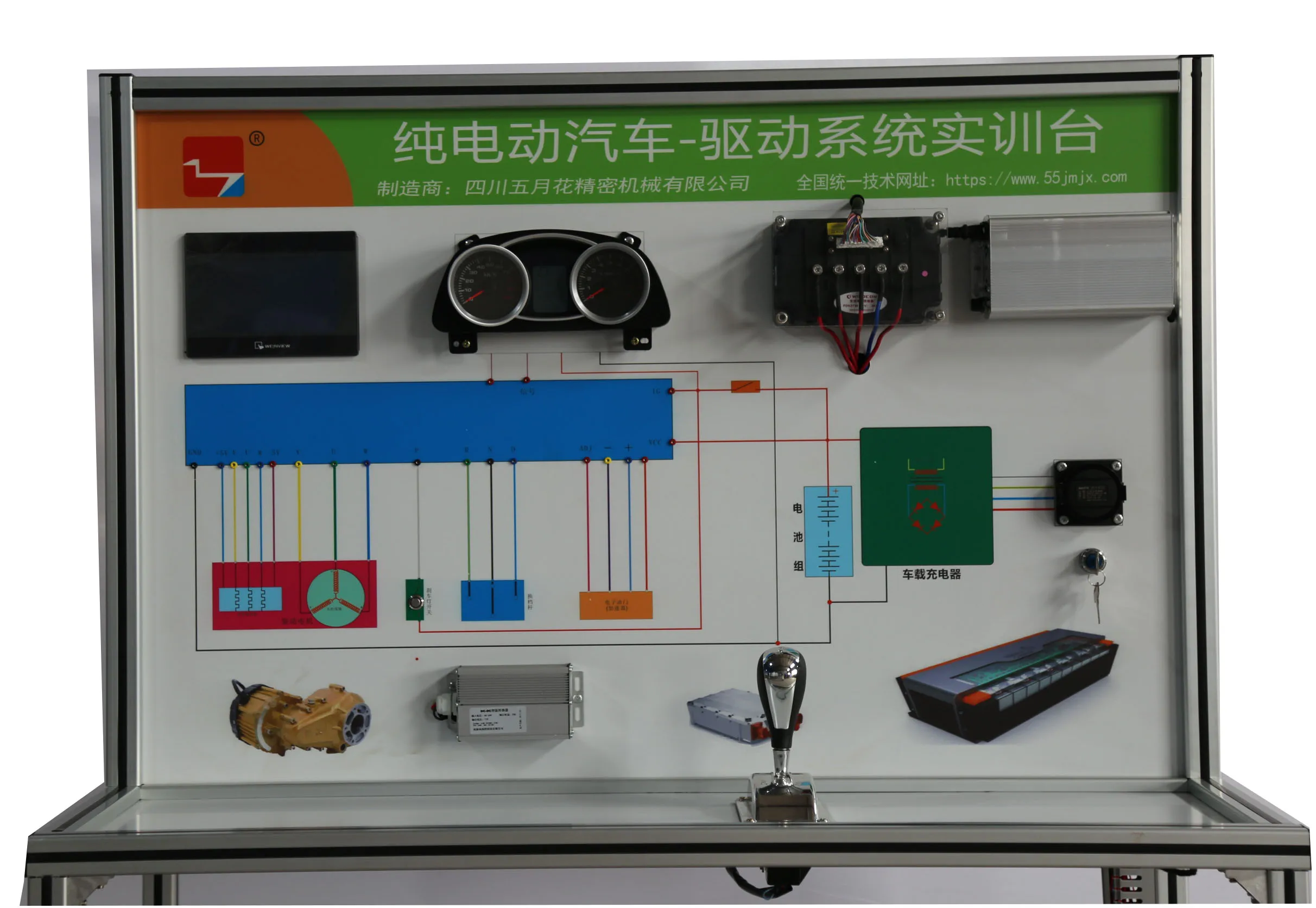

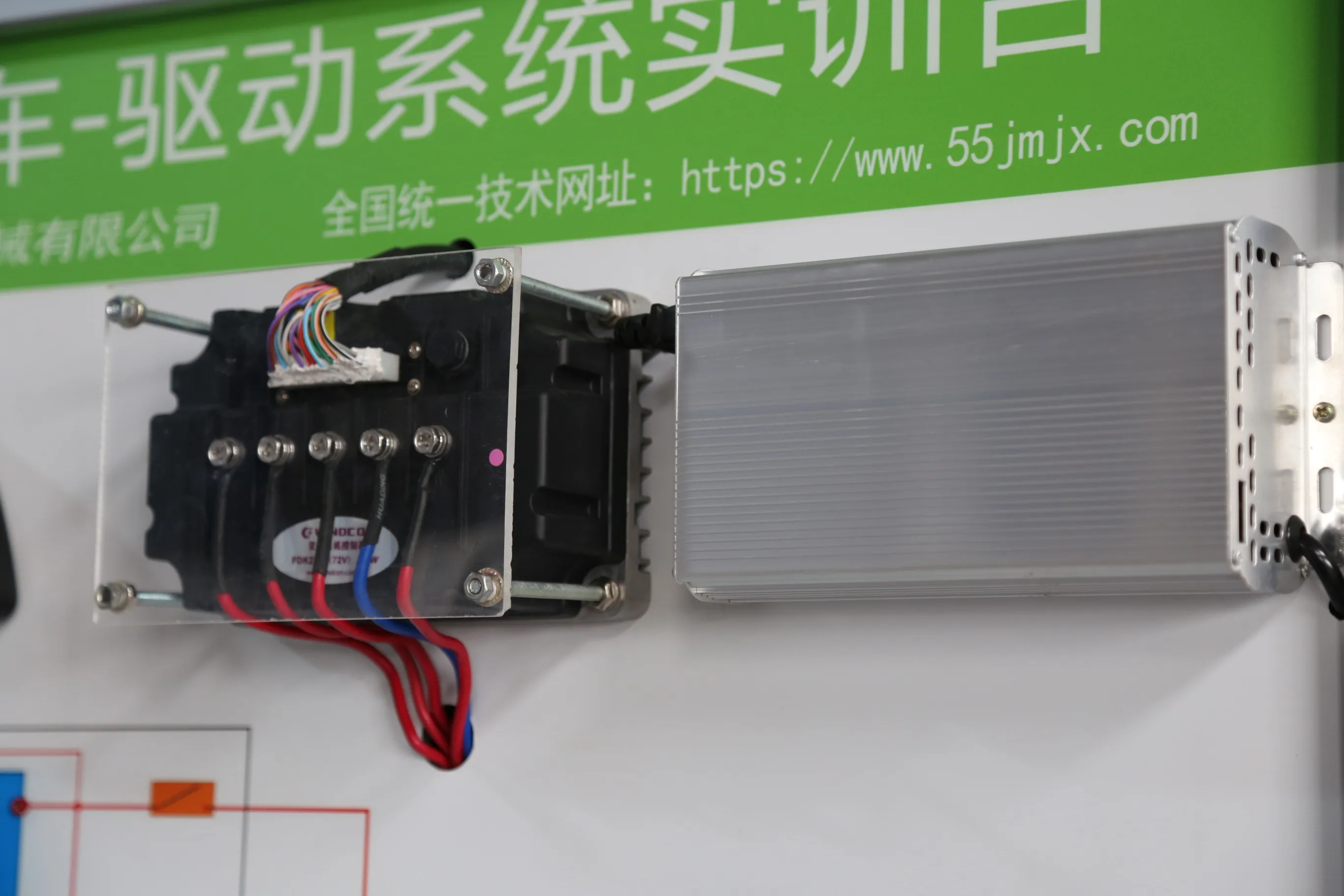

4. The real components of the motor drive system of pure electric vehicle are mounted by pendant and attached with the color wiring schematic diagram.

5. The base frame is constructed of aluminum alloy profiles, with self-locking castor device. The base is equipped with a desktop of about 30cm, which is convenient to place data and light detection instruments.

Technical specifications

Overall size: 1200 x600 x800mm(length width height)

Power supply: 48V of the original vehicle

Working voltage: original vehicle

Working temperature: - 40 ℃ ~ + 50 ℃
