Industrial spiral cylinder rotary conveyor brushes for belt cleaning roller brush
Product Description
Industrial spiral cylinder rotary conveyor brushes for belt cleaning roller brush

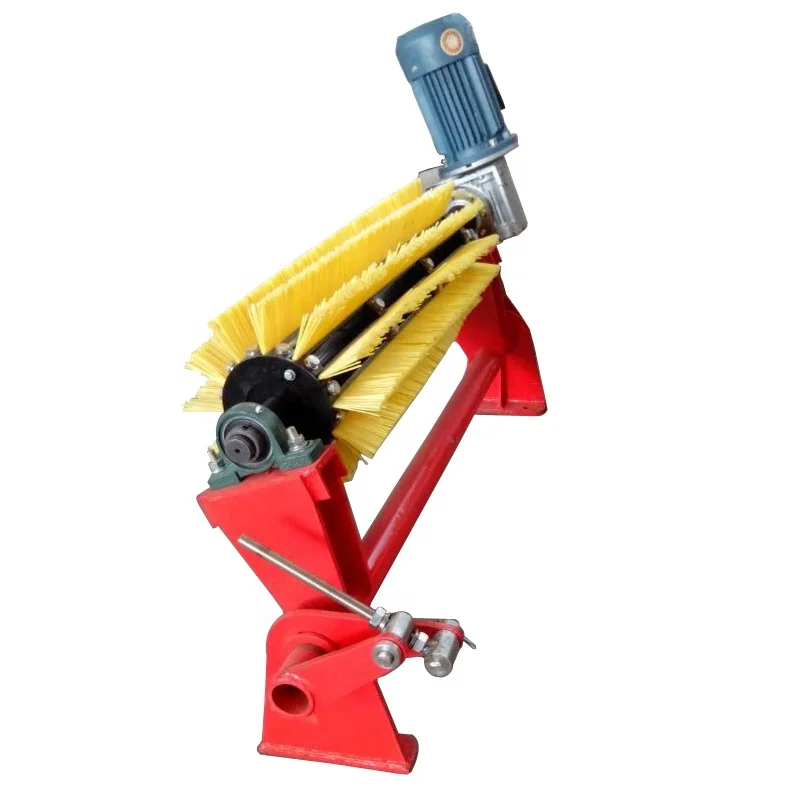

DB-XQ-I is a motorized brush style conveyor belt cleaner installed under the return belt of the conveyor.It has cylindrical nylon brush and tips of the brush touch the belt surface gently. The rotating brush turns in the opposite direction of the belt.Therefore, it brushes away the sticky materials into the funnel.
Industrial spiral cylinder rotary conveyor brushes for belt cleaning roller brush Features:
1) Replaceable brush tips: 12 brush strips for each brush roller, just remove worn strips and insert new strips, no need replace whole brush roller, very cost-efficient.
2) Spiral brush cleaner uses 1.5mm nylon 66 bristles wrapped in spiral around the hub
3) Specialty brush cleaner: food grade, high temperature, fertilizer, etc.
Industrial spiral cylinder rotary conveyor brushes for belt cleaning roller brush Advantages:
1. Replaceable brush strips, total 12 brush strips. Easy installation, and you just need remove worn strips and insert new strips.
2. Continuous contact, efficient cleaning, good results.
5. Nylon brush produced by special production process, non material sticking.
6. Gentle contact without any wear-out to the belt, extending service life of belt.

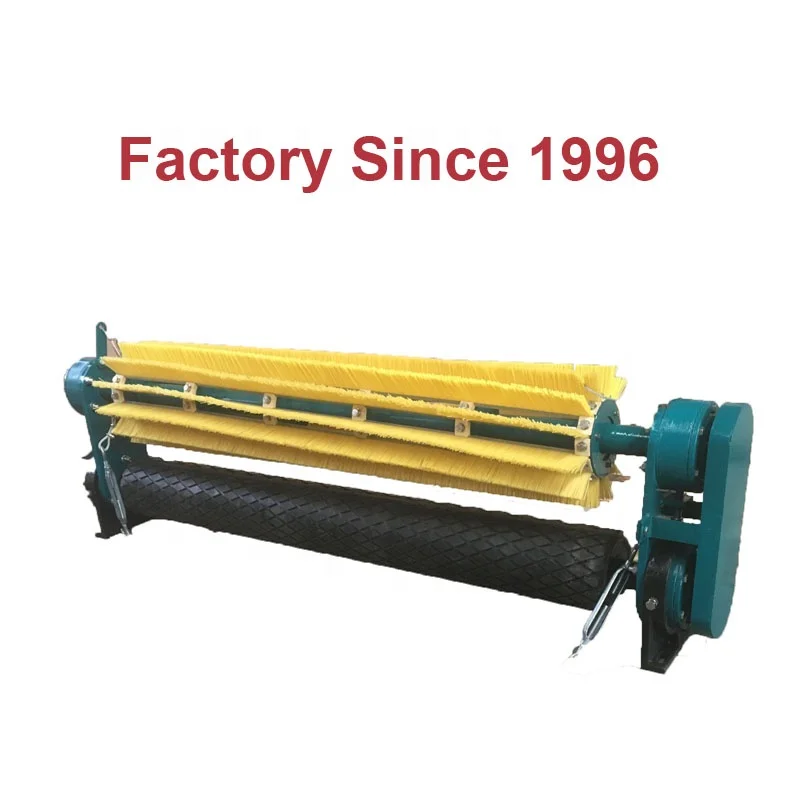

Motorless Brush belt cleaner
The rotating direction of the nylon brush is opposite to that of the return belt,
Therefore, it brushes awaymaterials adhered to the belt surface into the funnel.

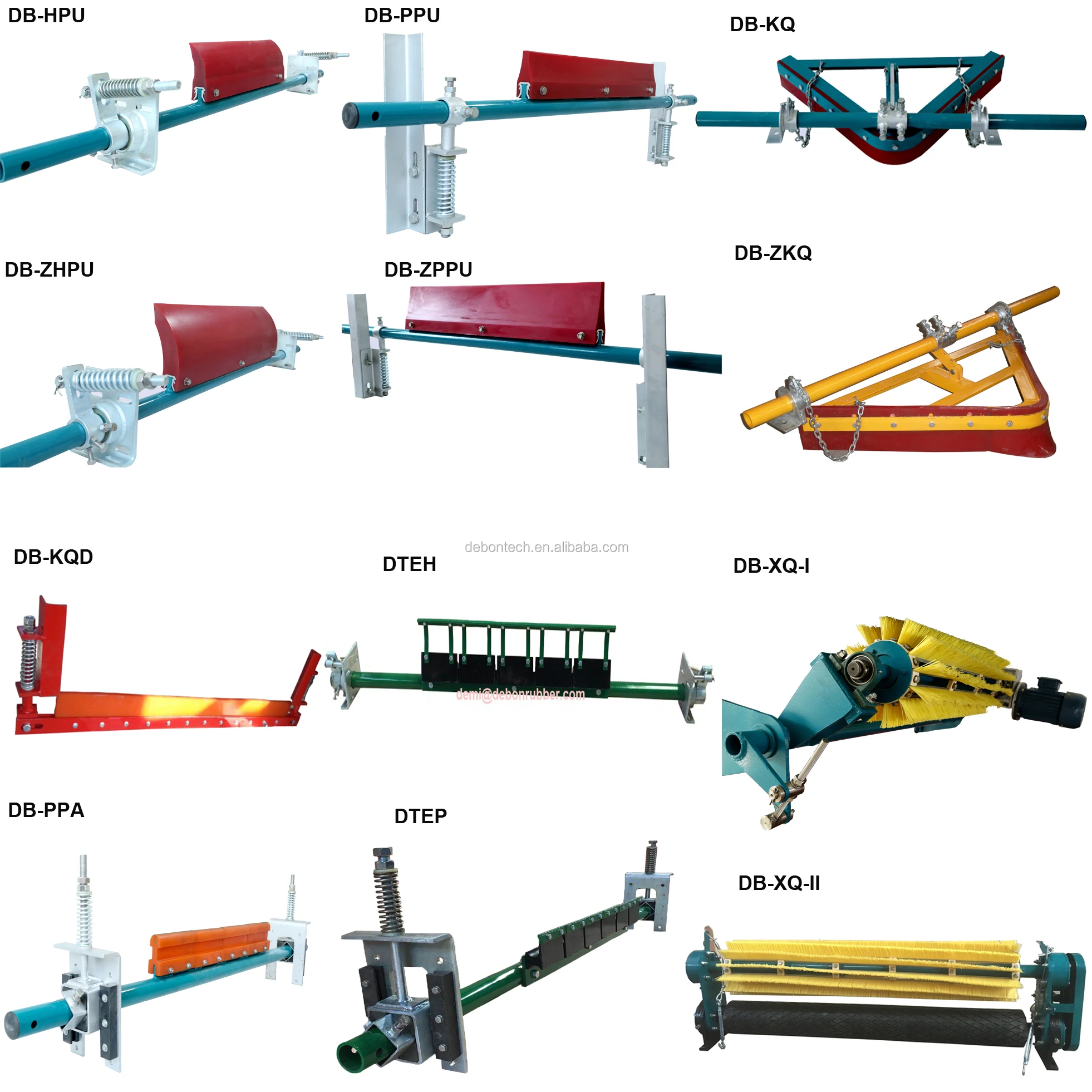

Other Types of our belt cleaners:
We've been producing belt conveyor accessories since 1992. Belt cleaner is our hot sale. We offer belt cleaners that work with all belt sizes and speeds, regardless of industry or type of material. We also offer belt cleaners that work in the most challenging and unique environments. Our belt cleaners includes:

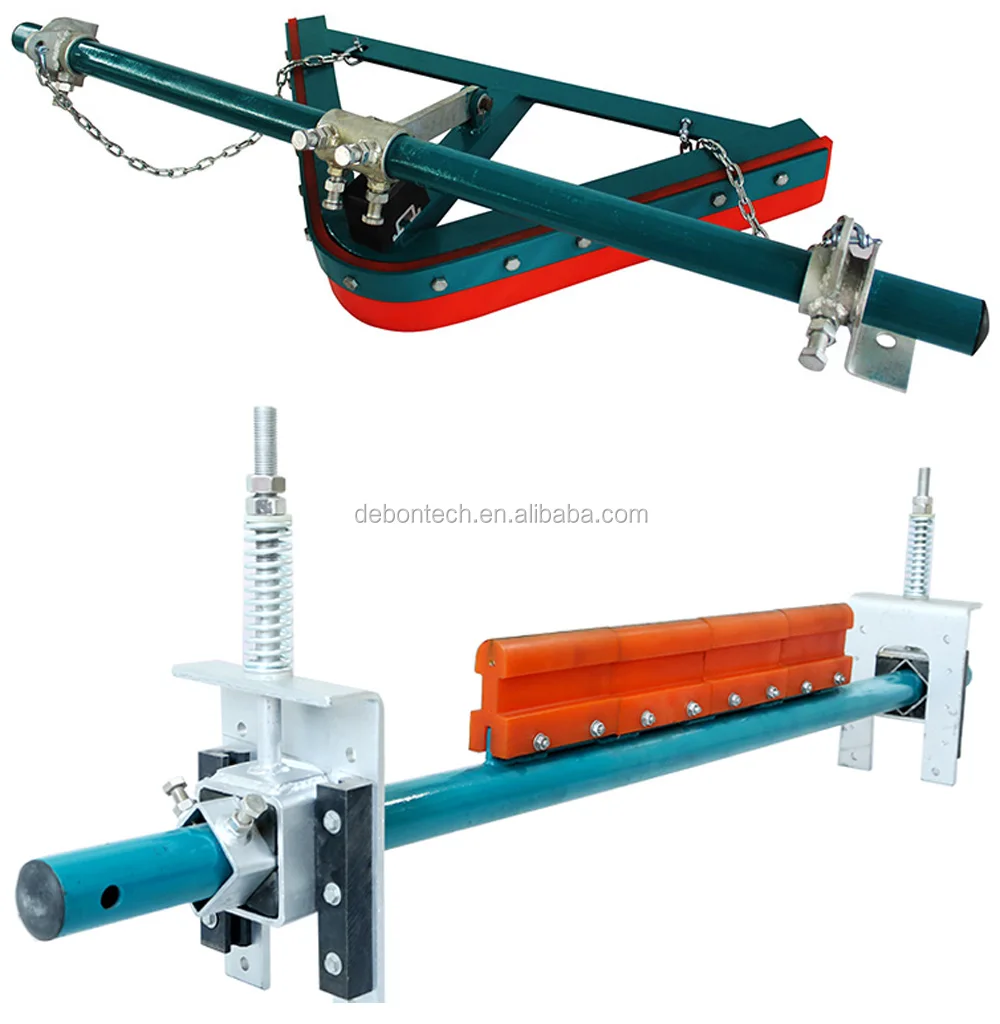

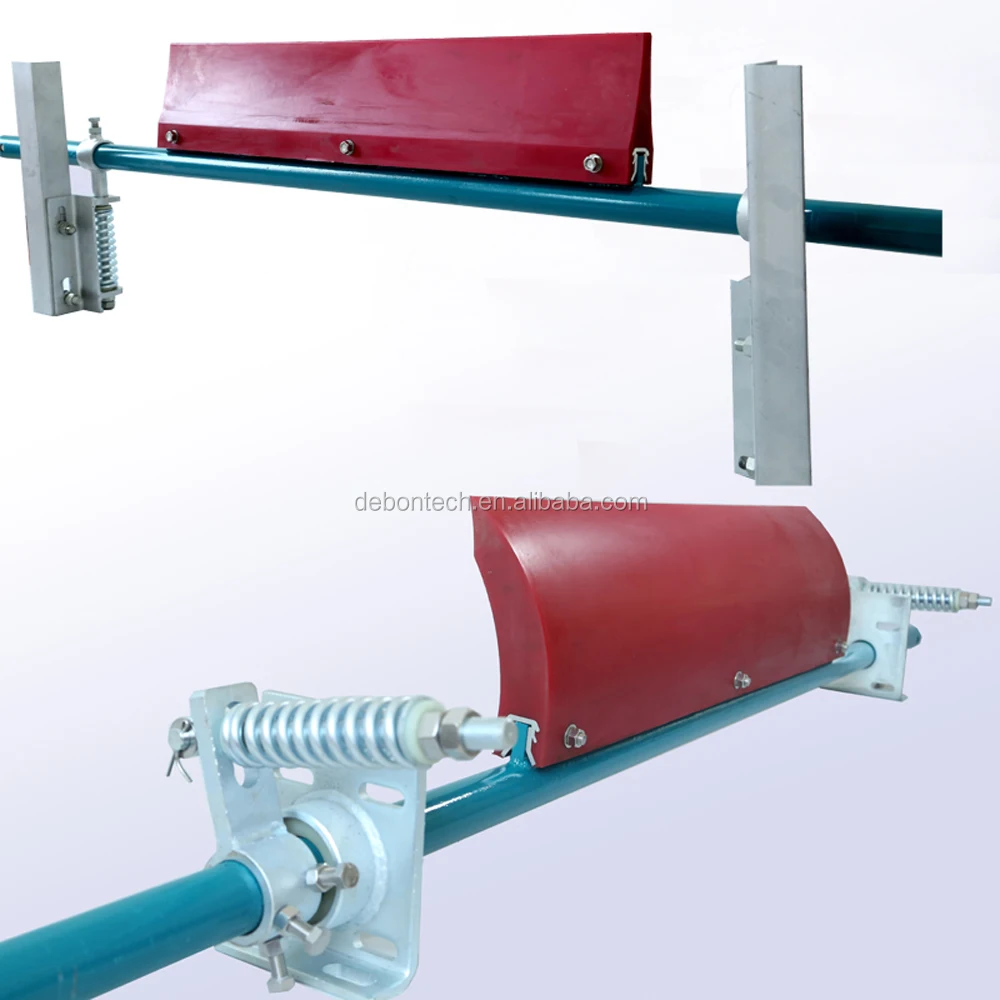

- Primary and secondary polyurethane belt scraper: heavy duty and standard duty
- H type and P type alloy belt cleaner
- Secondary PU & alloy belt cleaner

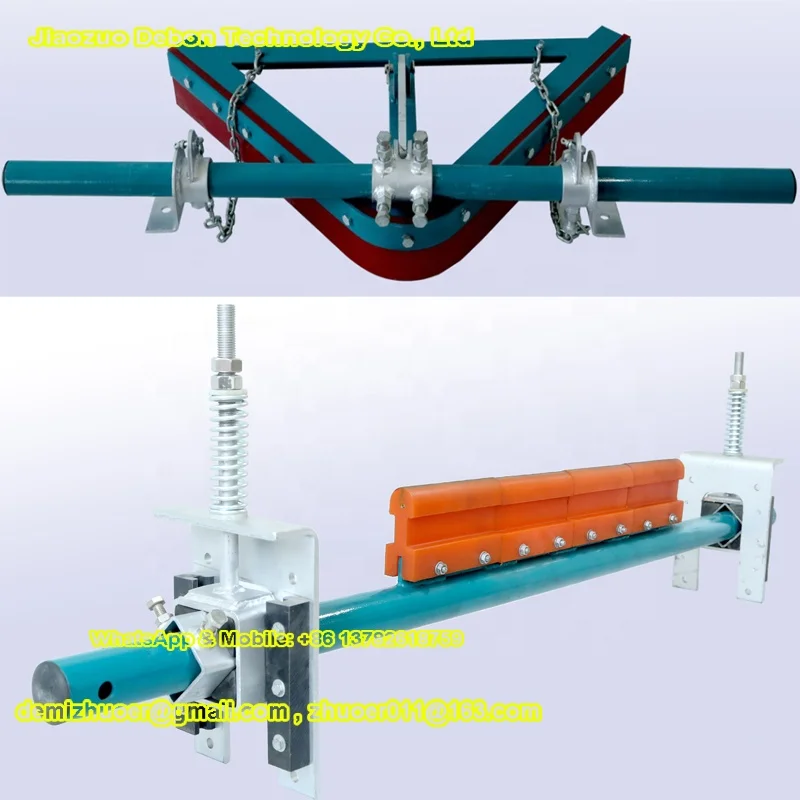

- Vee plough cleaner
- Brush belt cleaner

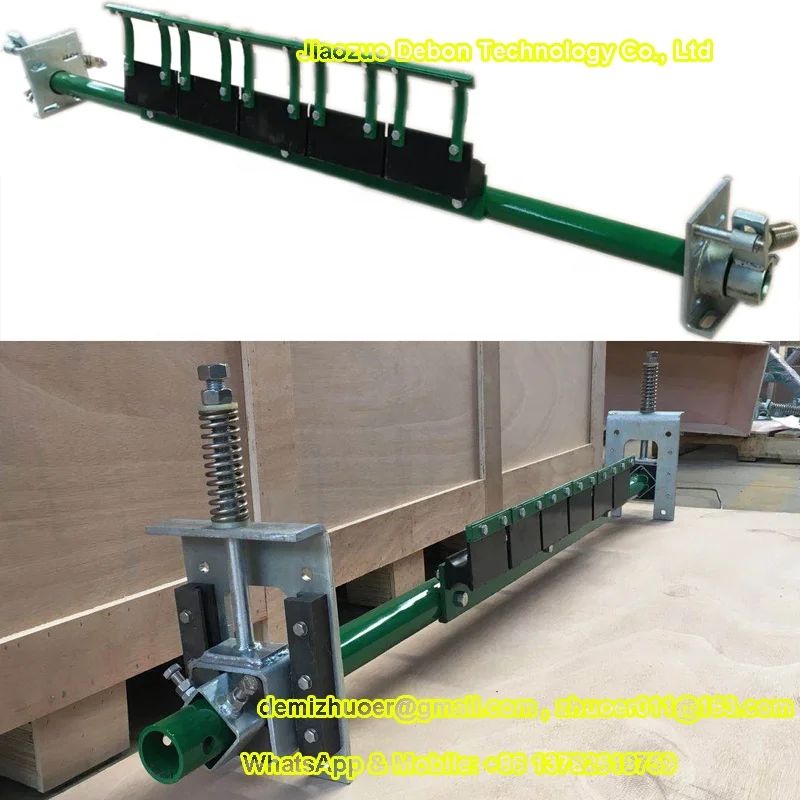

- Finger belt cleaner, etc.
Pictures:
Technical Data
Standard motor of our industrial spiral cylinder rotary conveyor brushes for belt cleaning roller brush
| Voltage | 380V AC/-10% |
| Power | 1.5 Kw |
| Output speed | 140 r/min |
| Trasmission ratio | 10i |
| Output torque | 88Nm |
| Lubricant oil | L-CKD |
Custom Size are also available
Advantage
Industrial spiral cylinder rotary conveyor brushes for belt cleaning roller brush Advantages:
1) 22-Year Manufacturer, rich experience ensure quality and consistency.
2) Customer feedback is very good: still new after working for 1 year
3) Superior brush bristle, high wear resistant
4) strict control in QC, advnaced facilities, mature production line
5) 9-Year exporter, we got very good feedback.Repeated orders from worldwide customers.
Company Information
Factory:
1) Over 22 Years experience of producing and developing, Debon Technology have become top 10 belt conveyor accessories factory in China
2) Export since 2009, export to over 45 countries, repeated orders from worldwide customers
3) We've been Alibaba 10 million e-businessman since 2013
4) Rich experience, mature production, strict QC ensure quality and consistency
Facilities:
Testing Room:
Main Products:
Belt Conveyor Accessories: belt cleaner, skirt board, wear liner, pulley lagging, impact bed, impact bar, etc
Wear Liner: ceramic rubber liner, rubber liner, polyurethane liner, ceramic polyurethane liner, etc
Belt Repair: conveyor belt stripper, repair strips, diamond patches, etc
Rubber and polyurethane products
