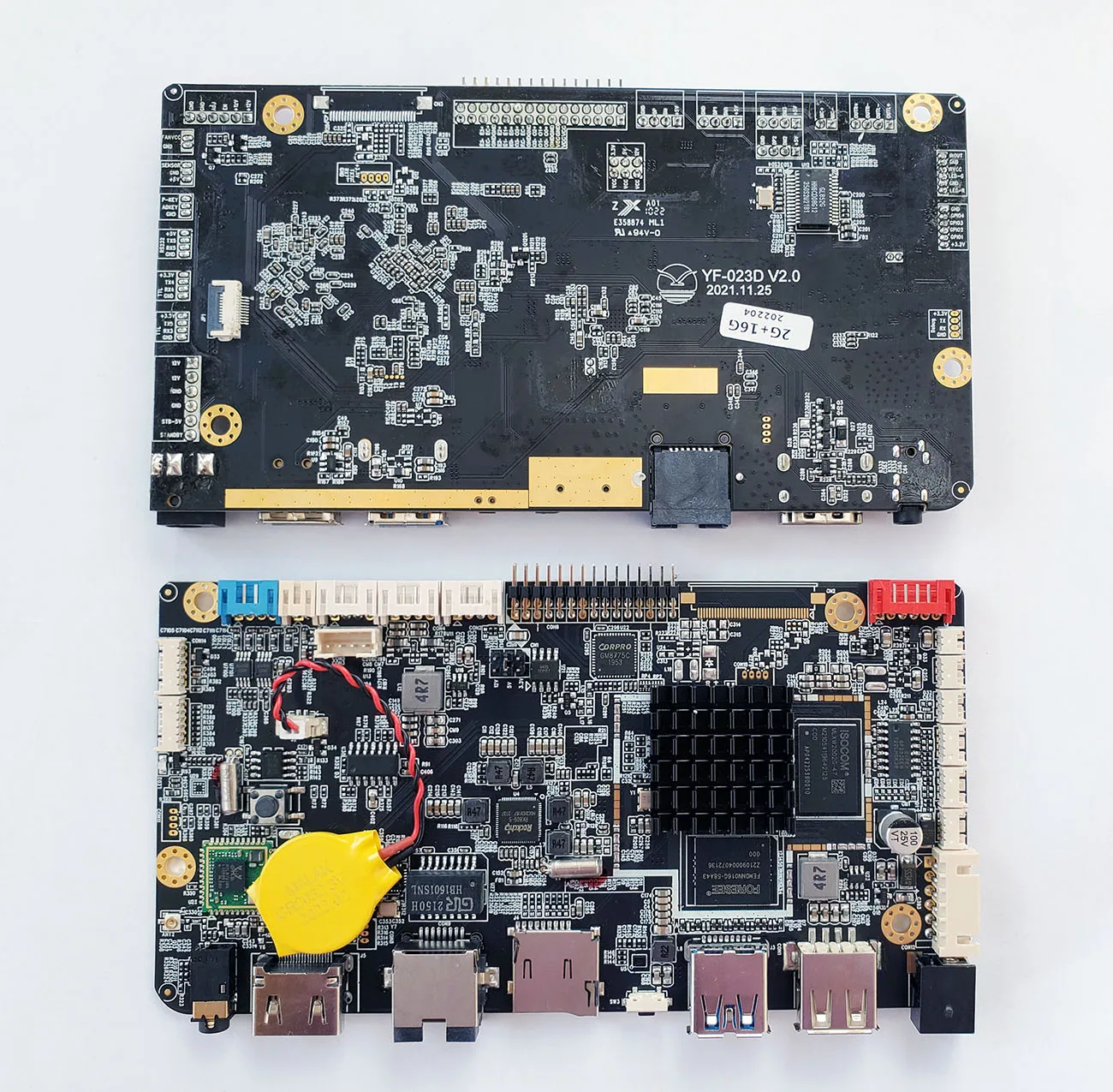

YF 023D RK3566 android Linux Debian Arm advertising digital sinage all in one 2GB 16GB development circuit mother board
- Category: >>>
- Supplier: CND Electronic Technology (shenzhen) Co. Ltd.
Share on (60872602431):
Product Overview
Description
Product Description
Contact US:
Whatsapp:+86 18682001573
Skype wechat: mariageng
Email: maria @cndlcd.com
Product Name: Android 11 Motherboard for Digital signage Display network play box, video advertising Machine,Kiosk, HMI Photo-frame Advertising Machine, dispenser
Model No.: YF-023D

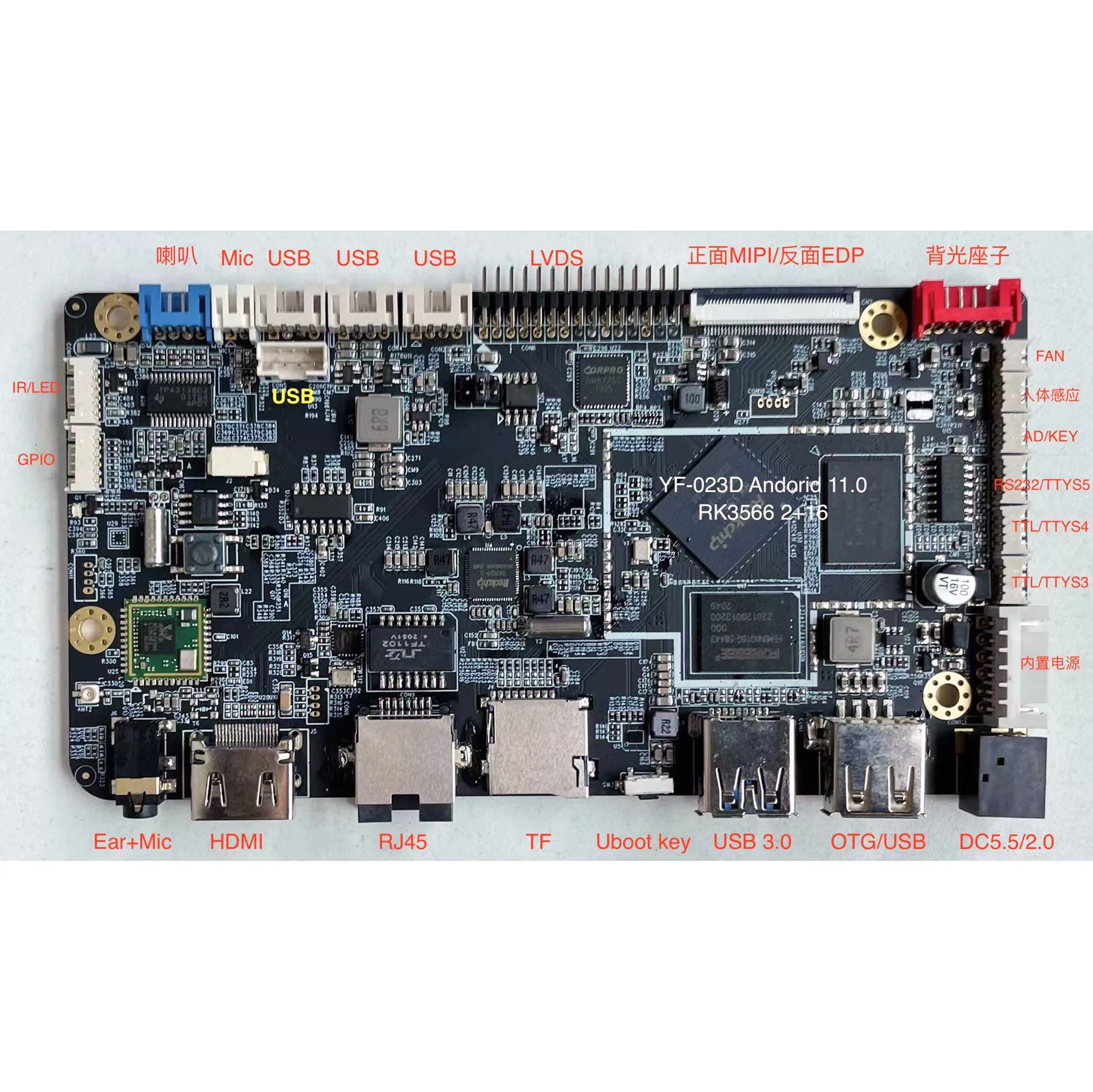

ROCKCHIP Android 11 mother board for Digital signage Display self-service terminal , Kiosk ,HMI
- mainchip: RK3566
- OS android 11.0
- built-in RS232*1 WAY
- HDMI-I output * 1 WAY
- USB 3.0* 1 WAY
- OTG USB * 1 WAY
- GPIO * 1 WAY
- TTL* 2 WAY
- RJ45
- eDP LVDS MIPI
- blue-tooth
Key feature
- High integration. Integrate USB / LVDS / Ethernet / HDM I / WIFI in one, simplify the whole
machine With SD card slot - High definition. Support 1080P / H.265 (4K2K) video decoding and various LVDS signal LCD
display / eDP signal interface - Built in power amplifier. Support dual channel 8R / 10W power amplifier.
- Rich interface. Support USB / serial port / GPIO / ADC interface expansion to meet
mainstream p eripherals on the market. - Complete functions. Support horizontal and vertical screen playback, video split screen,
scrolling subtitles, timer switch, USB data import and other functions. - Convenient management: humanized playlist making software, easy to manage and control
advertising. - Play log, easy to understand the playback situation.
Hardware Specification | |
CPU | RK3566 |
RAM | 2G DDR3 (optional 2G) |
ROM | EMMC 16G standard |
Resolution | Up to 1080P/H.265(4K2K) |
Operating System | Android 11 |
Play mode | Support multiple playback modes such as loop, timing, insertion, etc. |
Network | RJ45 Ethernet, support WiFi, wireless peripheral expansion |
Video format | Support wmv,avi,flv,rm,rmvb,mpeg ,ts,H.265,mp4 |
Picture format | Support BMP,JPEG,PNG,GIF, etc |
USB interface | 4 x USB2.0 HOST, 1xUSB3.0 |
Ethernet | 1way,10M/100M Adaptive Ethernet |
LVDS output | 1 way, to drive 50/HZ LCD panel |
eDP output | 1 way, |
GPIO | 1 way |
RS232 | 1 way |
Mipi output | 1way |
HDM I output | 1way support 1080P output |
Audio output | 8R/10W*2 loudspeaker |
RTC clock | support |
Watch dog | support |
Timer on/off | support |
System update | T card / internet |
