Yeacomm YF P11K Outdoor3G 4G LTE Wireless CPE Router for Home/Office Support 32

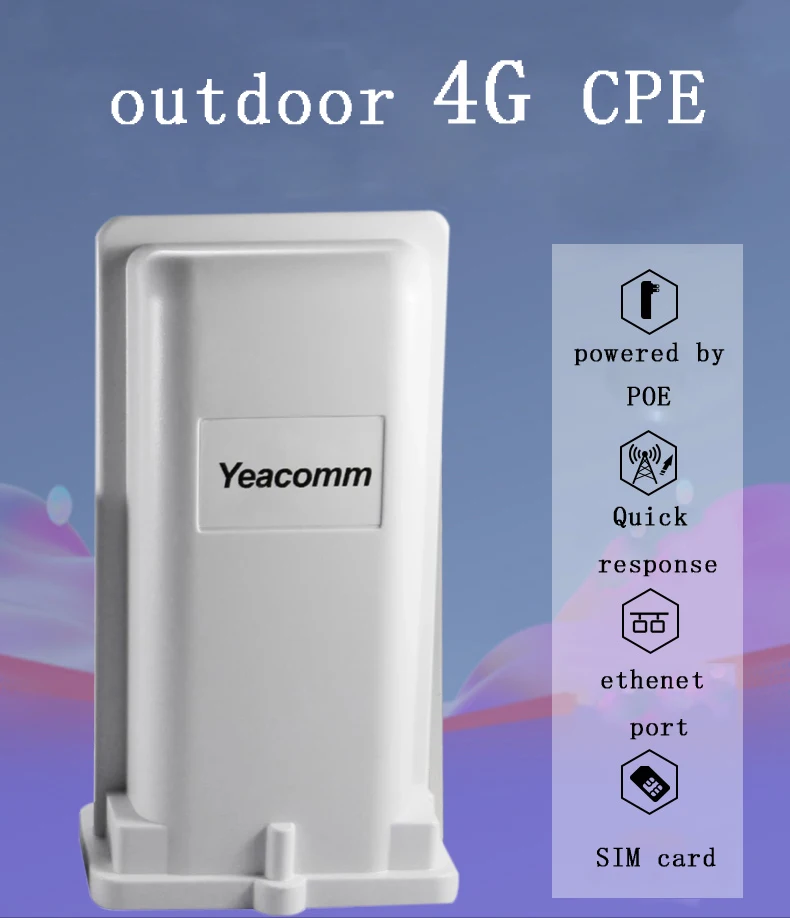

Yeacomm 4G WIFI KIT is divided into two parts (an outdoor LTE unit with sim card slot and an indoor unit with WIFI function.)

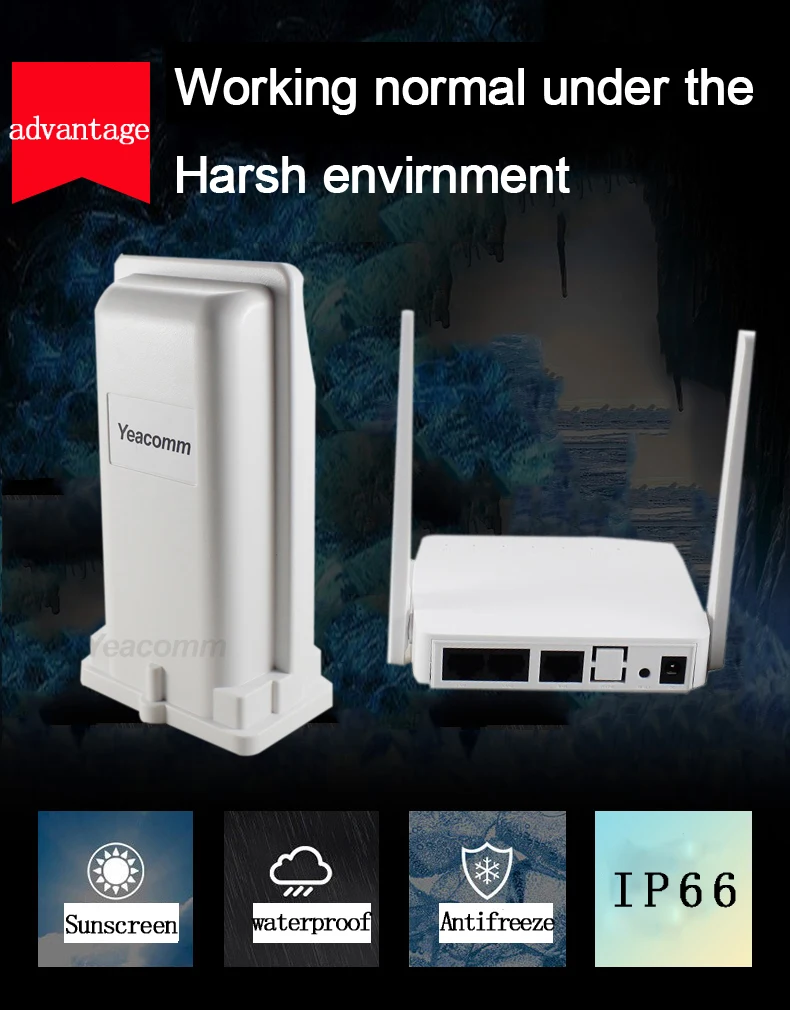

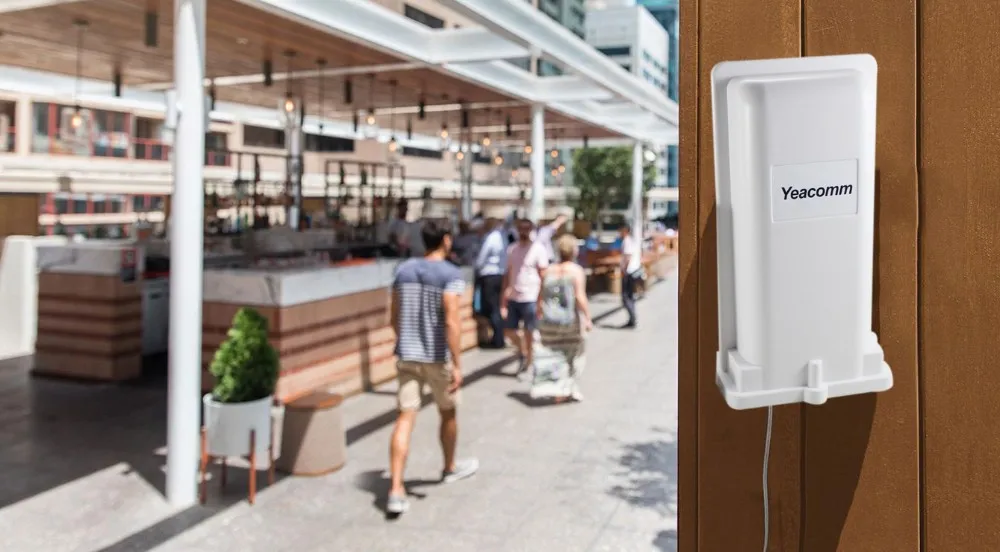

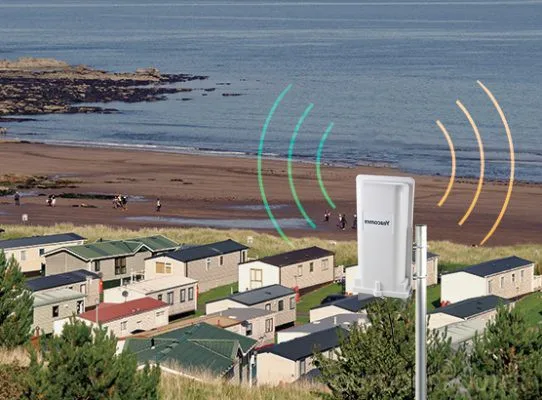

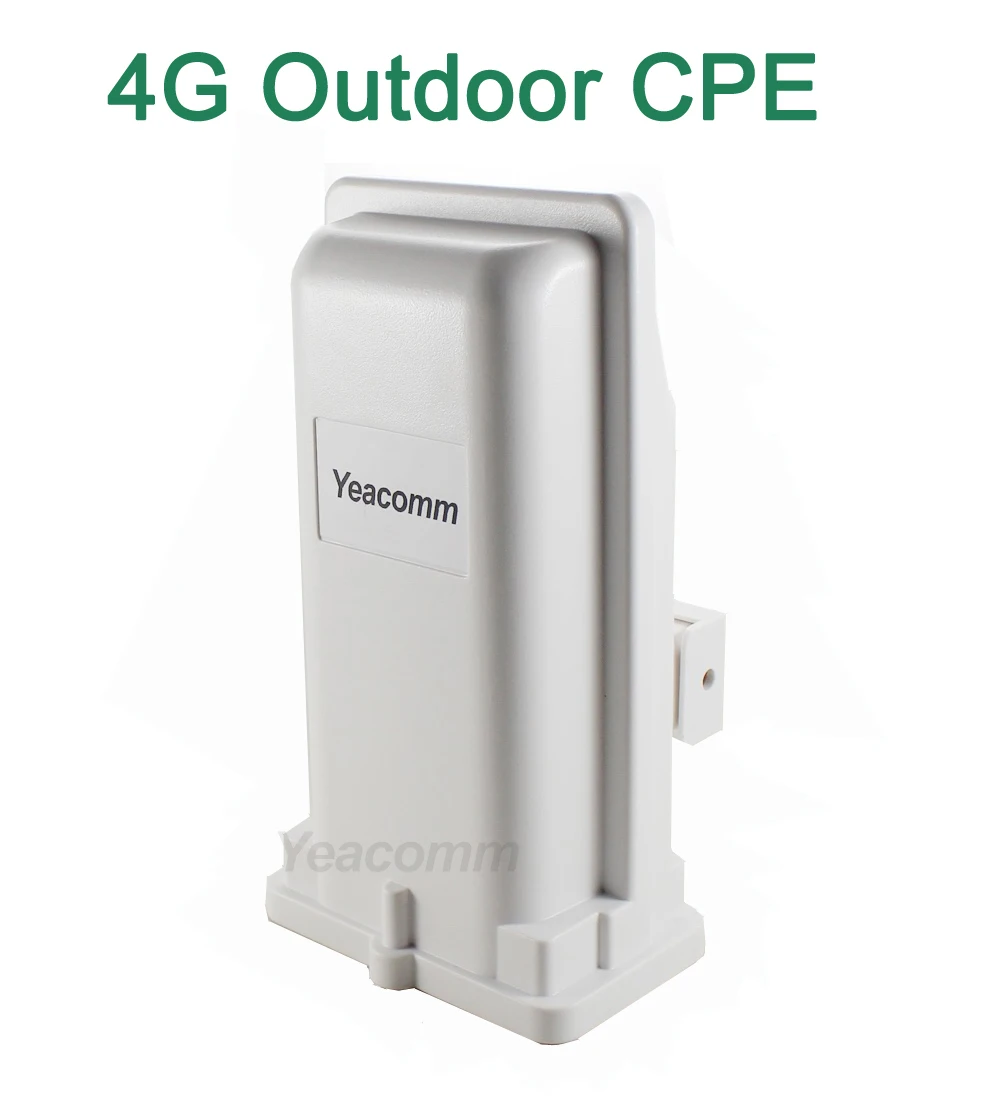

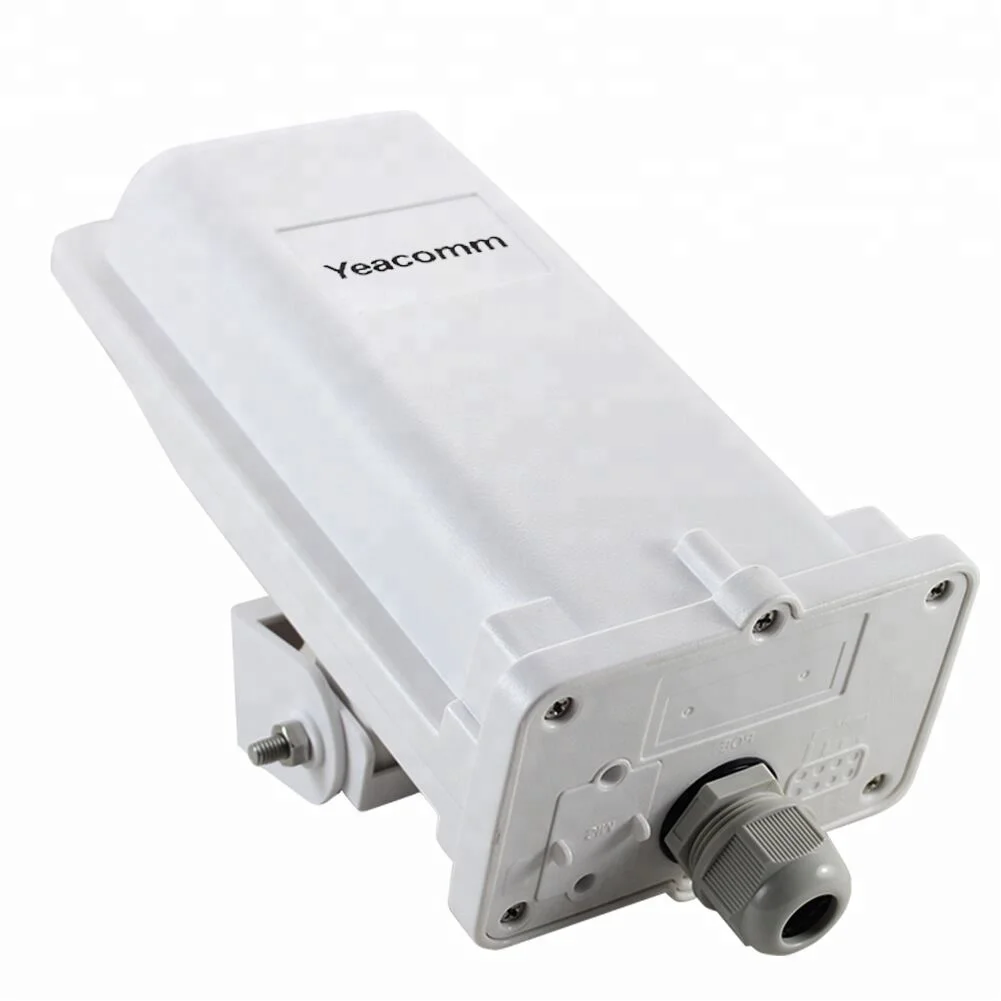

The outdoor unit designed with built-in high gain antenna to achieve LTE signal amplification. The water-proof and lightning-proof casing helps the unit to be good used at outdoors.

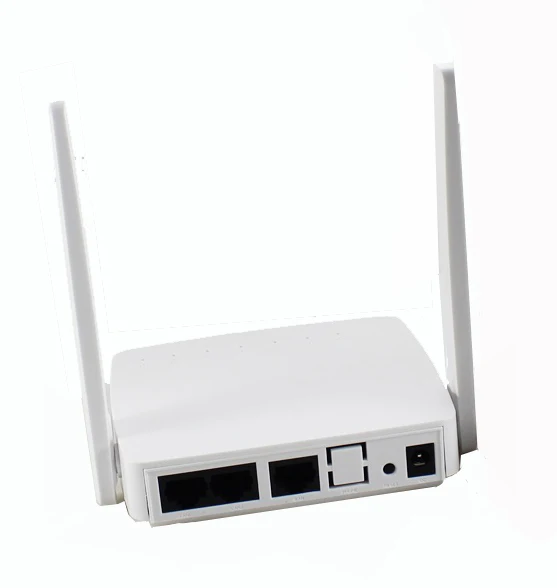

The indoor unit is placed in the room. It is just like a normal wireless router with 2 Lan ports and WIFI.

These 2 parts connected By Category 5 cable. The indoor unit supply power to the outdoor unit through POE, while the indoor unit provides two Ethernet ports and WIFI signal.

Specification

Outdoor unit
Frequency	FDD: B1/B2/B3/B5/B7/B8 /B20,B4/B12/B17/B28 (Optional) TDD Band 38/40, 38/39/40/41, (optional) WCDMA: 900/2100Mhz, 850/900/1900/2100Mhz(Optional) GSM: 850/900/1800/1900Mhz Frequency can be customized according to your requirements
Speed(CAT4) Max	FDD - LTE Downlink:150Mbps, Uplink:50Mbps TDD-LTE: Downlink:150Mbps, Uplink:50Mbps HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) HSUPA: 5.76Mbps (upload speed)/ HSDPA: 7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed)
Chipset model	ATHEROS 9341
Support	DDNS,  Upnp,  NAT, DHCP , SMS Function
VPN	Support L2TP
Firewall	Files filter
	Address filter
	Virtual Server
	System Security
	DMZ Settings
	Remote management
Lan	1 x 10/100 Mbps Ethernet port(RJ45),
Indicator	"Power", "Sim", "ETH", "Run" and "Signal"
Antenna	Cellular: high gain Internal 8DBi

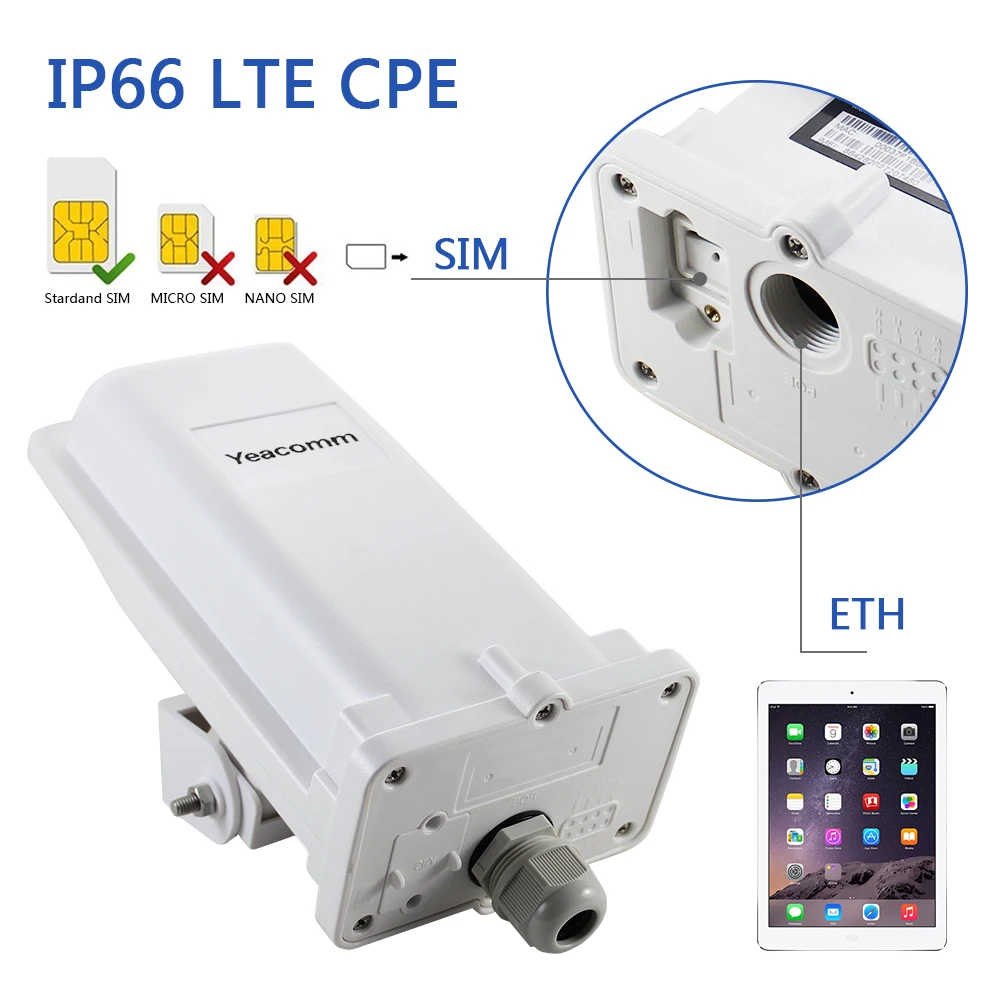

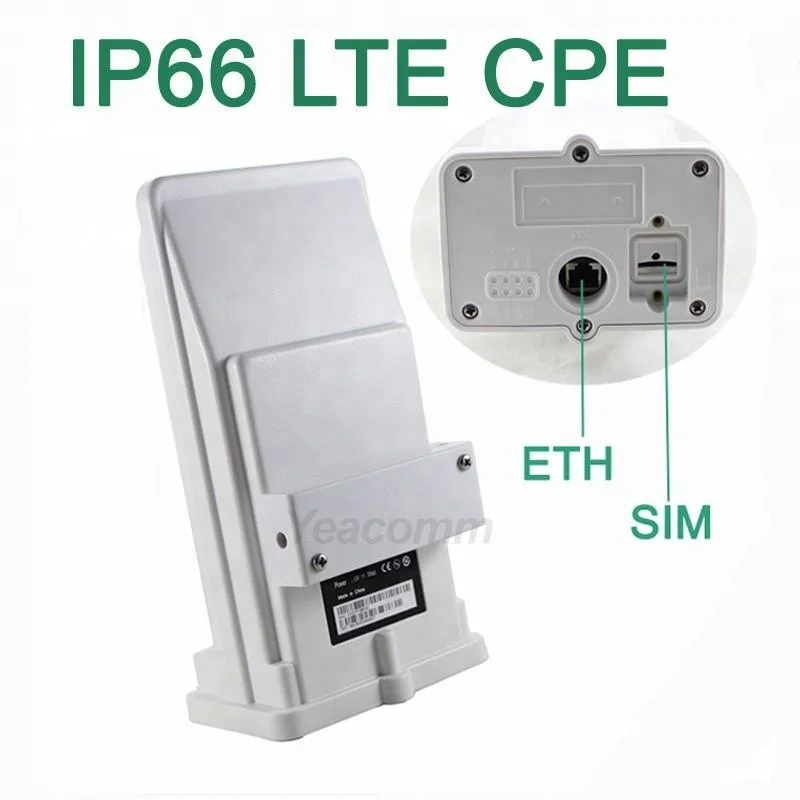

SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	POE , through RJ45 port
Reset	Restore the router to its original factory default settings
Standard Power	Input:100V~240V, 50Hz~60Hz Output:15V DC±10% Output: 500mA
Working temperature	-30~60℃
Humidity	≤95%
Dimension	252 x 112 x 58mm
weight	about 560g
Water proof and dust proof	IP66

Indoor unit
Wan	1 x 10/100 Mbps wan port(RJ45)
Lan	2 x 10/100 Mbps Ethernet port(RJ45)
Antenna	2 x WIFI antenna
Power	1 x DC power adapter , DC15V/1A
Reset	Restore the router to its original factory default setting

Products Detail

Features

1.POE Support

2.IP66 secure design

3.Built-in high gain antenna

4.Support 4g/3g/2g

5.Support VPN L2TP

6.Support VPN L2TP

7.Support TR069 mananement

8.Support WIFI IEEE802.11b/g/n
