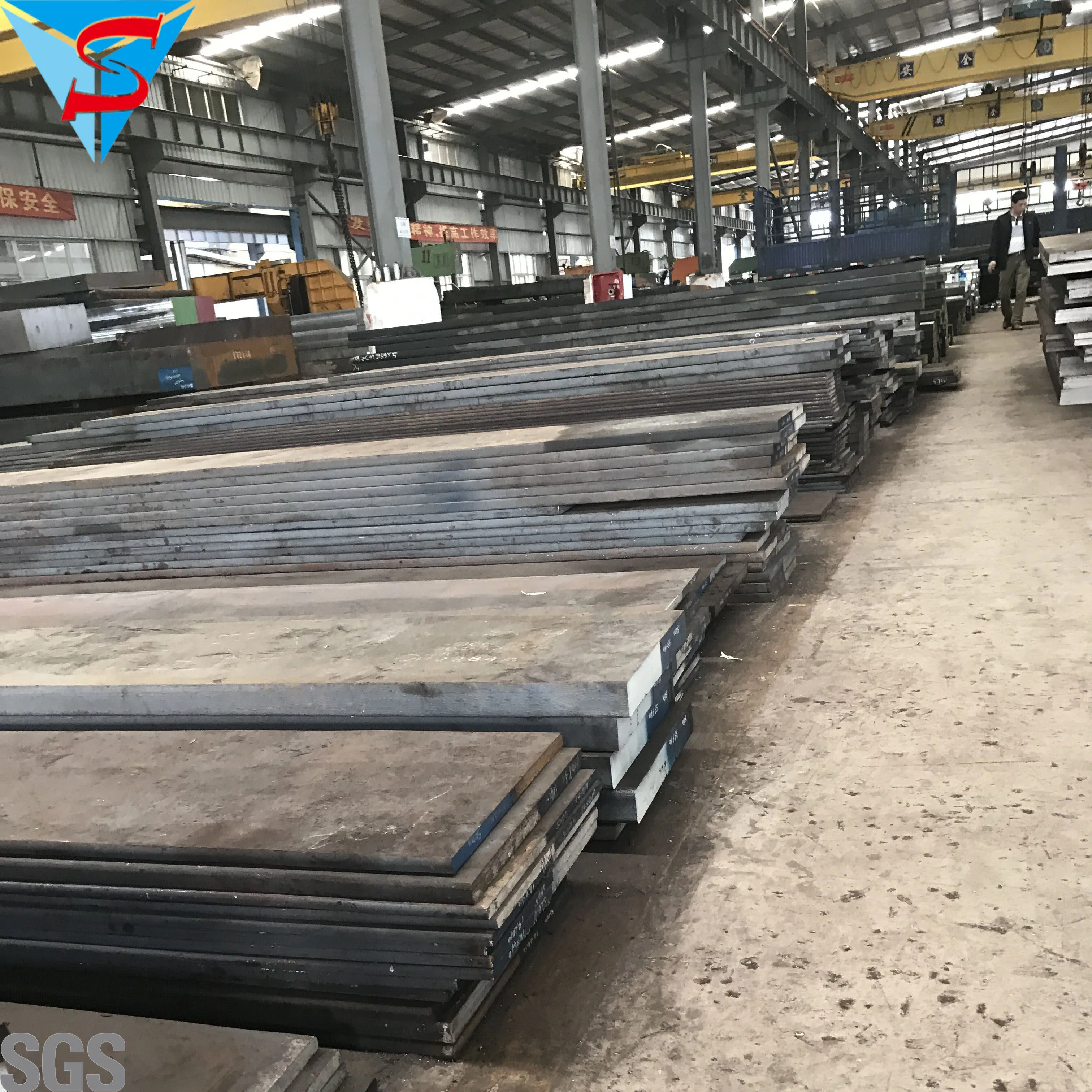

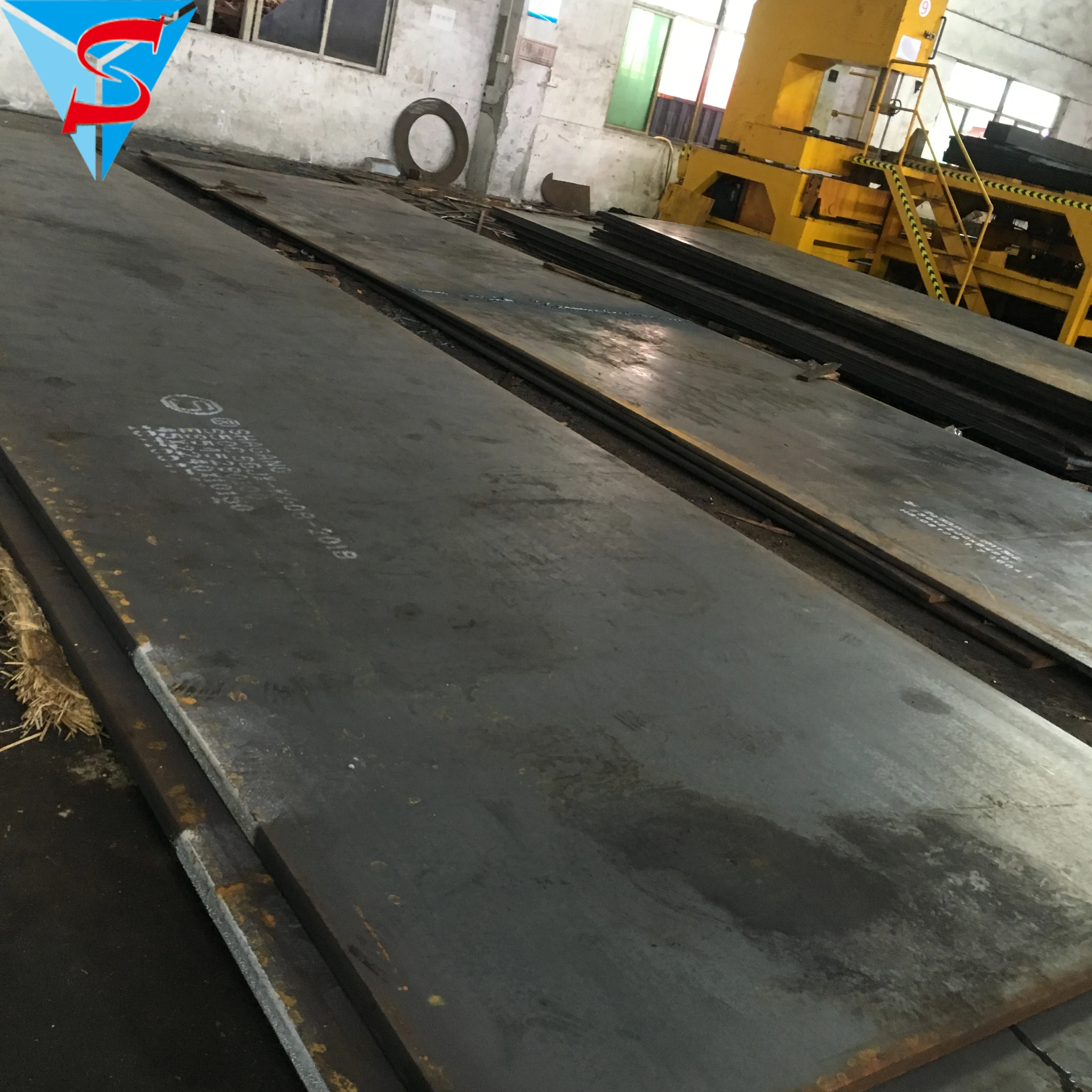

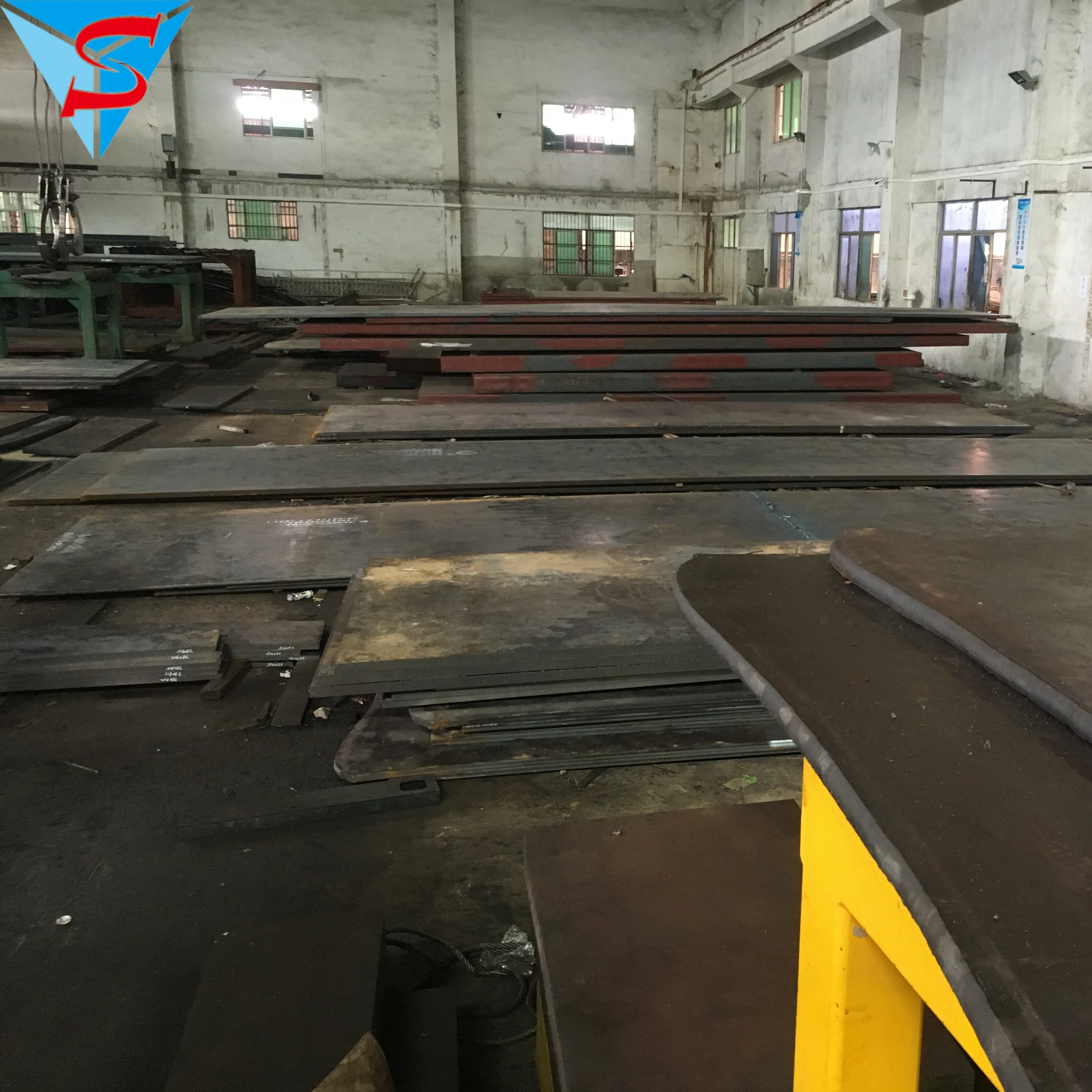

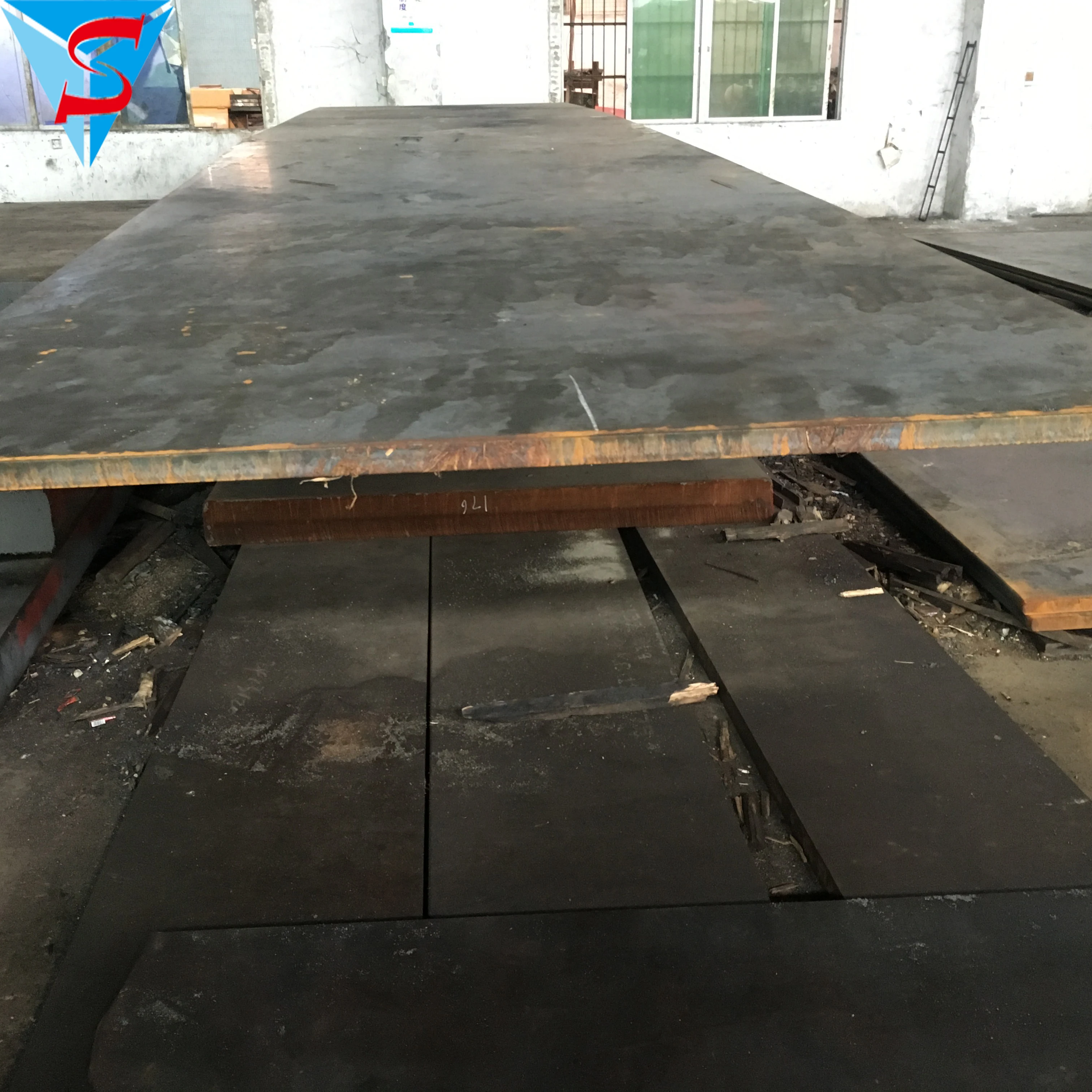

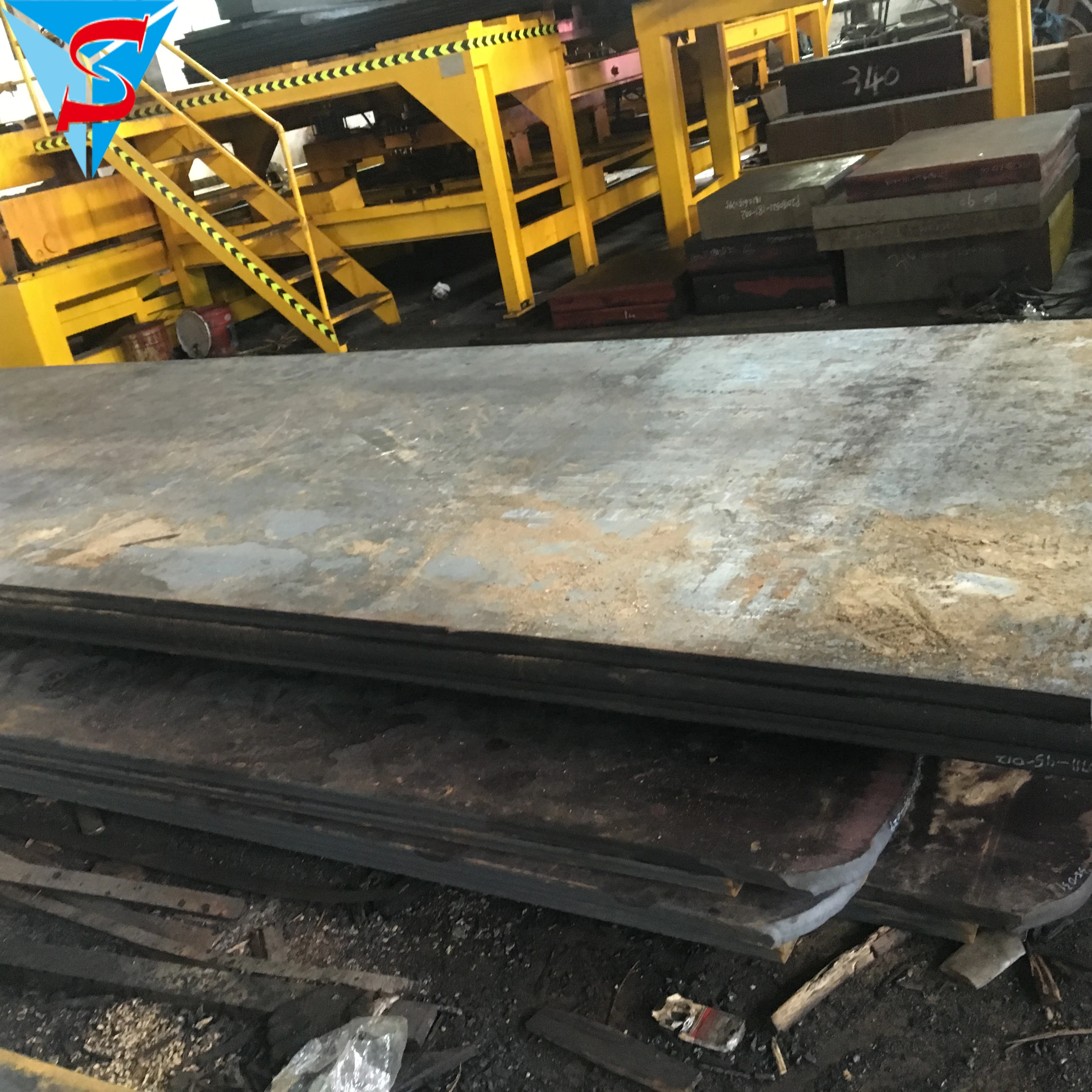

steel plates flat bar h13 tool steel price per kg

Product Overview

Description

steel plates flat bar h13 tool steel price per kg



Chemical composition

C	Si	Mn	P	S	Cu
0.32-0.42	0.80-1.20	0.20-0.50	≤0.030	≤0.030	-



Equivalent Steel Grade

DIN	ASTM	GB	EN / ISO	JIS	BS
1.2344	H13	4Cr5MoSiV1		SKD61



Introduction:
Chromium hot-work tool steels are classified as group H steels by the AISI classification system. This series of steels start from H1 to H19.

H13 chromium hot-work steel is widely used in hot and cold work tooling applications. Due to its excellent combination of high toughness and fatigue resistance H13 is used more than any other tool steel in tooling applications.



Fabrication and Heat Treatment:
Machinability:
The machinability rate of H13 tool steels is nearly 75% of that of the W group tool steels.

Forming:
H13 tool steels are formed by using conventional methods.

Welding:
H13 tool steels are readily weldable.

Heat Treatment:
H13 tool steels are preheated to 816°C (1500°F). Then the steels are directly heated by increasing the temperature to 1010°C (1850°F) followed by holding for 15 to 40 mins. The steels are then air-quenched.

Forging:
H13 tool steels are forged at 1079°C (1975°F). For this type of steels, forging below 898°C (1650°F) is not preferable.

Cold Working:
Cold working may be carried out on H13 tool steels using conventional methods.

Annealing:
H13 tool steels are annealed at 871°C (1600°F) and slowly cooled at 4°C (40°F) in the furnace.

Tempering:
Tempering is carried out in H13 tool steels from 538 to 649°C (1000 to 1200°F) to obtain Rockwell C hardness of 53 to 38. Double tempering can also be performed in these steels for every one hour at the preferred tempering temperature.



Applications:
H13 tool steels are suitable for forming extrusion dies.
