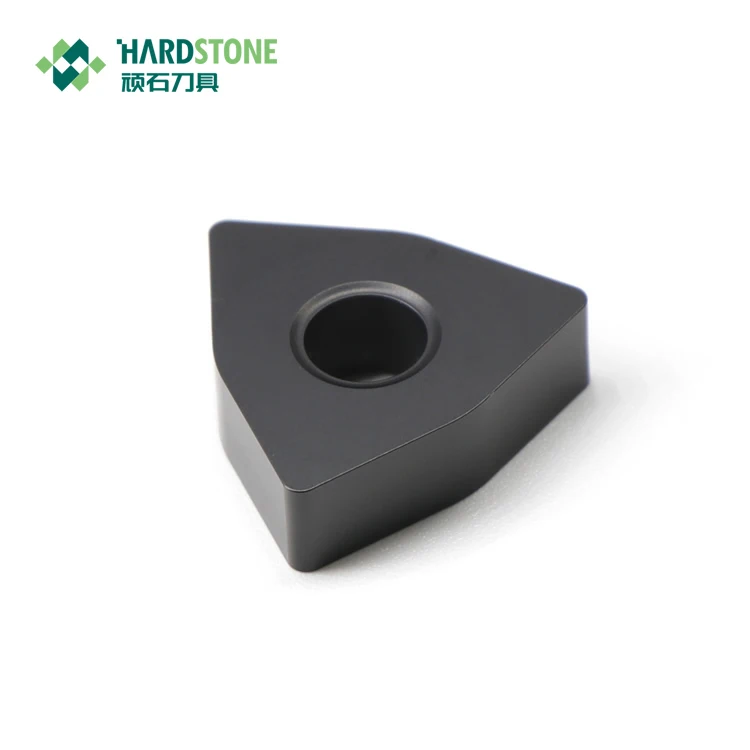

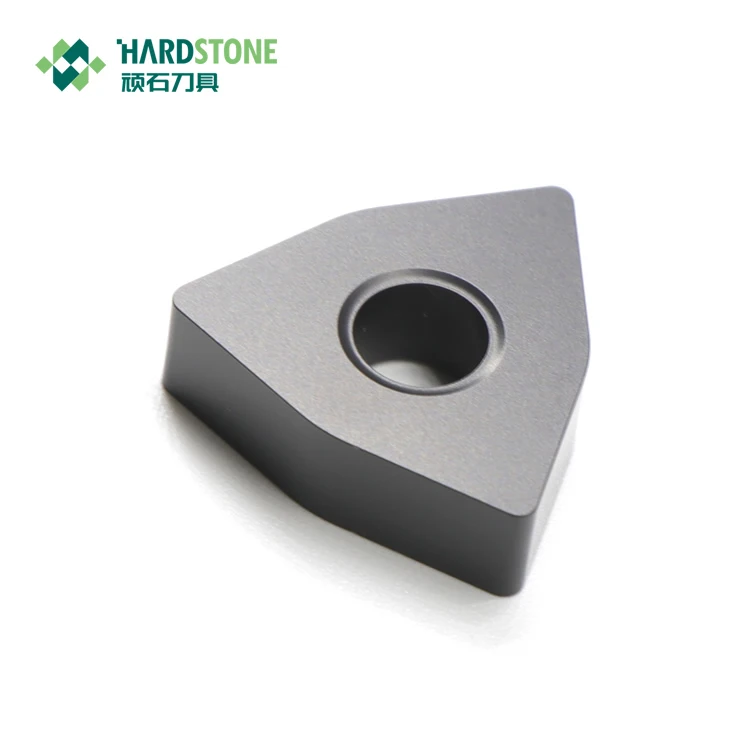

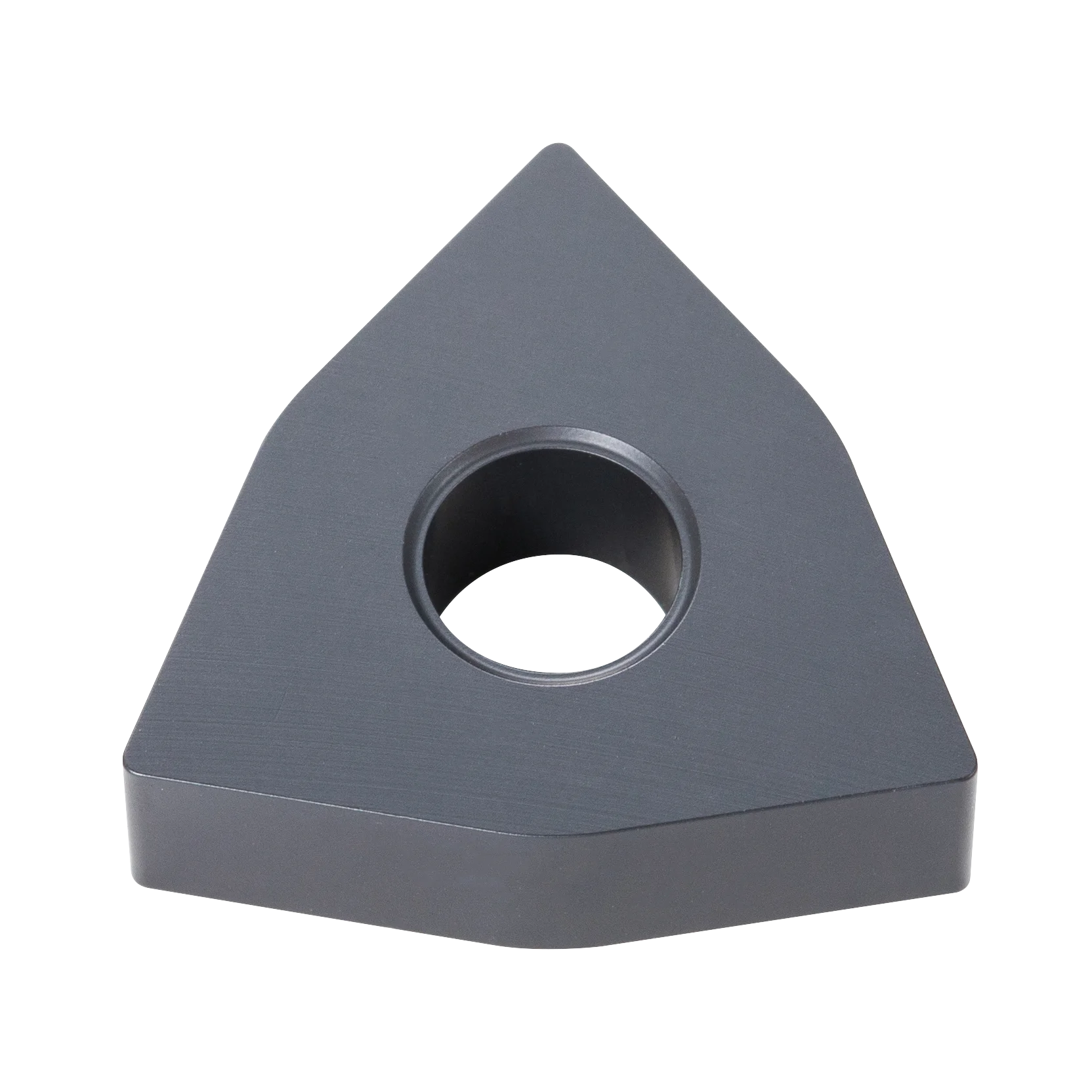

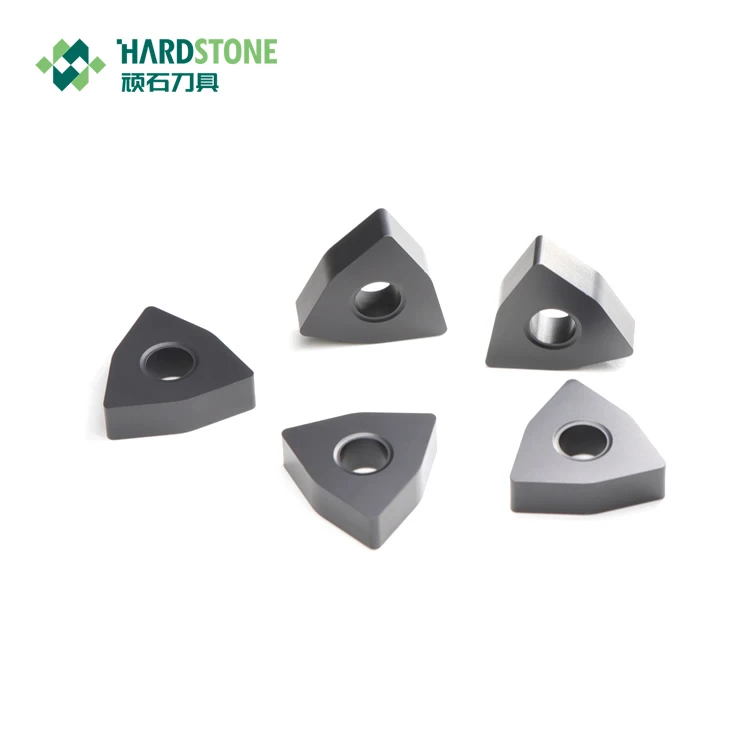

WNMA080408 WS6115 Cemented Carbide Inserts For Cast Iron Machining hardstone carbide insert

Product Overview

Description

WNMA080408 WS6115 Cemented Carbide Inserts For Cast Iron Machining

• Coating:Ultra-fine grain coating technology provides better wear resistance and toughness.


• Substrate:inserts shows a good capability against plastic deformation and good capability of red hardness.


• Application fields:Precise mould,automobile,aerospace,rail.


• Scope:Cemented carbide inserts for turning,milling,grooving,drilling, and aluminium machining.





Designation	Dimensions(mm)					Grade	Cutting parameters	Matched tools
	L	IC	S	Φd	Re	CVD
						WS6115
WNMA060404	6.2	9.525	4.76	3.81	0.4	√	ap:1-4.5mm fn:0.15-0.25mm/rev vc:180-550m/min	ISO tool holder
WNMA060408	6.1	9.525	4.76	3.81	0.8	√	ap:1-4.5mm fn:0.15-0.4mm/rev vc:180-550m/min	ISO tool holder
WNMA080404	8.7	12.7	4.76	5.16	0.4	√	ap:1-4.5mm fn:0.15-0.55mm/rev vc:180-550m/min	ISO tool holder
WNMA080408	8.7	12.7	4.76	5.16	0.8	√	ap:1-4.5mm fn:0.15-0.25mm/rev vc:180-550m/min	ISO tool holder
WNMA080412	8.7	12.7	4.76	5.16	1.2	√	ap:1-4.5mm fn:0.15-0.4mm/rev vc:180-550m/min	ISO tool holder
WNMA080416	8.7	12.7	4.76	5.16	1.6	√	ap:1-4.5mm fn:0.15-0.65mm/rev vc:180-550m/min	ISO tool holder
WNMG060404	6.2	9.525	4.76	3.81	0.4	√	ap:1-4.5mm fn:0.15-0.25mm/rev vc:180-550m/min	ISO tool holder
WNMG060408	6.1	9.525	4.76	3.81	0.8	√	ap:1-4.5mm fn:0.15-0.4mm/rev vc:180-550m/min	ISO tool holder
WNMG080404	8.7	12.7	4.76	5.16	0.4	√	ap:1-4.5mm fn:0.15-0.25mm/rev vc:180-550m/min	ISO tool holder
WNMG080408	8.7	12.7	4.76	5.16	0.8	√	ap:1-4.5mm fn:0.15-0.4mm/rev vc:180-550m/min	ISO tool holder
WNMG080412	8.7	12.7	4.76	5.16	1.2	√	ap:1-4.5mm fn:0.15-0.55mm/rev vc:180-550m/min	ISO tool holder
