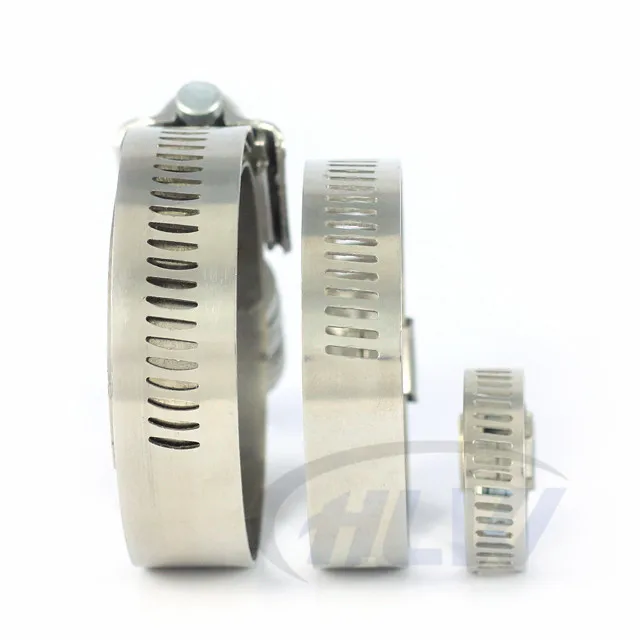

AMERICAN TYPE Worm Gear hose clamps Perforated band SAE J 1508 Standard

Product Overview

Description

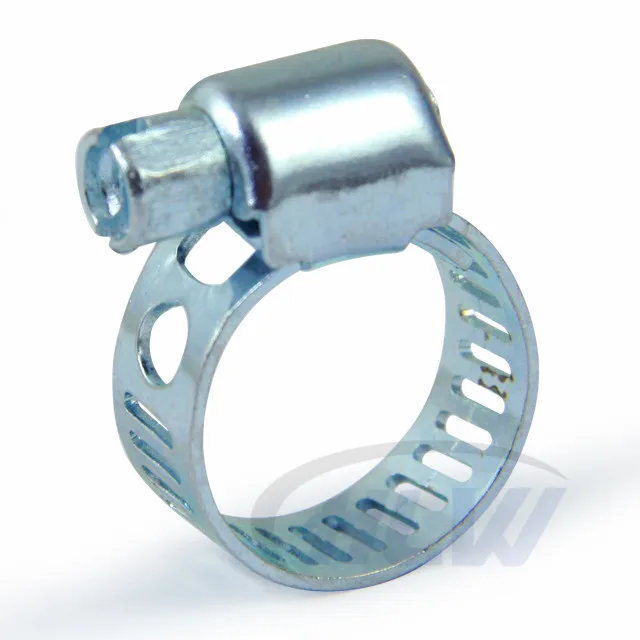

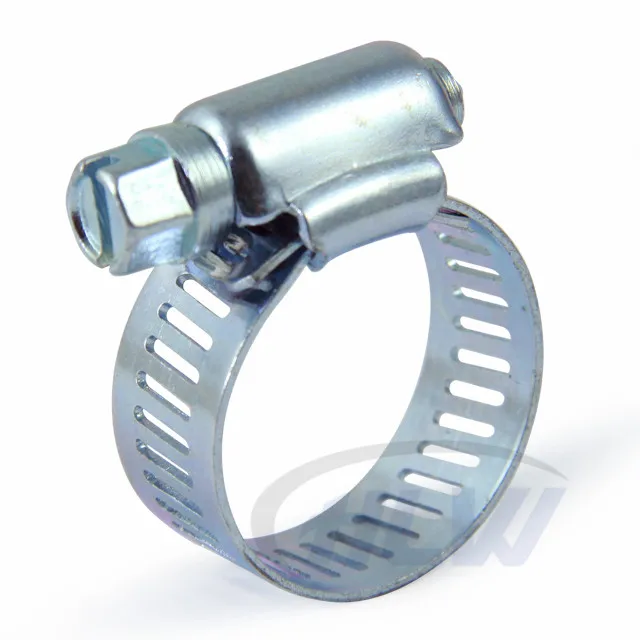

Micro-Gear clamps are tiny, tough and precision-engineered to use in small hose applications including emission control, fuel lines vacuum hoses. Slim, 5/16″ bands and low profile housings allow installation in and confined areas.1/2″ Hy-Gear clamps are suitable for most common household and automotive applications. The bands have clean punched rectangular  perforations that hold strong and connect easily.



SAE Size	Min (in)	Max (in)	Min (mm)	Max (mm)	Band (mm)
4	5/16	5/8	8	16	8
5	5/16	3/4	8	19	8
6	5/16	7/8	8	22	8
8	7/16	1	11	25	8
10	1/2	1-1/16	13	27	8
12	9/16	1-1/4	14	32	8
6	3/8	7/8	10	22	12.7
8	7/16	1	11	25	12.7
10	1/2	1-1/16	13	27	12.7
12	1/2	1-1/4	13	32	12.7
16	11/16	1-1/2	18	38	12.7
20	3/4	1-3/4	19	44	12.7
24	1	2	25	51	12.7
28	1-1/4	2-1/4	32	57	12.7
32	1-1/2	2-1/2	38	63	12.7
36	3/4	2-3/4	19	70	12.7
40	1	3	26	76	12.7
44	1-1/4	3-1/4	32	82	12.7
48	1-1/2	3-1/2	38	89	12.7
52	1-3/4	3-3/4	44	95	12.7
56	2	4	51	101	12.7
60	2-1/4	4-1/4	57	108	12.7
64	2-1/2	4-1/2	64	114	12.7
72	3	5	76	127	12.7
80	3-1/2	5-1/2	89	140	12.7
88	4	6	102	152	12.7
96	4-1/2	6-1/2	114	165	12.7
104	5	7	127	178	12.7



Matertial NO.:

W1:Zinc plated mild steel throughout.

W2:Band and housing in stailess steel EN 1.4372 (AISI 201) and zinc plated screw.

W4:Stainless steel EN 1.4372 (AISI 201) / EN 1.4319 (AISI 301) / EN 1.4301 (AISI 304) throughout .

W5:Stainless steel EN 1.4401(AISI 316)  throughout.



Option:

1. 9/16 (14.2mm) band is available.

2. Large sizes are available.
