Product Overview

Description

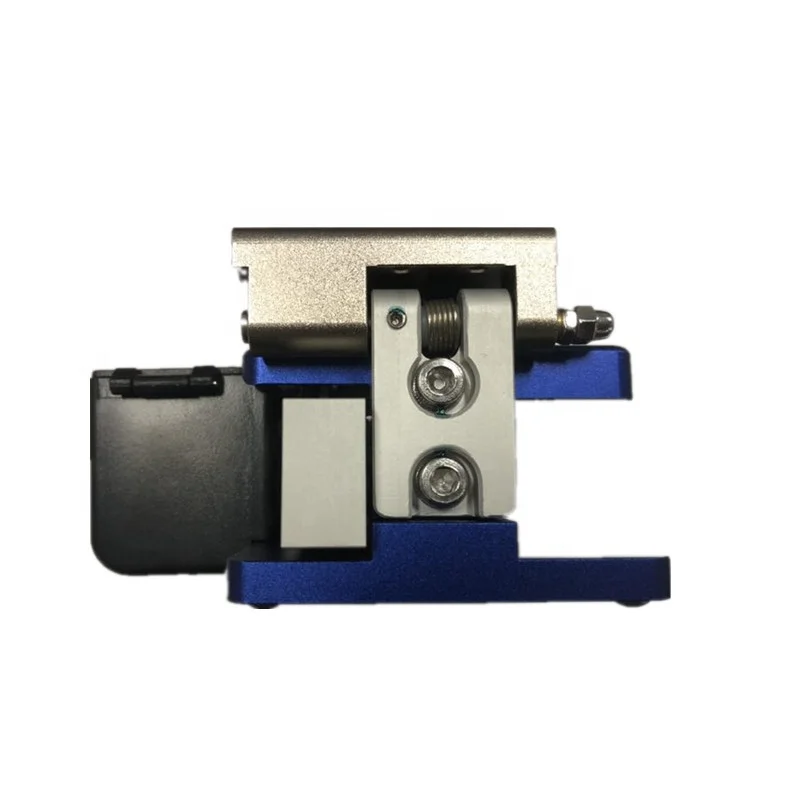

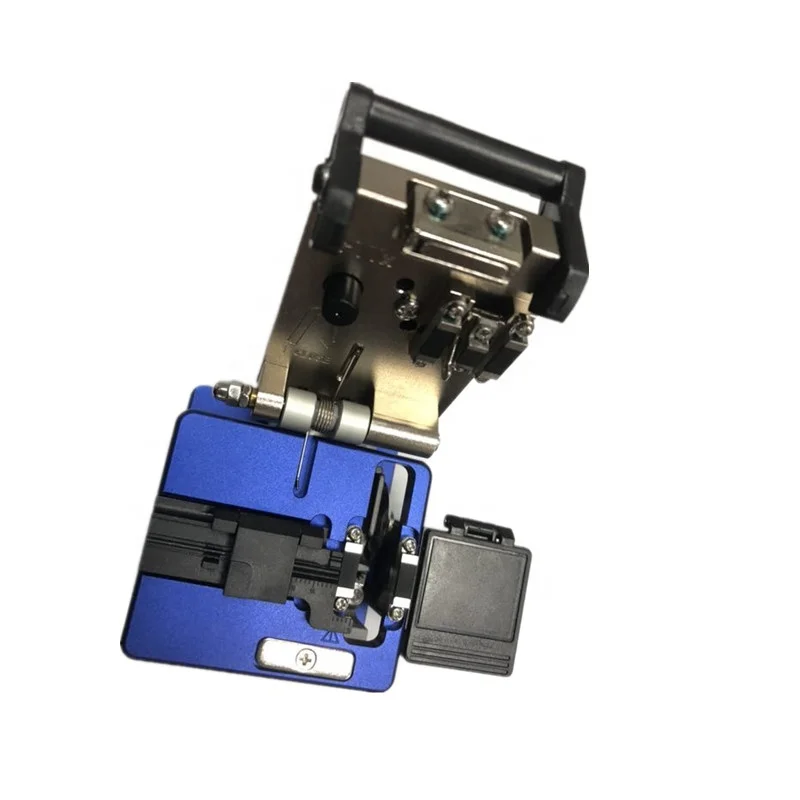

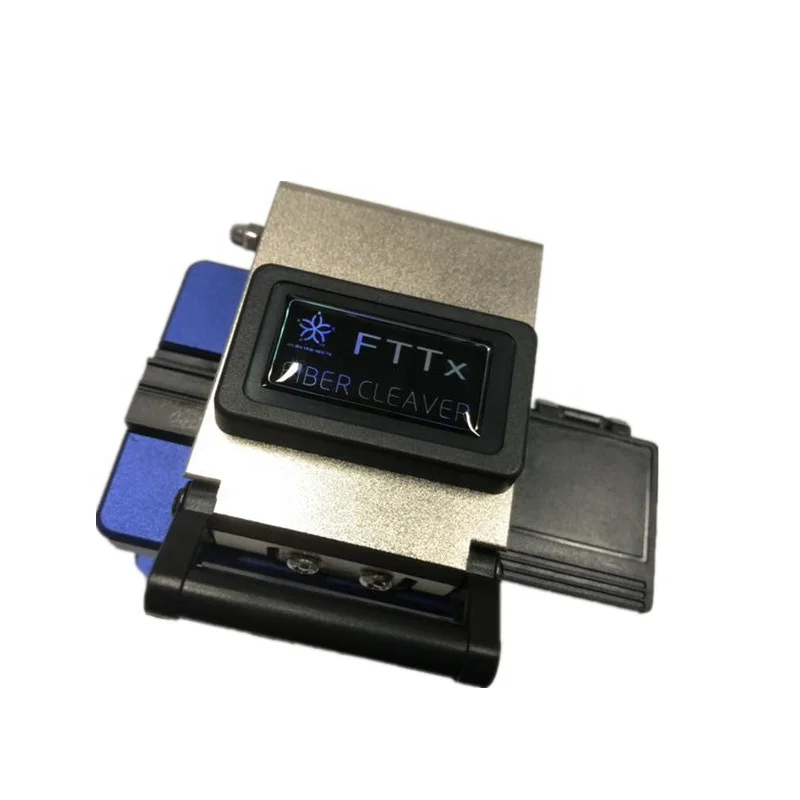

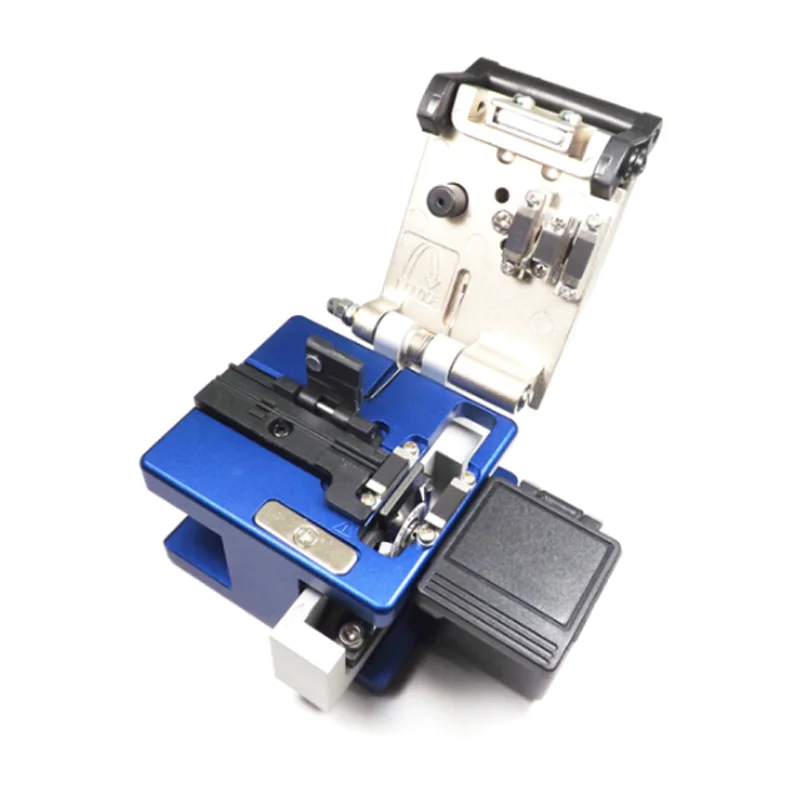

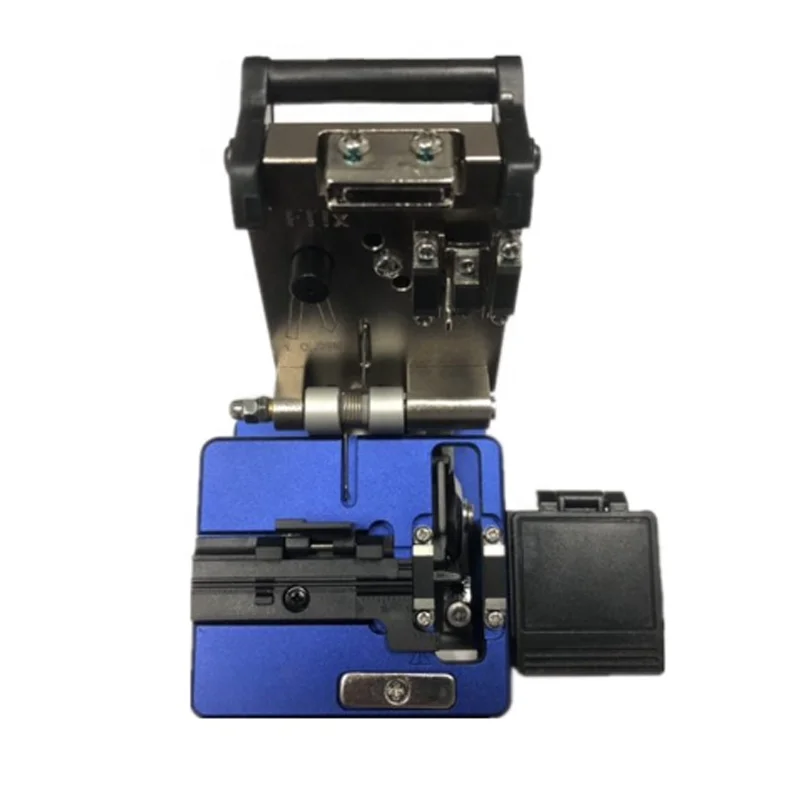

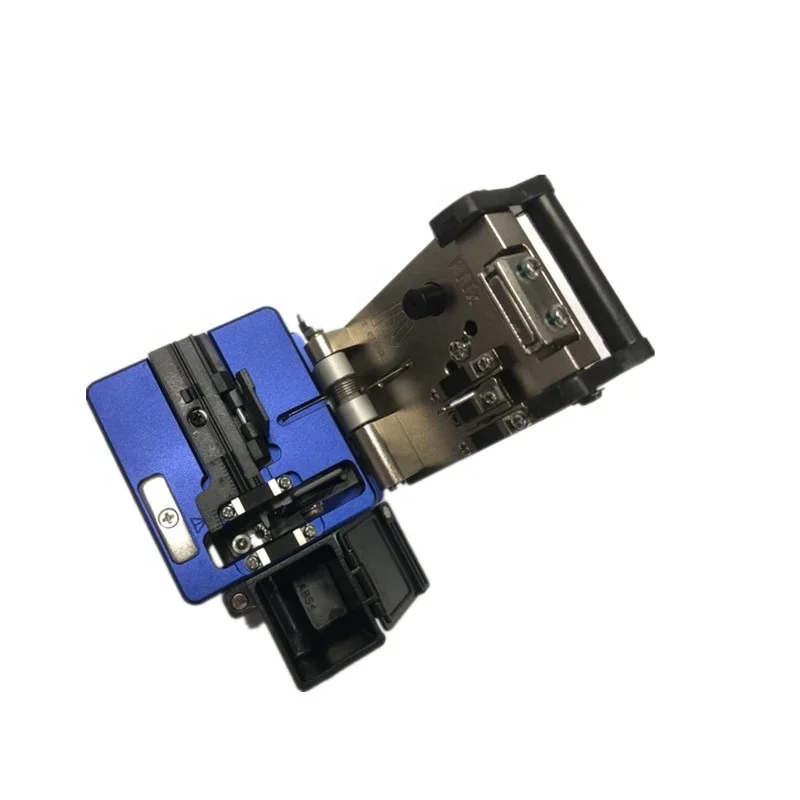

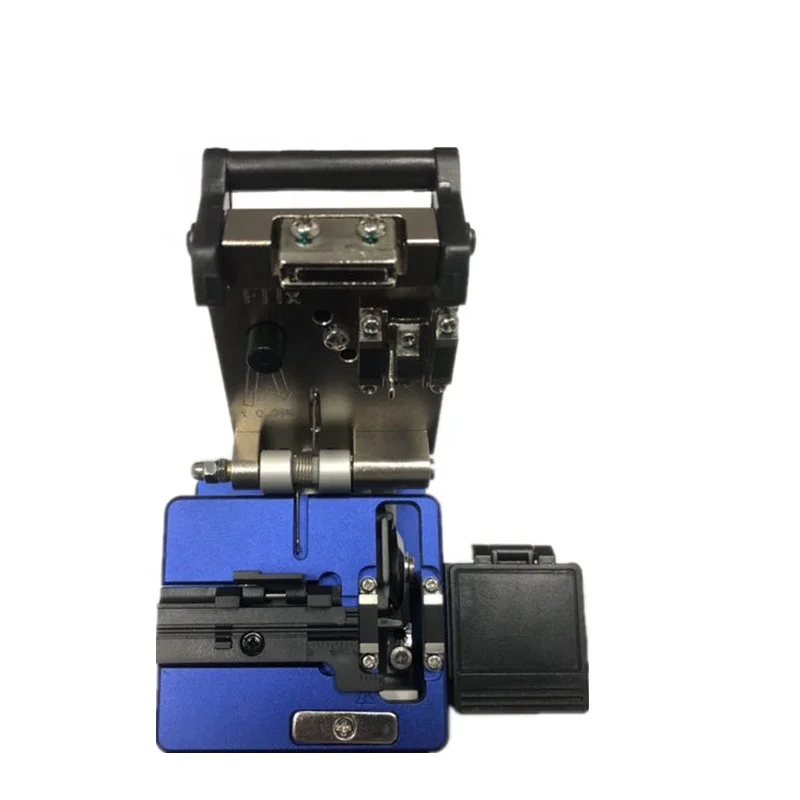

Chinese High Precision fiber Cleaver





Fiber Optic Cleaver Made in China High Precision 12 positions Blades WFT10 with blade life 36000 times



This high precision cleaver is designed for field use alongside the splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.



Features

•  Used for Single Fiber Cleaving


•  Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency


•  Prevents Double Scoring of the Fibers


•  Has Superior Blade Height and Rotational Adjustment


•  Precision Blade features 3-edges 1,000 fibers 12 blade positions with 2,000 cleavers per position


•  Can Be Operated With Minimal Steps



Specificatioins



Bare fiber diameter	0.25mm~0.9mm
Outercoat diameter	125µm
Fiber type	Single tube fiber and Ribbon fiber(exchangeable)
Cleaved length	9~16mm(φ0.25) 10~16(φ0.9)
Cleaved angle	≤0.5°
blade life	36,000 cleaves
Mode	Semiautomatic
Dimension	63mm(W)*76mm(D)*63mm(H)
Weight	430g
