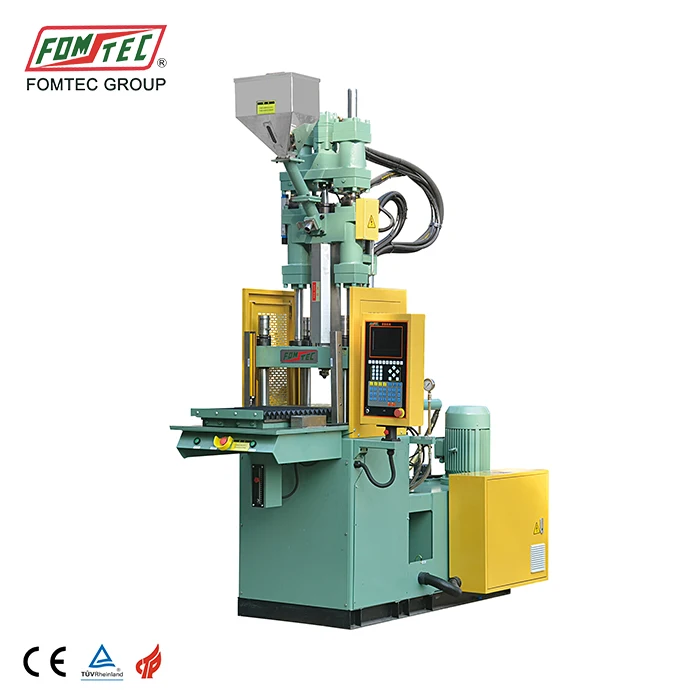

FOMTEC 60TON Sliding table plastic injection molding machine injection machines plastic price quality plastic mould

Product Overview

Description

FEATURES:

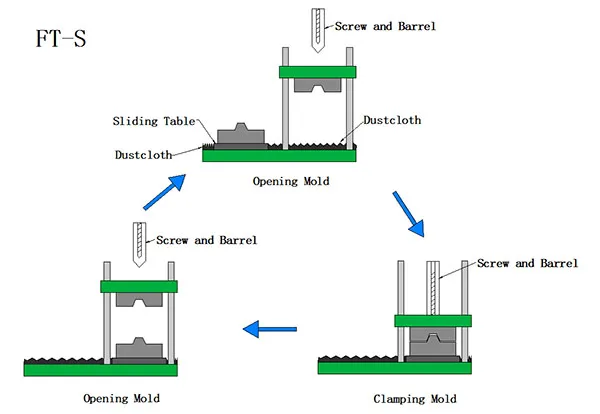

l       Vertical clamping and injection design, especially suitable for the insert molding production



l       User-friendly LCD display shows various functions with 66 sets of mold memory



l       Injection and clamping controlled by multiple pressures and speeds ensure easy setting

and accurate processing



l       The P.I.D temperature control is accurate for every section

l       Dual injection and carriage design provides smooth movement and precision molding



l      Professional designed screw and barrel, suitable for various plasticizing demands



l       High torque screw motor ensures superior plasticizing ability



l       Oil-less bushings used on all moving units for better cleanness and easy maintenance



l       High-rigid frame structure assures stable and smooth sliding movement



















INJECTION UNIT	Screw Diameter	mm	φ32	φ36	φ42
	Maximum Injection Pressure	Bar	2051	1620	1190
	Theoretical Shot Volume	cm3	113	143	194
	Maximum Shot Weight(PS)	g	104	132	179
		oz	3.7	4.6	6.3
	Injection Rate	cm3/sec	63	80	109
CLAMPING UNIT	Clamping Force	ton	60
	Top Platen Size	mm	610×460
	Slide Table Size	mm	450×490
	Slide Stroke	mm	500
	Mold Size	mm	460×310
	Minimum Mold Thickness	mm	200/300
	Opening Stroke	mm	250
	Open Daylight	mm	450/550
	Ejector Force	ton	2
	Ejector Stroke	mm	65
OTHERS	Hydraulic System Pressure	Bar	140
	Oil Tank Volume	L	245
	Electric Power	hp(kW)	10(7.5)
	Barrel Heating Power	kW	5.55
	Total Wattage	kW	13.05
	Machine Dimensions(approx.)	m	2.2×1.1×3.0
	Machine Weight(approx.)	ton	2.3

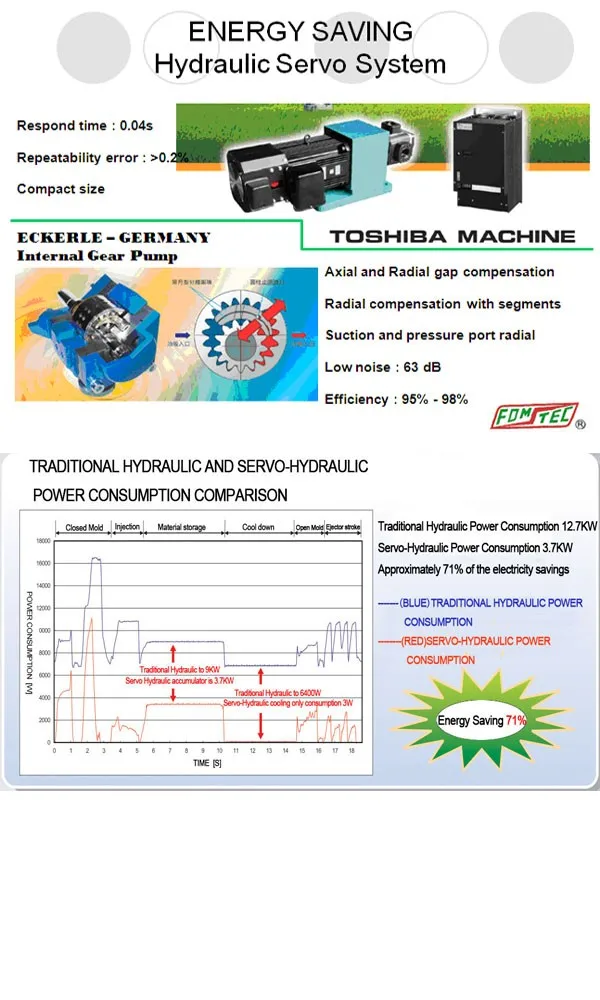

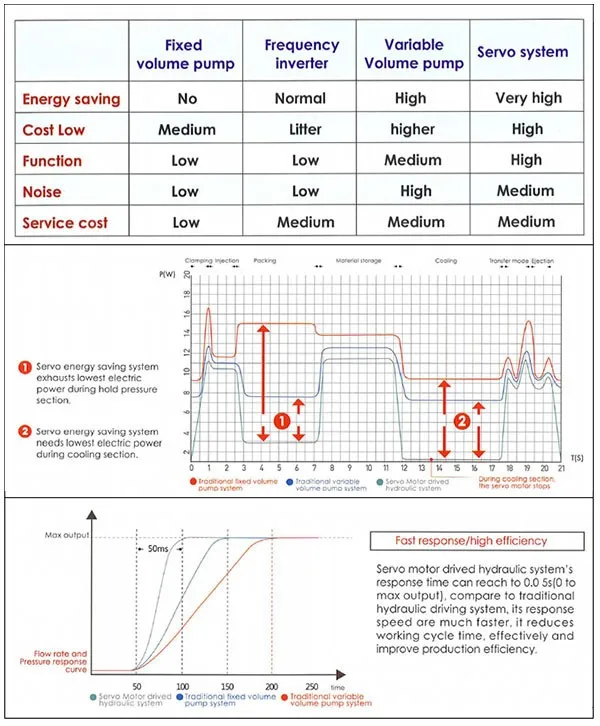

OPTION : HYDRAULIC SERVO SYSTEM



 OPTION 1 : TECHMATION BRAND SERVO





OPTION 2 : TOSHIBA SERVO

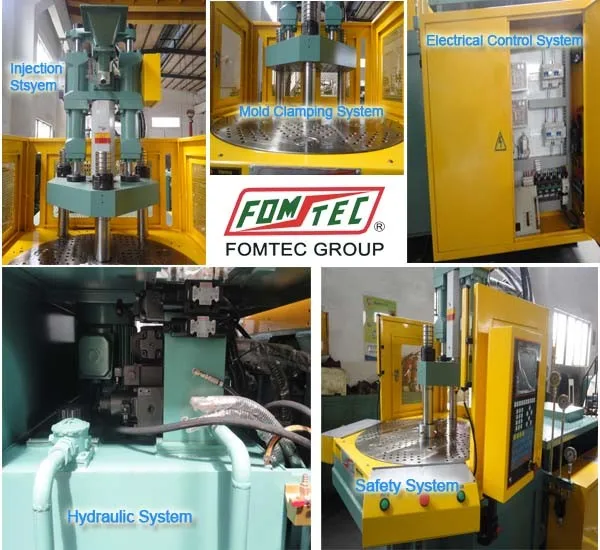

PRODUCT COMPOSITION

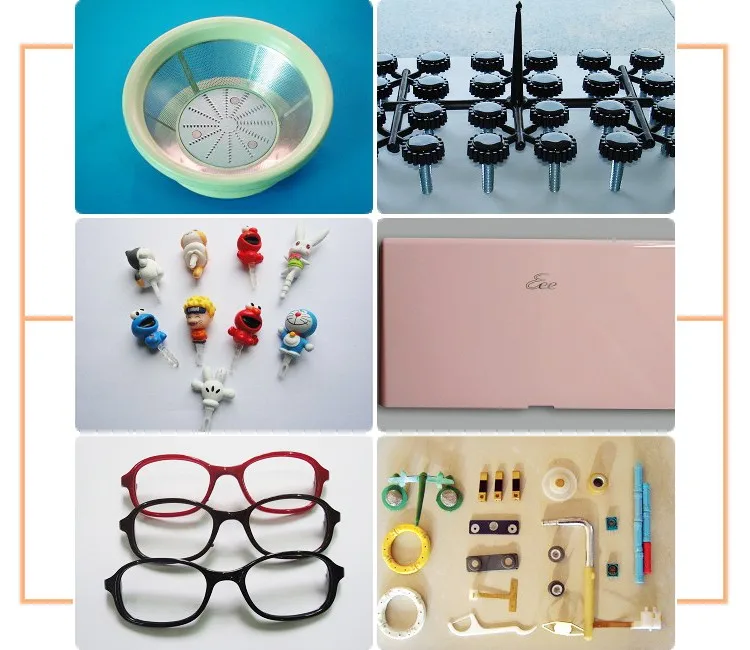

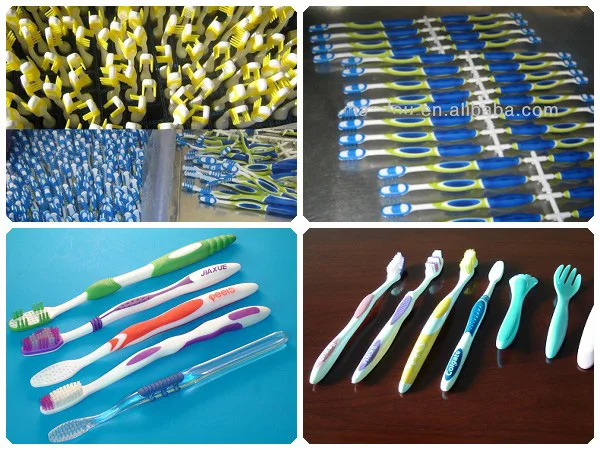

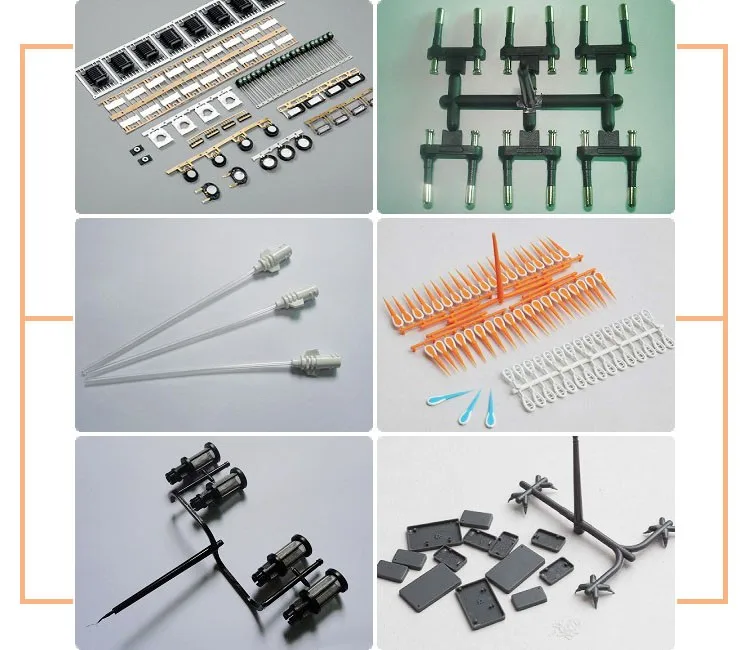

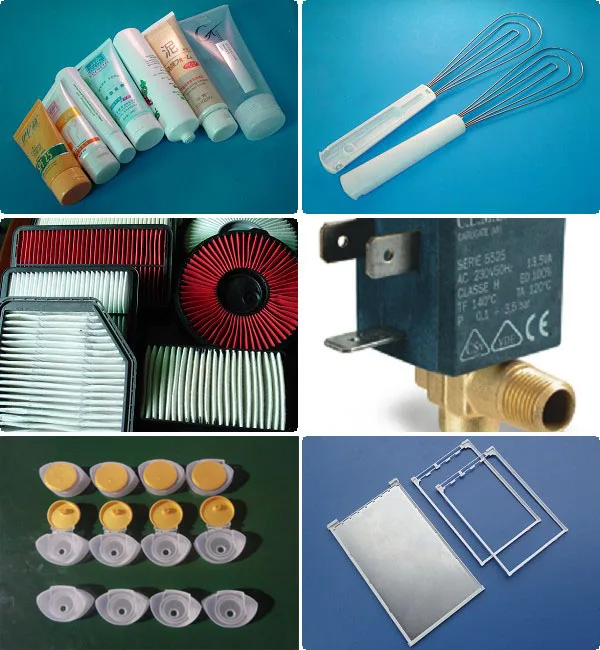

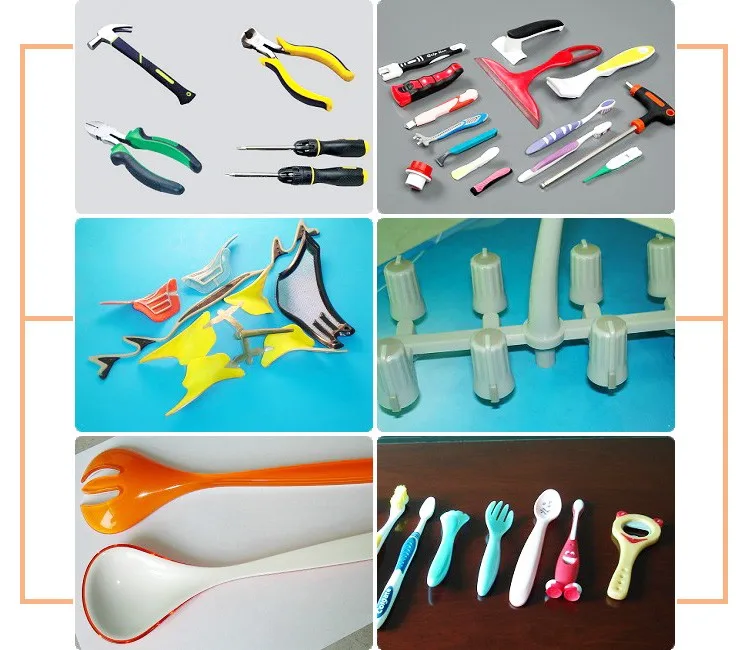

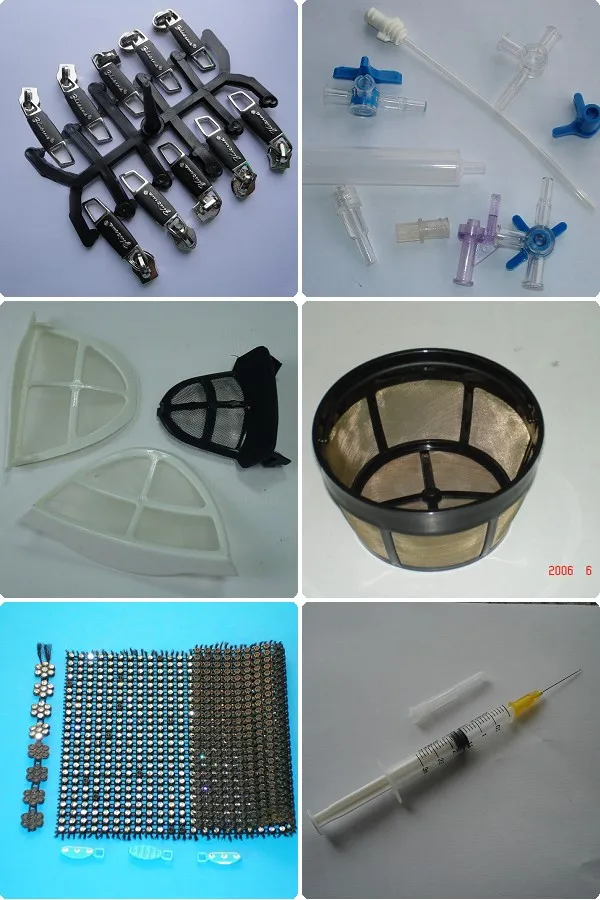

PRODUCT APPLICATION











 INSPECTION CERTIFICATION







EXISTING CUSTOMERS

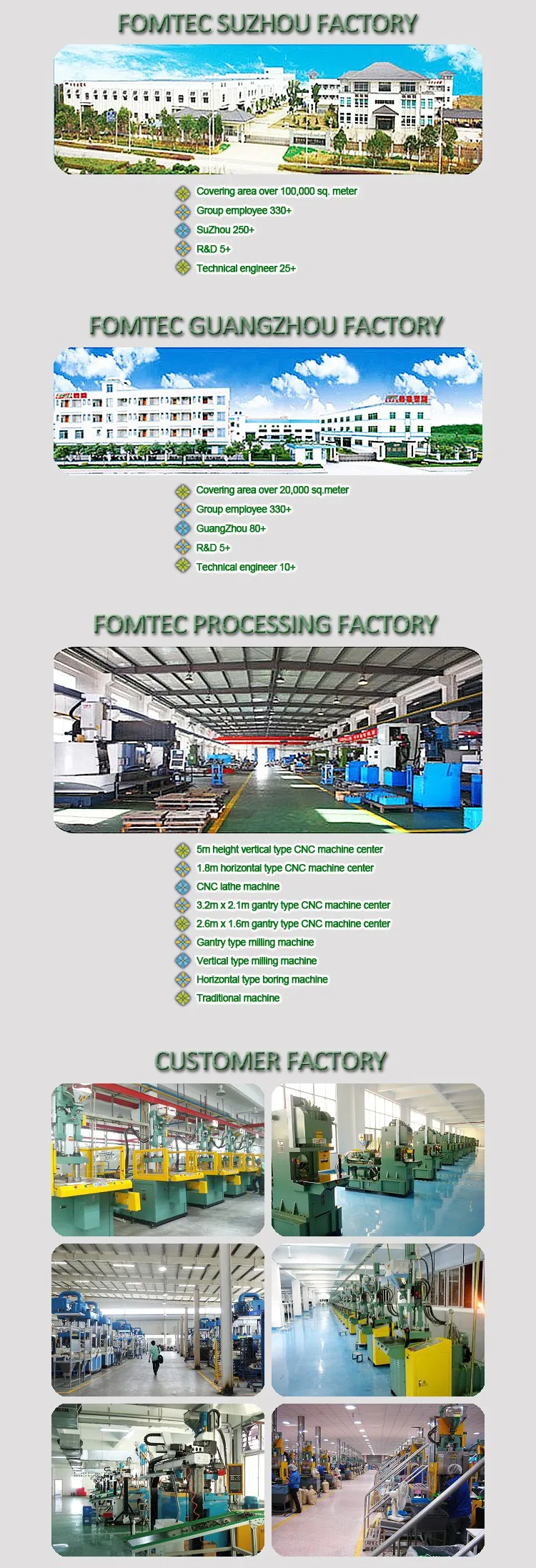

FACTORY VIEW
