Best Selling Market: Central, North & East Europe, North Europe, North America.
Ambient Temp of Using: Minus 25C, highest 60C hot Water Output and cooling.
Certification: ISO9001, CE, erP Energy Label, ROHS.
Use *Mitsubishi* dual-rotor Compressor for Dc Inverter Air Source Heat Pump.
Full dc inverter model, suitable for 220/380V ~ 50HZ/60HZ power supply.
Parameters of Nulite NEW ENERGY DC inverter heating cooling hot water pump
Model
BKDX30-95I/150/S
BKDX50-200I/150/S
NL-C5BF
Power source
220V~50HZ
220V~50HZ
380V~50HZ/60HZ
Heating capacity
9.5KW
20KW
20KW
Rated input power
2.52KW
4.92KW
5.24KW
Testing condition:DB temperature 20℃, WB temperature 15℃, water output temperature 45℃.
Cooling capacity
6.6KW
11KW
11KW
Rated input power
2.56KW
4.3KW
5.26KW
Testing condition: DB temperature 35℃, WB temperature 24℃, water output temperature 7℃.
Rated water flow
1.8m³/h
3.6m³/h
3.6m³/h
Noise
Less than 50dB(A)
Less than 50dB(A)
Less than 50dB(A)
Compressor
Mitsubishi inverter compressor
Output water temperature
Rated 55℃/ Max 60℃
Pipe size
G1''
G1''
G1''
Unit weight
130KG
165KG
165KG
Unit size
1110*330*965MM
1110*330*1250MM
1110*330*1250MM
Refrigerant
R410A

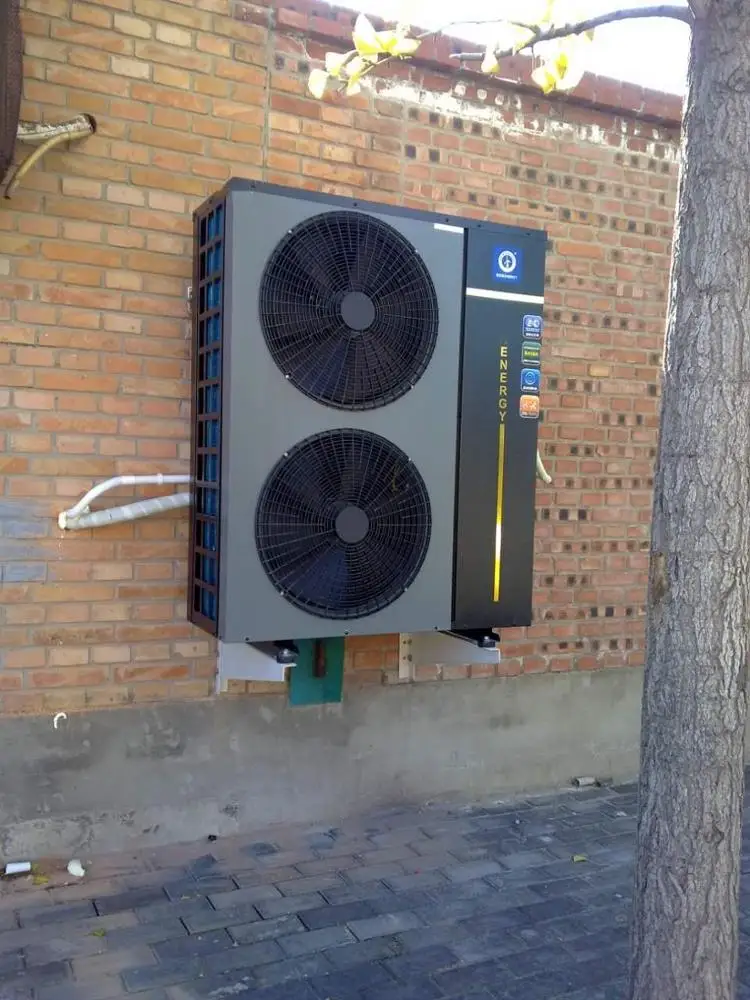

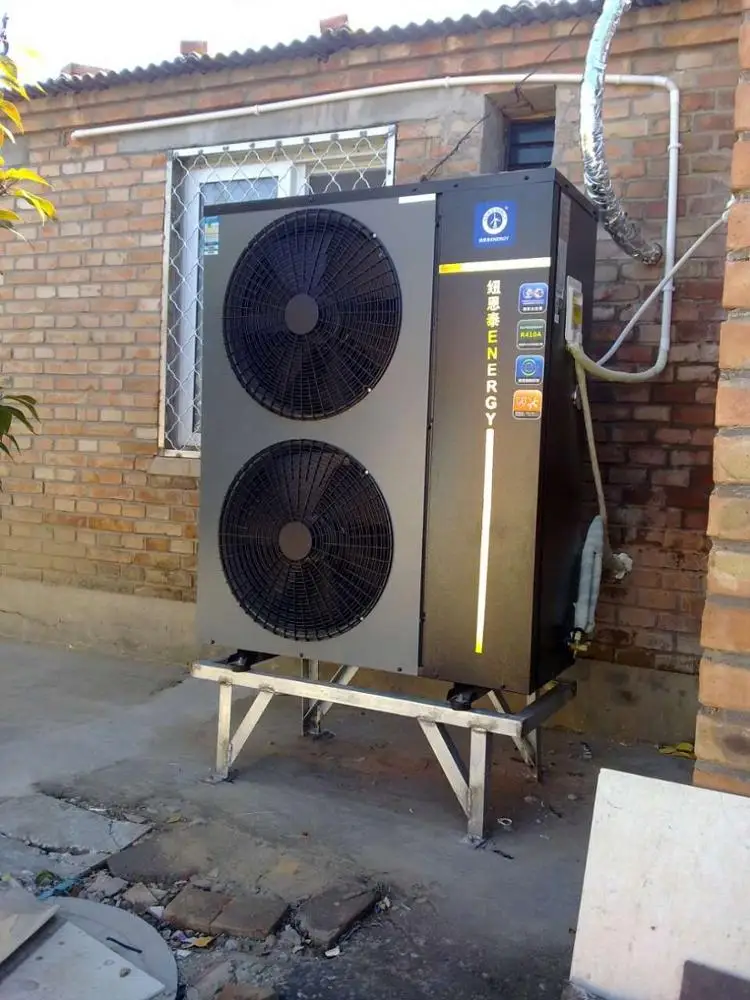

Detailed Images
Tips for choosing heat pump with right heating capacity according to heating space
BKDX30-95I/150/S (220V~50HZ/10KW): suitable for 60~100sqm, about 3M height.
BKDX50-200I/150/S(220V~50HZ/20KW): suitable for 160~200sqm, about 3M height.
NL-C5BF (380V~50HZ/22KW): suitable for 160~220sqm, about 3M height.

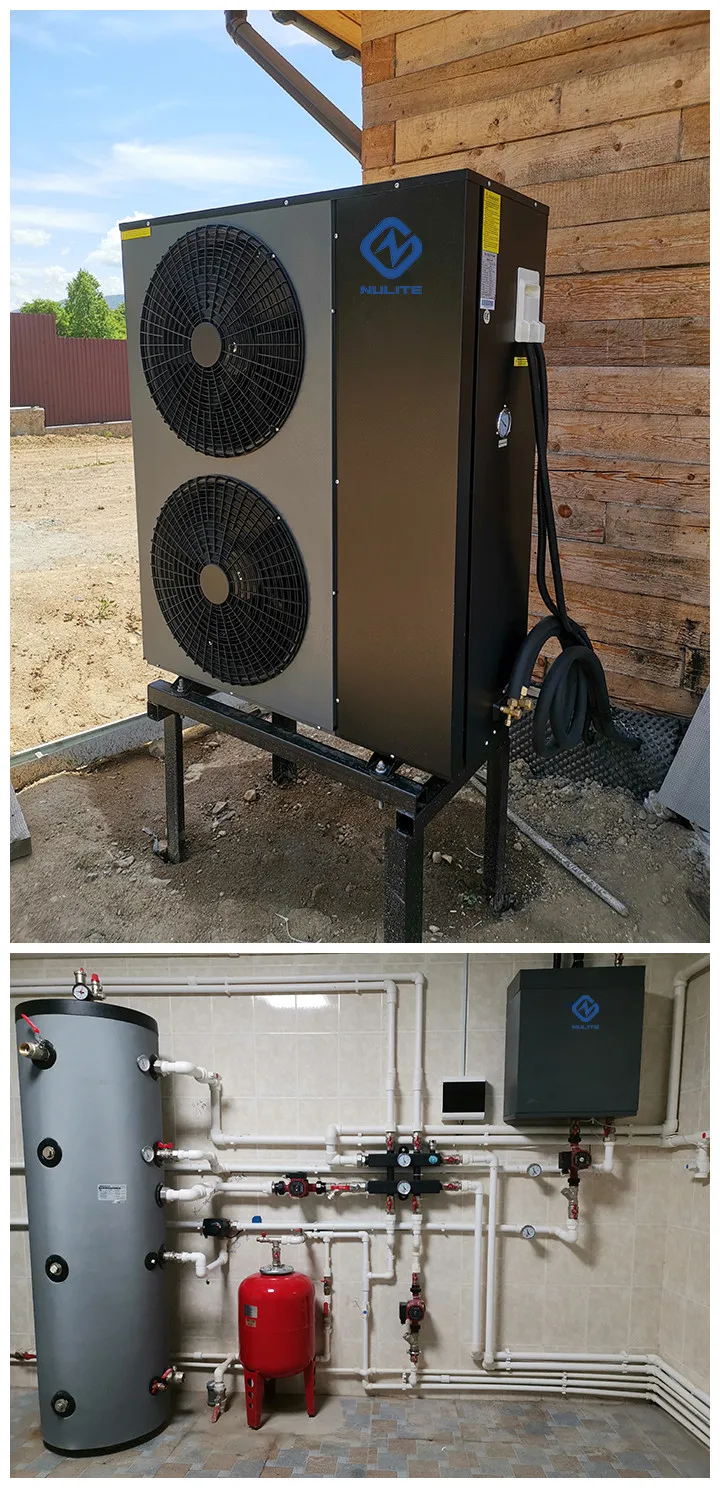

Installation diagram and available parts.
Pls note that the unit is only include heat pump and liner controller, other parts such as water tank, water pump,
fan coil units do not include.
Purchasable accessories: water tank, water pump, fan coil units.

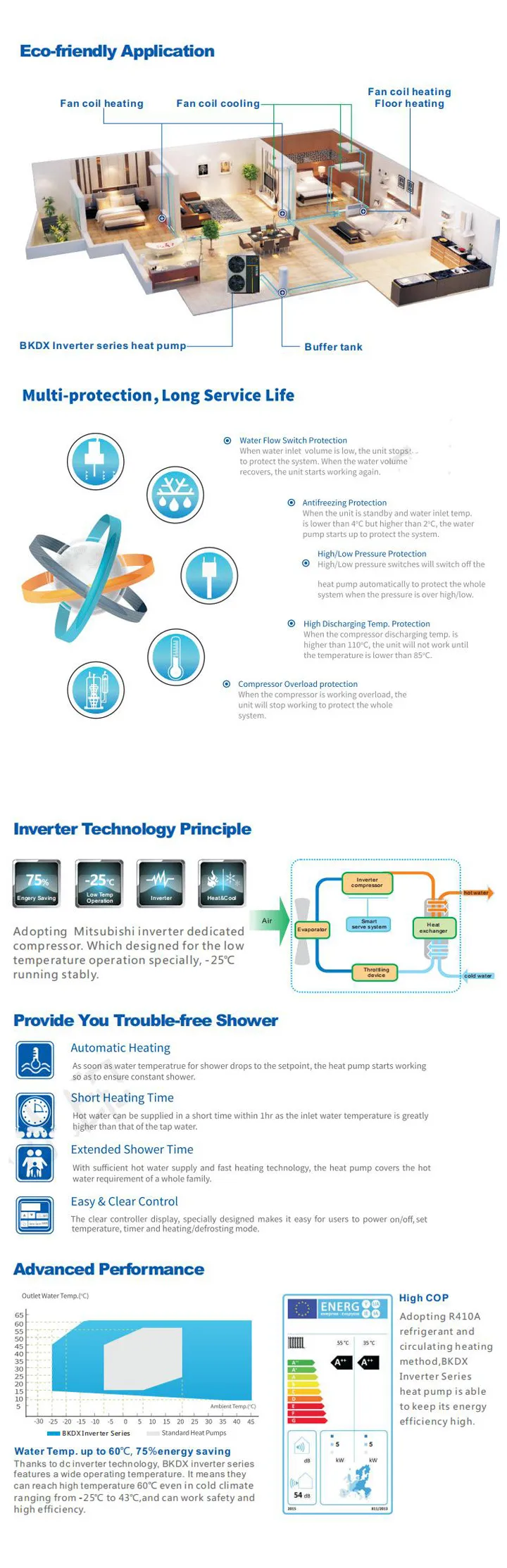

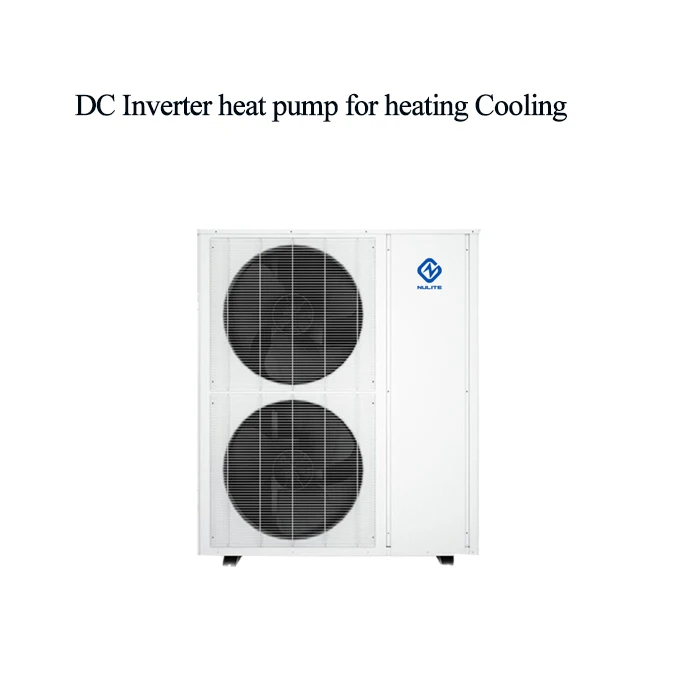

Details of BKDX DC inverter heating cooling DHW heat pump
Packaging & Shipping
Packing Details : stable plywood box package,0.68 CBM for10KW, 1.15CBM for 20/22KW,1.96CBM for 30KW dc inverter heat pump Delivery Details : 1-25 working days after receiving payment by T/T, or alibaba trade assurance payment Dealing Details: EXW factory, FOB Guangzhou/Shenzhen Port, CIF to destination Port, DDP Door to Door Service provided.

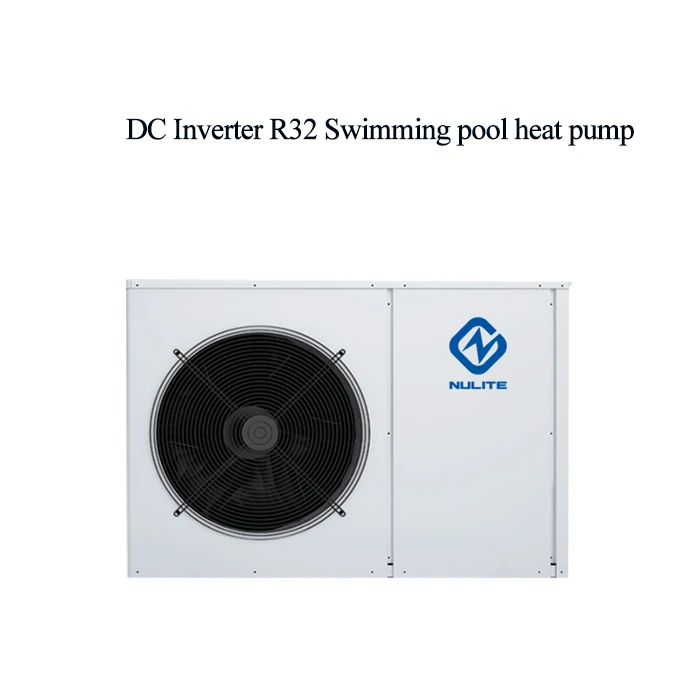

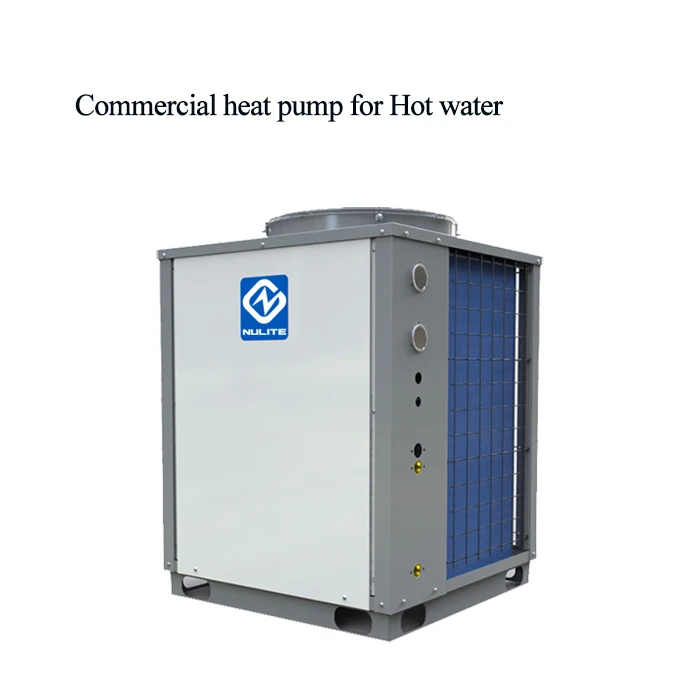

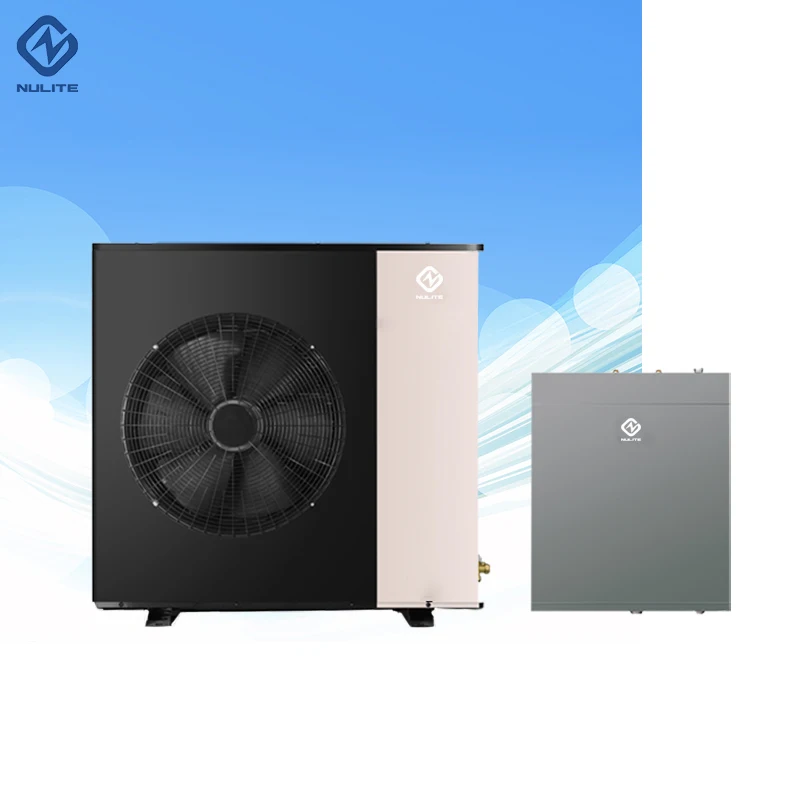

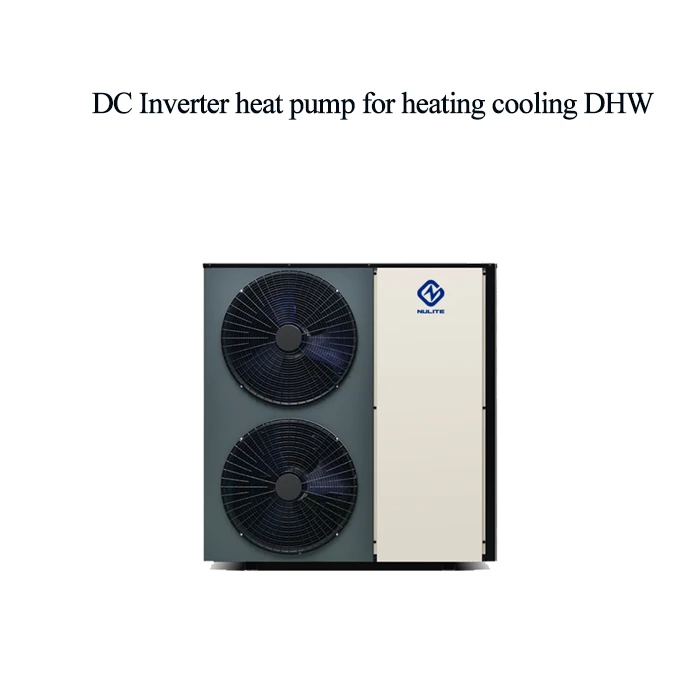

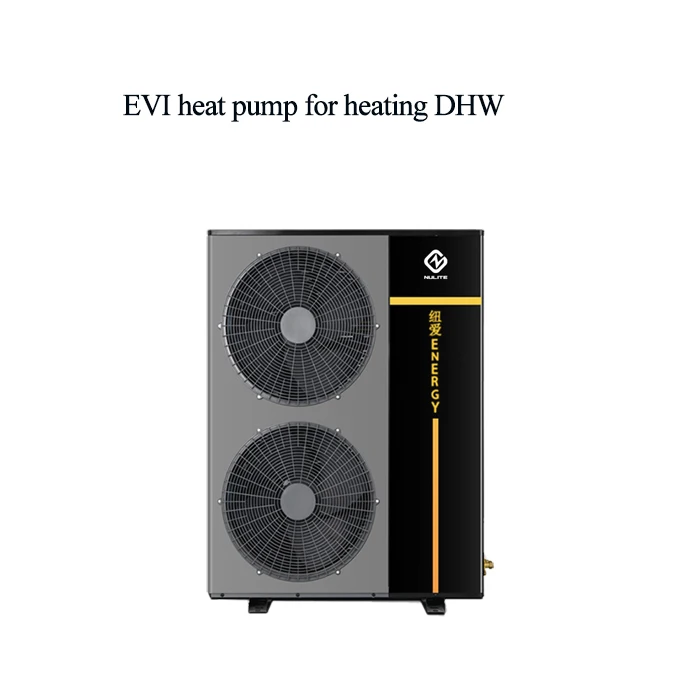

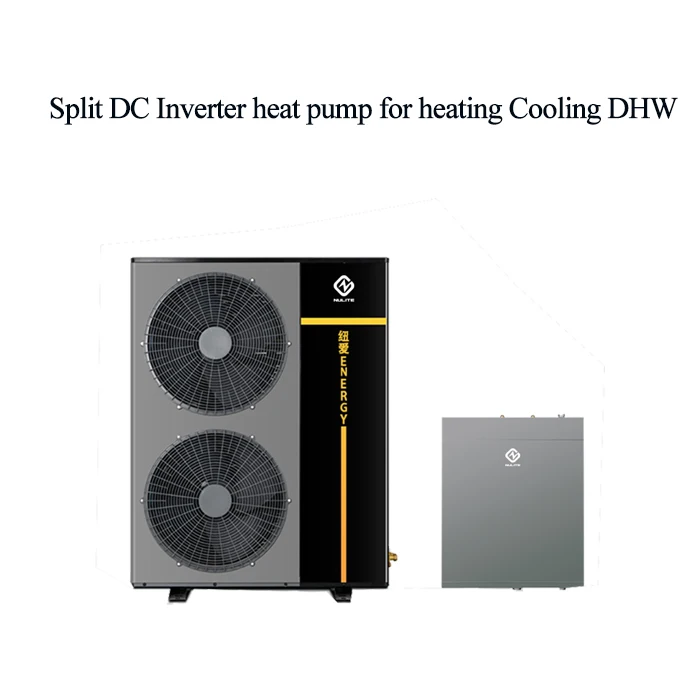

Related products

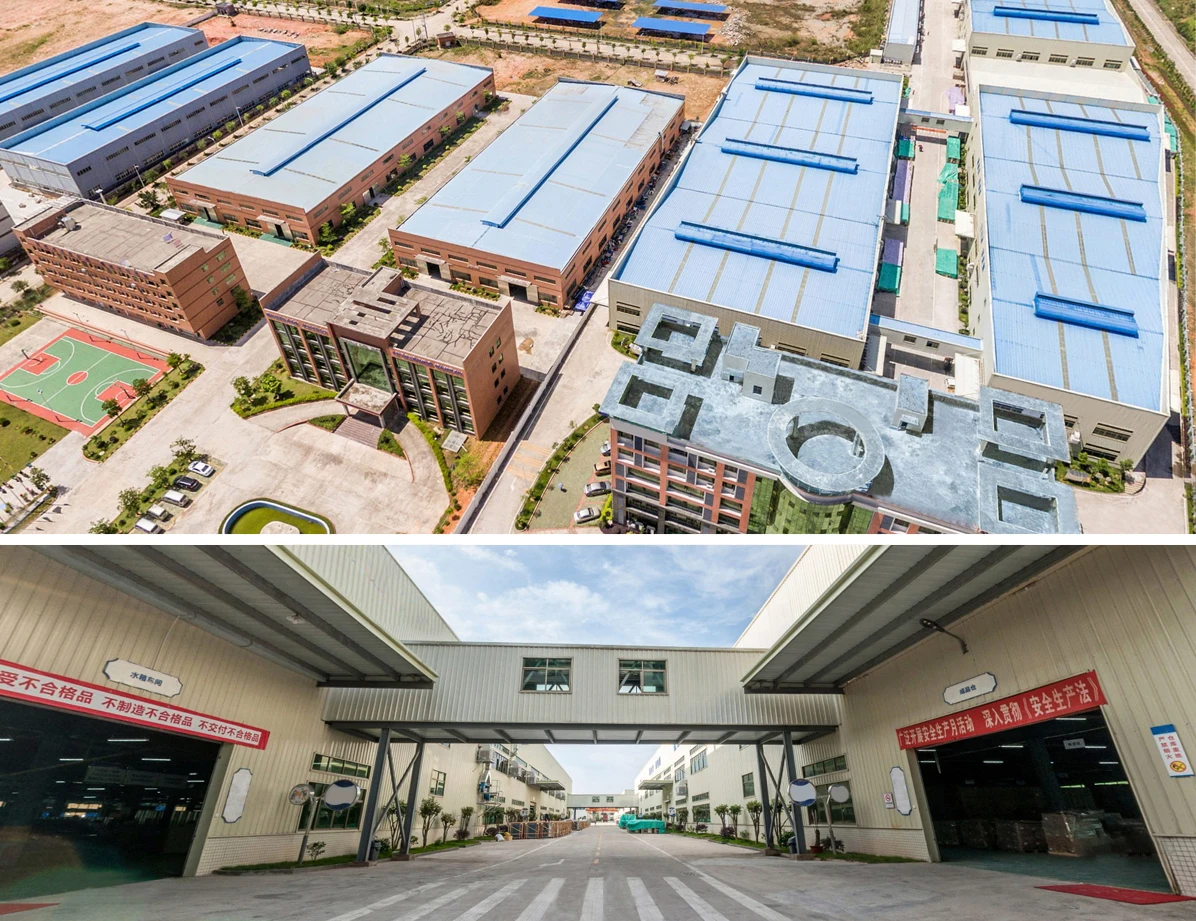

Company Information
Nulite New Energy Technology Co.,Ltd in Guangdong, China.

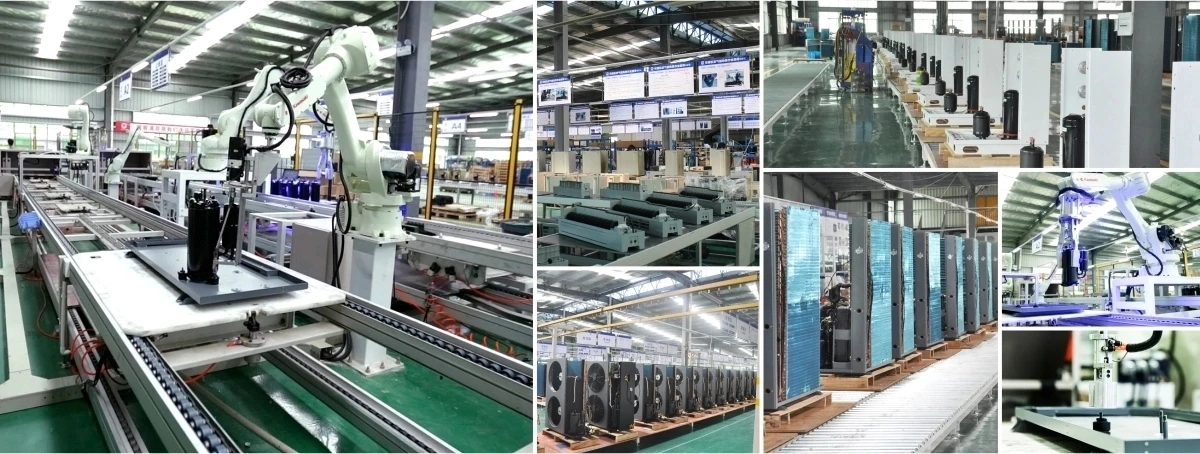

The official heat pump supplier of 18th Asian Games, owning three main modern factory covering 580,000 square meters, 1,200,000 units supply ability and over 1,500 employ.
Currently there are 8 kinds of high efficient heat pump available: 1. Apartment/Villa Inverter Heating/Cooling Series (3-38KW, 30-350m2) 2. -25°C EVI Heating Series (9-210KW) 3. Sanitary All in One Series (80-320L) 4. Swim Pool Series (3-150KW) 5. Commercial Central HVAC Series (10-180KW) 6. Geothermal Series (3-150KW) 7. Fan Coil Unit & Water Tank (50L-10T) 8. Mini Hot Water Geyser Series (3-10KW)
Our Services

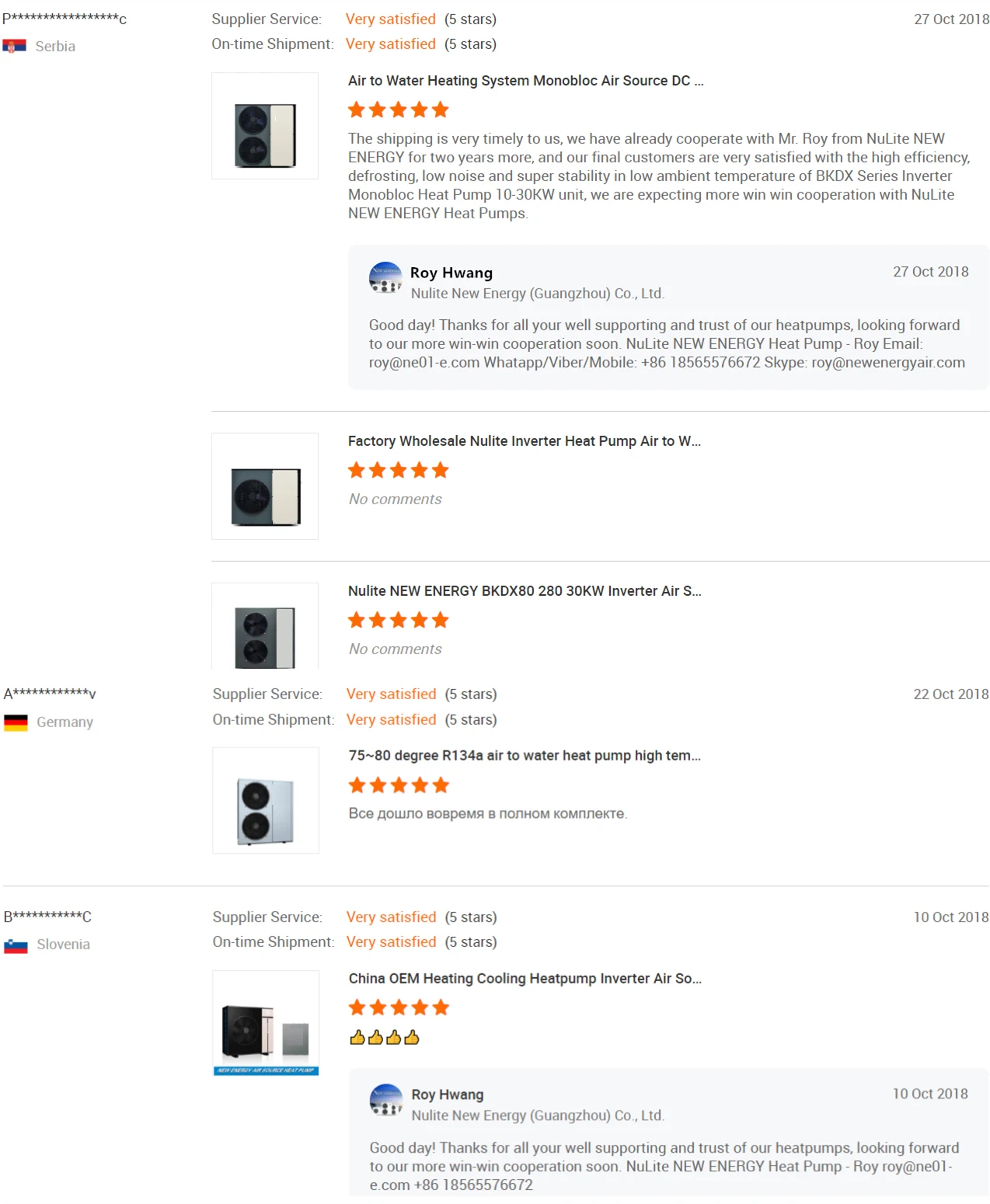

Our customers and their feedback
