Towei factory supply fan piano switch 4 key 3 speed electric fan color push button Keyboard Switches
- Category: >>>
- Supplier: Shenzhen Towei Electronics Co. Ltd.
Share on (60874192009):
Product Overview
Description
Product Description

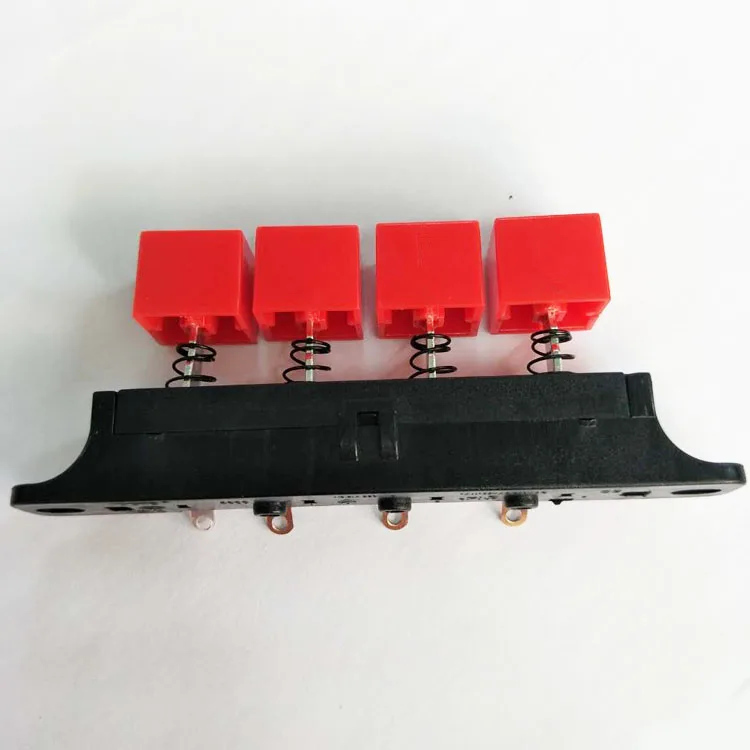

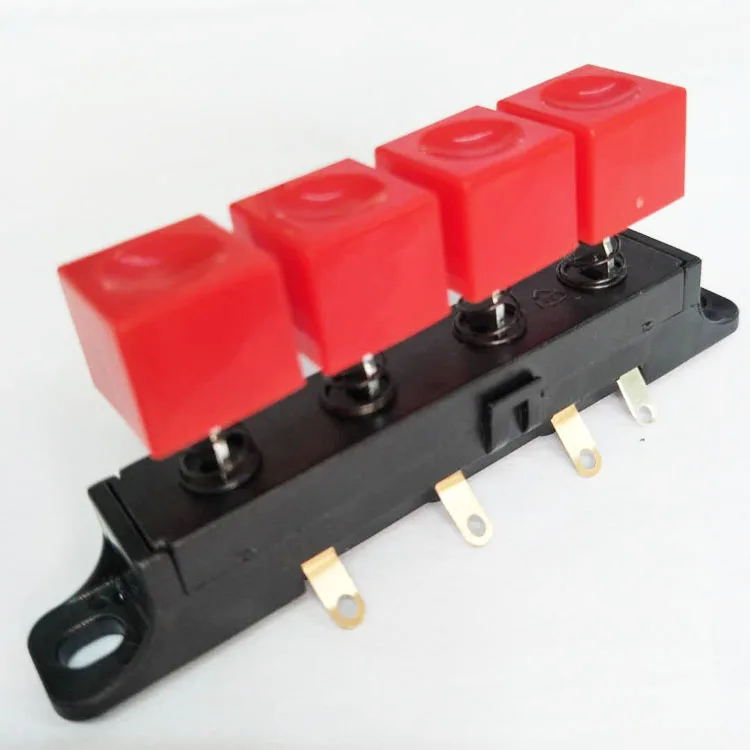

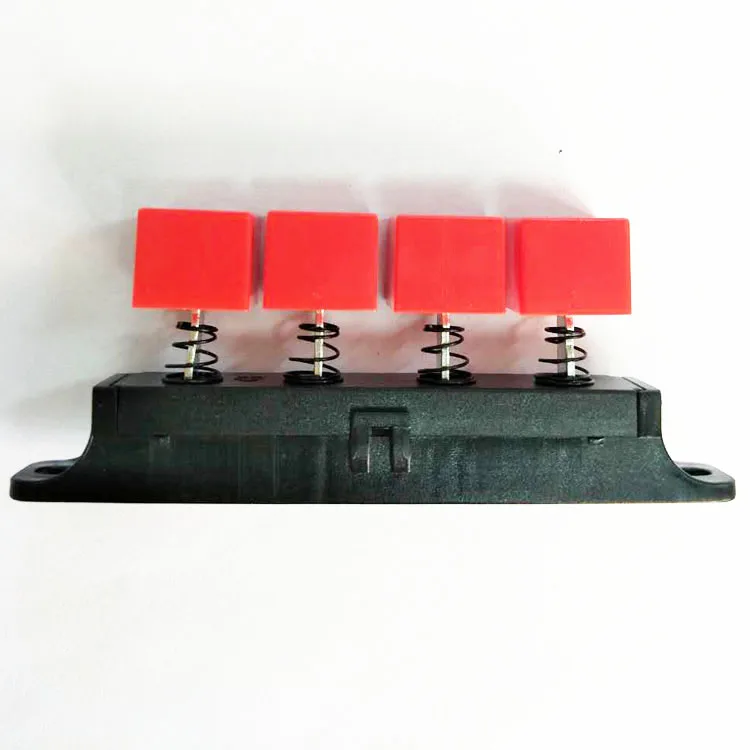

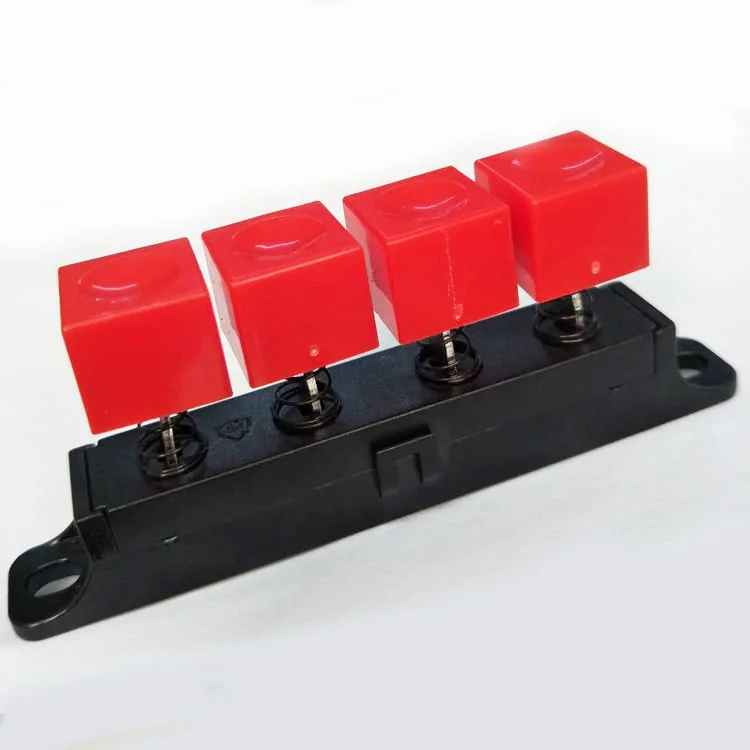

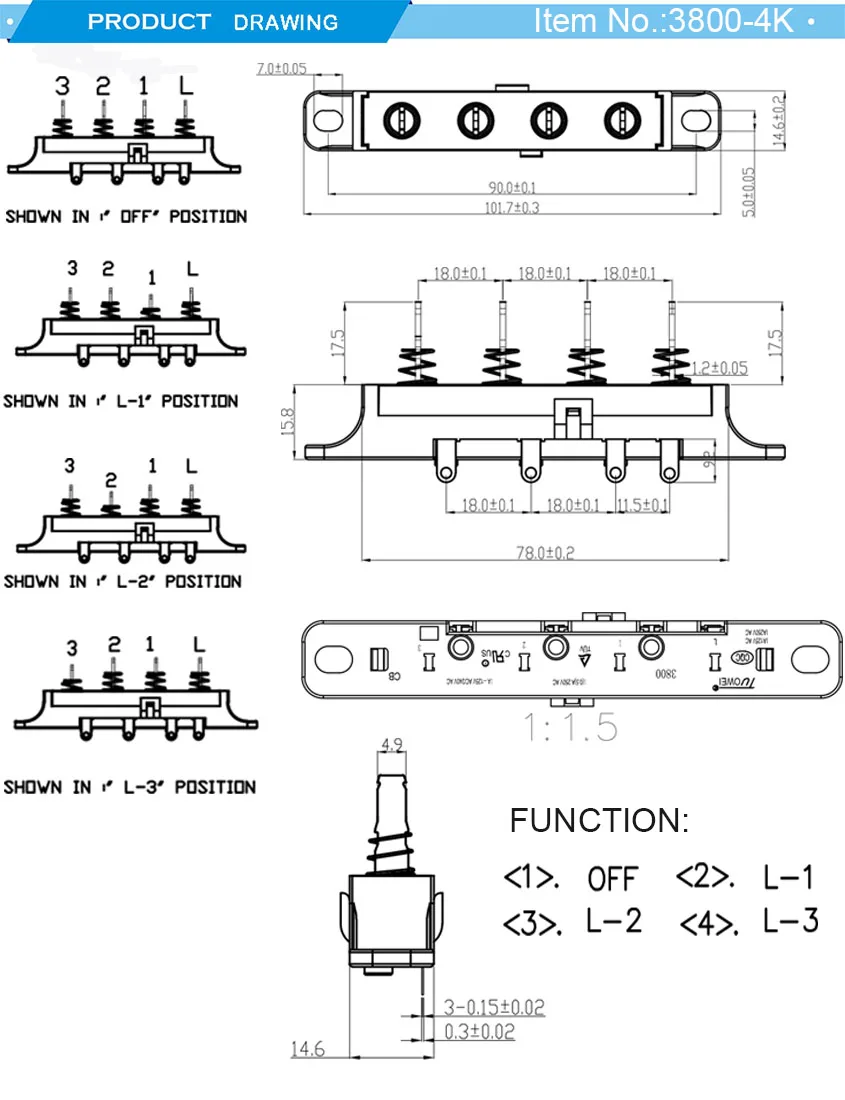

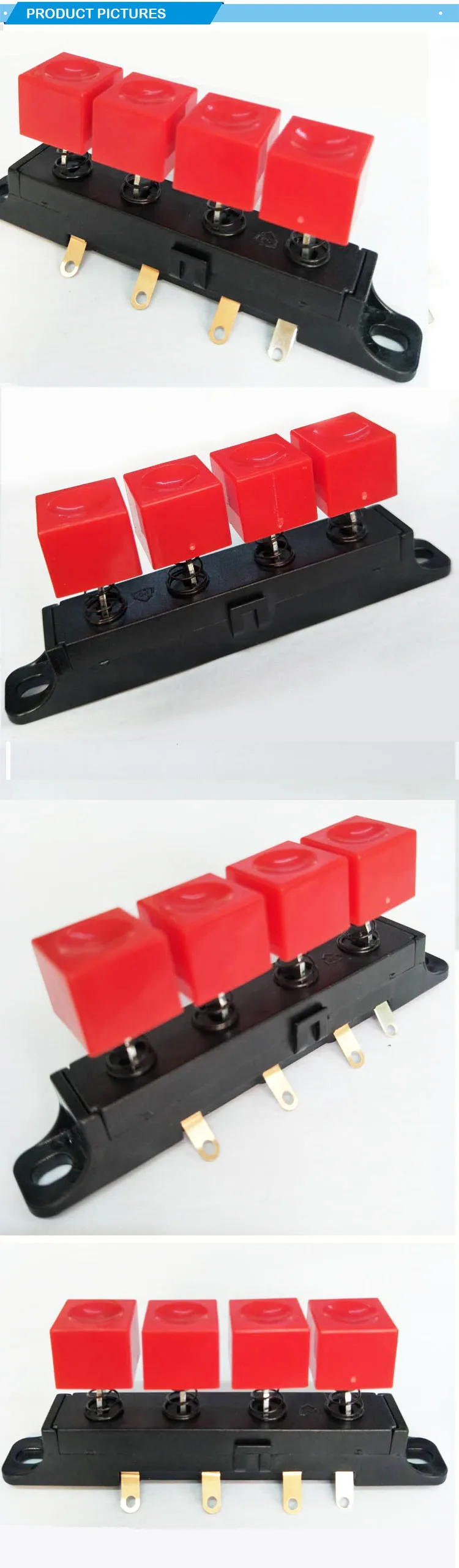

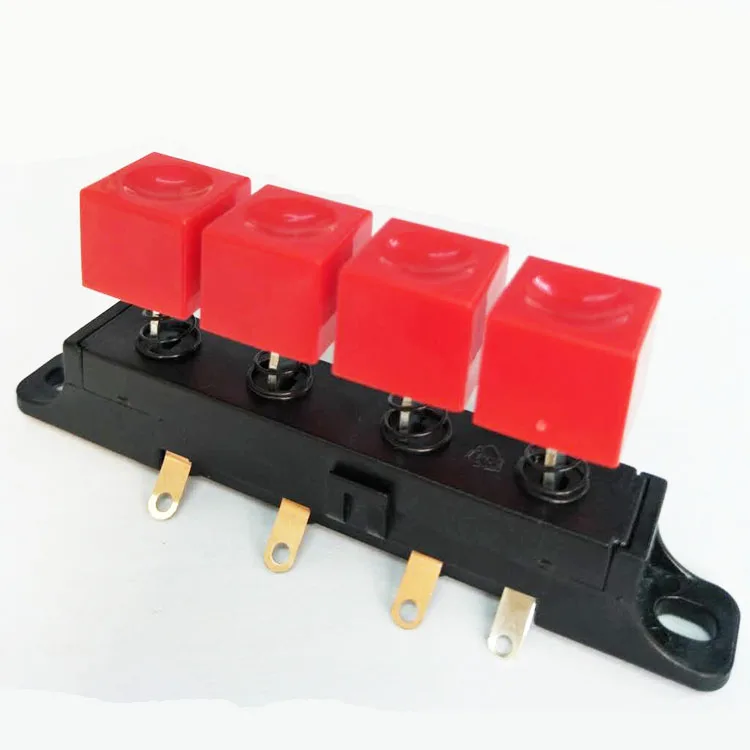

Towei factory supply fan piano switch 4 key 3 speed electric fan color push button Keyboard Switches Item No.: 3800-4K
Technical Parameter | |
Electrical Rating | 1A-125V AC, 1(0.5)A-250V |
Position | 4 keys |
Function | OFF, L-1, L-2, L-3 |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 75°C |
| Pol/Thr | 1/1 |
| PP/Circuit | --/A |
| Endur | 10K |
| SPCOA | 24-18AWG UL1015 |
| Material | |
| Housing: PC Flame rating: V-0 Temperature: 130 | Blocking plate: Steel |
| Cover: PC Flame rating: V-0 Temperature: 130 | Terminal spring: Stainless steel |
| Push block: PA66 Flame rating: V-0 Temperature: 130 | Stationary terminal: Copper alloy |
| Actuating Tip: Copper | Spring: Steel |
| Button: Stainless steel | LPush spring: steel |
| Locking plate: Zinc Plating Iron | |
