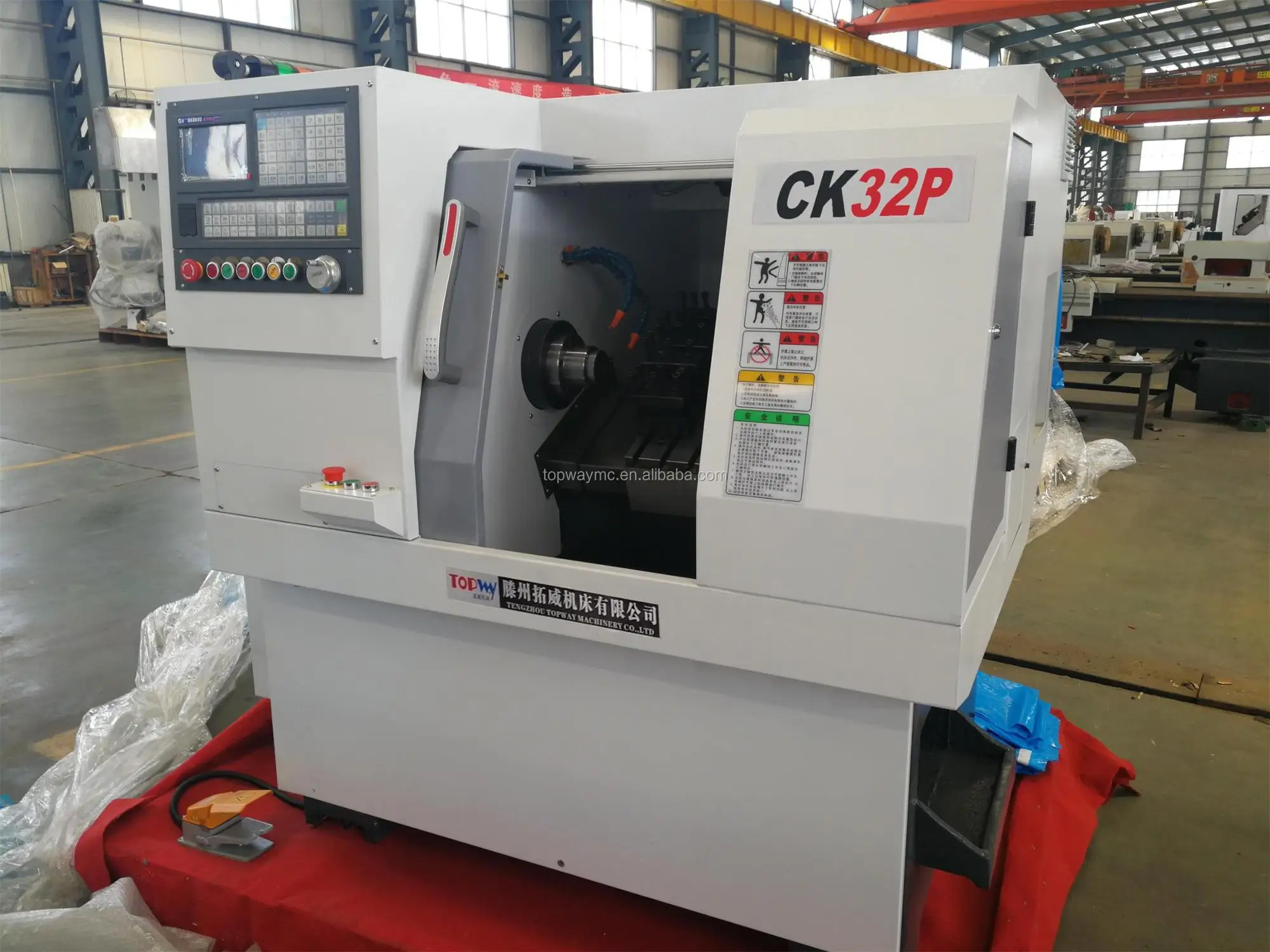

CK32P Inclined Bed CNC Lathe Machine
This Machine Tool is slant bed Lathe Machine, which has X,Z axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material. many kinks processes. This machine is suitable to process small work piece in a high efficient.
Model | CK32P | CK36P | CK46A | CK46P |
Max. Swing diamenter over bed | 320mm | 360mm | 460mm | 360mm |
Max. Swing over carriage | 120mm | 120mm | 170mm | 110mm |
Max. Turning length | 280mm | 300mm | 350mm | 270mm |
Slant Bed | 30° | 30° | 30° | 30° |
Spindle nose | A2-5 | A2-5 | A2-5 | A2-5 |
Max Spindle speed | 4000r/min | 4000r/min | 3500r/min | 5000r/min |
Spindle bore | 48mm | 48mm | 56mm | 56mm |
Max bar diameter through spindle | 40mm | 40mm | 45mm | 46mm |
Spindle motor | 3.7kw | 5.5kw | 5.5kw | 5.5kw |
X axis traverse | 300mm | 380mm | 400mm | 410mm |
Z axis traverse | 280mm | 300mm | 240mm | 330mm |

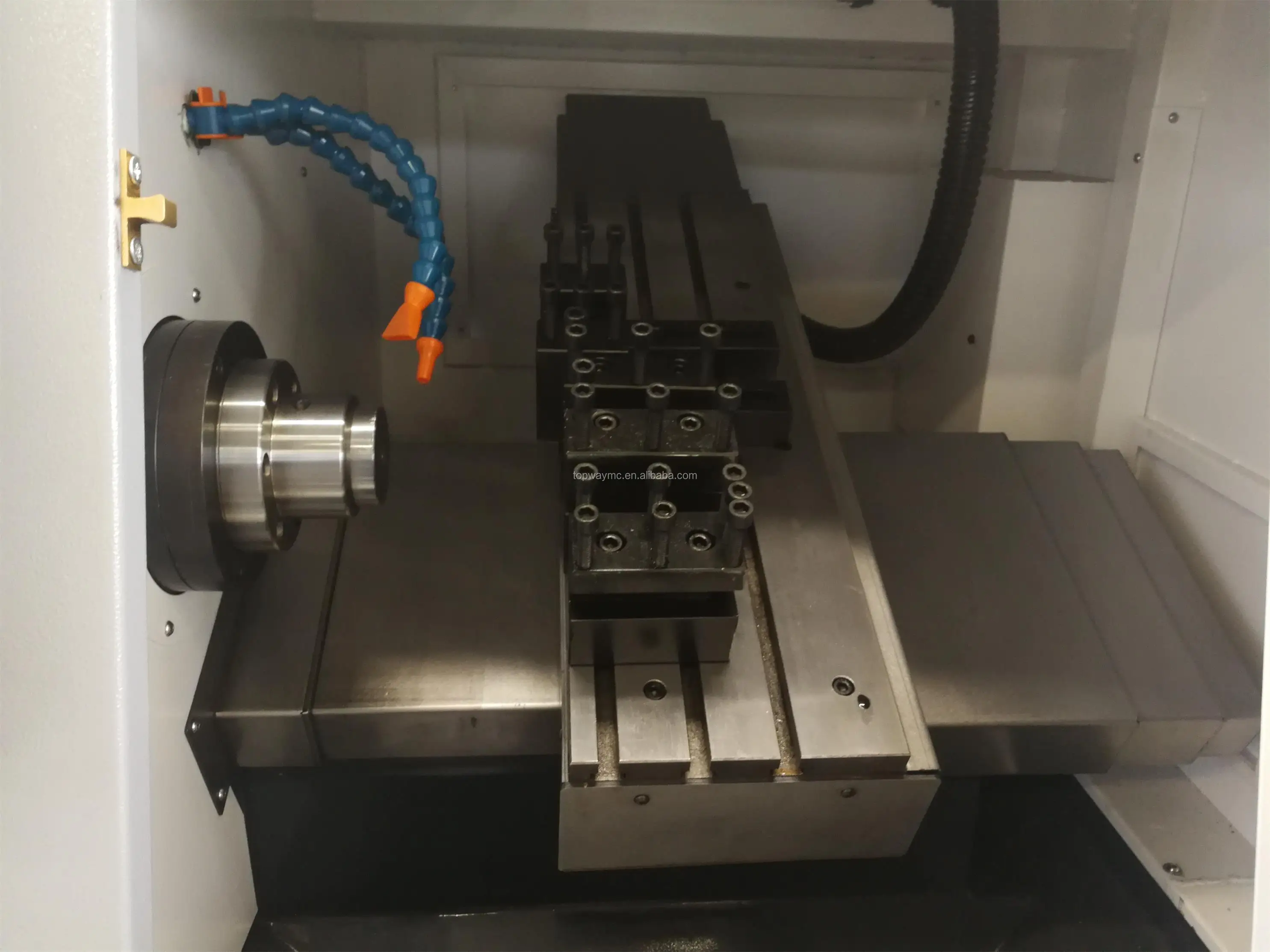

Turret type | Gang Tool | Gang Tool | Gang Tool 8-pcs Turret | Gang Tool |
X axis rapid feed | 2500mm/min | 2500mm/min | 1800mm/min | 2400mm/min |
Y axis rapid feed | 2500mm/mim | 2500mm/mim | 1800mm/mim | 2400mm/mim |
X/Z Positioning accuracy | 0.006mm | 0.006mm | 0.016mm | 0.006mm |
X/Z Repositioning accuracy | 0.003mm | 0.003mm | 0.006mm | 0.003mm |
Machine weight | 1250kg | 1500kg | 2600kg | 2300kg |
Machine size | 2.1x1.6x1.7m | 2.4x1.7x1.9m | 2.3x1.7x2m | 2.4x1.55x1.6m |
