paper food tray processing machine
- Category: Packaging Forming Machines >>>
- Supplier: Ruian Daqiao Packaging Machinery Co. Ltd.
Share on (60874747233):
Product Overview
Description

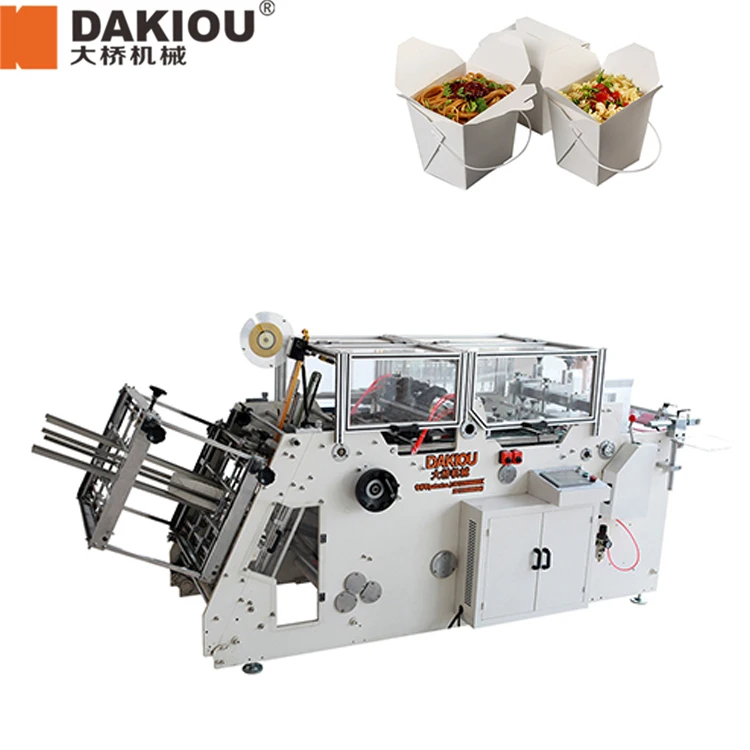

HBJ-D 800 High Speed Box Gluing Machine
Product Show
Product Parameters
HBJ-D800 is an ideal choice to produce hamburger boxes,chips boxes,takeout container,etc.It adopts micro-computer,PLC,alternating current frequency converter ,the vacuum-sucking paper feeding,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts imported brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.
Technical Specification
Type: | HBJ-D800 |
Production capacity: | 50-180times/min |
Suitable Material: | 200-600g/m2 card paper,corrugating:1.5mm |
Length: | L100-450mm,degree:5°-40° |
Width: | B100-600mm Hight H15-200mm |
Total Power: | 4KW |
Total Weight: | 2.2T |
Overall Dimension: | 3600 x1400 x 1600 mm |
Power Source | 380V 50HZ |
Product Process

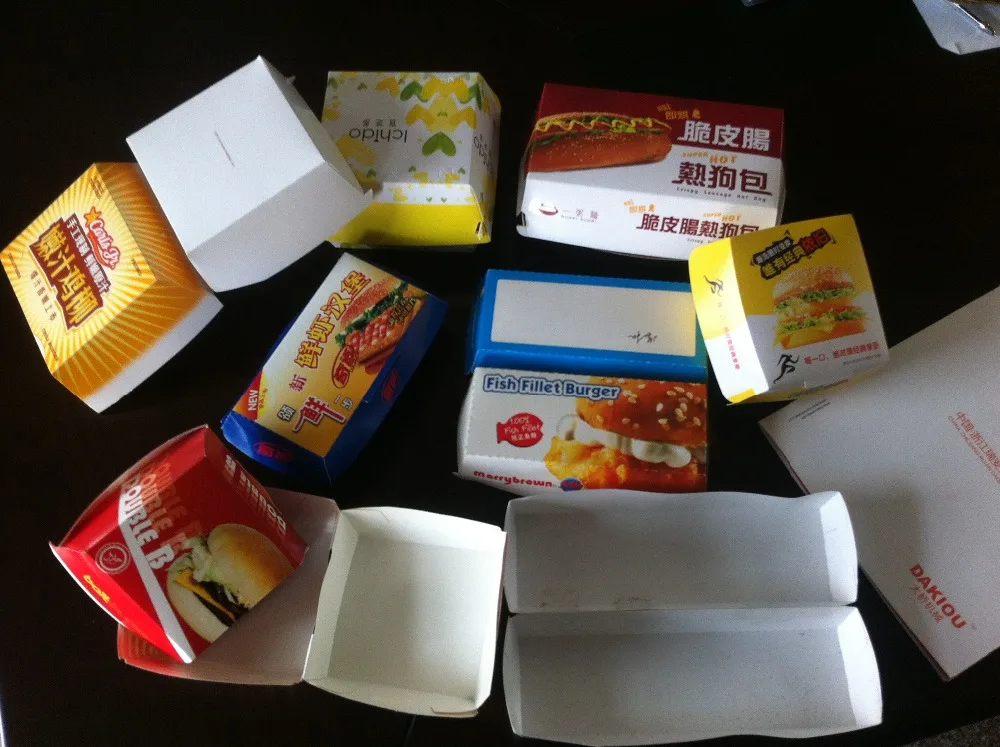

Product Application
Company Profile
FAQ
We are Manufacturer...
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
Contact US
Ms.Vera Yue Mob: +86-15356771883(WeChat & WhatsApp) Tel: +86-577-65592060
Fax: +86-577-65595666 //www.daqiaobaoji.com
Add: No.46 North Youdian Road, Linyang Industrial Estate, Ruian City, Zhejiang Province, China
