Electronic Jacquard Machine of Wmt Series Wmt 5120

Product Overview

Description

• ELECTRONIC JACQUARD OF WMT SERIES
  • PRODUCT INTRODUCTION---------------------------------------------------------
  • Type: WMT1408Z,WMT1792Z,WMT3072Z,WMT5120Z,WMT6144Z,WMT8192ZWMT9216Z,WMT10240Z,WMT12288Z
  • Speed: Upto 600RPM
  • Selection Method: module+ drive circuit board +sheet steel+ aluminum alloy lifting knife
  • Shedding Form: conjugate CAM, positive double-lift, fully-open shedding mechanism
  • Shedding Height: The front shedding width range is 45-109mm. Back shedding width range is 72-120mm with easy adjustment
  • CHARACTERISTICS----------------------------------------------------------------------------------------
  • This high quality electronic jacquard machine is designed specially for heavy duty designs or high speed looms. Driving system is optimized and improved which makes the machine running in stable and low noise to make good use of shedding height. Power consumption will decrease when it runs in heavy duty designs by using module selection. Embedded intelligent control module and touch-screen human-computer interaction interface has better experience. It can meet the requirement of running in high-speed and long term. Customized servo or motor runs in no vertical shaft but synchrodrive with looms.

  •  RANGE OF APPLICATION---------------------------------------------------------------------------
    Matching with all kinds of overseas and domestic high speed rapier looms, air jet looms, water jet looms and projectile looms. It is suitable for trademark, tie, garment fabric, decorative fabric, shawl, towel, tapestry etc. This electronic jacquard advantage is very outstanding especially for heavy duty.

  TECHNOLOGY PARAMETER--------------------------------------------------------
•

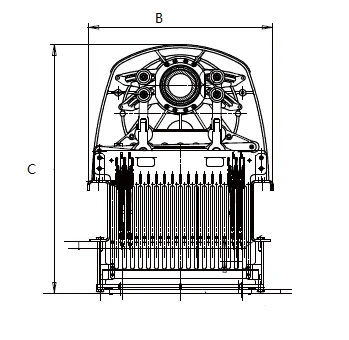

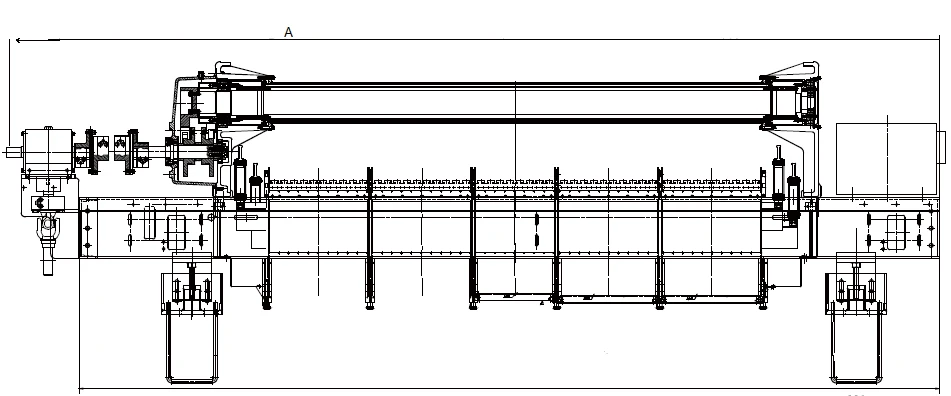

Type	LengthA(mm)	WidthB(mm)	HeightC(mm)	Weight(kg)
WMF1344B	1792	1030	1210	1500
WMF2688B	2074	1030	1210	1800
WMF3584B	2074	1030	1210	1800
WMF6144B	2298	1274	1280	3000

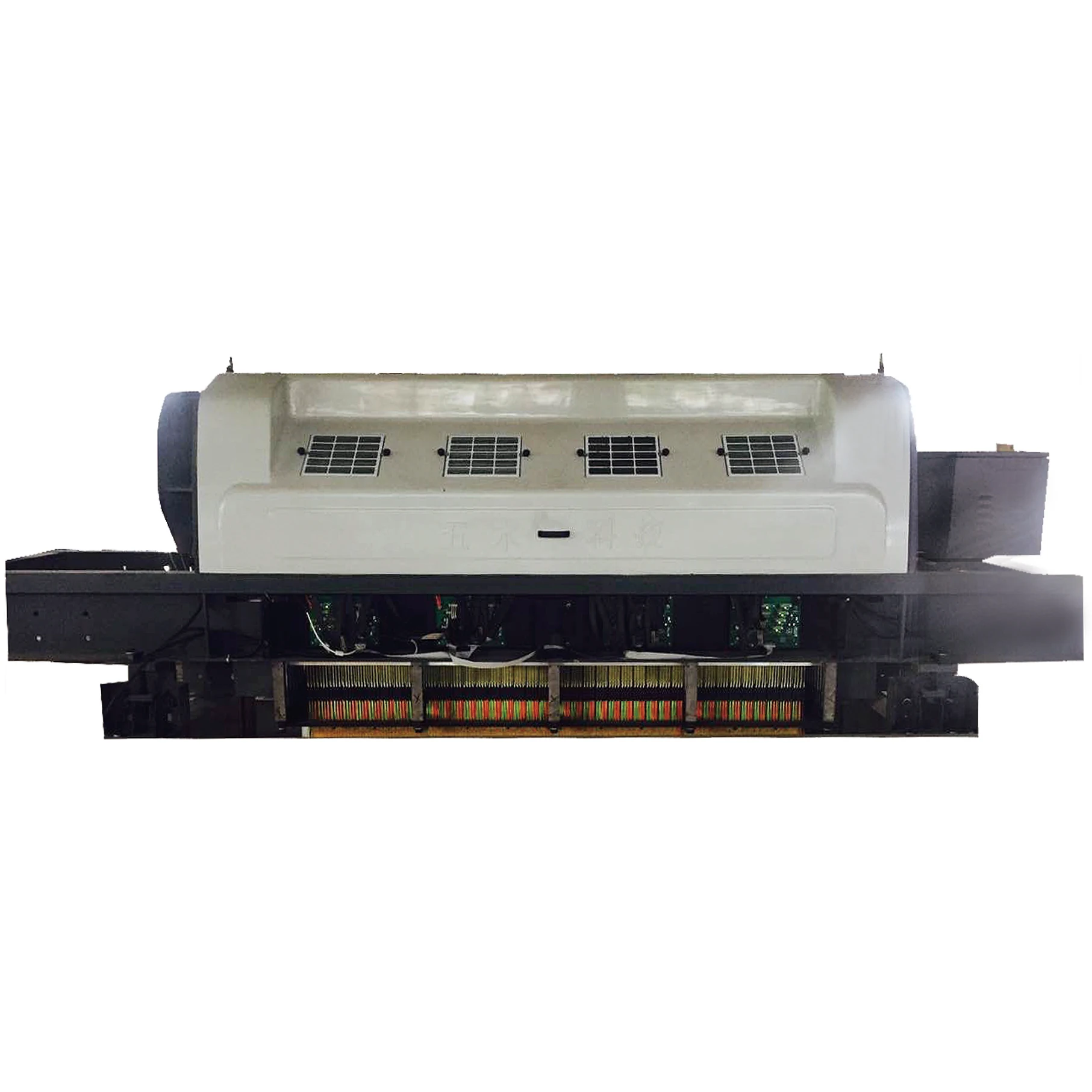

            Machine's Photo




 Exhibition
