500T full automatic aluminum die casting machine advantages :

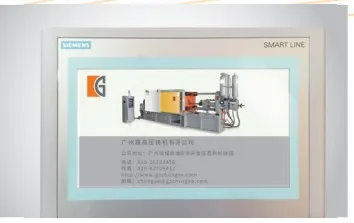

*Adopt Siemens PLC and electrical control sensor to make sure die locking, die adjusting, pressure of ejector and speed are all can be processed by numerical control. Dynamically display die opening, locking and injection, and operate at ease and convenience.
*Double pump and double proportional pressure & flow rate control are adopted for hydraulic system, and according to needs, high and low pressure work action can be proceed in one step by one step following a program sequence. It can not only reduce oil temperature lift up speed, but also save energy effectively.
*Special oil temperature sensor ,easy to monitor oil temperature tobe stable and low , make sure spare parts longer time.

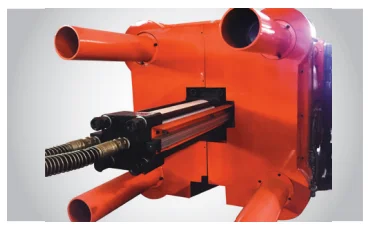

*Slow speed injection, fast speed injection classified into two steps and pressure increasing can all be adjusted independently, with stable pressure, fast injection pressure and no interference to each other! Especially at speedy injection, the injection fast with strength and excellent in performance.

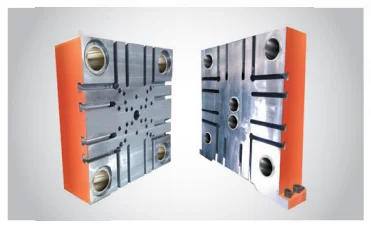

*First platen and second platen adopt cabin type structure , more reliable and more light .
*Adopt rod type structure ,more easy for maintenance. Multi injection position can be chosed for different molds.
*Reliable and durable hydraulic components of European and Japanese famous brand .

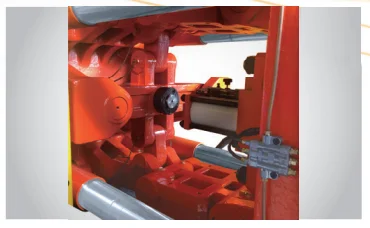

*Mold adjustment gear wheel with hydraulic type has stable transmission, convenient operation and precisely durable.
*The automatic lubrication system with type of integrated capacity has made every rotating pairs of machine hinge obtained good lubrication.
* The machine is even symmetric and beautiful in configuration, firm and strong. The safety door structure with unique design is adopted for door rail. The connections are tightly neat and firm, and hinging up type of installation is adopted for locking door hinge of machine, and it can be easily dismounted at cleaning and maintenance of machine.
*Water-cooling and plunger lubrication system ate equipped along with the machine, and to assist the whole machine to achieve reliable and safety production.
500T full automatic aluminum die casting machine specification:
Item
Unit
ZG-500
locking system
locking force
ton
500
tie-bar diameter
mm
140
space between tie-bar
mm
760*760
mold thickness
mm
320/800
die stroke
mm
480
shot position
mm
0/-220
injection system
plunger diameter
mm
70/80/90
injection stroke
mm
570
injection force
KN
210-500
casting weight
kg
4.1/5.4/6.9
casting area
cm2
285-1475
casting flange diameter
mm
150
over height of flange
mm
15
ejection system
ejection force
KN
260
ejection stroke
mm
130
hydraulic system
motor power
kw
30
electrical furnace power
kw
90
operation pressure
kg/cm2
145
oil tank capacity
L
1000
oil / gas furnace capacity
kg
600
Other
machine size
mm
7400*1850*2850
machine weight
ton
22
