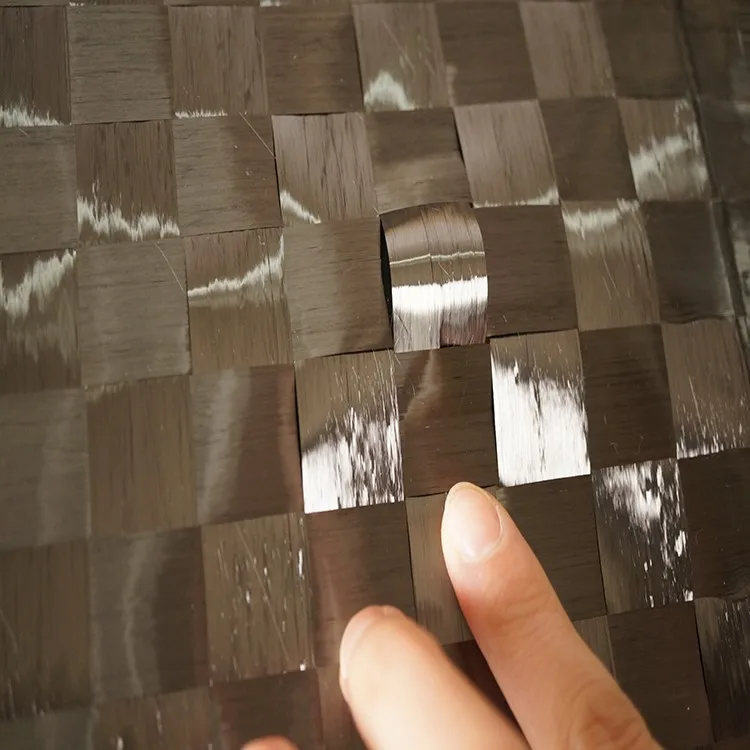

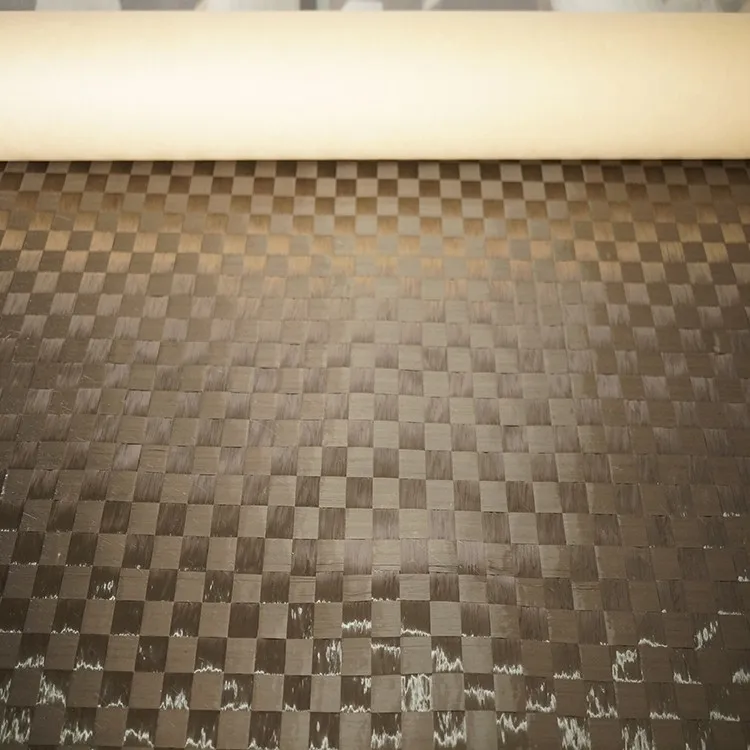

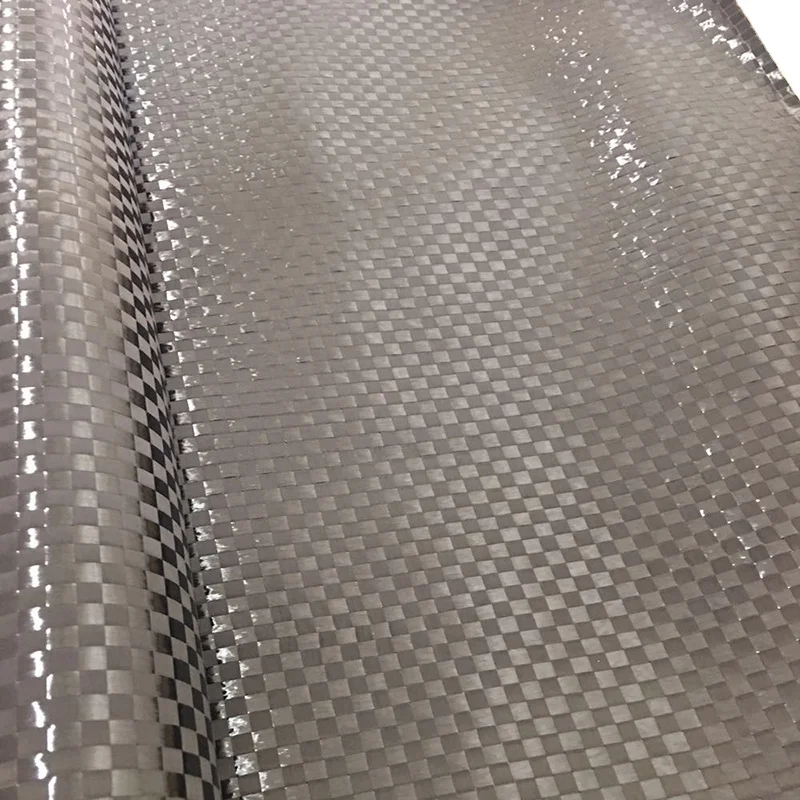

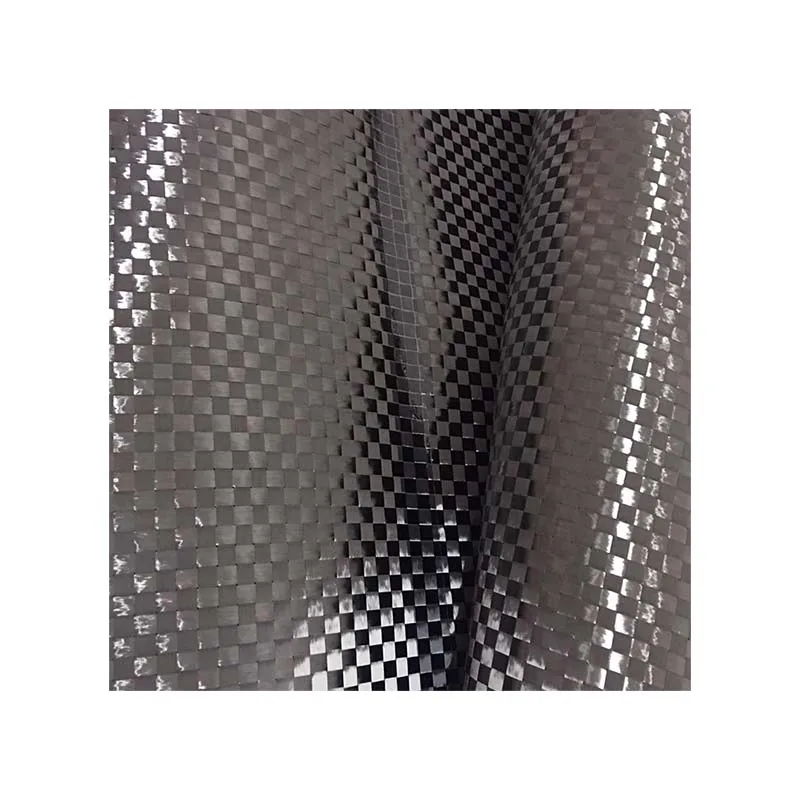

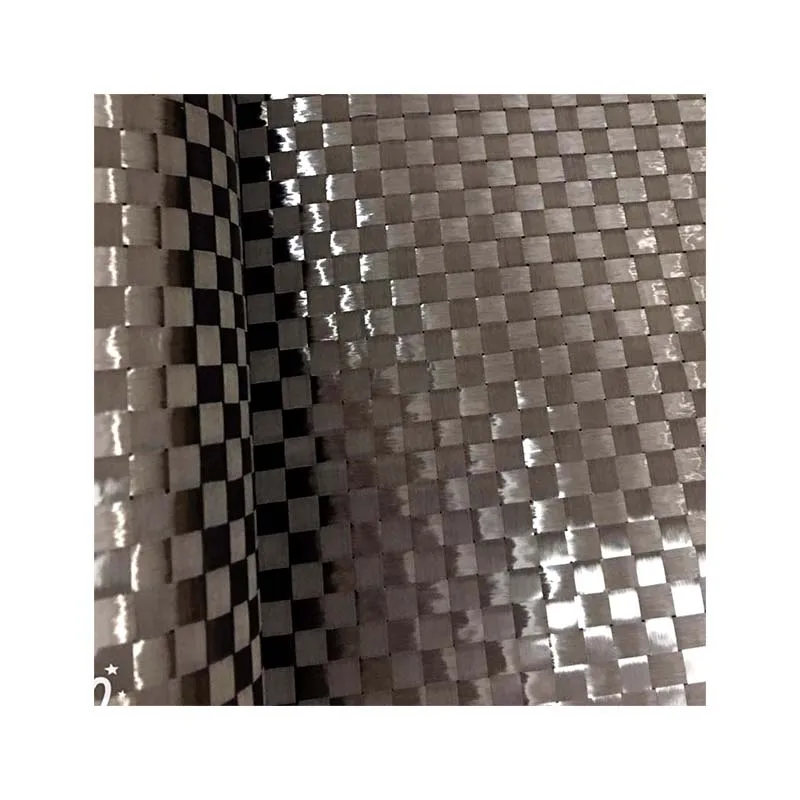

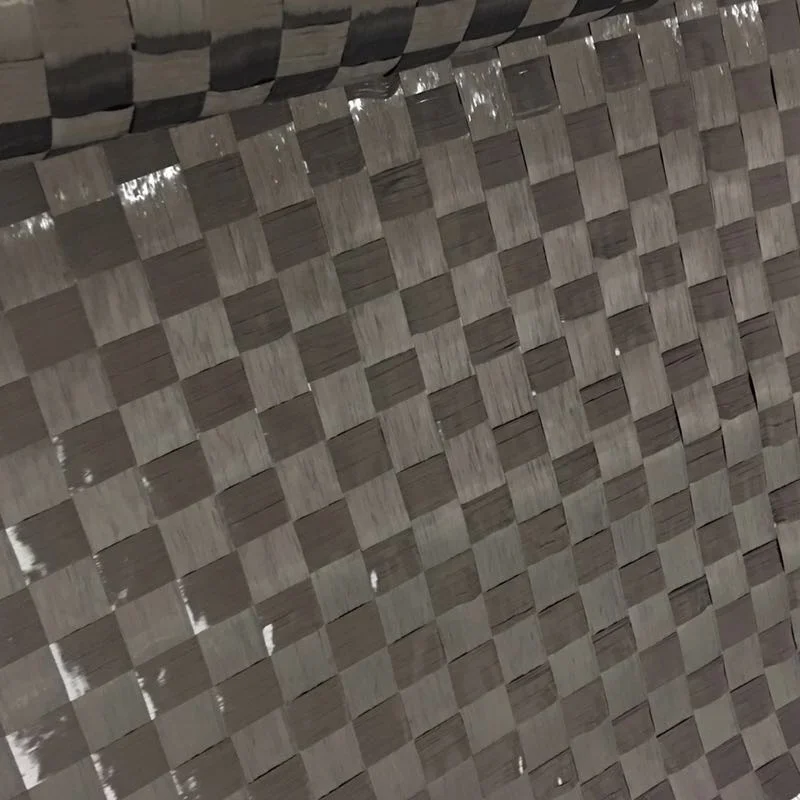

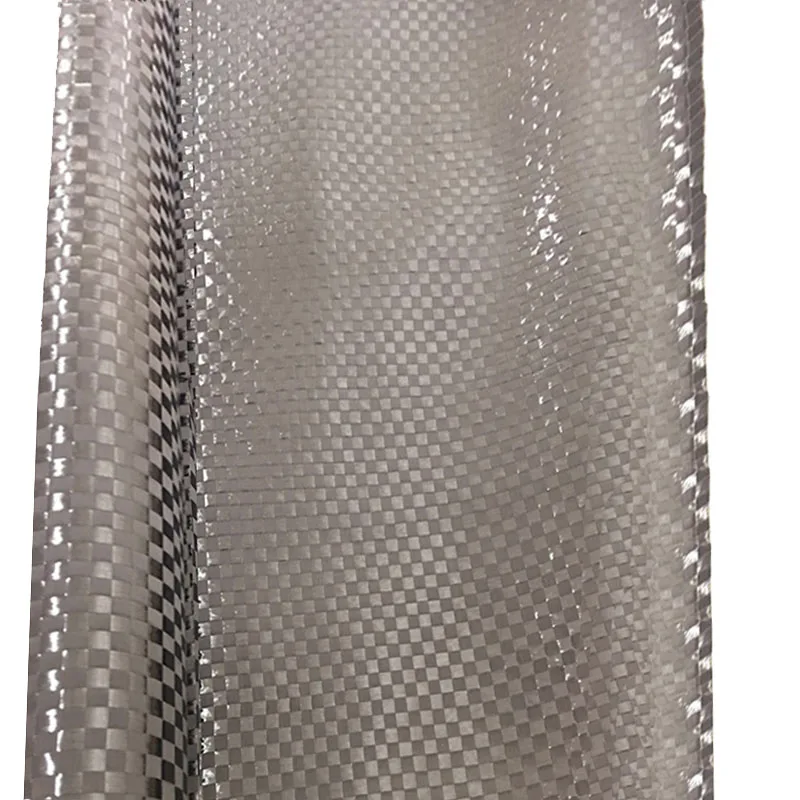

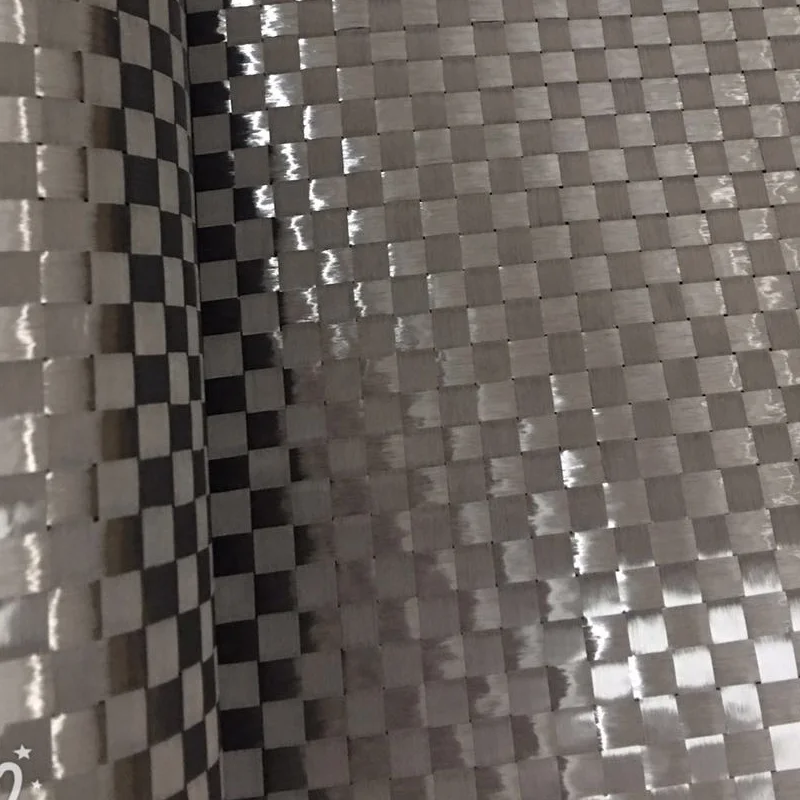

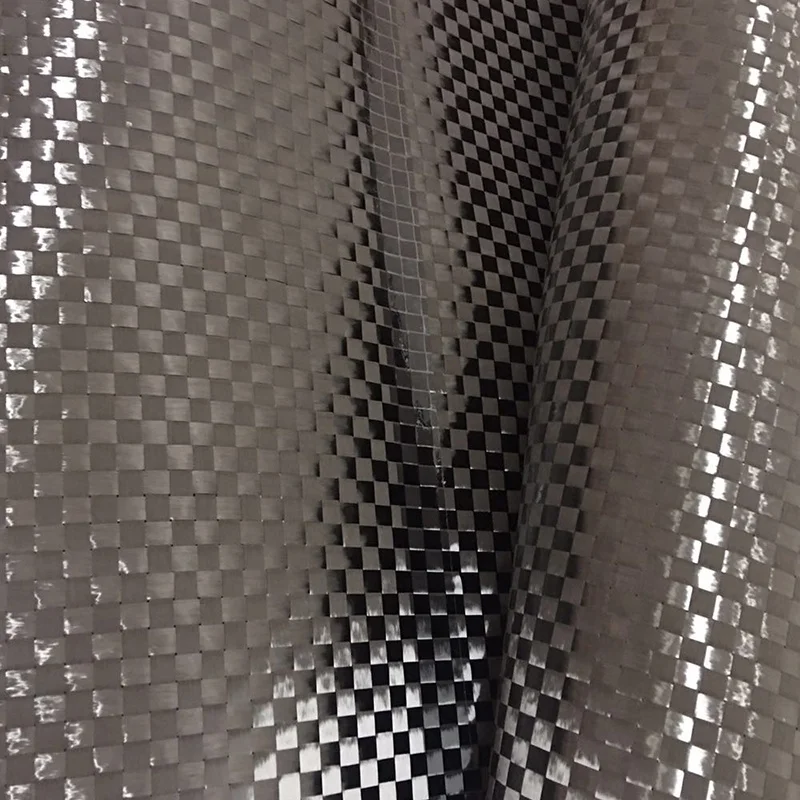

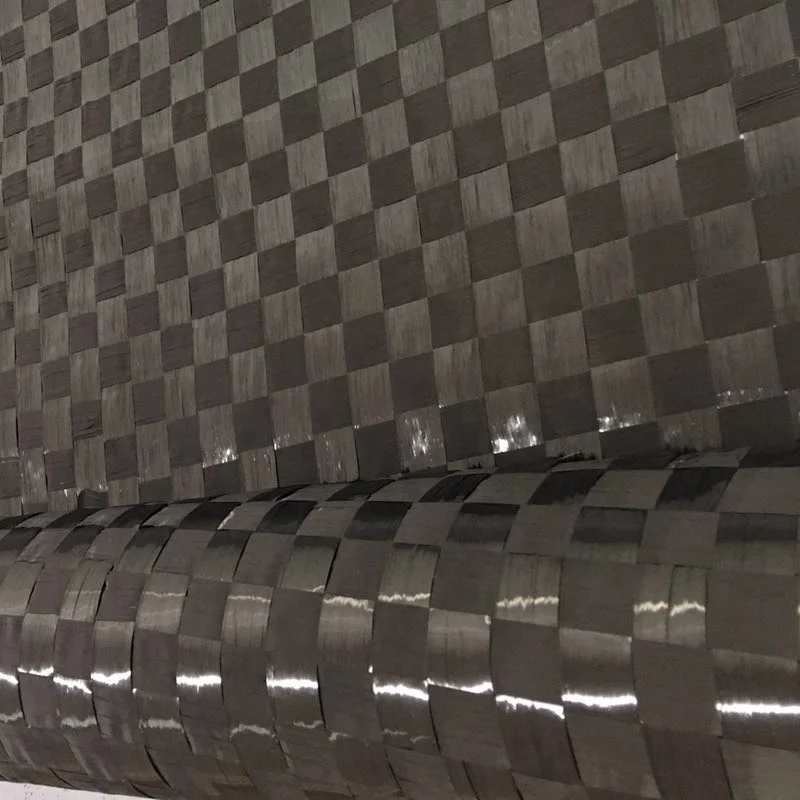

12k spread tow carbon fiber fabric cloth roll
- Category: Felt Fabric >>>
- Supplier: Yixing Huaheng High Performance Fiber Textile Co. Ltd.
Share on (60875643247):
Product Overview
Description
Characteristic:
Increase the carbon fiber density in a specific volume.
Reduce carbon fiber bending.Enhance the tensile strength and fiber density of carbon fiber composites.
The fabric is thin,flat and reduces the resin content in composite process thereby reducing the weight of the material.
It is 20% lighter than the traditional carbon fiber reinforced materials and have excellent surface polishability.
Fabric Type | Reinforcement Yarn | Fiber Count(1cm) | Weave | Width (mm) | Thickness(mm) | Weight (g/㎡) |
H12K-CP80 | T700S-12000 | 5*5 | Plain | 1000 | 0.08 | 80 |
H12K-CP100 | T700S-12000 | 6.25*6.25 | Plain | 1000 | 0.10 | 100 |
H12K-CP160 | T700S-12000 | 10*10 | Plain | 1000 | 0.16 | 160 |
H12K-CP200 | T700S-12000 | 12.5*12.5 | Plain | 1000 | 0.20 | 200 |
Item | Guideline | ||||||
Area weight | g/m2 | 80±2 | ≥2400 | 200±3 | |||
MAX load of warp direction | N/50mm | ≥2400 | ≥3300 | ≥3300 | |||
MAX load of weft direction | N/50mm | ≥2400 | ≥3300 | ≥5900 | |||

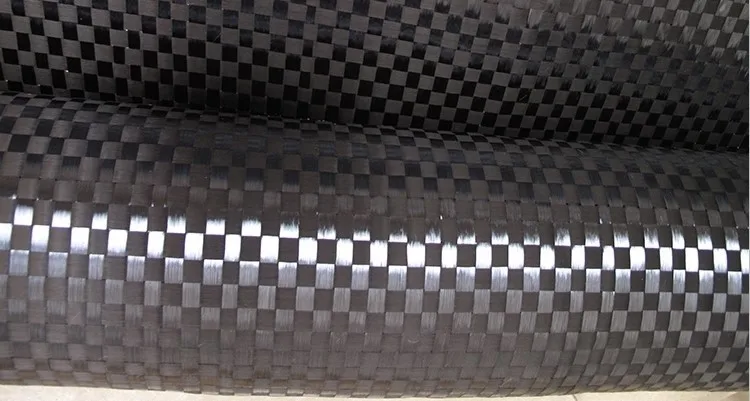

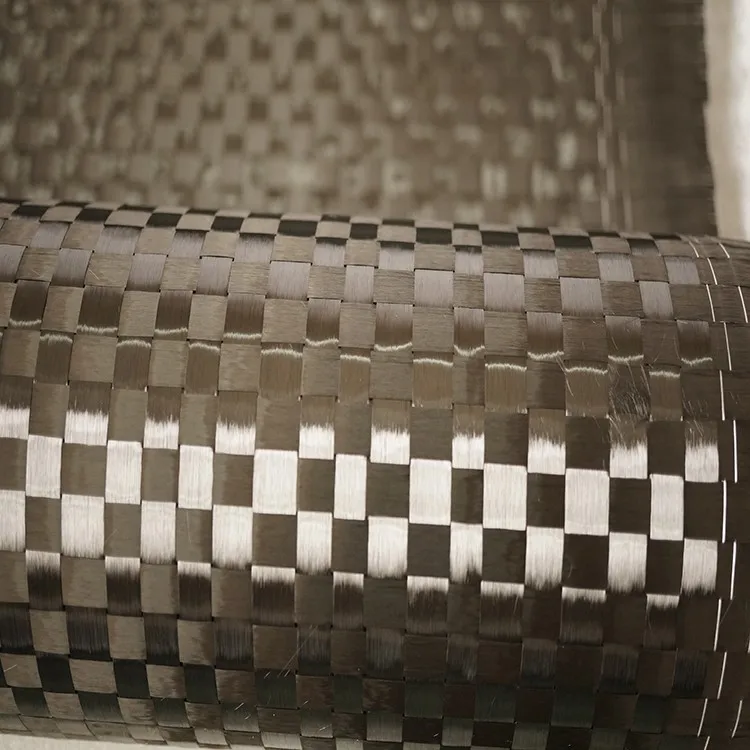

The color of the real product is pure black. Because of the angle light problem of the mobile phone shooting, the picture has color difference.
Carbon fiber UD fabric
Carbon fiber UD fabric
Carbon fiber reinforcement laminate
Carbon fiber reinforcement laminate
Carbon fiber reinforcement laminate
We will choose the most suitable express if your time is urgent or goods not so heavy.
We will ship goods by sea or by air if goods are heavy and deliver time is enough.
We will ship goods to your warehouse if you have your own freight company.
YIXING HUAHENG HIGH PERFORMANCE FIBER TEXTILE CO.,LTD
Our company founded in 2001,is professionally engaged in weaving, researching and developing each kind of fiber with high performance. The company mainly take the high strength composite material as the raw material, such as carbon fiber, aramid fiber,basalt fiber,glass fiber.HSHMPE fiber,PBO and so on to weave the composite product.
At the same time,the company has applied for 3 patents for the aboved research and also has past the reliable quality guarantee system,such as ISO9001,2000quality systems authentication.
Since 2009 the company developed five major categories of fiber-reinforced composite products:
1.COMPSPEED Kevlar fabric ,basalt fiber fabric,high strength and high modulus polyethylence fiber fabric.
2.COMPSPEED carbon fiber fabric prepreg,glass fiber fabric prepreg
3.COMPSPEED carbon fiber bicycle parts,carbon fiber motorcycle parts,carbon fiber car parts,carbon fiber sword,carbon fiber composite core,carbon fiber molded products,carbon fiber laptop case,carbon fiber laptop cooling pad
4.COMPSPEED FRP fiberglass,CFRP carbon fiber tubes,carbon fiber kite skeleton,carbon fiber mosquito nets rod,carbon fiber composite core,carbon fiber hamess frames,blinds fiberglass,carbon fiber rod.
5.COMPSPEED carbon fiber composite guide rollers,carbon fiber high-speed printing rollers, golf clubs,carbon fiber trekking poles,carbon fiber ski poles,carbon fiber walking poles (WALKING STICK)
In june 2010,we made cooperation with national technology and research organization, developed the 3D textiles till now we have authorized 2 invention patents and 16 new Utility Patents.
We have professional factories and equipment.There is a certain amount of inventory in warehouse, so we can guarantee fast delivery.
+ Several years production and processing experiences
+ Precision machining tolerances
+ Delivery Date Guarantee
+ 100% factory price
