Lab Scale Laboratory Grinding Milcronizing Jet Mill
- Category: >>>
- Supplier: Shandong Alpa Powder Technology Co. Ltd.
Share on (60875683245):
Product Overview
Description
Product details

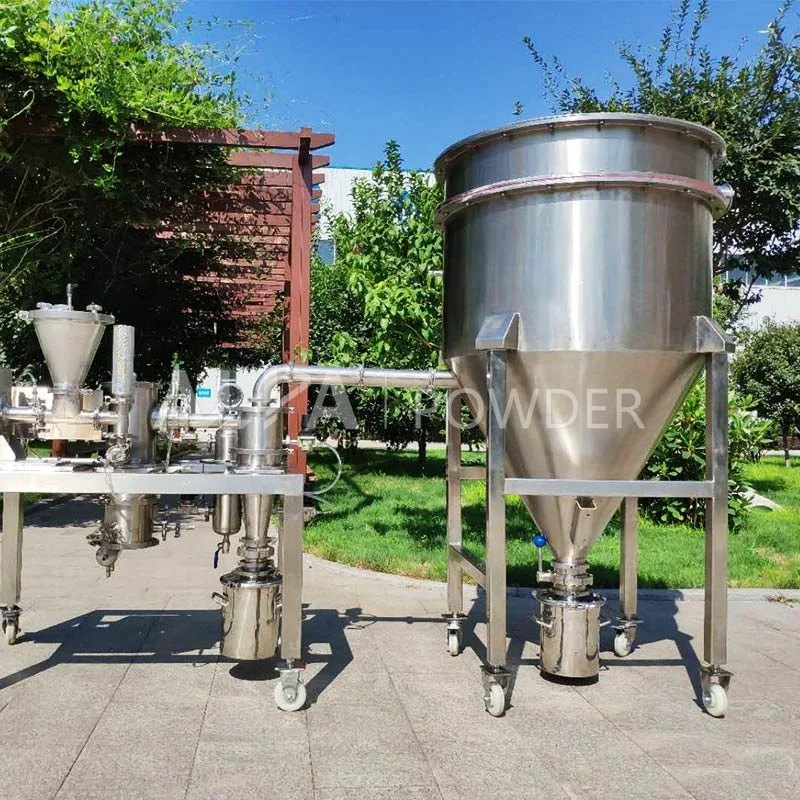

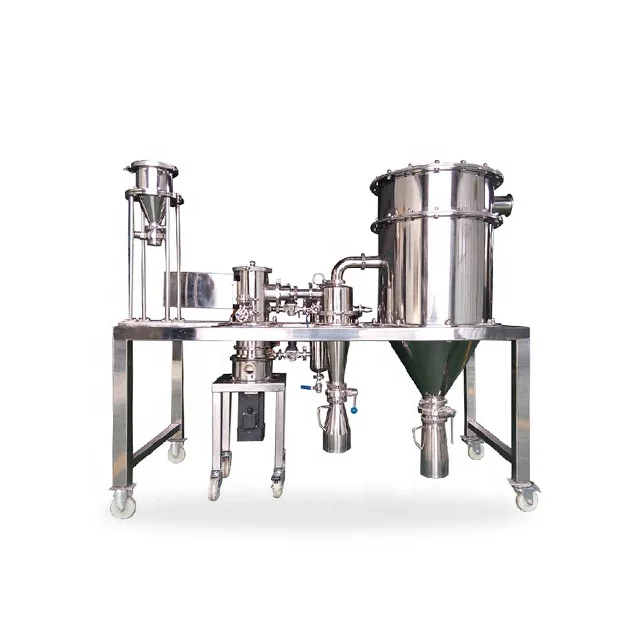

Lab Scale Laboratory Grinding Milcronizing Jet Mill
FEATURES AND ADVANTAGES
▶Available D50:1.5～45μm.
▶Jet mill, air classifier and impact mill are integrated into a whole machine body .
▶Compact structure, easy operation for transferring one function into another function.
▶Inert gas is available for protection, high safety guarantee.
▶High efficiency hermetic structure
▶Horizontal high-speed classifying wheel up to 18,000 rpm
▶Mobile mechanical grinding unit are convenient for disassembly and assembly.
▶Dimensions (length, width, height) 1580x920x1470mm, small grinding area, easy to operate
▶Can be applied to a variety of grinding processes.
▶Especially suitable for R&D and testing of new products in research institutes, universities laboratory, research institutes and factory laboratories.
▶Grinding is completed in closed system, little dust, low noise in a clean and environmentally friendly process.
▶PLC control system, easy operation.
▶Inert gas circulation atmosphere, powder classification of flammable and explosive materials
▶High-precision filter material can be selected with a filtration accuracy of 0.1μm and 99.99 capture

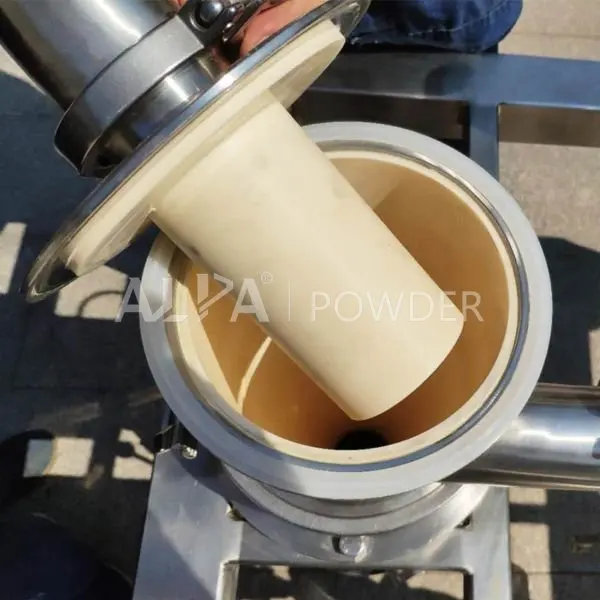

▶The inner liner can be made of alumina, which is resistant to abrasion and less pollution.
▶Key parts are fully ceramic to keep the product free from metal contamination.
Woking principle
WORKING PRINCIPLE

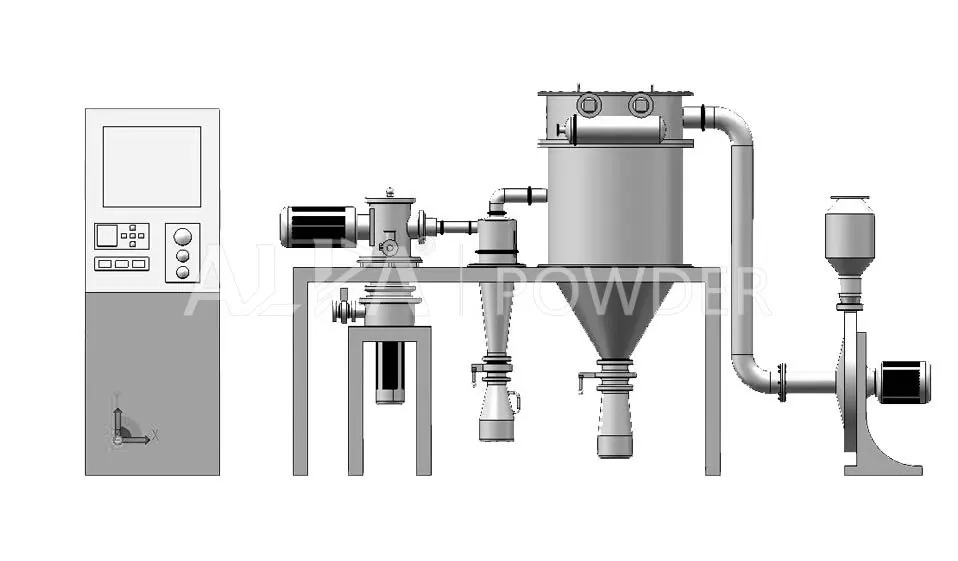

Material enter jet mill (mechanical mill) by automatic feeding system, the particle is separated by high-speed rotating classifier impeller, the qualified powders are collected into cyclone collector, coarse particles are returned to grinding zone.
If need to classify the materials separately, adjust impeller speed through frequency converter to achieve classifying different particle sizes.
Company Profile
Shandong ALPA Powder Technology Co., Ltd.
(abbreviation: ALPA / Equity Code: 171033)
THE WORLD’S LEADING SUPPLIER OF
ULTRA-FINE POWDER SOLUTIONS
ULTRA-FINE POWDER SOLUTIONS
ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
In the fields of ultrafine grinding and classification in the food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Why Choose Us
WHO CHOOSE US
Common choice of many well-known companies
37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and
engineering technology research centers have selected ALPA.
More than 3,000 customers have chosen us
FAQ
Q: What service do you supply?
A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
