Product Overview
Description

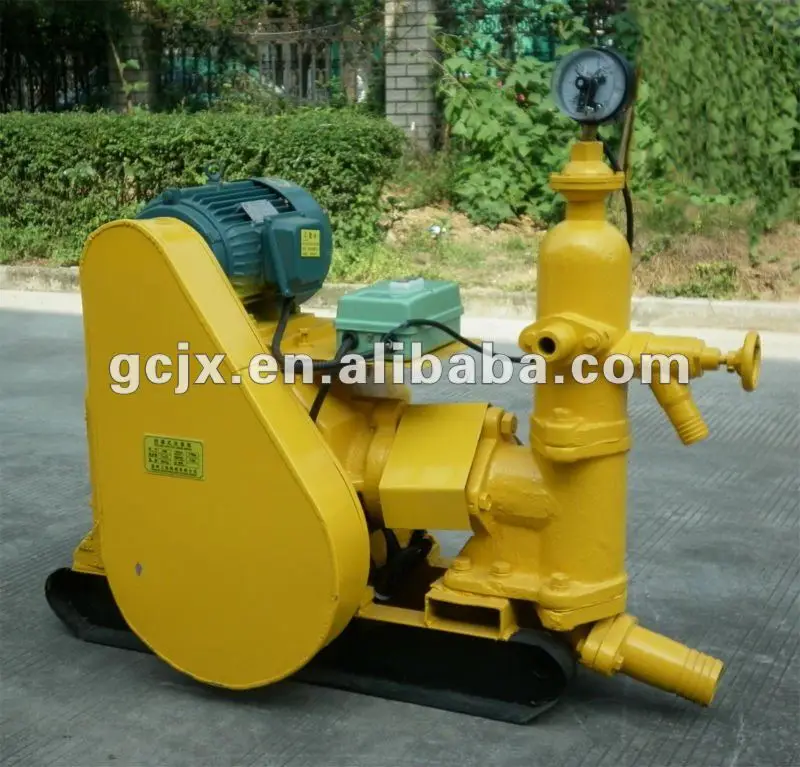

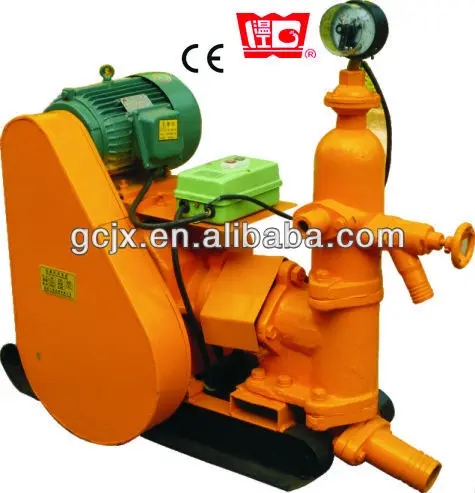

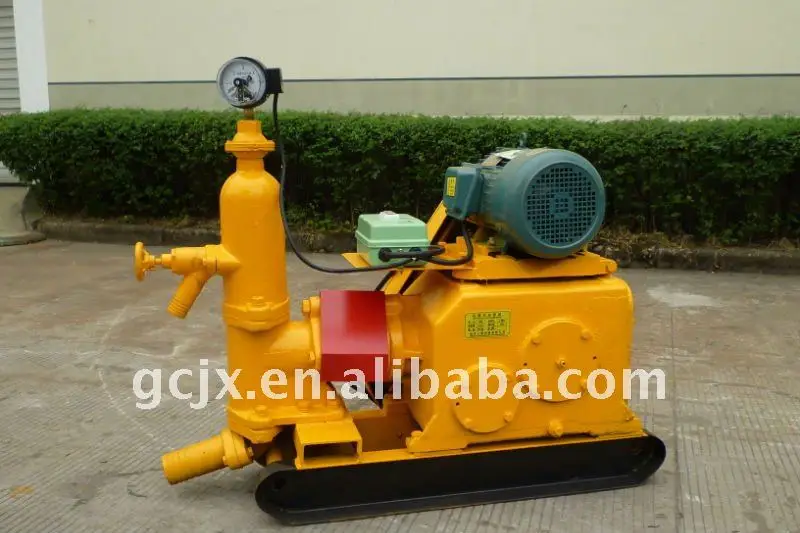

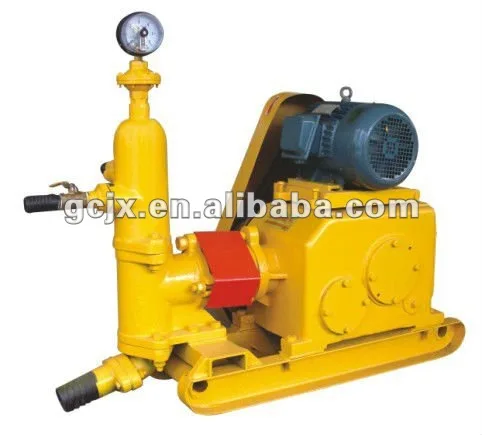

UB3 ball valve grout pumps
UB series and 3SNS piston mortar pump have features of high pressure, large flow, stable working. They're applied to conveying and plastering various kinds of features and uses of different dry ready-mixed mortar, including various special mortars, gypsum mortar. They're also used for pressure grouting cement slurry and cement mortar.
2UB5 and 3SNS piston mortar pump have strong power, smooth pumping, small abrasion, wide range of applications. They’re applicable for on-site mixing mortar, ready-mixed dry mortar, adhesive mortar, thermal insulation mortar, fireproof mortar, floor surface mortar, self-leveling mortar construction. They're widely used in the dam foundation curtain grouting, slope anchor grouting, holes grouting in tunnel and underground project pile, soil nail wall (circumference slope).
Technical parameters
| Model | UB3 |
| Output | 50L/min |
| Theoretical Dlivery Height | 0-40m |
| Theoretical Dlivery Distance | 0-80m |
| Main Motor Power | 4kw |
| ID of entry pipe | 64mm |
| ID of exit pipe | 38mm |
| Working Pressure | 2Mpa |
| Piston qty | 1pc |
| Net Weight | 250kg |
| Dimension | 1033×474×940mm |
