Product Overview

Description

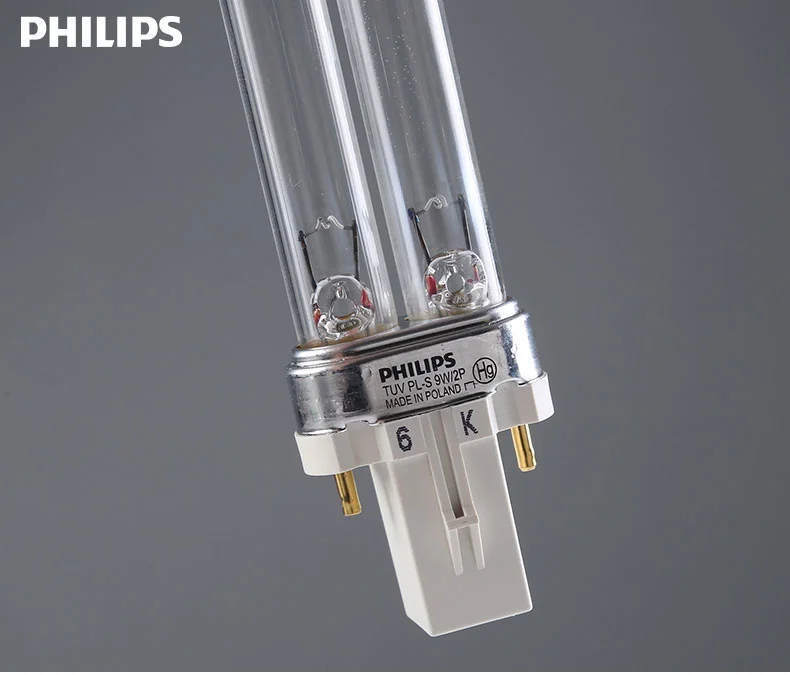

Philips TUV PL-S

Philips TUV PL-S lamps are compact UVC (germicidal) lamps used in residential
water and air disinfection units. The compact size of the lamp allows for a
small system design and design flexibility. Philips TUV PL-S lamps offer almost
constant UV output over their complete lifetime, for maximum security of
disinfection and high system efficacy. Thanks to the single-ended lamp base,
lamp replacement is easy.



Main applications

• Deactivation of bacteria, viruses


• and other micro-organisms


• Residential drinking water units


• Pond water units


• Air treatment units


• Stand-alone purifiers



Technical data

Type	Cap- Base	Wattage (W)	Voltage (V)	UVC 100 (h)	Lamp Current (A)	Lamp Current (A)	Packaging type	Packaging configuration
TUV PL-S 5W/2P	G23	5.5	35	1.0	0.180	9000	1CT	6x10 BOX
TUV PL-S 5W/4P	2G7	5.1	27	1.0	0.190	9000	1CT	5x10 CC
TUV PL-S 7W/2P	G23	7.1	46	1.6	0.175	9000	UNP	5x10 CC
TUV PL-S 7W/4P	2G7	7.0	37	1.6	0.190	9000	1CT	5x10 CC
TUV PL-S 9W/2P	G23	9.0	60	2.4	0.170	9000	1CT	6x10 BOX
TUV PL-S 9W/4P	2G7	8.6	60	2.4	0.170	9000	1CT	6x10 BOX
TUV PL-S 11W/2P	G23	11.0	89	3.6	3.6	9000	1CT	6x10 BOX
TUV PL-S 13W/2P	GX23	13.0	56	3.4	0.290	9000	1CT	6x10 BOX
