 SADT HARTIP 1800B Pen Hardness Tester

Product Description



HARTIP1800Bis an advanced state-of-the-art palm sized metal hardness tester with many new features.

Using our patent technology, SADT HARTIP1800B is a new generation product. It has high accuracy:+/-2 HL (or 0.3% @HL800) with high contract OLED display and wide environment temperature(-40.C~70.C). Apart from huge memories in 400 blocks with 360k data, HARTIP1800B can download measuring data to PC . The battery can be charged simply from USB port, also it has a customer re-calibration and statistics function.

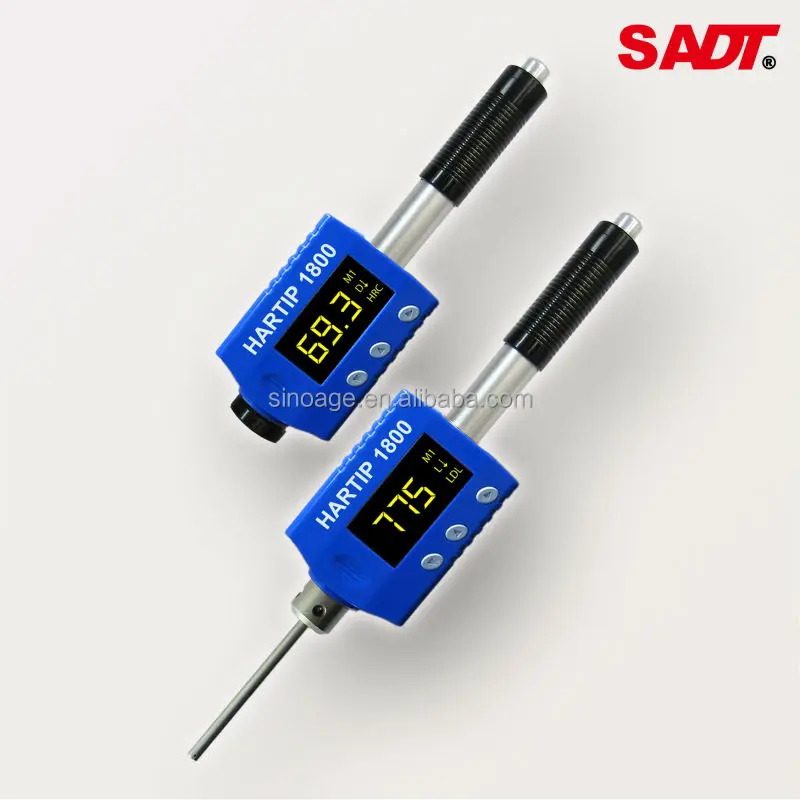

HARTIP1800B D&DL is equipped with two-in-one probe. With unique two-in-one probe, HARTIP1800B D&DL can convert between probe D and probe DL simply by changing impact body. It’s more economic than buying them individually. It has the same

configuration with HARTIP1800 except two-in-one probe. HARTIP1800 D&DL equipped with two-in-one probe. With unique two-in-one probe, HARTIP1800 D&DL can convert between probe D and probe DL simply by changing impact body. It’s more economic than buying them individually. It has the same configuration with HARTIP1800 except two-in-one probe.



HARTIP1800B is a basic model for HARTIP1800. With most of core functions of HARTIP1800 and lower price, HARTIP1800B is a good choice for the customer who has the limited budget. HARTIP1800B also can be equipped with our unique D/DL two-in-one impact device.







KEY FEATURES

  • Integrated design , easy operation
  • High accuracy – +/-0.3% @ HL=800 / Repeatability: +/-2HL
  • \u008FWide operating environment: – -40~+70°C
  • Digital with high contrast OLED display
  • 4000 data memory in 4 blocks, data can be recalled easily
  • RS232 and blue tooth inter face, it can connec t microprinter directly by cable or wireless (Bluetooth is an option)
  • 3.7 V Li-ion rechargeable battery , it can be charged by USB or power source
  • With strength conversion value
  • Re- calibration allowed by user
  • Power on/off automatically
  • 10 languages are optional: Chinese,English,Traditional Chinese, Russian, German,French, Italian, Turkish, Spanish,Korean

SPECIFICATIONS

Model

HARTIP 1800B Durometer

Principle

Leeb hardness measurement

Accuracy

+/-2HL(0.3%@HL=800)

Display

digital with high contrast LED

Hardness scale

HL/HRC/HRB/HB/HV/HS/HRA/σb

Measruing range

HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 / σb(rm)255-2639N/mm2

Impact device

D (Internal)

Materials

10 common metal materials

Memory

4,000 data

Statistics function

Average / Max. / Min.

Recalibration

Allowed by user

Interface
           USB for data transferring to PC and charging battery
Indicator

Low battery

Power on/off

Auto

Power supply
                              3.7v Li-ion rechargeable battery
Working environment

-40~+70°C

Standards
Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
Dimension (mm)

148x44x22

Net weight (g)

110
