CE approved access control gate turnstile flap barrier

Product Overview

Description

CE approved access control gate turnstile flap barrier



Specification for turnstile flap barrier:

Size	1200×280×1000<mm>
Housing Material	2mm 304 Grade stainless steel
G.W.	about 150kg
Passage Width	600mm
Power supply	220/110VAC±20%,50HZ
Power consumption	about 260W
Working temperature	-15°c ~75°c
Working humidity	20% ~95% non-condensing
Service Life	above 5 million continuous opening and closing operation
Passage efficiency	30-40 persons/minute
Display type	6.4" LCD with audio
Card reader	1D & 2D Barcode, RFID card or magnetic card
Interface	TCP/IP or RS232/485 or dry contactor

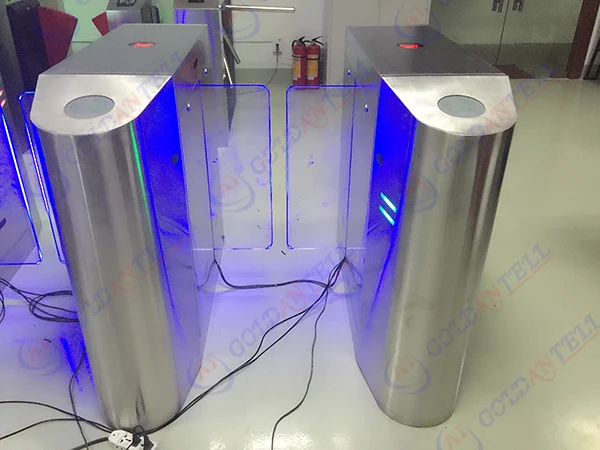

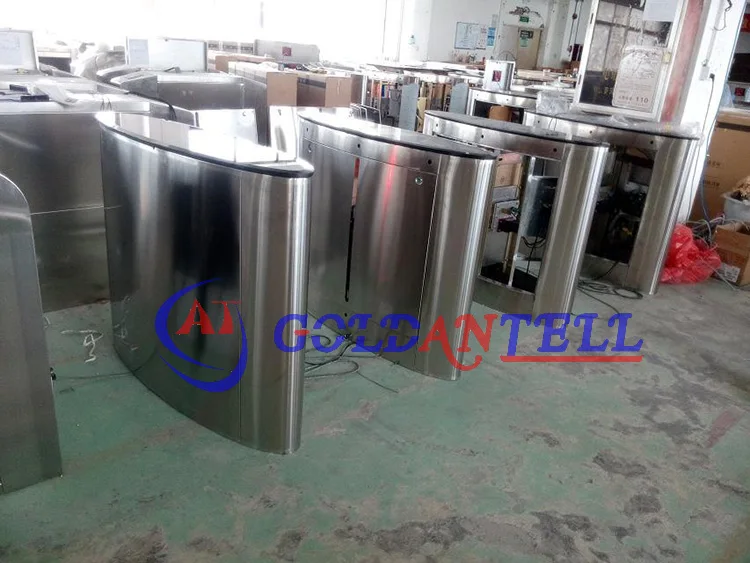

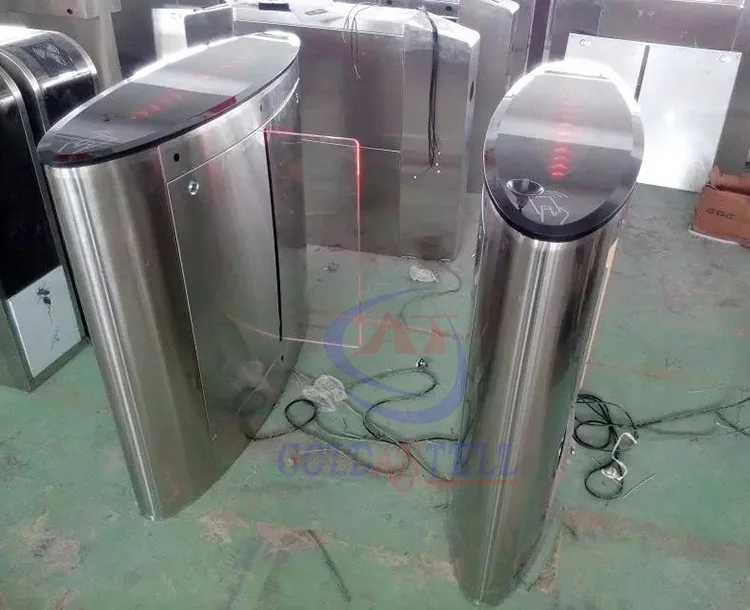

Detailed Photos

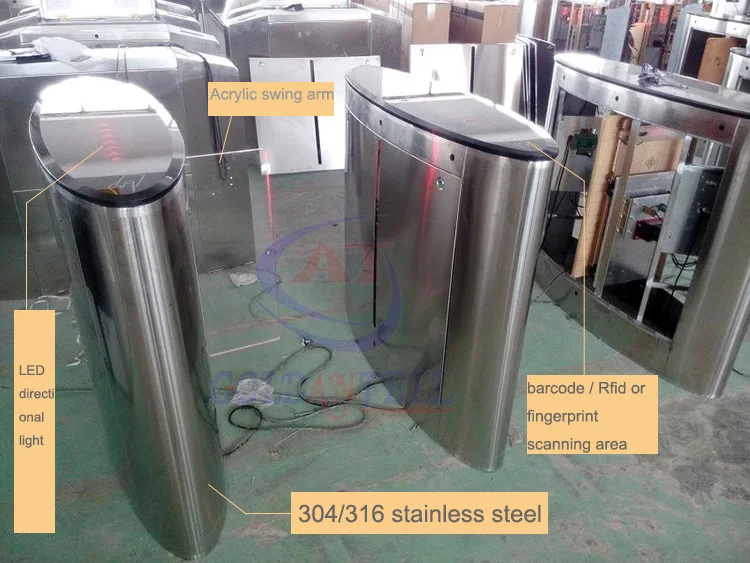

Turnstile flap barrier function and features:

Materials: 304 stainless steel (standard) or Painted Steel

Flap wing: Acrylic glass (standard), or Resin, or PVC

Dimension: L1200*W280*H1000 (mm)

Flap wing:  285mm (length), 18mm (thickness)

Net weight: 150Kg/unit

Standard passage width: 550mm

Power supply: 220V, or 240V, or 110V    50Hz, or 60Hz

Motor: DC24V

Communication interface: RS485(distance less than 1200metres)

Input interface: Dry contact signal or 12V level signal or DC12V pulse signal

Driving current: > 10mA

Normal life-span: 3million times

Transit speed: 30-40 persons/min

Open/Close time: 1 second

Starting time after power is on: 3 seconds

Automatic reset time after fault: 10seconds

Working environment: Indoor, outdoor (with a tent over)

Temperature: -15°C-75°C

Relative humidity: ≤95% no condensation

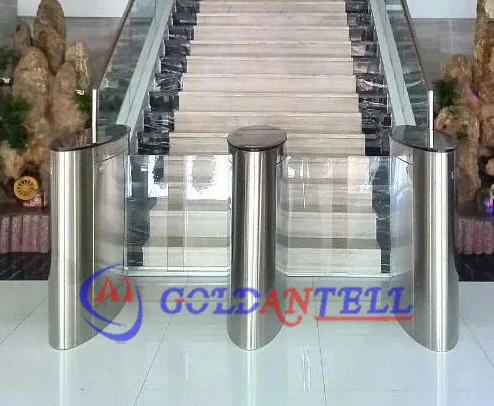

Project of flap barrier gate:





Who we are?



Our Shenzhen Goldantell Technologies Co., Ltd is a leading exporter and supply chain service provider of  intelligent turnstile and parking management products with more than 8 years’ experience.

Our main products include intelligent turnstiles, parking barrier, RFID card, sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.

Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.



Our certificate:





Where are our customers?

We have sold turnstiles to more than 50 countries ,like Brazil, Chile, Pure, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, German, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar and so on. We like to show some of our Customers as below:



Trade Term:

1. This offer is valid with 30 days.

2. Delivery time: Within 7 days after receive the payment.

3. Item of payment: T/T, LC, Western Union, Escrow, PayPal total payment before delivery.

4. Carton box + wooden case/crate.



Delivery detail:

1. When ship by sea, it normally takes 15-60 days depend on different countries;

2. We ship goods by UPS/DHL/FEDEX/TNT express which is door to door, it normally takes 3~ 5 days to arrive;

3. We can also help you ship by air cargo, it takes about 2-7 days to arrive;

No matter what delivery way, depending on your actual requirements.



Our services:

1. For all your inquires about us or our turnstiles, we will reply you in detail within 24 hours.

2. We own well-trained and passional sales & after- sale services who can speak fluent English language.

3. We offer OEM services. Can print your own logo on turnstile, can customize the retail box packing and other things.

4. We have very experienced engineers, can help you better use turnstiles.



Goldantell turnstiles, factory price, high quality, welcome your inquiry!
